Battery mounting battery — Mk3 Golf Battery (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Battery mounting. Battery

Generation: Mk3 1997 (RDW) Group: Battery Parts: 26 Primary OEM: JZW 915 105 E, 7D0 915 105 A, JZW 915 105 C

Battery mounting battery for the Volkswagen Golf Mk3 (1997): factory exploded diagram 915010 from the Volkswagen ETKA parts catalogue, group 18 Battery, listing 26 OEM part numbers including JZW 915 105 E, 7D0 915 105 A and JZW 915 105 C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 26 numbered positions.

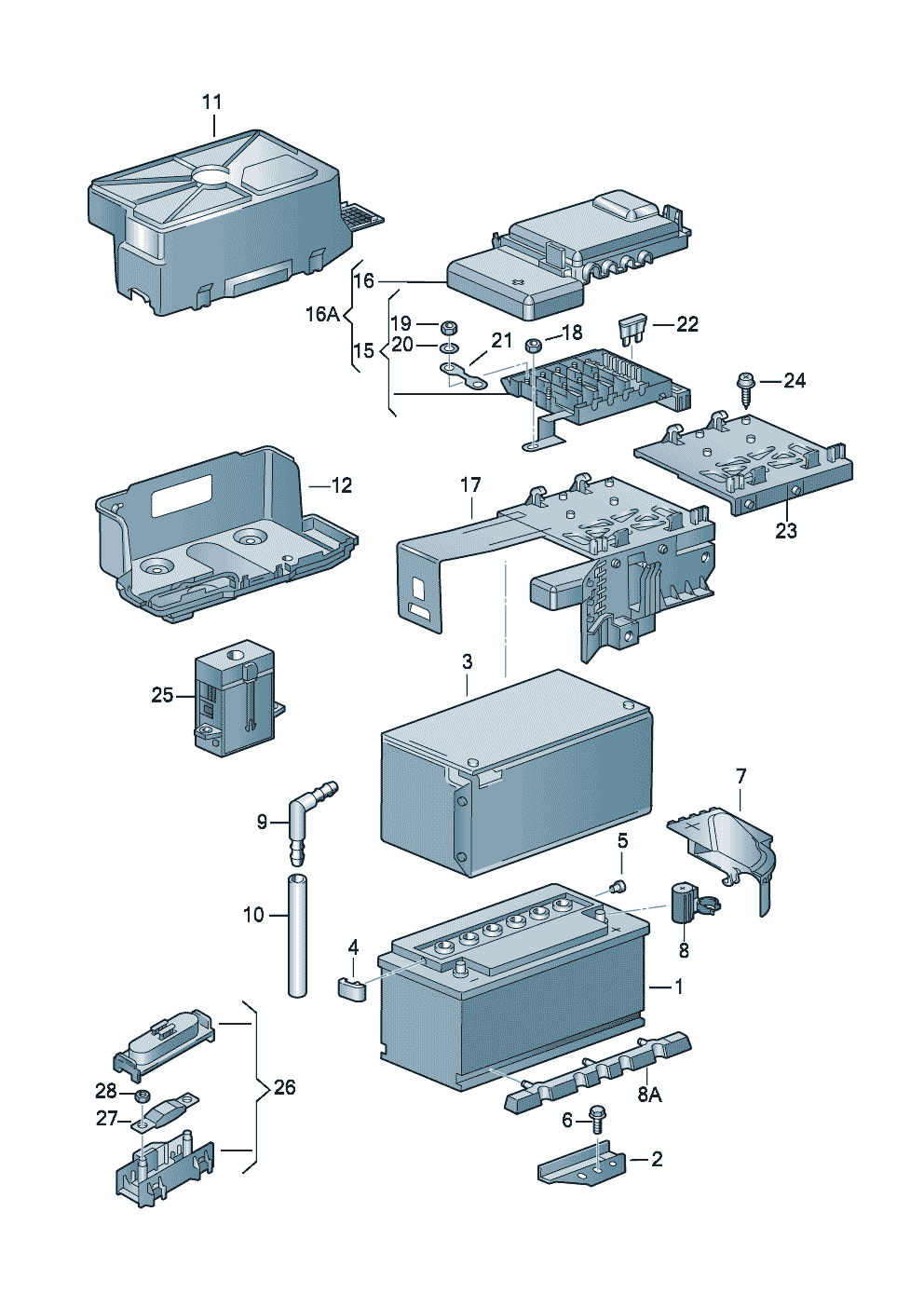

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Battery with state of chargedisplay, full andcharged 'ECO'Economy 95 AH/420 A 95 AH/420 A	JZW 915 105 E
(1)	Battery 92 AH/450 A 92 AH/450 A	7D0 915 105 A
(1)	Battery with state of chargedisplay, full andcharged 'ECO'Economy 44 AH/200 A 44 AH/200 A	JZW 915 105 C
(1)	battery with charge stateindicator, filled and charged 60 AH/280 A 60 AH/280 A	000 915 105 AC
(1)	Battery 60 AH/280 A 60 AH/280 A	1H0 915 105 G
(1)	battery with charge stateindicator, filled and charged 61 AH/330 A 61 AH/330 A	000 915 105 DE
(1)	Battery with state of chargedisplay, full andcharged 'ECO'Economy 61 AH/300 A 61 AH/300 A	JZW 915 105
(1)	Battery 61 AH/330 A 61 AH/330 A	867 915 105 C
(1)	Battery 72 AH/380 A 72 AH/380 A	1H0 915 105 C
(1)	Battery 88 AH/395 A 88 AH/395 A	357 915 105 B
(1)	battery with charge stateindicator, filled and charged 72 AH/380 A 72 AH/380 A	000 915 105 DG
(1)	battery with charge stateindicator, filled and charged 72 AH/380 A 72 AH/380 A	000 915 105 AF
(1)	Battery with state of chargedisplay, full andcharged 'ECO'Economy 72 AH/350 A 72 AH/350 A	JZW 915 105 A
(1)	Battery 72 AH/380 A 72 AH/380 A	7D0 915 105 C
(1)	battery with charge stateindicator, filled and charged 95 AH/450 A 95 AH/450 A	000 915 105 AH
(7)	Guide pieceterminal clamp 92 AH 92 AH	1H0 971 862 C
1	battery with charge stateindicator, filled and charged 44 AH/220 A 44 AH/220 A	000 915 105 AB
1	Battery 44 AH/220 A 44 AH/220 A	1H0 915 105 F
2	clamping strip for battery	6X0 959 502
2	clamping strip for battery	1H0 803 219
3	battery protection cover 60/61 AH 60/61 AH	1H0 915 411 C
4	ventilation union	191 915 505
5	Bungs	251 915 505
6	Hex collared bolt M 8 X 25 M 8 X 25	N 019 530 3
7	Guide pieceterminal clamp 44-72 AH 44-72 AH	1H0 971 862 B
8A	adapter strip for battery	000 915 413
