Workshop Library
Reference PDFs, the Type 19 app, and downloadable workshop tools. Built for the bench.
Parts catalogues, torque references and art — choose a section.

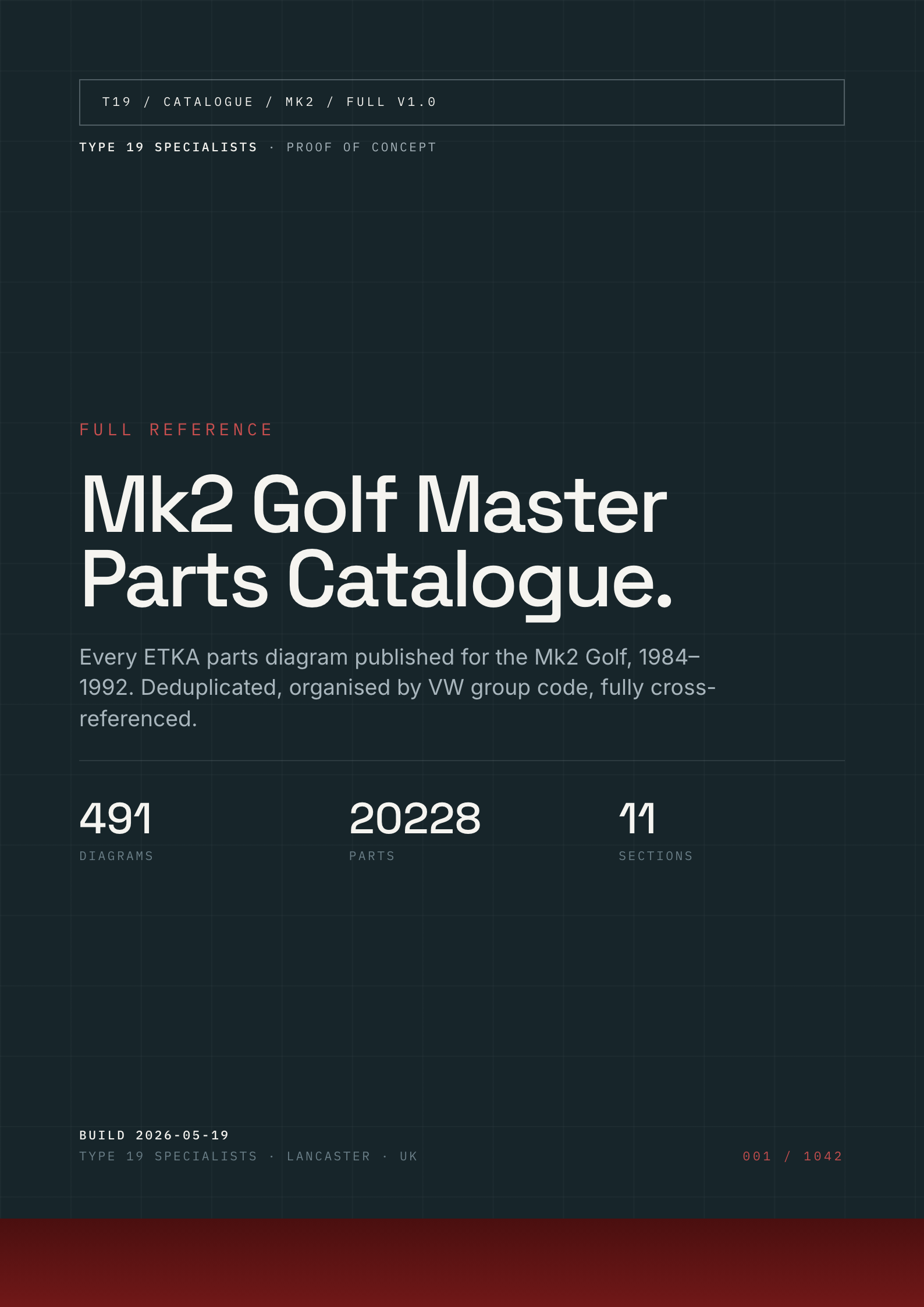

VW Master Parts Catalogues
The complete factory parts catalogue for the water-cooled and aircooled range — Mk1 to Mk7.5 Golf, the Mk1 Cabriolet, Jetta, Scirocco and Caddy, Passat B5, Corrado, Beetle and T2 Bay Window. Every diagram, every OEM number.
Audi Master Parts Catalogues
The complete factory parts catalogue for the B5 A4 and C5 A6 — S4, RS4, allroad, S6 and RS6 included. Every diagram, every OEM number.

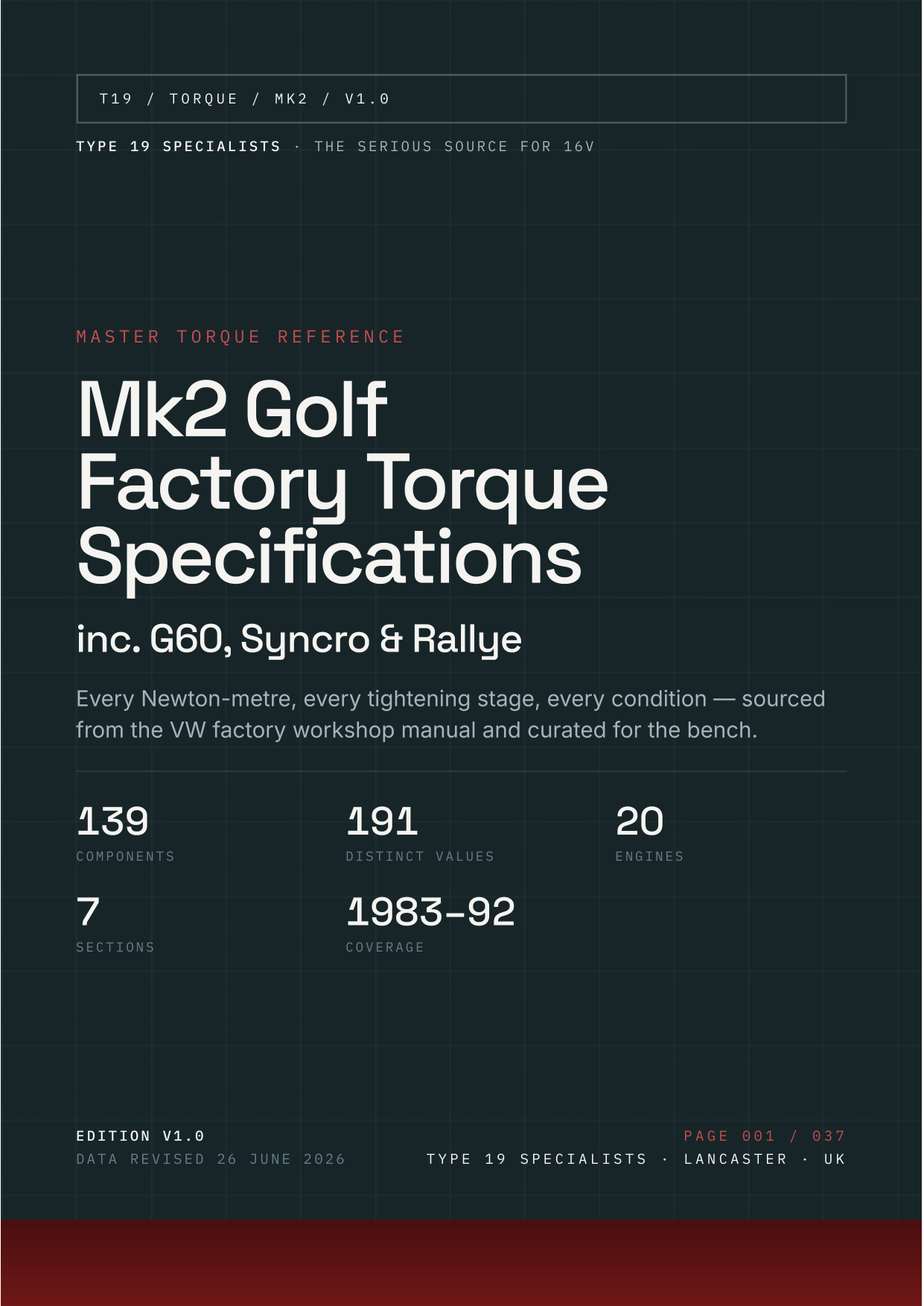

VW Torque
Every factory torque figure for your engine — pocket workshop references, per model. Mk1 to Mk6 Golf, Passat B5, Corrado, Beetle and T2.
Audi Torque
Every factory torque figure for the B5 A4 and C5 A6 — S4, RS4, allroad, S6 and RS6 included. Engine-code map, tightening stages and glossary.
Master Engine References
Every parts diagram, wiring loom and torque figure for one engine, across every car it was fitted to — 16V, 16V G60, G60, VR6 12V, 1.9 TDI, 1.8T 20V, R32 and the Audi 2.7T. Built for the engine builder and the swap.
Wall Art
Hand-drawn VW blueprints — engine schematics and full-vehicle general arrangements — printed A2 on Hahnemühle fine-art paper. For the workshop wall.

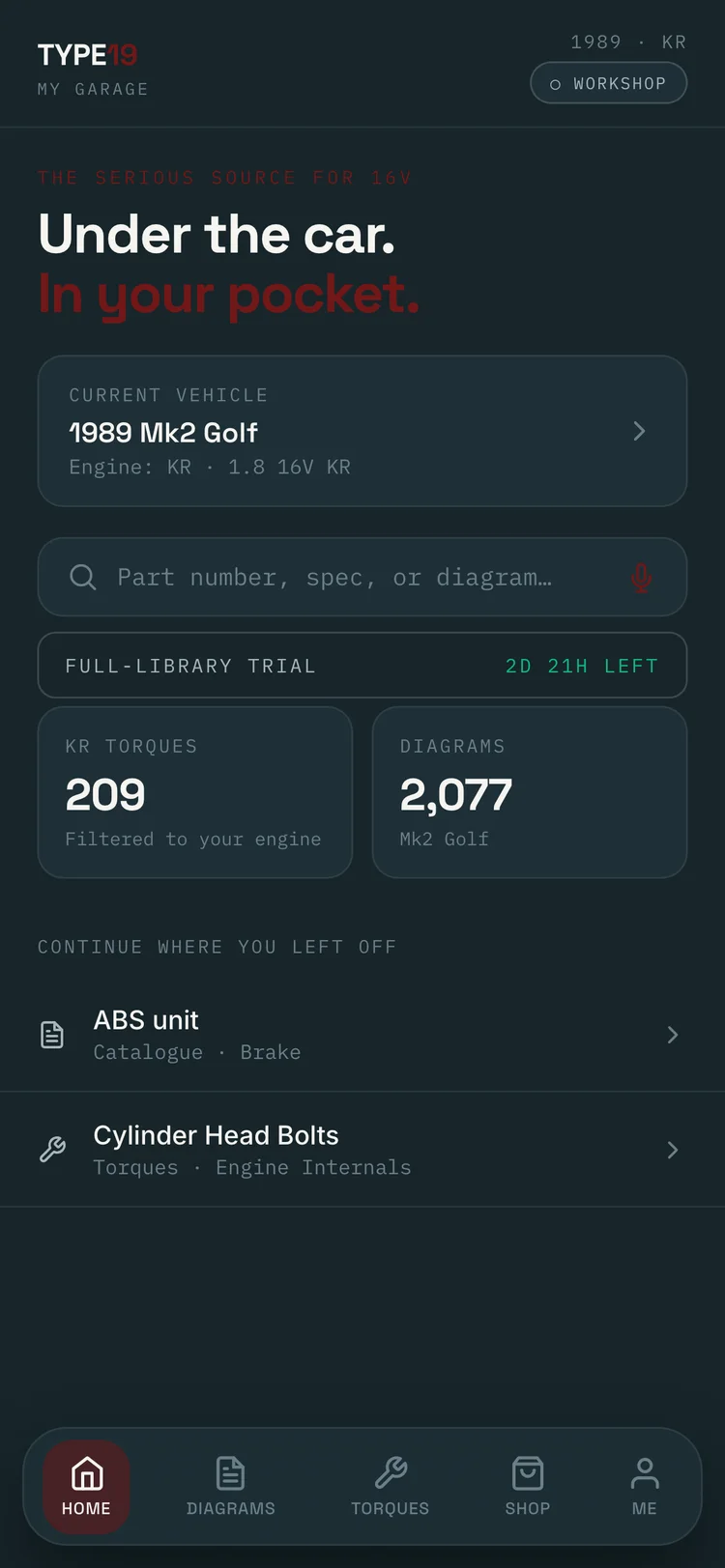

The Type 19 App
Every factory drawing, OEM number and torque figure — scoped to the exact car in your garage, offline in the workshop.
