Audi A4 Master Parts Catalogue — Vol 2: Body & Electrical
Clearpay Or 4 interest-free payments of
Complete the B5 A4 set

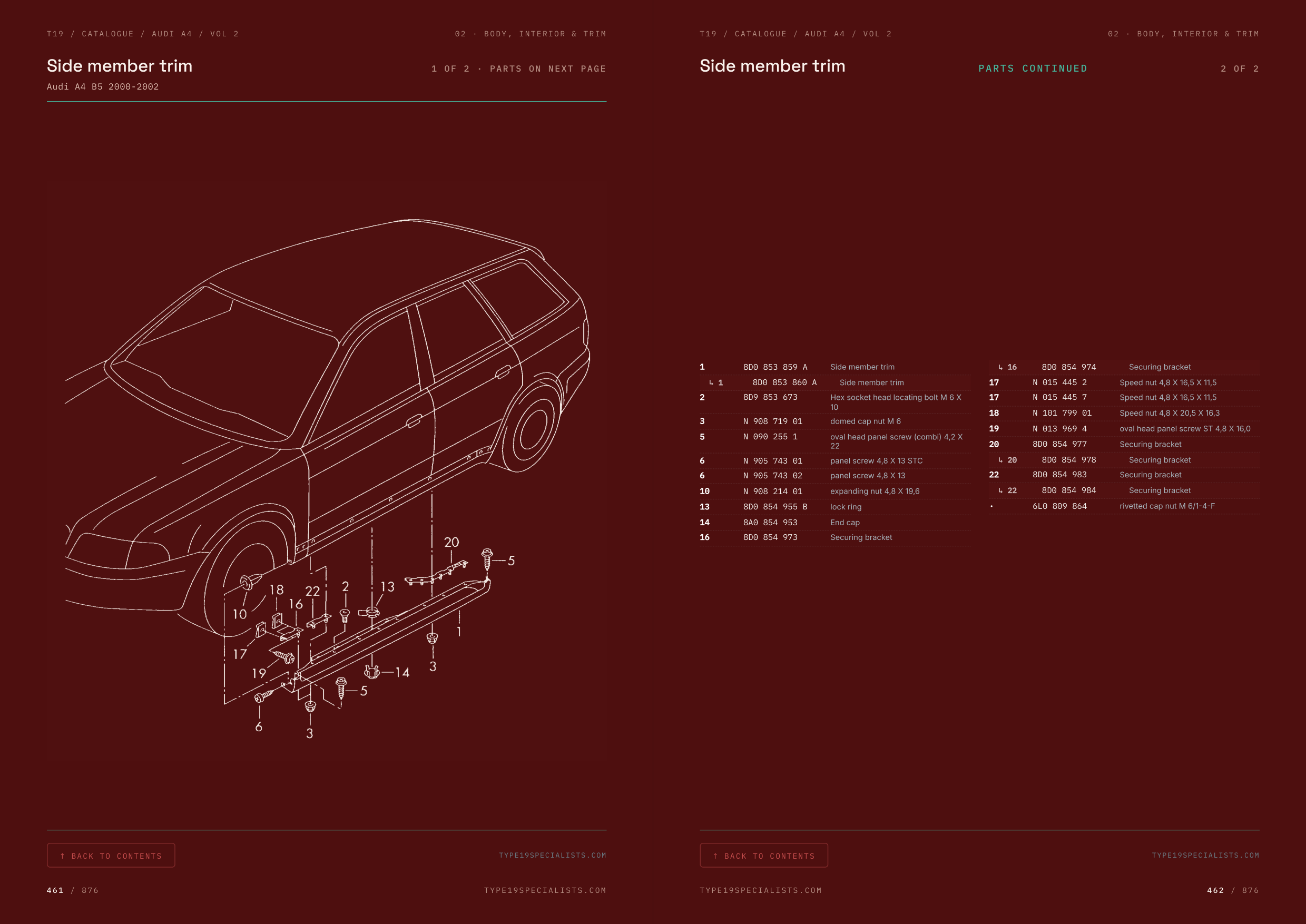

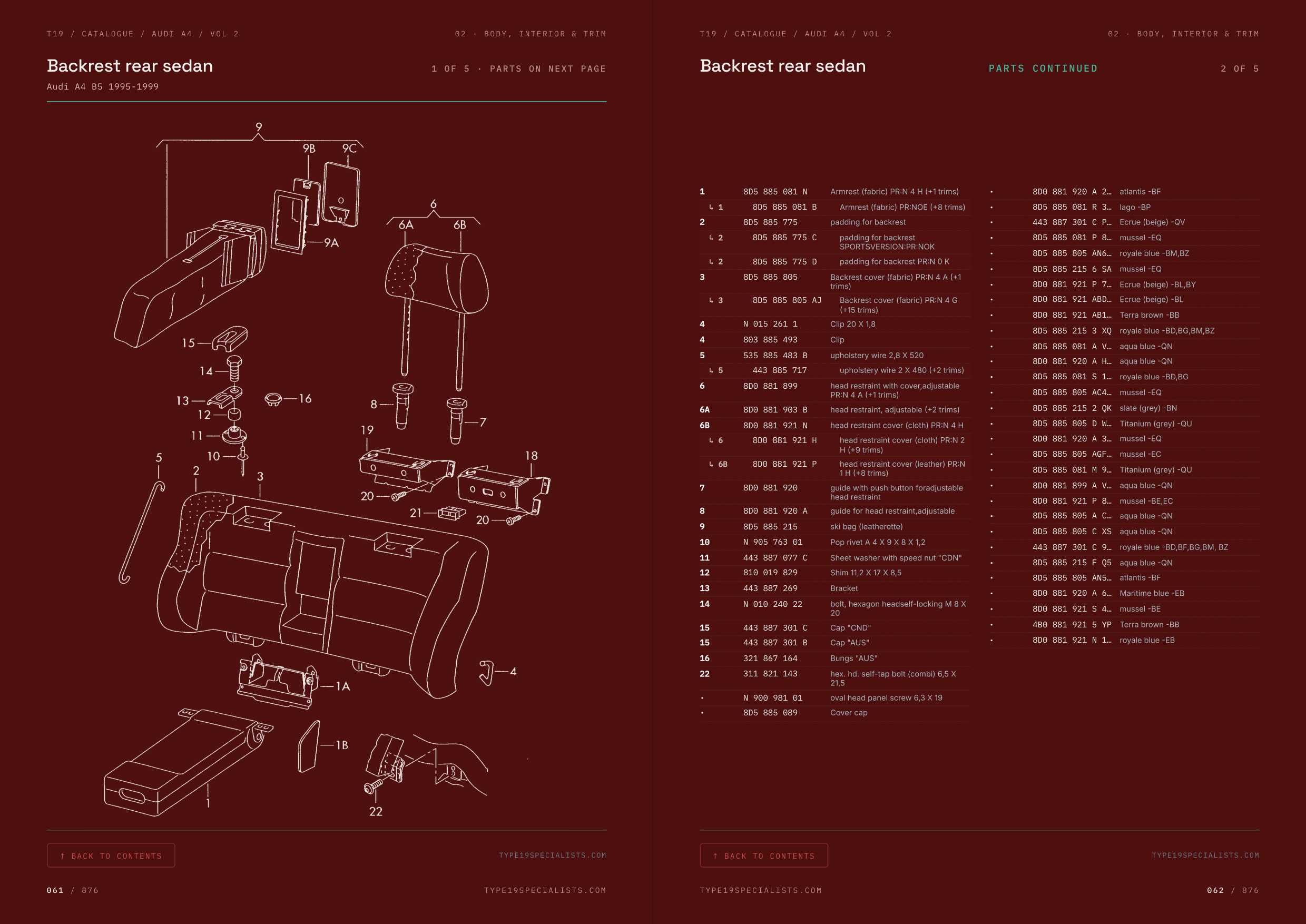

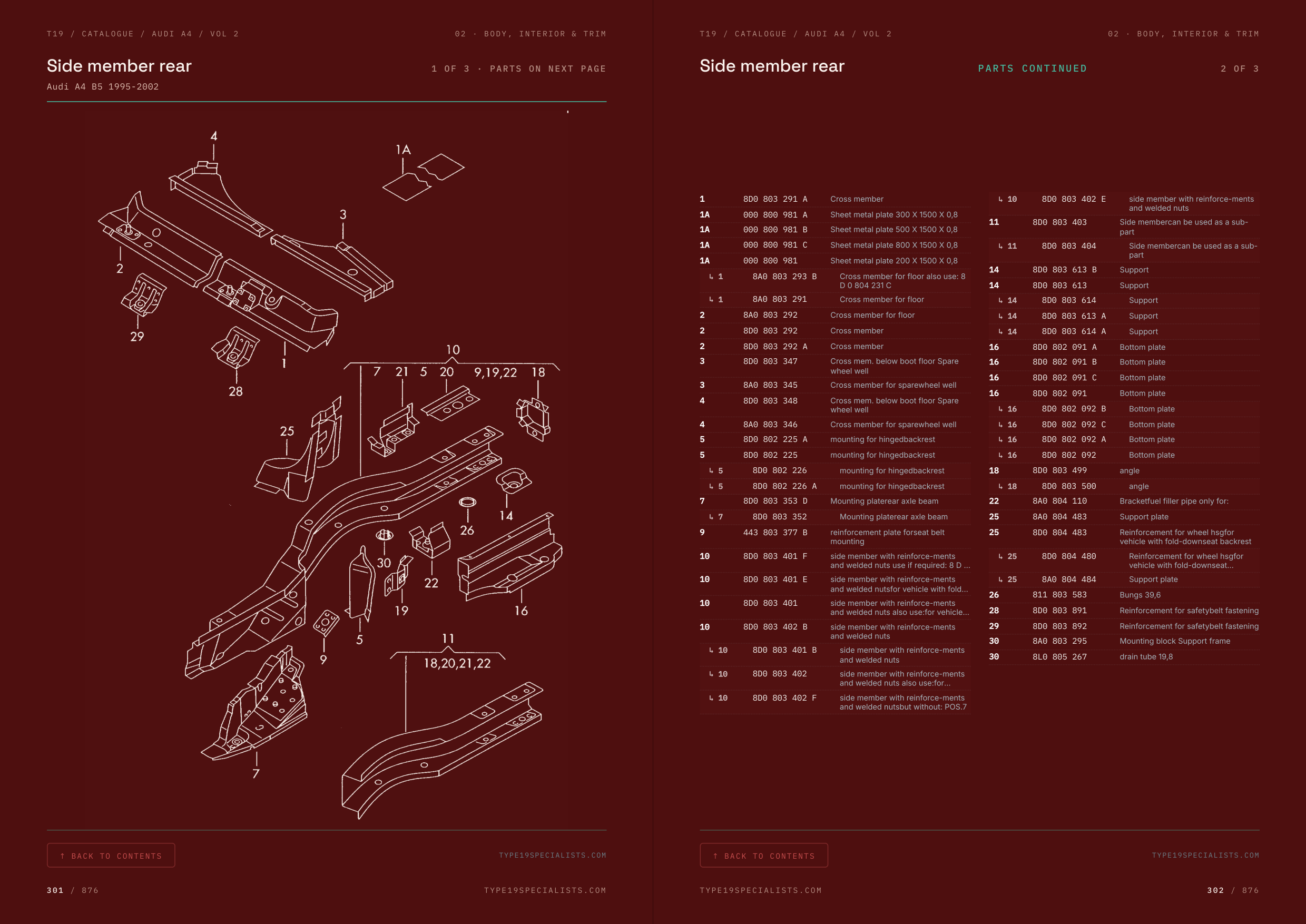

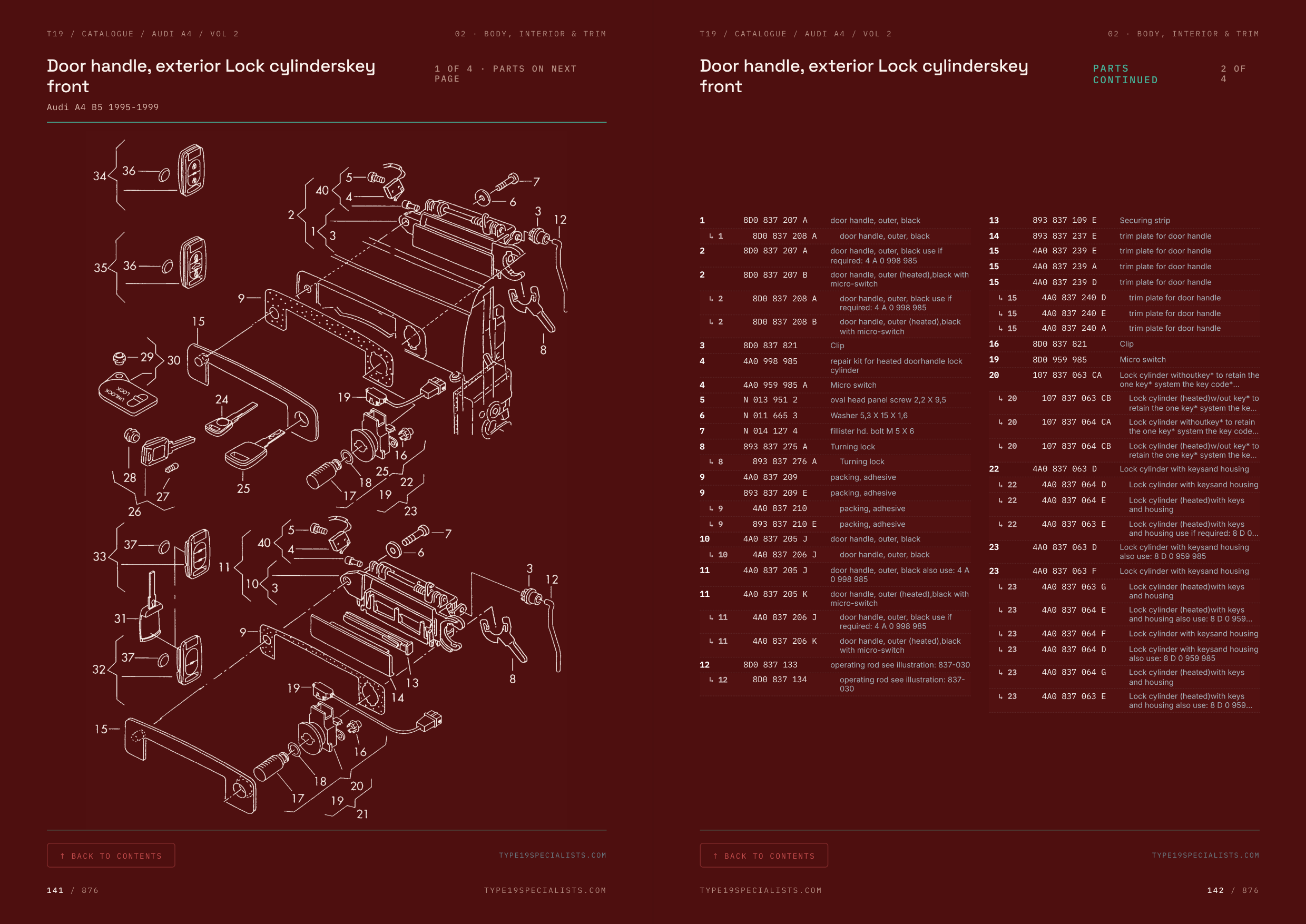

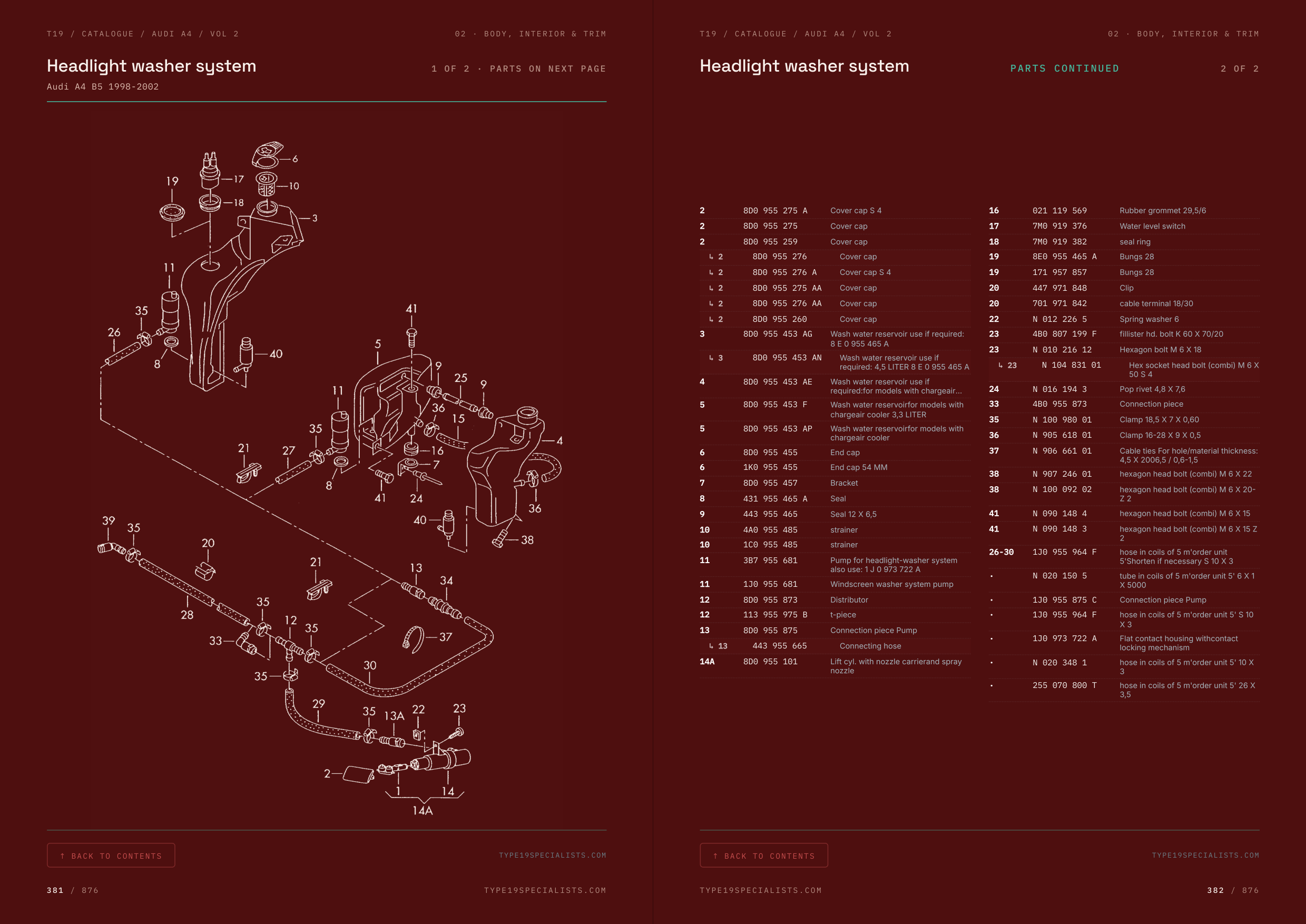

Sample pages — preview before you buy
5 representative pages from the 876-page PDF. Click any page to view full size.
📄 876 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request
Audi A4 Master Parts Catalogue — Vol 2: Body & Electrical is a 876-page factory parts reference published by Type 19 Specialists for the Audi A4 B5, Audi S4 B5, Audi RS4 B5. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. Volume 2 of the first complete Audi factory parts-diagram catalogue for the B5 A4 — 294 diagrams, 18,254 parts, 876 pages covering body, interior & trim, the full electrical & lighting system, and cabin heating & ventilation for the A4, S4 & RS4 (Typ 8D), 1995–2002. Companion to Volume 1 (Engine & Mechanical). Workshop-ready A3 spread PDF, printed paperback available. The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.
The first complete Audi factory OEM parts-diagram catalogue ever assembled for the B5 A4 — Volume 2 of 2. Every diagram Audi factory-issued for the B5-platform A4, S4 & RS4 (Typ 8D, 1995–2002), deduplicated, cross-referenced and organised by VAG group code. Volume 2 covers the body, interior, electrics and cabin climate.
294 factory diagrams · 18,254 parts · 876 pages · 3 workshop-ordered sections. Diagram on the left page, parts list (Audi OEM part number, position, description) on the right — every line an orderable number with engine-code applicability.
What's inside — Volume 2
- Heating & ventilation — heater box, evaporator, blower, ducting & climate controls
- Body, interior & trim — doors, locks, glass, seats, bumpers, trim
- Electrical & lighting — looms, control units, lamps, switches, instruments
Engine coverage
The full B5 range — 1.8T, 2.4 / 2.6 / 2.8 V6, 1.9 / 2.5 TDI, and the S4 & RS4 2.7T biturbo — with LHD and RHD part numbers throughout.
What makes it different
- Audi factory data — the same illustration set the dealer network ran on.
- Deduplicated — one canonical entry per part, not the same clip repeated across years and markets.
- Filtered, not scraped — non-orderable junk removed so every line is actionable.
Volume 2 of a two-volume set; Volume 1 — Engine & Mechanical carries the drivetrain. Choose an instant digital download (A3 landscape spread PDF — diagram left, parts right) or the printed A4 paperback edition.
