Audi A6 C5 Master Parts Catalogue — Vol 1 Engine & Mechanical

£34.95
In Stock
SKU: T19-CAT-AUDI-A6-V1
Secure payment
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Link by Stripe
Often bought together

Complete the C5 A6 set

Audi A6 C5 Master Parts Catalogue Vol 1 Engine & Mechanical — front cover, Typ 4B 1998-2005 incl. 2.7T biturbo and S6/RS6 4.2 V8
Audi A6 C5 Master Parts Catalogue — Vol 1 Engine & Mechanical £34.95
Audi A6 C5 Master Parts Catalogue Vol 2 Body & Electrical — front cover, Typ 4B 1998-2005
Audi A6 C5 Master Parts Catalogue — Vol 2 Body & Electrical £34.95 Ships free in the same parcel
Both for £69.90
View Audi A6 C5 Master Parts Catalogue — Vol 2 Body & Electrical →
Inside the book

Sample pages — preview before you buy

5 representative pages from the 1240-page PDF. Click any page to view full size.

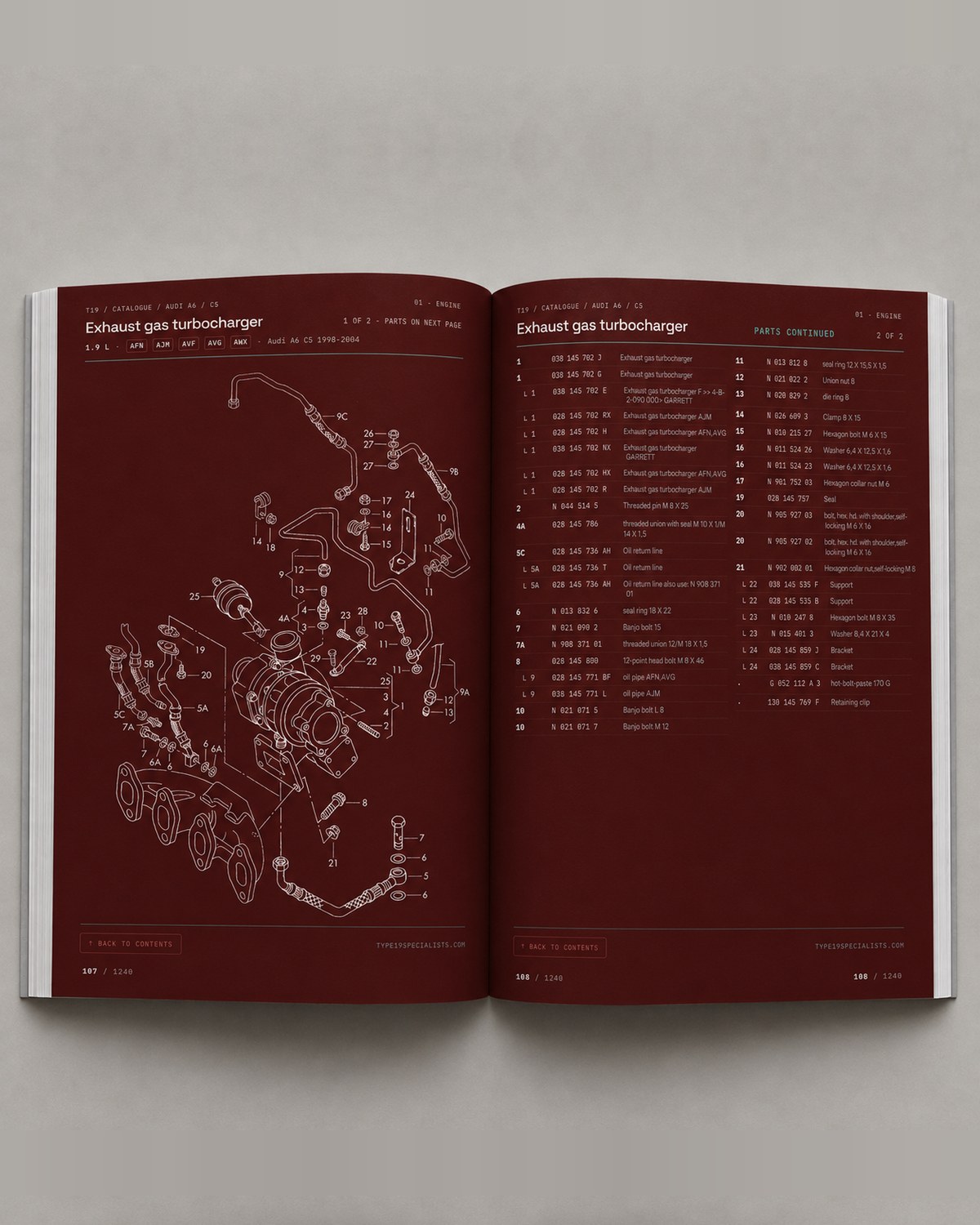

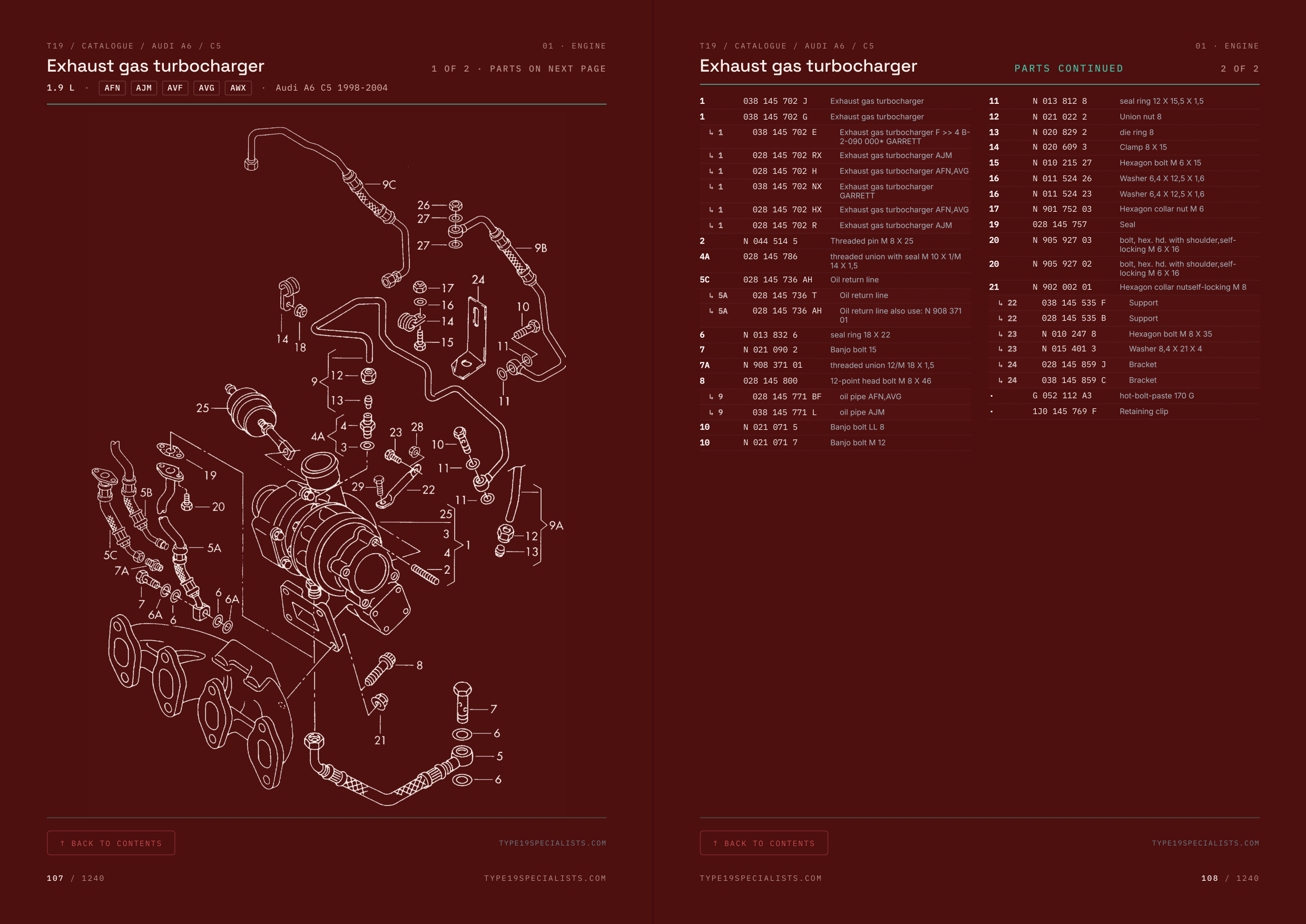

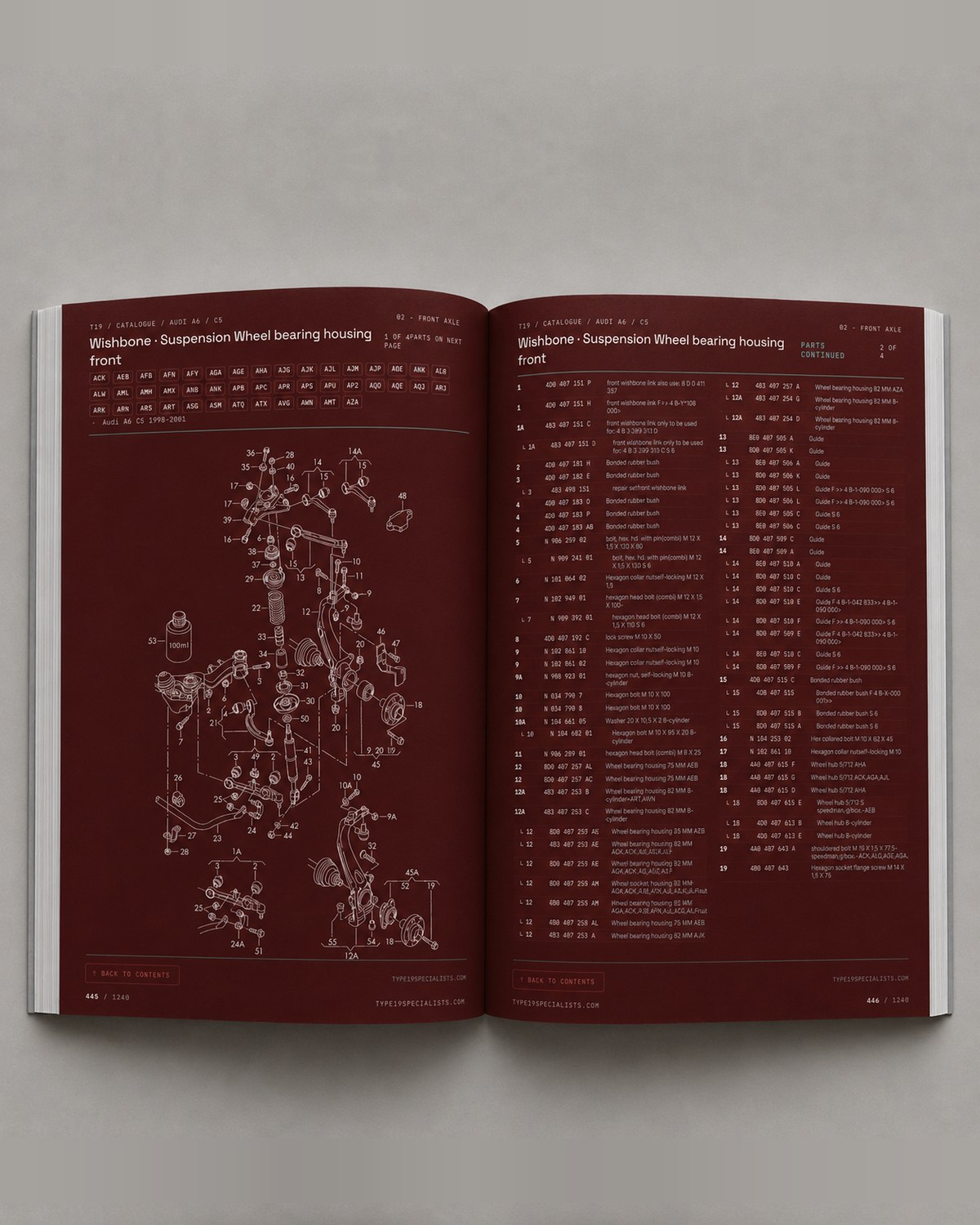

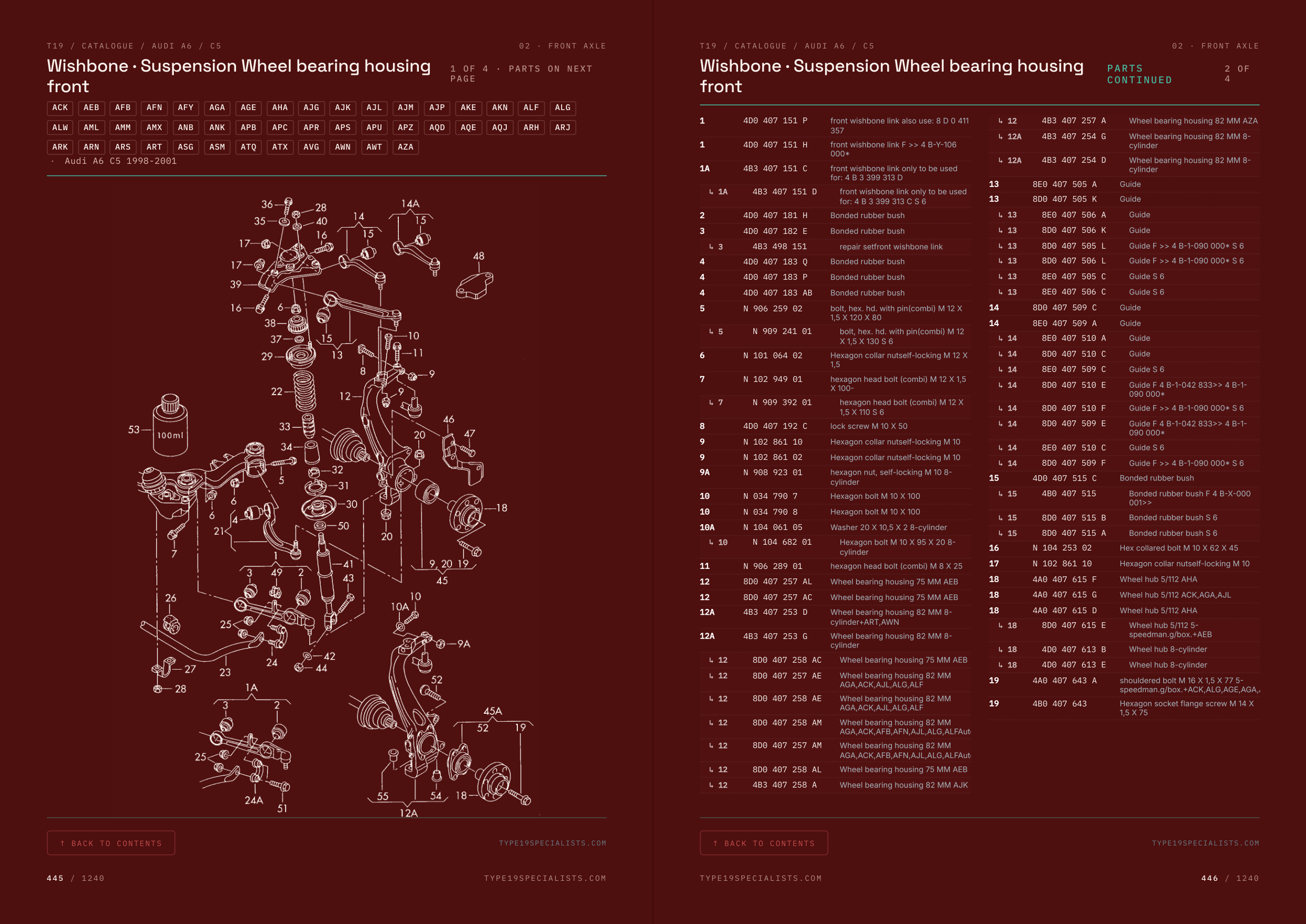

Audi A6 C5 Master Parts Catalogue Vol 1 — factory exploded diagram: exhaust gas turbocharger, with OEM parts table 1 Audi A6 C5 Master Parts Catalogue Vol 1 — factory exploded diagram: front wishbone and wheel bearing housing, with OEM parts table 2 Audi A6 C5 Master Parts Catalogue Vol 1 — factory exploded diagram: oil filter bracket and oil cooler, with OEM parts table 3 Audi A6 C5 Master Parts Catalogue Vol 1 — factory exploded diagram: catalytic converter exhaust pipe, with OEM parts table 4 Audi A6 C5 Master Parts Catalogue Vol 1 — factory exploded diagram: A/C compressor mounting, with OEM parts table 5

📄 1240 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request

Audi A6 C5 Master Parts Catalogue — Vol 1 Engine & Mechanical is a 1,240-page factory parts reference published by Type 19 Specialists. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. Volume 1 of the Audi A6 C5 Master Parts Catalogue — Engine & Mechanical. 523 factory diagrams, 22,178 parts, 1240 pages for the A6, S6 & RS6 (Typ 4B) 1998–2005, incl. the 2.7T biturbo and 4.2 V8 swap donors. Digital edition is an A3 two-page-spread PDF; a workshop-ready A4 paperback is also available. The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.

Volume 1 — Engine & Mechanical. Every Audi factory parts diagram for the C5-platform A6, S6 & RS6 (Typ 4B, 1998–2005) covering engine & mechanical — saloon & Avant, front-wheel-drive & quattro. Deduplicated, cross-referenced and organised by factory group code.

523 factory diagrams · 22,178 parts · 1240 pages · 12 sections.

Built for the swap community. The C5 is the donor platform of choice for the 2.7T biturbo and 4.2 V8 conversions — 2.7T (AJK/APB/ARE/AZA/BEL/BES), S6 4.2 V8 (ANK/AQJ) and RS6 4.2 biturbo (BCY/BRV). Each diagram states the engine codes and years it applies to.

Formats. The digital edition is an A3 two-page-spread PDF (diagram left, parts list right). The paperback is printed A4.

A two-volume set. This is Volume 1; Volume 2 — Body & Electrical — completes the reference. Each sold separately.
