Beetle Master Parts Catalogue

£34.95
In Stock
SKU: T19-CAT-BEETLE-FULL-V1
Secure payment
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Link by Stripe
Inside the book

Sample pages — preview before you buy

5 representative pages from the 924-page PDF. Click any page to view full size.

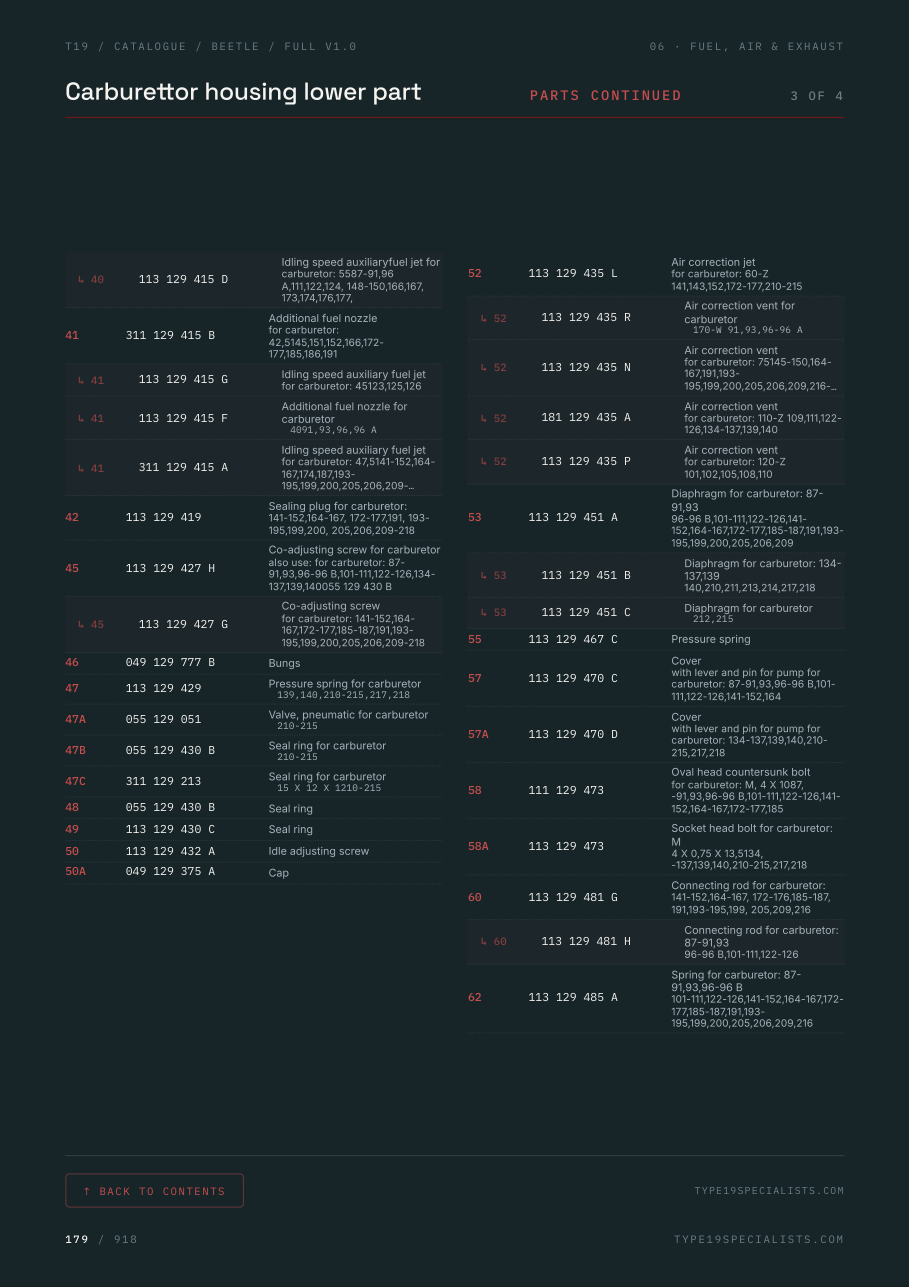

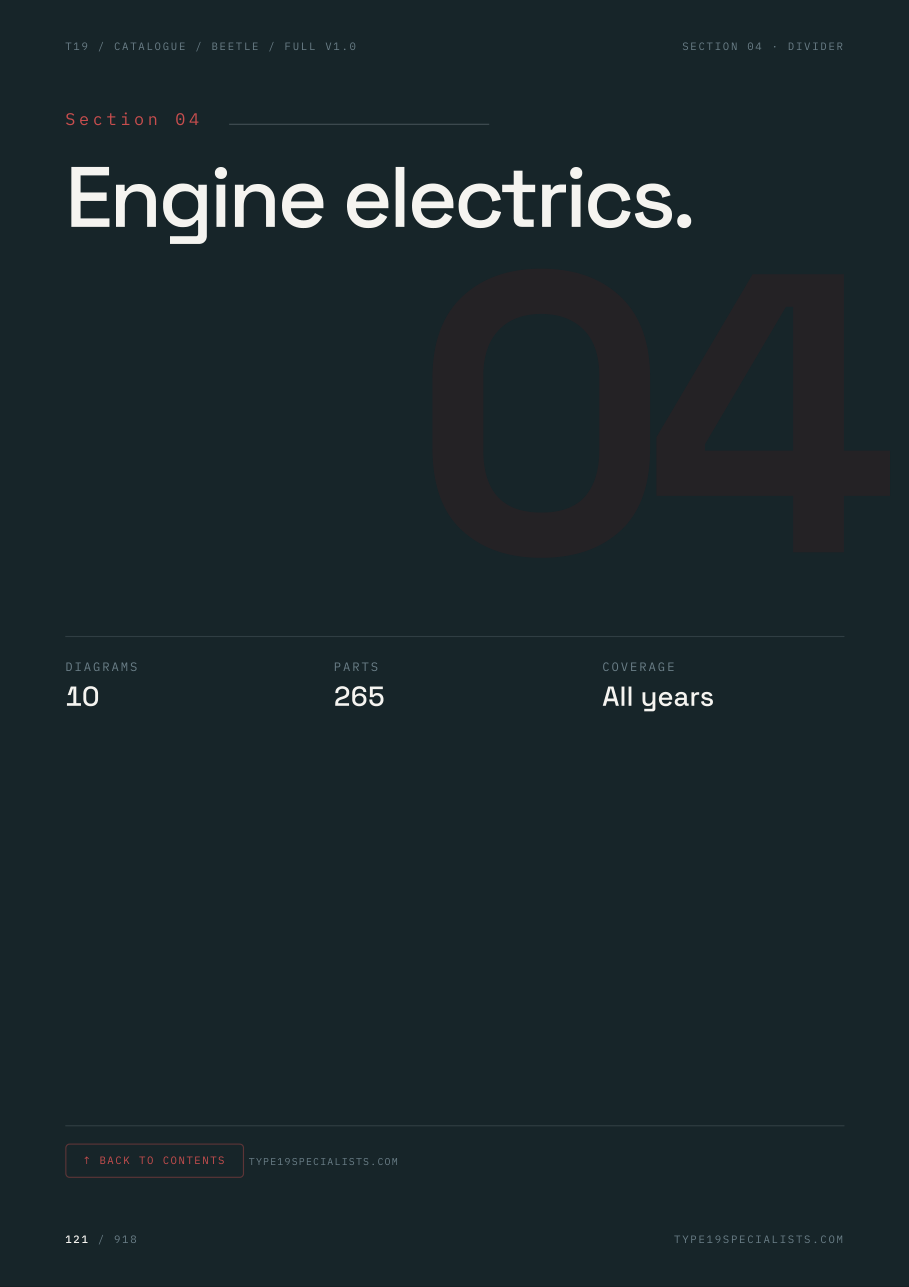

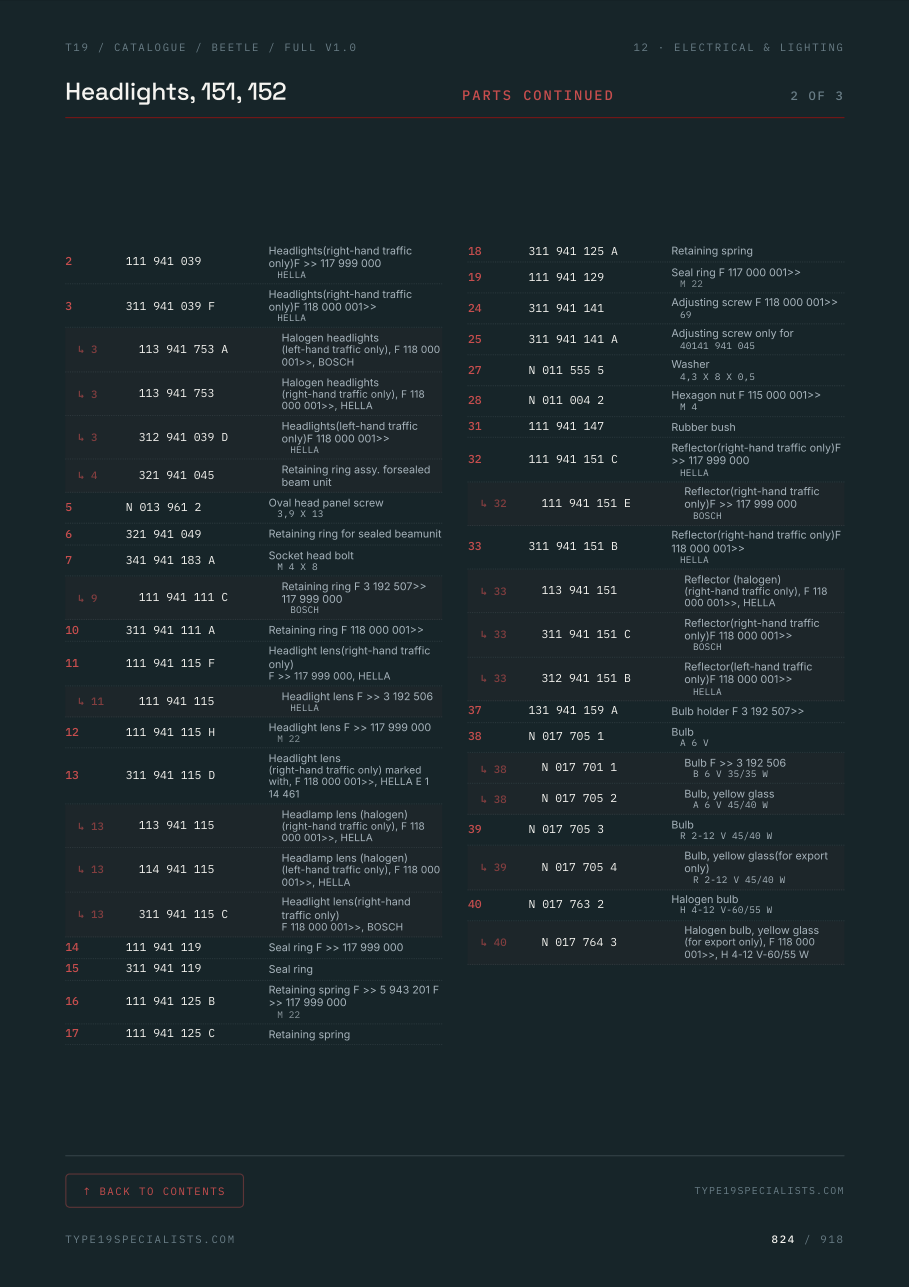

VW Beetle Master Parts Catalogue — front cover 1 VW Beetle Master Parts Catalogue — factory exploded diagram with callout numbers 2 VW Beetle Master Parts Catalogue — parts list page with full part numbers 3 VW Beetle Master Parts Catalogue — carburettor parts continuation page 4 VW Beetle Master Parts Catalogue — alphabetical glossary page 5

📄 924 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request

Beetle Master Parts Catalogue is a 924-page factory parts reference published by Type 19 Specialists for the VW Beetle, VW Beetle Type 1. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. The complete VW factory parts-diagram catalogue for the aircooled Beetle (Type 1) — 395 diagrams, 11,102 parts, 834 pages, 1947–1986. German and French editions are also published (VW Käfer Master-Teilekatalog). The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.

Every VW factory parts diagram for the aircooled Beetle (Type 1), 1947–1986. Standard Beetle, Super Beetle 1302/1303 and the late 1200 — 6V and 12V, saloon and Cabriolet. 395 deduplicated diagrams, 11,102 parts, organised by VW group code and fully cross-referenced.

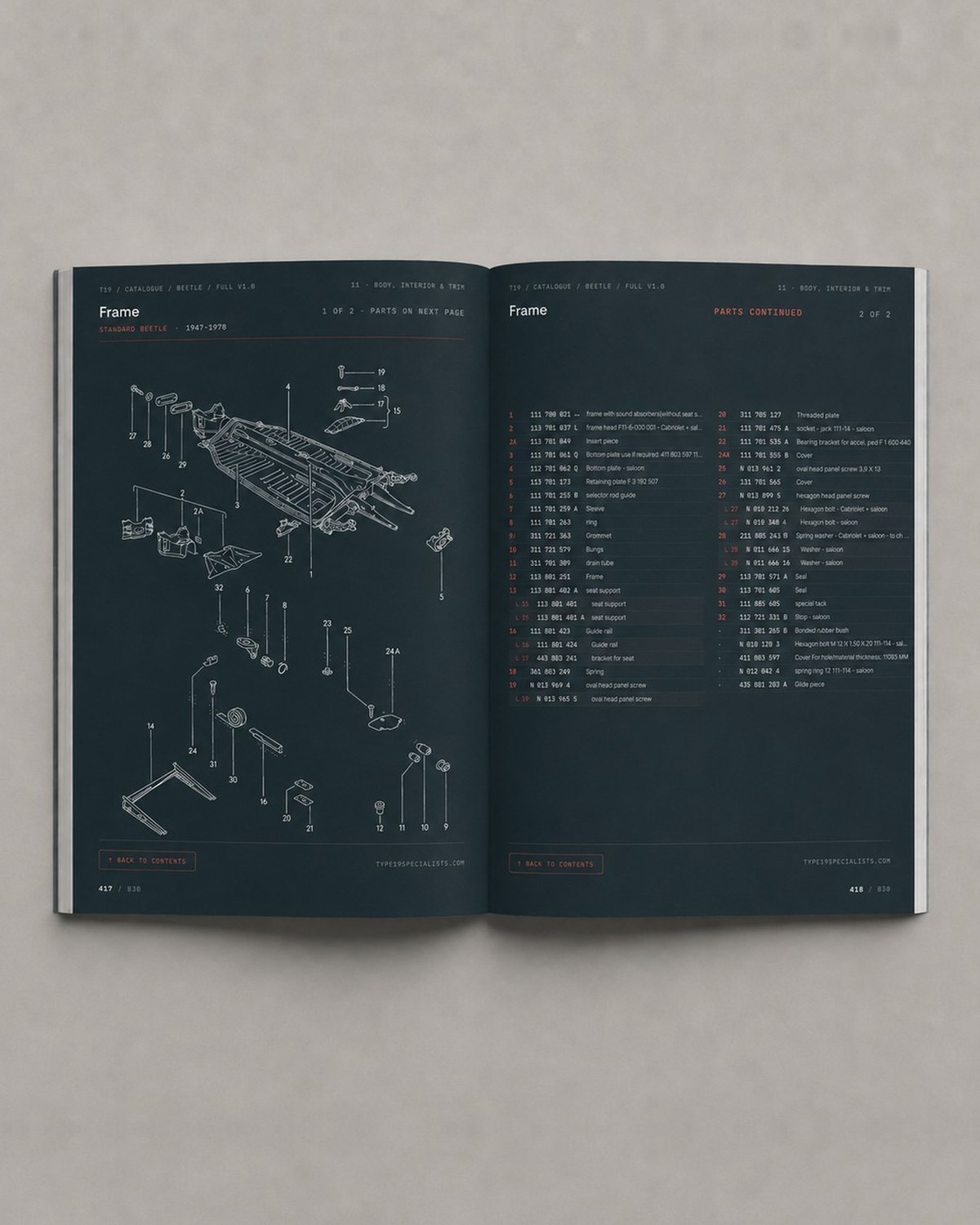

Diagram on the left, parts list on the right — quote a parts counter straight from the page. Built from the same illustration set the VW dealer network ran on, filtered so every line is orderable. Digital PDF (instant download) or workshop-ready A4 paperback.
