Mk1 Jetta Master Parts Catalogue

£34.95
In Stock
Secure payment
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Link by Stripe
Inside the book

Sample pages — preview before you buy

3 representative pages from the 1032-page PDF. Click any page to view full size.

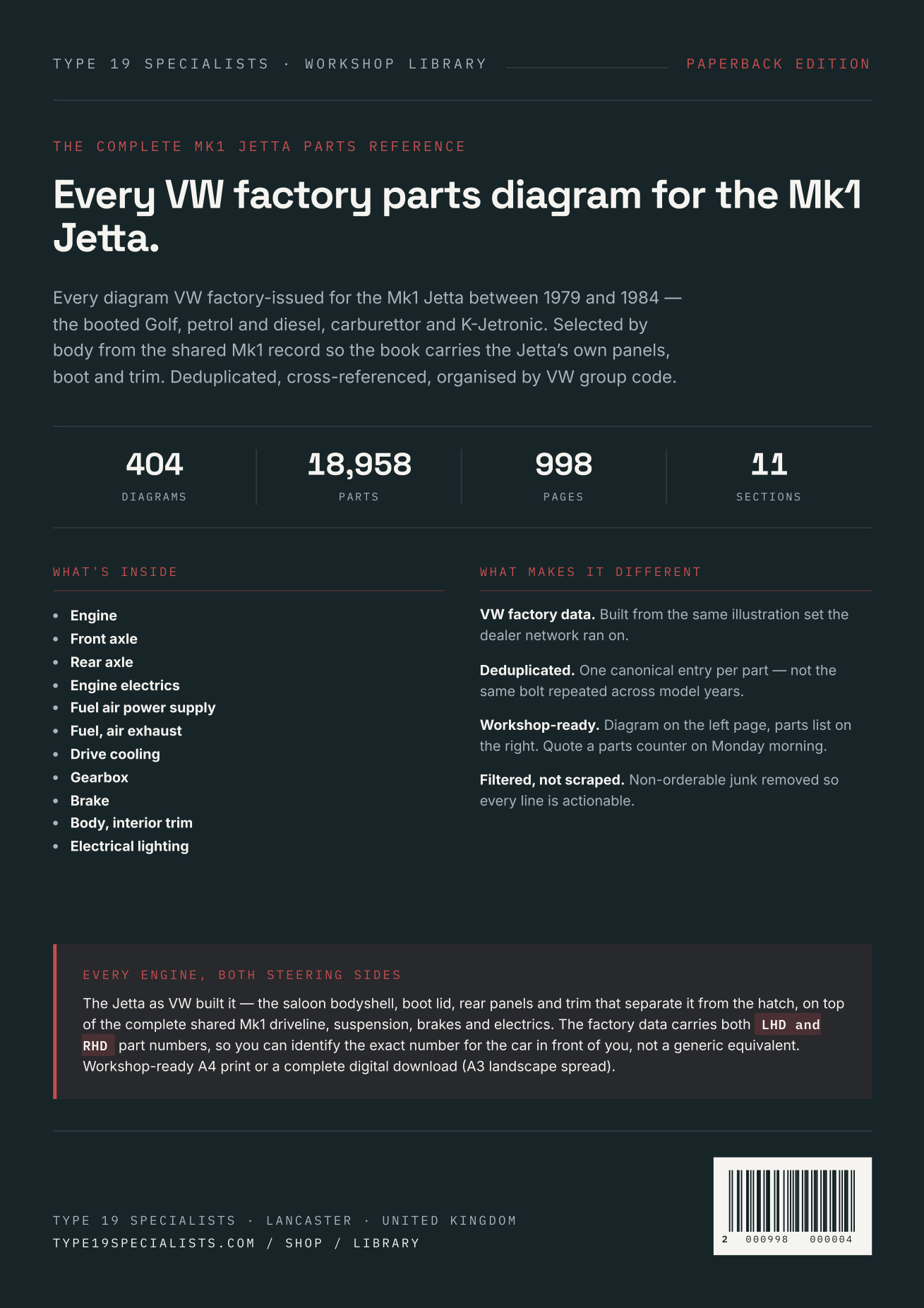

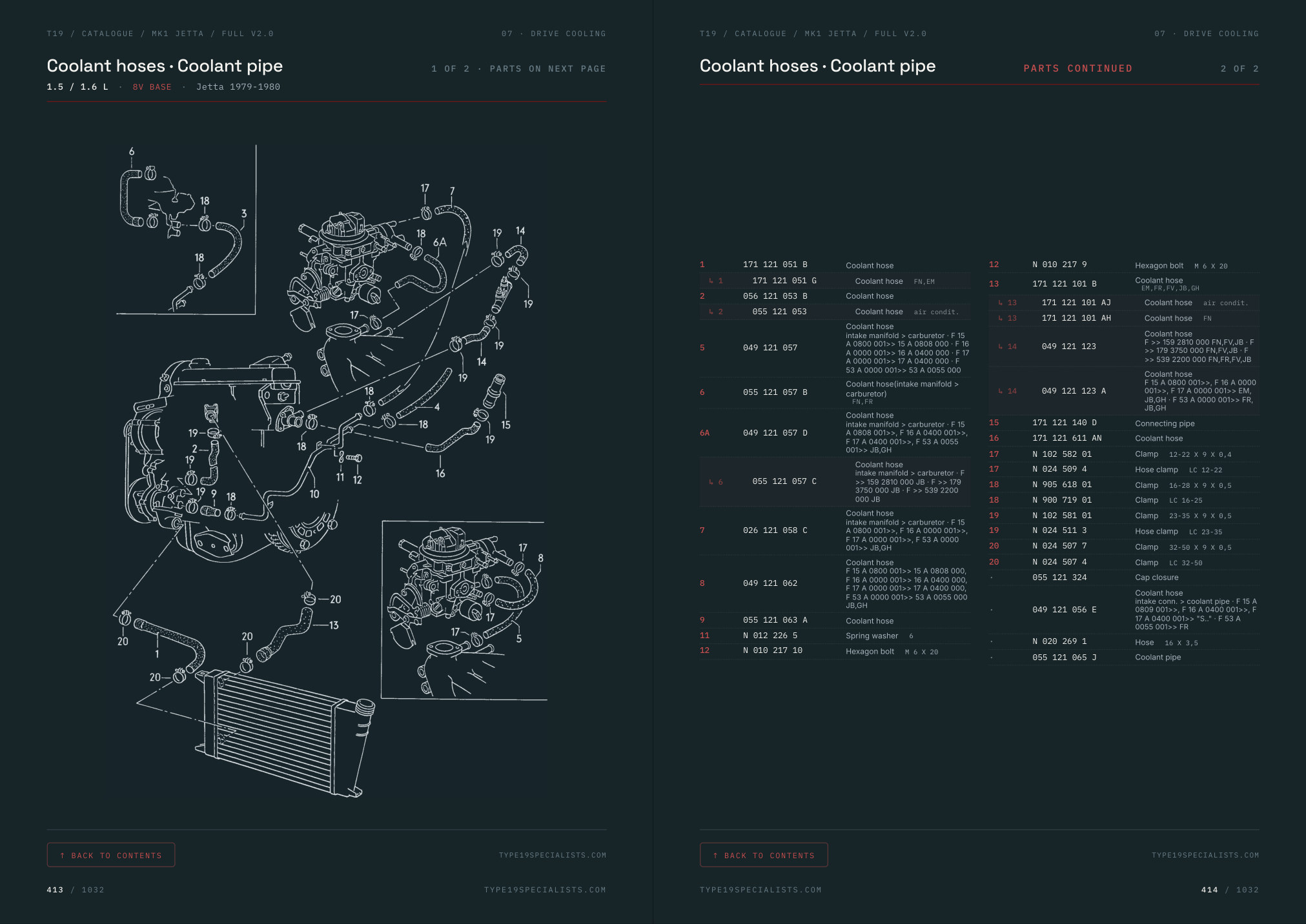

Mk1 Jetta Master Parts Catalogue — front cover 1 Mk1 Jetta Master Parts Catalogue — open spread: diagram on the left, parts list on the right 2 Mk1 Jetta Master Parts Catalogue — rear cover: diagram, parts and section counts 3

📄 1032 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request

Mk1 Jetta Master Parts Catalogue is a 1,032-page factory parts reference published by Type 19 Specialists. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. The complete VW factory parts-diagram catalogue for the Mk1 Jetta — the booted Golf — 418 diagrams, 20,109 parts, 1,032 pages, 1979–1984. The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.

Every VW factory parts diagram for the Mk1 Jetta, 1979–1984. The booted Golf as VW built it — selected by body from the shared Mk1 record so the book carries the Jetta's own panels, boot and trim, not the hatchback's — deduplicated, organised by VW group code and fully cross-referenced.

418 diagrams, 20,109 parts, 11 sections, 1,032 pages. Engine, engine electrics, fuel, air & exhaust, drive & cooling, gearbox, front and rear axle, brakes, body, interior trim and lighting — every factory diagram laid out with the illustration on the left and the full parts list (part number, description, quantity, notes) on the right.

What makes it a Jetta. The saloon bodyshell, boot lid, rear panels and trim that separate it from the hatch, on top of the complete shared Mk1 driveline, suspension and brakes. Petrol and diesel, carburettor and K-Jetronic.

Both drive sides. LHD and RHD part numbers, the European and CA/USA factory streams folded into one record, so nothing is lost to either market.

Delivered as a searchable A3 landscape spread PDF — read it on any device, zoom into any diagram, and cross-reference part numbers straight from the page. The paperback is a workshop-ready A4 print edition.
