Mk2 Golf Master Parts Catalogue

The only Mk2 Golf OEM parts catalogue ever assembled. There has never been a complete printed parts reference for the Mk2 Golf platform. VW microfiche was dealer-only. Online lookups are slow, fragmented, and break when a server goes dark. Haynes covers what to do but not what part to order. This is the book Mk2 owners and restorers have spent forty years asking for — and it didn''t exist until now.

491 diagrams. 20,180 unique part numbers. 1,042 workshop-ready pages. Every diagram VW factory-issued for the Mk2 platform between 1984 and 1992 — petrol 8V and 16V, diesel, turbo-diesel, Country, Rallye, Syncro and Variant. Each diagram sits on its own LEFT page with the parts table on the facing RIGHT page. Single-line entries with the VW factory OEM part number, position number, and description. Deduplicated, cross-referenced, and organised by VW group code so you can flip to "Cylinder head" or "Intake manifold" without thinking.

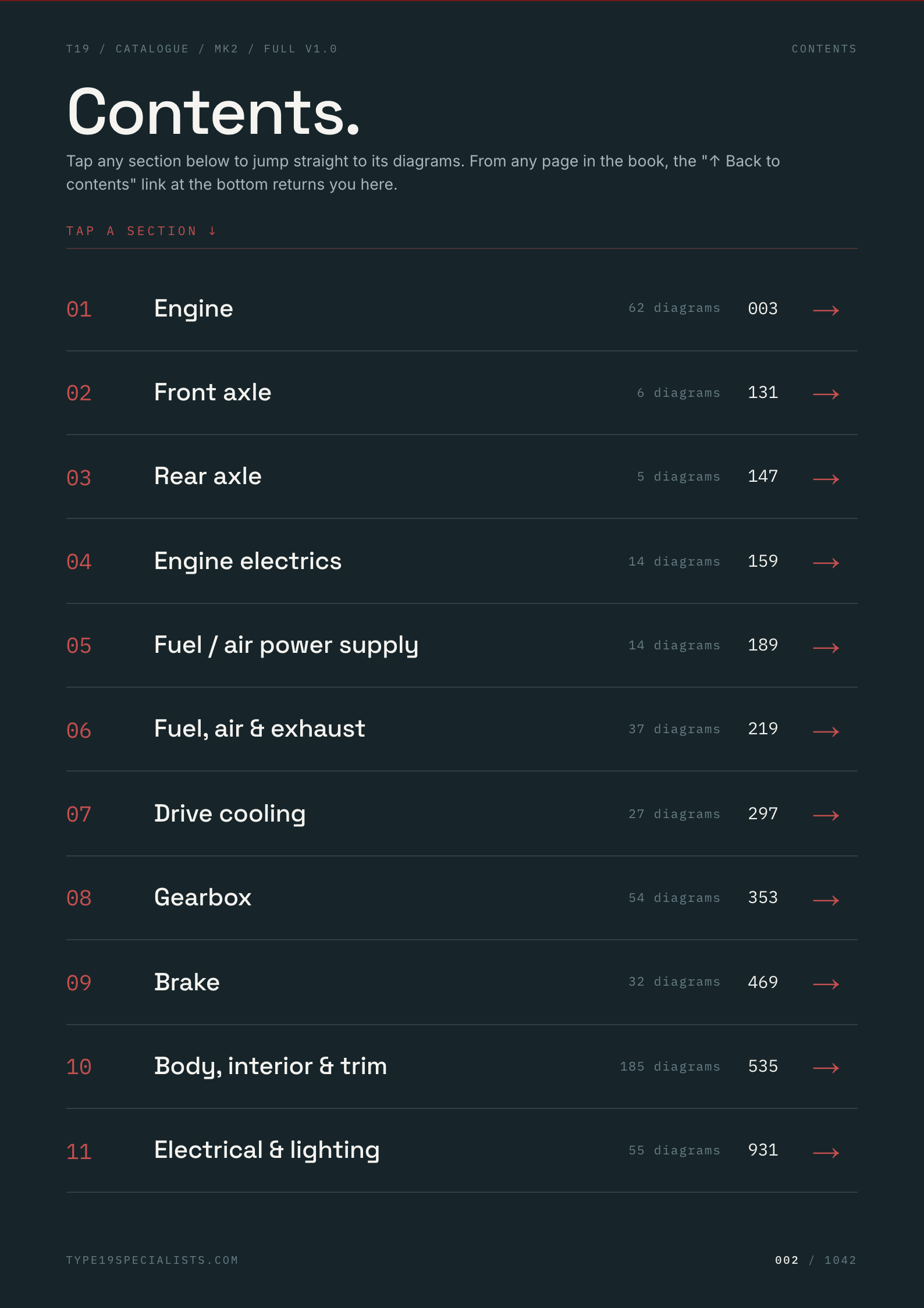

Eleven workshop-ordered sections

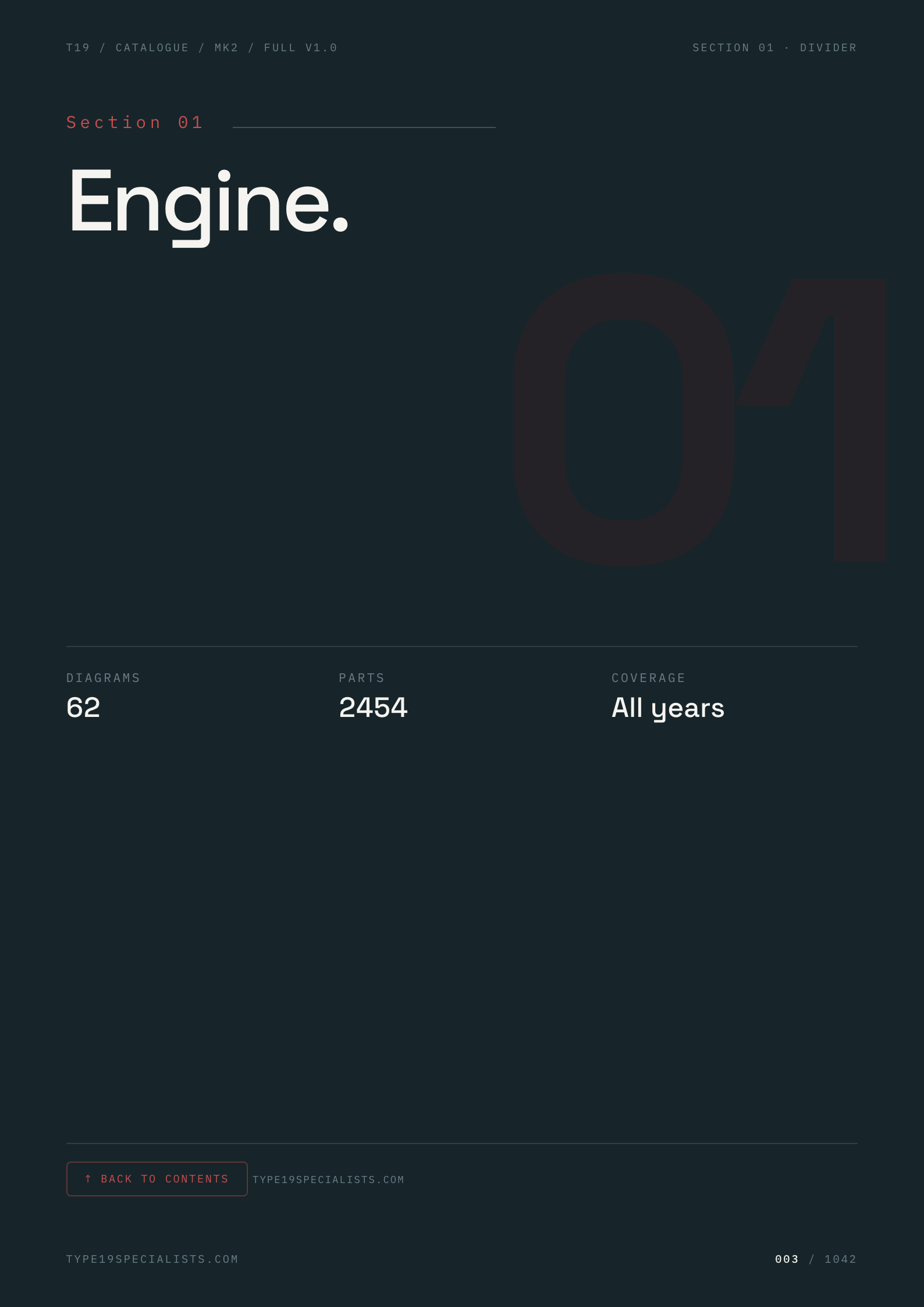

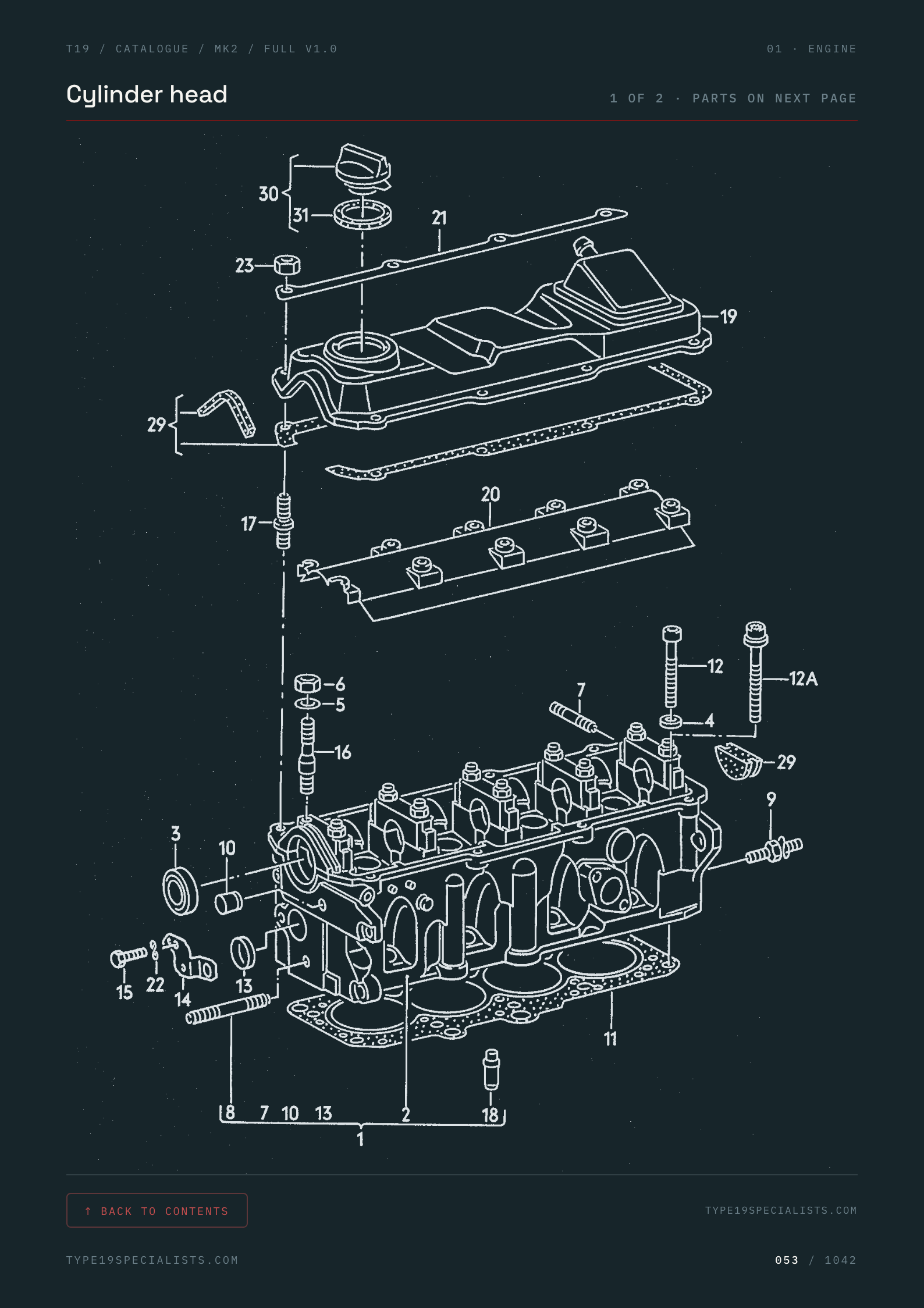

• Engine — cylinder head, camshaft, valves, internals
• Fuel, air & exhaust — intake manifolds, exhaust system
• Engine electrics — alternator, starter, ignition
• Fuel / air power supply — injectors, fuel pipes, vacuum lines
• Drive cooling — radiator, water pump, hoses
• Front axle — suspension, hubs, drive shafts
• Rear axle — suspension, hubs, beam
• Gearbox — internals, shifter, clutch
• Brake — calipers, discs, lines, master cylinder
• Body, interior & trim — doors, dash, panels, glass
• Electrical & lighting — looms, lamps, switches

Worth knowing if you have a 16V

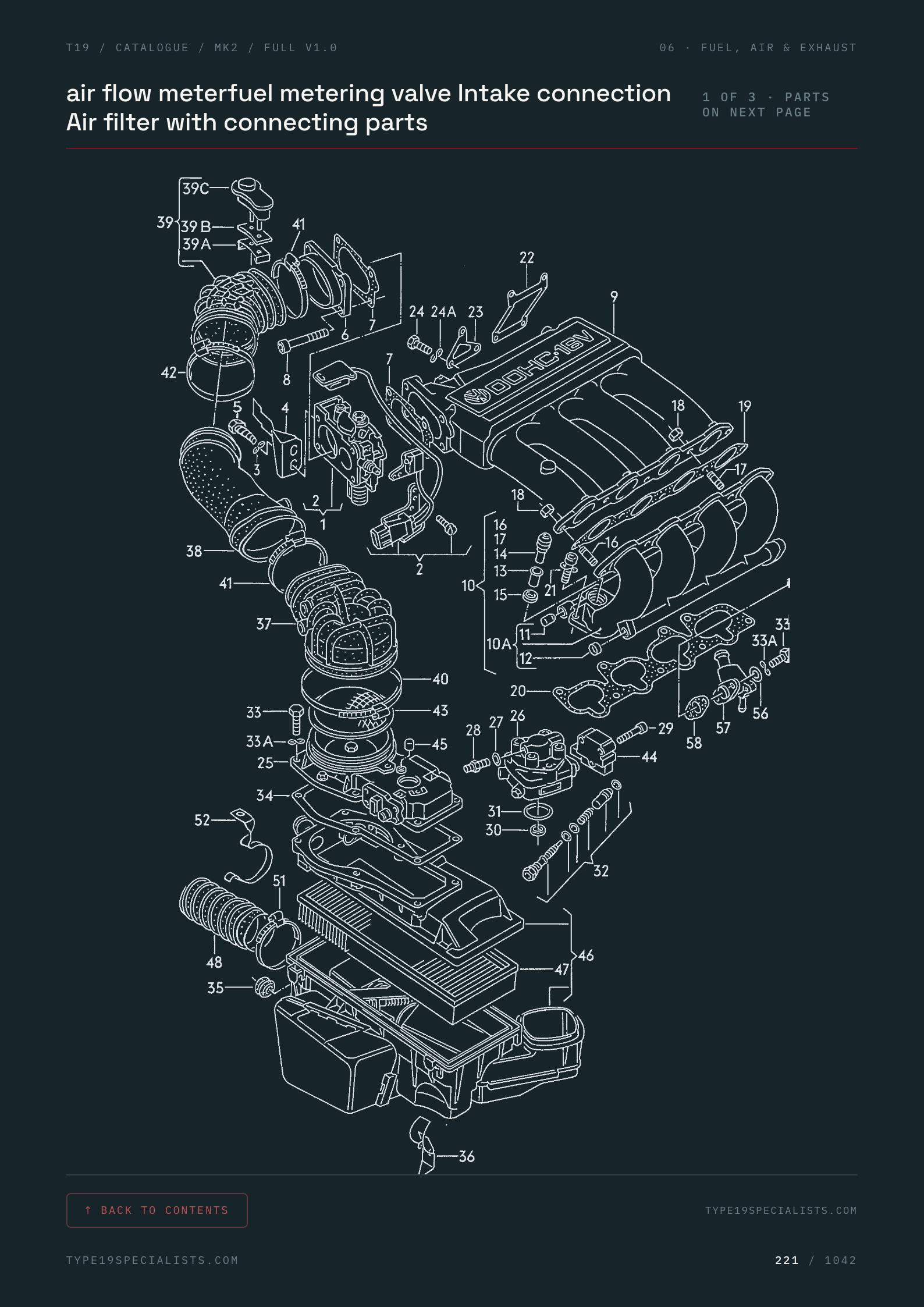

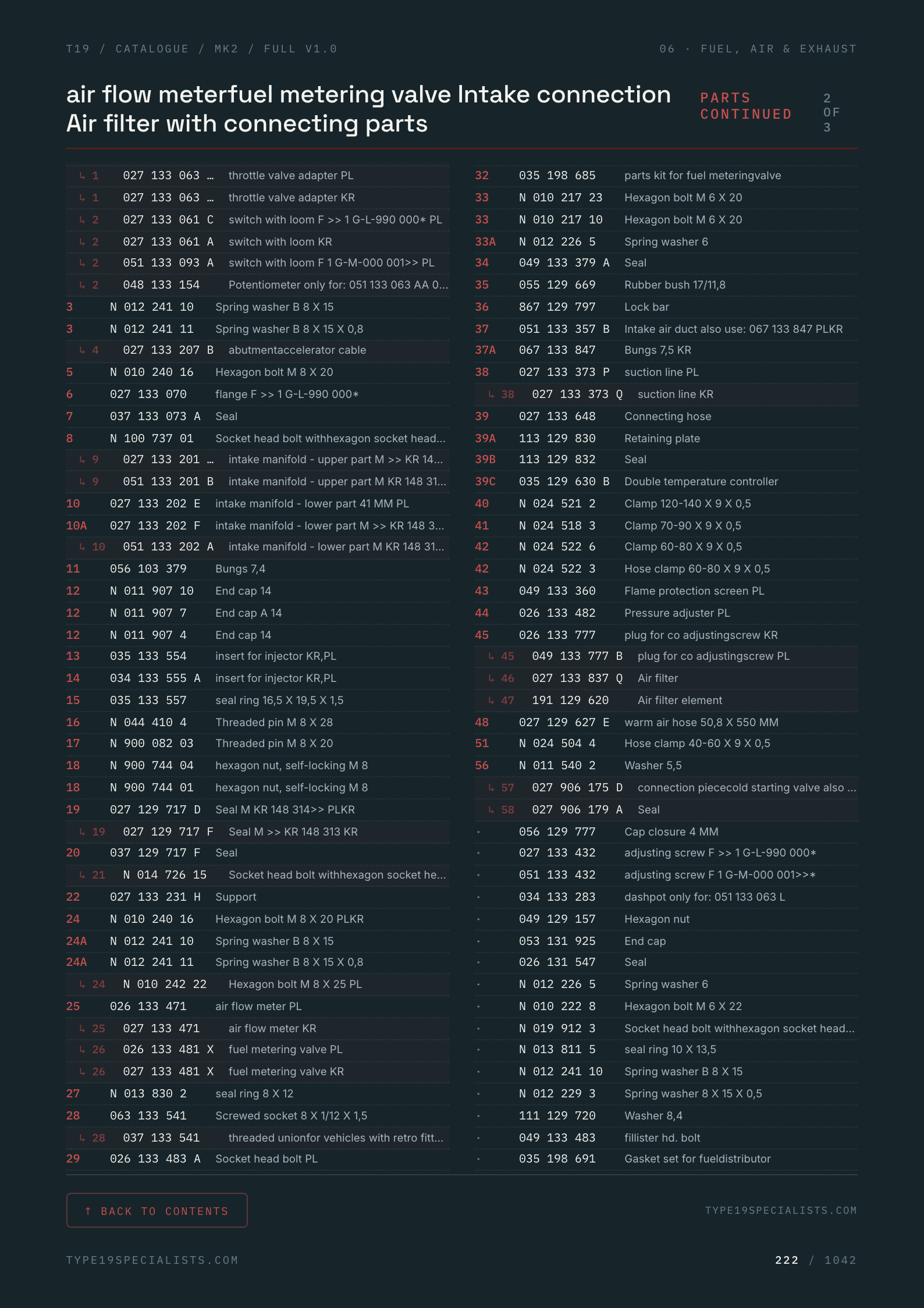

Includes the 1.8L 16V (KR & PL) intake manifold OEM numbers every 16V restorer asks for — 027 133 201 AC, 027 133 202 F, 051 133 201 B, 051 133 202 A — plus the cold-start valve, injector and fuel-pipe assemblies, full cylinder head and camshaft references, complete door cards, dashboards, looms, the lot.

Two formats

Digital PDF · £19.95. Both A3 landscape spread (read on screen as facing pages) and A4 portrait (ready for the printer) are bundled in one download. Native page-flip in iOS Books, macOS Preview, Adobe Reader. Linked table of contents jumps you to any section in one tap; back-to-contents on every page. Delivered to your inbox within two minutes of payment.

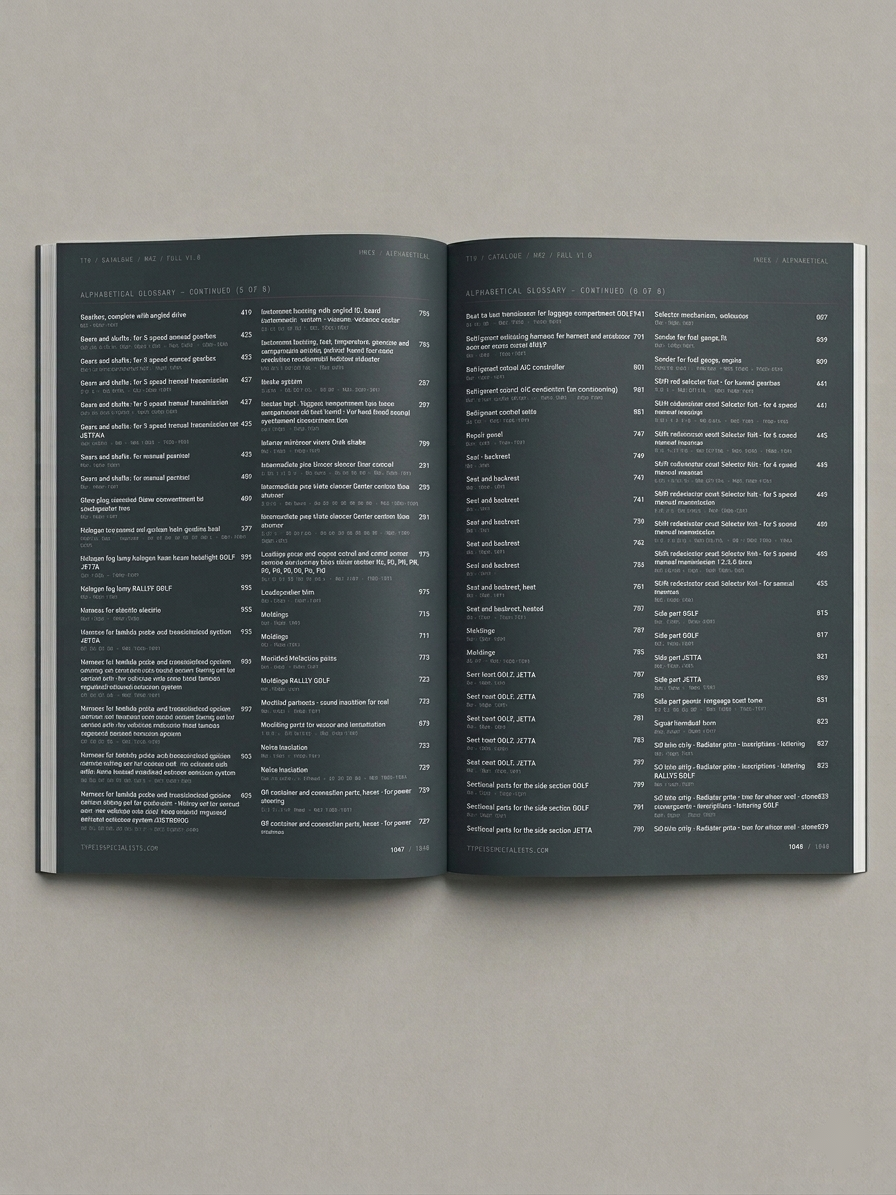

Paperback edition · £39.95. Properly printed and bound A4 portrait copy, posted from the UK in approximately 14 days. Sits flat on the bench, takes engine oil and brake-fluid fingerprints like a proper workshop manual should. Paperback orders also include the digital download — link in your inbox the same day, book on your doormat next week.

What makes it different

• VW factory data. Built from the same factory illustration set the dealer network ran on.
• Forty years of cross-references, deduplicated. The same bolt across model years doesn''t appear seven times — one canonical entry per part.
• Workshop-ready layout. Diagram on the left page, parts list on the right. Single-line entries. No flipping back and forth.
• No filler. Carefully filtered to remove non-orderable junk so every line is something you can quote a parts counter on Monday morning.

FAQ

How will I receive the e-book?
Email within a few minutes of payment containing a download link. If the link expires (48 hours), reply to your receipt and we''ll resend — no charge.

How long is paperback delivery?
Approximately 14 days. Posted from the UK by Royal Mail Tracked. Paperback orders also receive the digital download the same day so you don''t wait.

Does it cover my engine?
Yes — every petrol 8V, 16V, diesel and turbo-diesel engine offered in the Mk2 Golf from 1984 to 1992 is in here, plus the Country, Rallye, Syncro and Variant body variants.

What devices does the PDF open on?
Anything that handles PDFs — iOS Books, macOS Preview, Adobe Reader, any Android PDF viewer, Windows Edge. Native page-flip works in all of them.

Licensing?
Single-user licence. Please don''t redistribute — that''s how we keep prices low for everyone.
