VW Passat B5 & B5.5 Master Parts Catalogue — Vol 2: Body, Interior & Electrical

£34.95
In Stock
SKU: T19-CAT-PASSAT-B5-V2-V1
Secure payment
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Link by Stripe
Often bought together

Complete the Passat set

VW Passat B5 & B5.5 Master Parts Catalogue Vol 2 Body, Interior & Electrical — front cover, Typ 3B/3BG 1997-2005
VW Passat B5 & B5.5 Master Parts Catalogue — Vol 2: Body, Interior & Electrical £34.95
VW Passat B5 & B5.5 Master Parts Catalogue Vol 1 Engine & Mechanical — front cover, Typ 3B/3BG 1997-2005
VW Passat B5 & B5.5 Master Parts Catalogue — Vol 1: Engine & Mechanical £34.95 Ships free in the same parcel
Both for £69.90
View VW Passat B5 & B5.5 Master Parts Catalogue — Vol 1: Engine & Mechanical →
Inside the book

Sample pages — preview before you buy

5 representative pages from the 708-page PDF. Click any page to view full size.

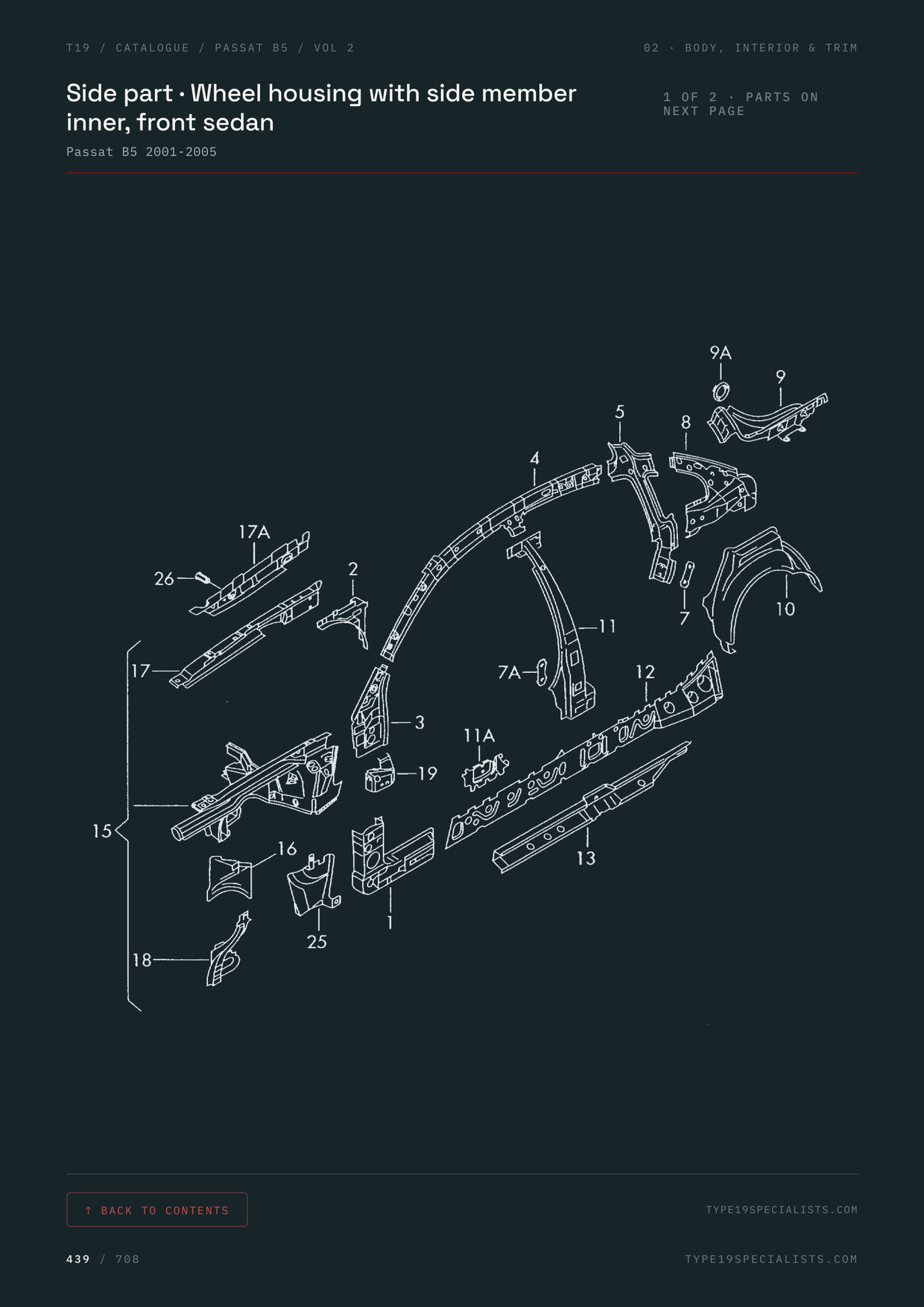

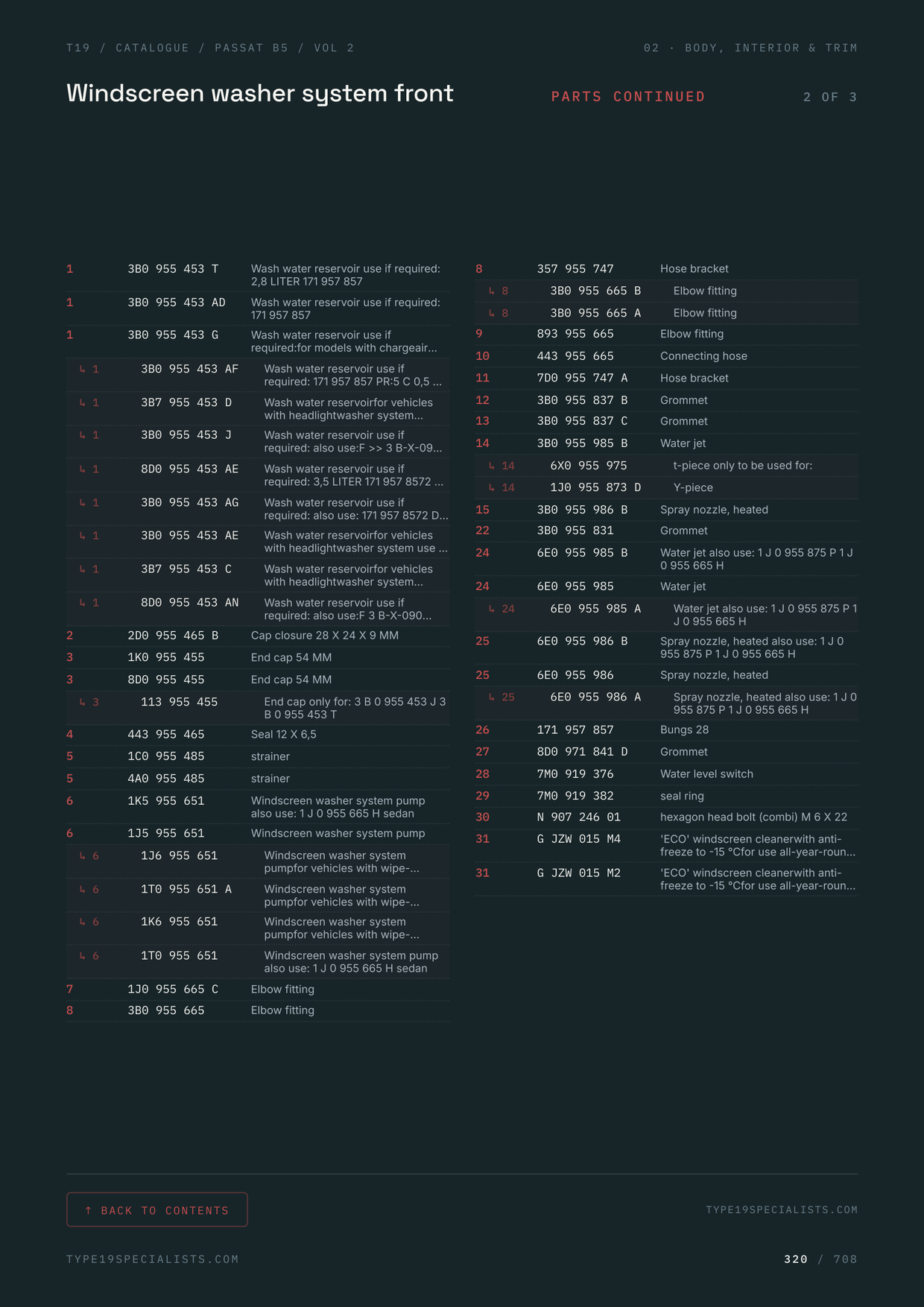

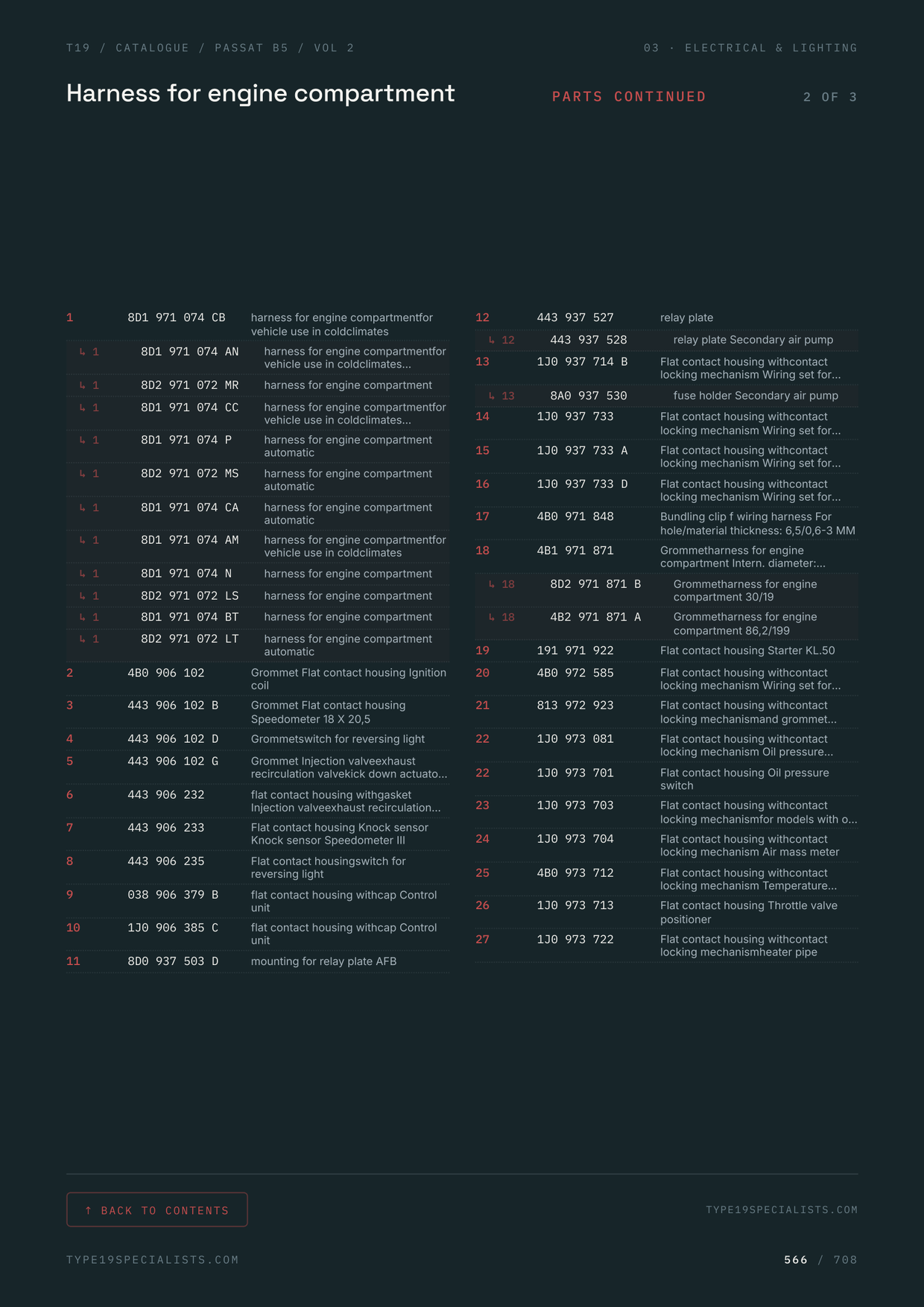

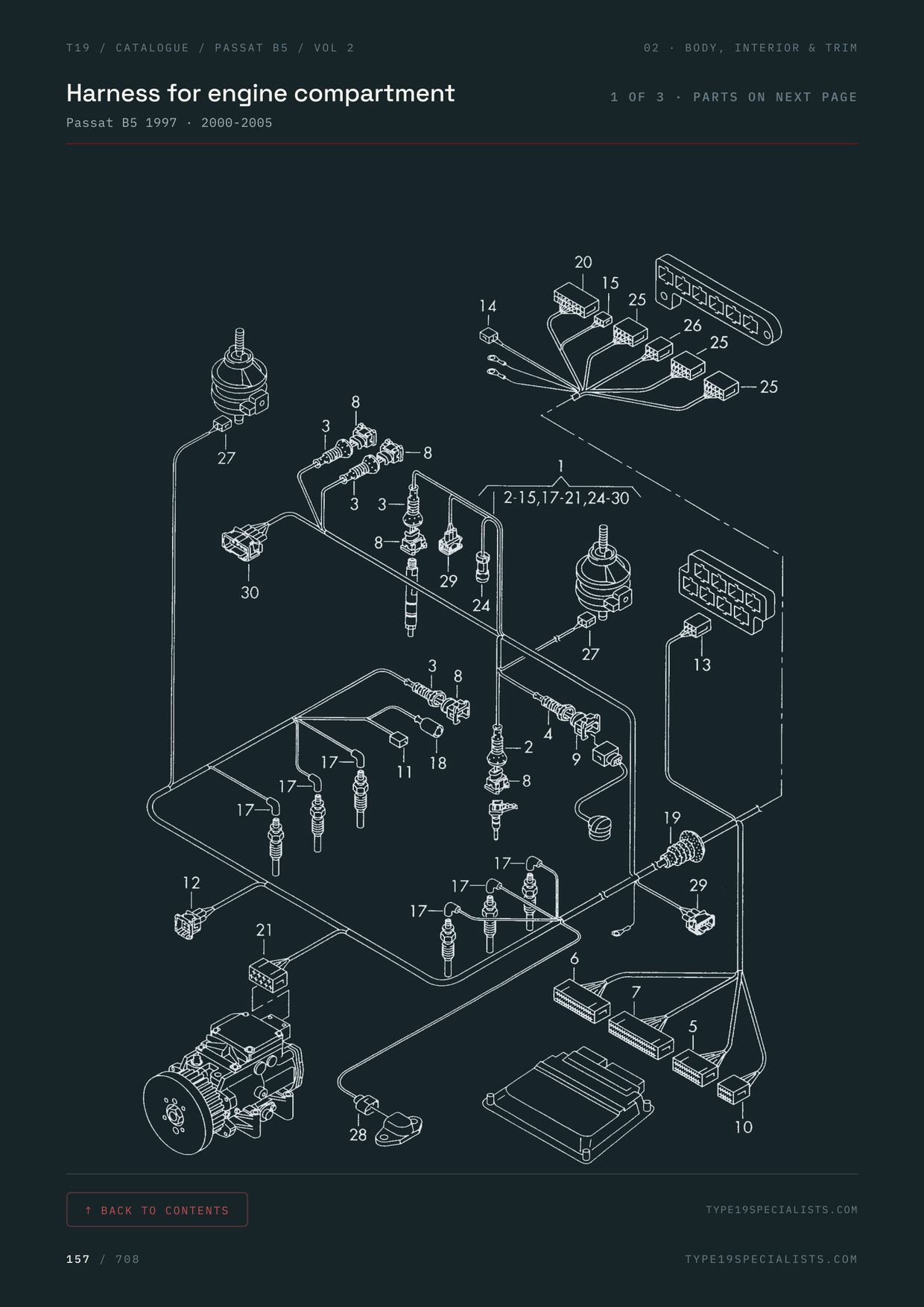

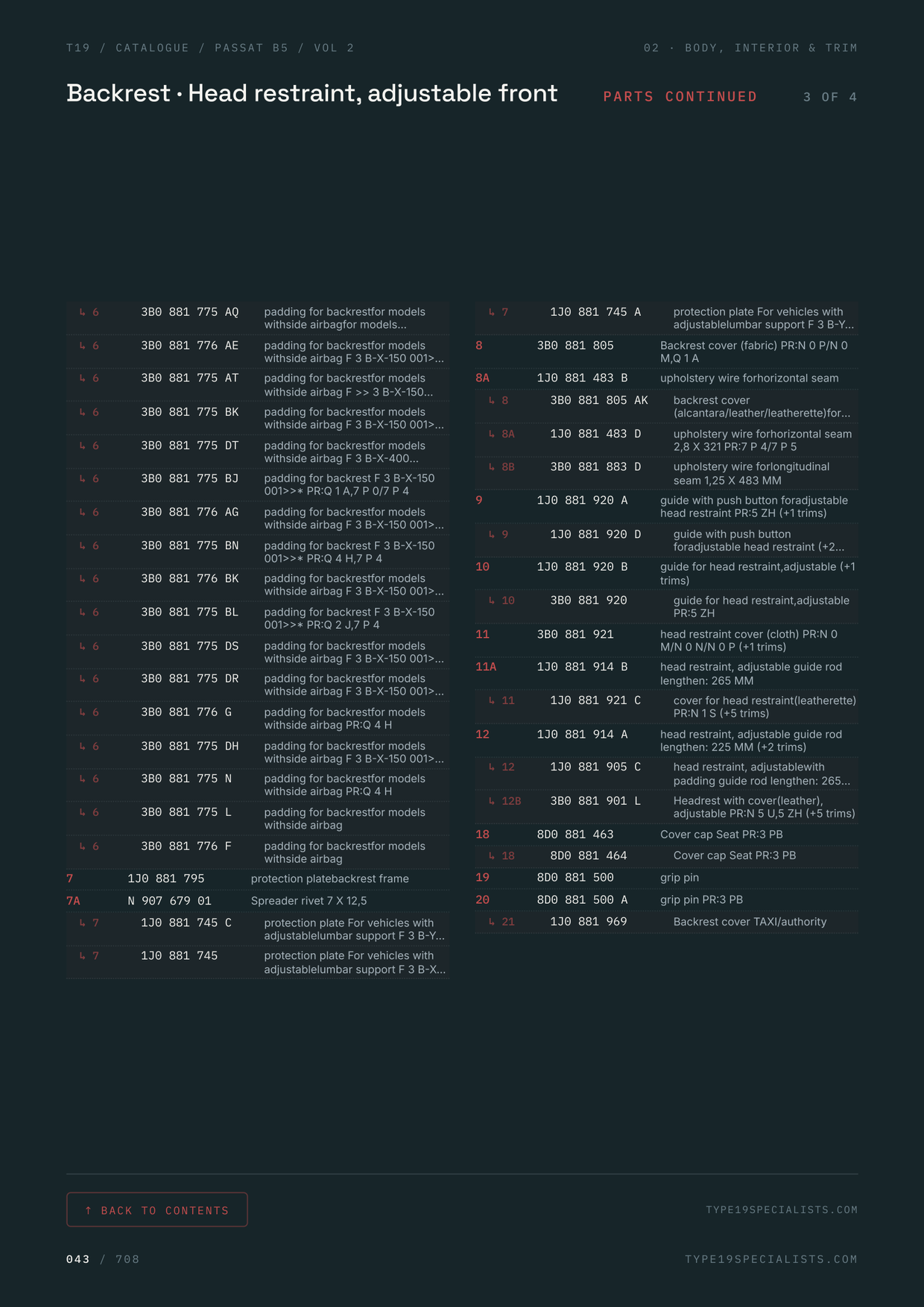

VW Passat B5 Vol 2 Master Parts Catalogue — factory exploded diagram with callout numbers 1 VW Passat B5 Vol 2 Master Parts Catalogue — factory exploded diagram with OEM part numbers 2 VW Passat B5 Vol 2 Master Parts Catalogue — parts list — OEM part numbers with engine-code applicability 3 VW Passat B5 Vol 2 Master Parts Catalogue — factory exploded diagram, ready to print A4 4 VW Passat B5 Vol 2 Master Parts Catalogue — parts list — position-indexed OEM part numbers 5

📄 708 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request

VW Passat B5 & B5.5 Master Parts Catalogue — Vol 2: Body, Interior & Electrical is a 708-page factory parts reference published by Type 19 Specialists. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. Volume 2 of the VW Passat B5 & B5.5 Master Parts Catalogue — the body, interior & electrical half: 242 diagrams, 13,554 parts, 708 pages covering heating & ventilation, body, interior & trim, and electrical & lighting — panels, doors, glass, seats, trim, luggage compartment, looms, lamps, switches and modules. Covers the B5 and B5.5 (Typ 3B/3BG), 1997–2005 (US model years 1998–2005), saloon & Variant, front-wheel-drive & 4Motion. Deduplicated, organised by VW group code and fully cross-referenced, with both LHD and RHD part numbers. Volume 1 covers engine & mechanical and is sold separately. The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.

Volume 2 of the VW Passat B5 & B5.5 Master Parts Catalogue — the body, interior & electrical half: 242 diagrams, 13,554 parts, 708 pages covering heating & ventilation, body, interior & trim, and electrical & lighting — panels, doors, glass, seats, trim, luggage compartment, looms, lamps, switches and modules. Covers the B5 and B5.5 (Typ 3B/3BG), 1997–2005 (US model years 1998–2005), saloon & Variant, front-wheel-drive & 4Motion. Deduplicated, organised by VW group code and fully cross-referenced, with both LHD and RHD part numbers. Volume 1 covers engine & mechanical and is sold separately.
