Mk1 Golf Master Torque Reference
Clearpay Or 4 interest-free payments of
Get the full Mk1 Golf workshop kit

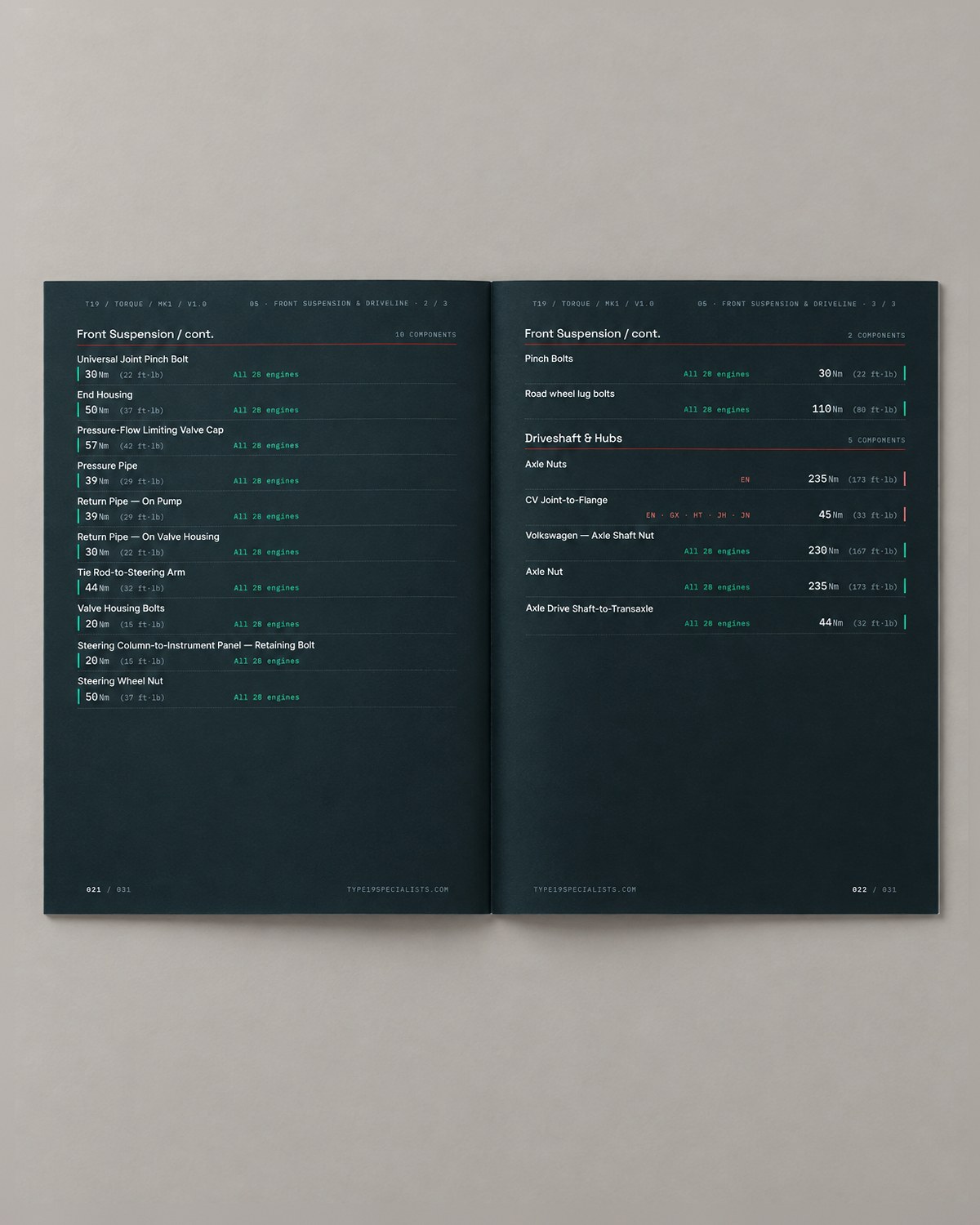

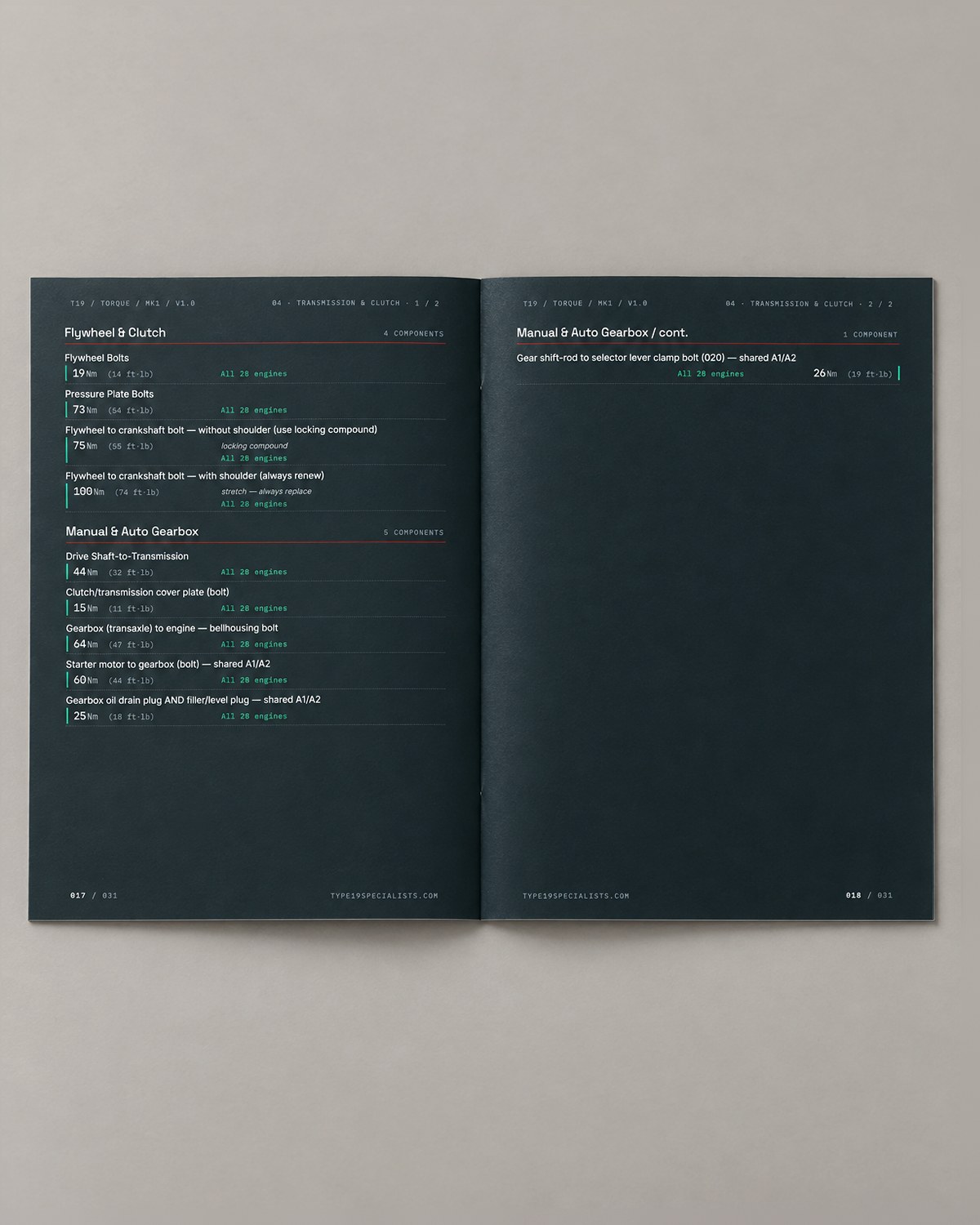

Sample pages — preview before you buy
4 representative pages from the 29-page PDF. Click any page to view full size.
📄 29 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request
Mk1 Golf Master Torque Reference is a 29-page factory parts reference published by Type 19 Specialists for the VW Golf MK1, VW Rabbit, VW Cabriolet, VW Jetta MK1, VW Scirocco. It is sold as a digital PDF for £14.95 and as a printed A4 paperback for £24.95, shipped worldwide from the UK. The complete factory torque reference for every Mk1 Golf engine — plus engine map, year×engine timeline, notation guide and glossary. Designed for your phone, tablet or workshop bench. German and French editions are also published (Mk1 Golf Werks-Drehmoment-Referenz). The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.
Every factory torque value VW specifies for the Mk1 Golf — 1974–1993. 89 components, 90 distinct values, 7 sections (engine internals, ancillaries, mounts, transmission, suspension, brakes). Each value sits next to its tightening stages, its condition (cold / hot / retorque), and the exact engine codes it applies to — green margin for universal, oxblood for engine-specific.
It also includes an engine-code map of all 28 engine variants, a year-by-engine availability timeline, a tightening-stage notation guide, and a glossary.
32-page A4 portrait PDF. Opens in iOS Books, Apple Preview, Adobe Reader or any PDF reader. Delivered to your inbox in minutes. Single-user licence.
| Pages | 32 |
|---|---|
| Format | PDF (A4 portrait) |
| Source | VW factory workshop manual (ELSA) |
| Engines | 28 codes |
| Reading | Any PDF reader |
| Coverage | 1974–1993 |
| Delivery | Email in minutes |
| Sections | 7 |
| Components | 89 distinct fasteners |
| Torque values | 90 distinct values incl. tightening stages |
| Weight | 165g |
Engine Codes
- 2H
- CK
- CR
- CY
- DX
- EG
- EN
- EW
- FA
- FH
- FK
- FN
- FP
- GF
- GG
- GS
- GU
- GX
- HB
- HK
- HT
- JB
- JH
- JK
- JN
- ME
- PL — 1.8 16V (129 PS) — Golf GTI, Jetta
- RV
Vehicle Fitment
Not sure if this fits your car? Ask our chatbot or get in touch.
UK Shipping
Free UK shipping on orders of £100 or more. Orders under £100 ship Royal Mail Tracked 48 (£6.95, 2–3 working days). Parcelforce Express 24 available at checkout (£12.95).
International Shipping
We ship worldwide. International shipping is calculated at checkout based on weight and destination — typically £19.95 for Europe and £39.95 for the rest of the world.
Returns
30-day returns on all unused items in original condition. See our Terms & Conditions for full details.
