MK2 Golf Control Units
The MK2 Golf control units system covers 19 factory exploded diagrams from the Volkswagen factory parts catalogue, indexing 181 unique OEM part numbers across 836 catalogued positions. ECU, glow controllers, fuel-pump relay. Diagnostic queries. Coverage spans MK2 Golf model years 1984–1990 and engine codes 1H, 1P, 2G, EV, EZ, GU (+11 more). Every part is sourced directly from Volkswagen AG factory documentation and cross-referenced against the VW Golf Mk2 factory workshop manual. Click any tile to open the exploded view, then any hotspot to highlight the matching part-number row. Use this layer for fitment confirmation, OEM cross-reference, and rebuild-stage planning — pricing for parts we currently produce or reproduce lives on the dedicated shop pages.
19 of 1579 published Mk2 Golf diagrams shown here. Full catalogue index →
Showing 19 of 19 diagrams

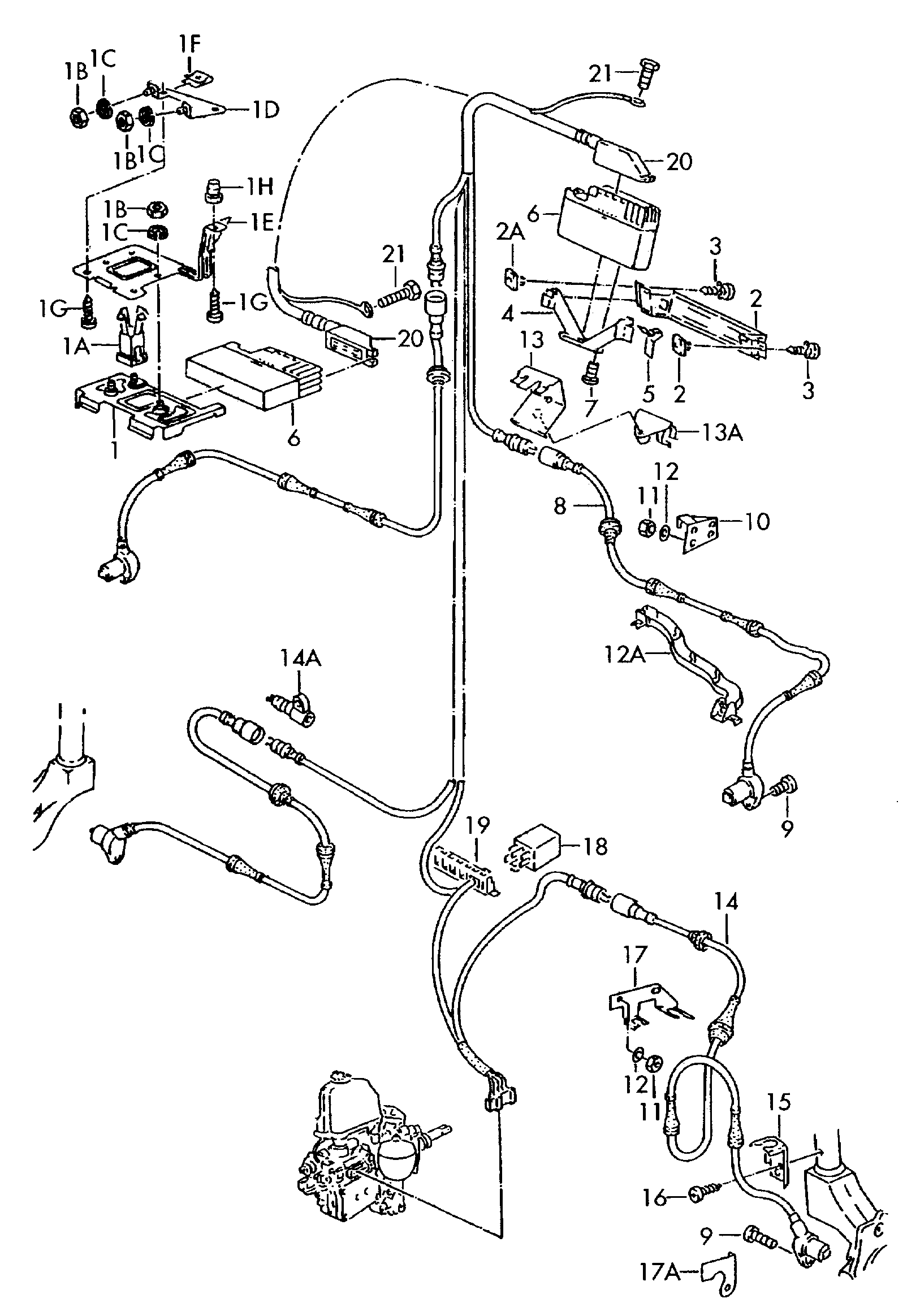

Relay. Wire set. for models with anti-lock brake system -abs-. speed sensor. Control unit
Relay. Wire set. for models with anti-lock brake system -abs-. speed sensor. Control unit
Cruise-control system
Relay. Wire set. for models with anti-lock brake system -abs-. speed sensor. Control unit
Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Relay. Wire set. for models with anti-lock brake system -abs-. speed sensor. Control unit

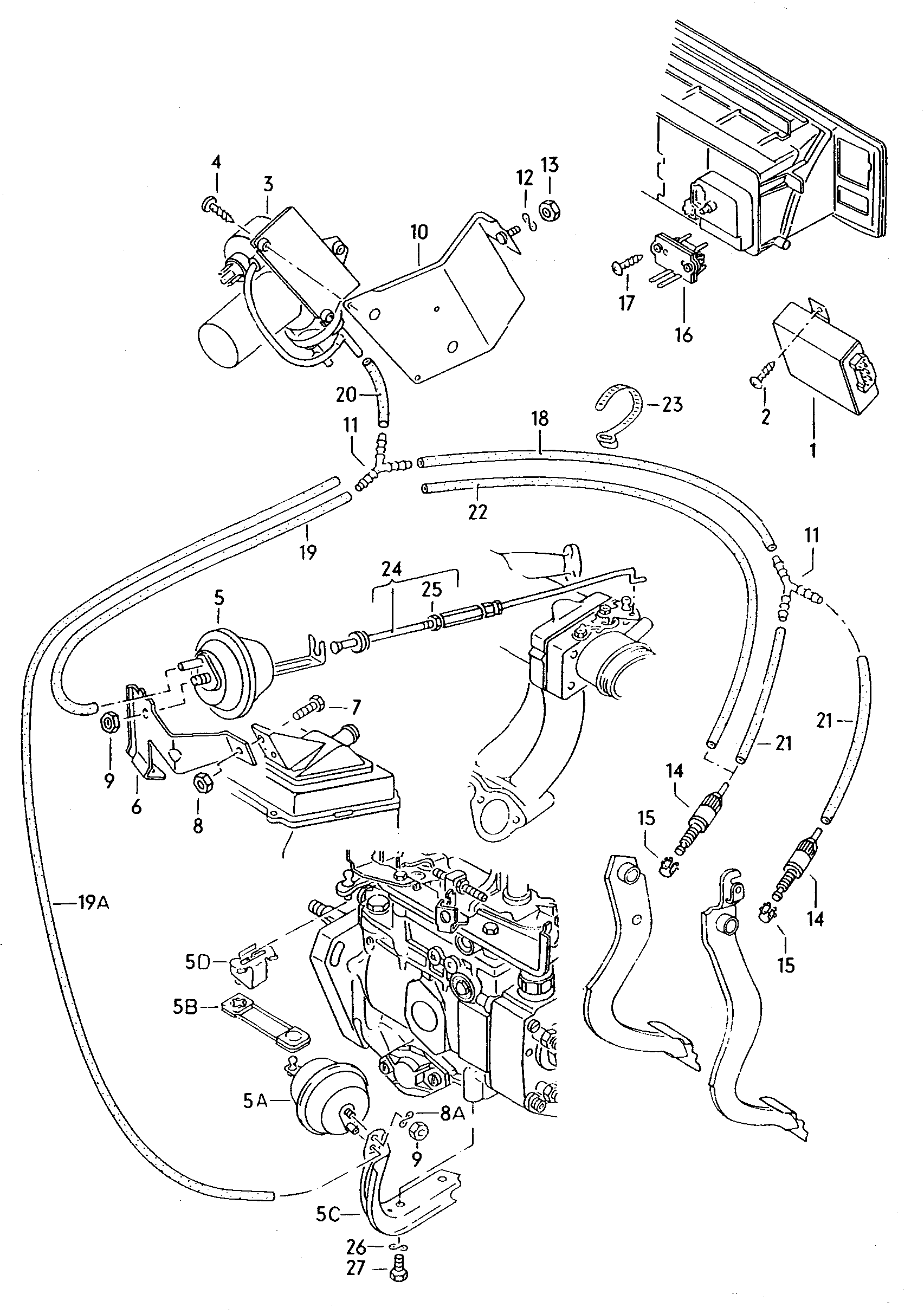

Stop-start system
Cruise-control system
Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Cruise-control system
Cruise-control system
Cruise-control system

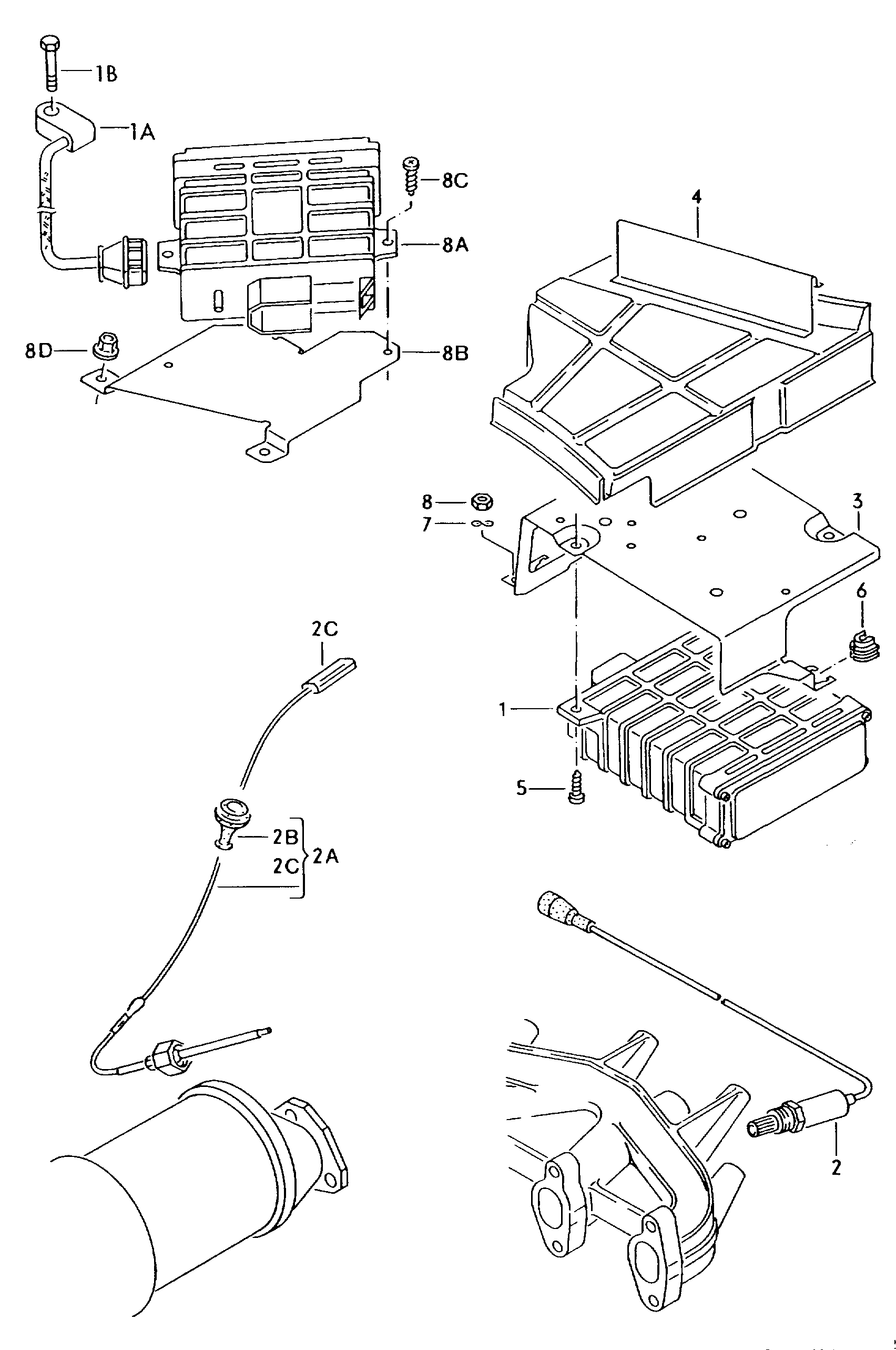

Lambda probe. Engine control unit. stop-start system
Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Lambda probe and engine control unit
Lambda probe and engine control unit. Knock sensor. Control unit for fully elec- tronic ignition
Lambda probe and engine control unit. Knock sensor. Control unit for fully elec- tronic ignition
Lambda probe and engine control unit. Knock sensor. Control unit for fully elec- tronic ignition
Lambda probe and engine control unit. stop-start system. Knock sensor. Control unit for fully elec- tronic ignition
Lambda probe and engine control unit. stop-start system. Knock sensor. Control unit for fully elec- tronic ignition

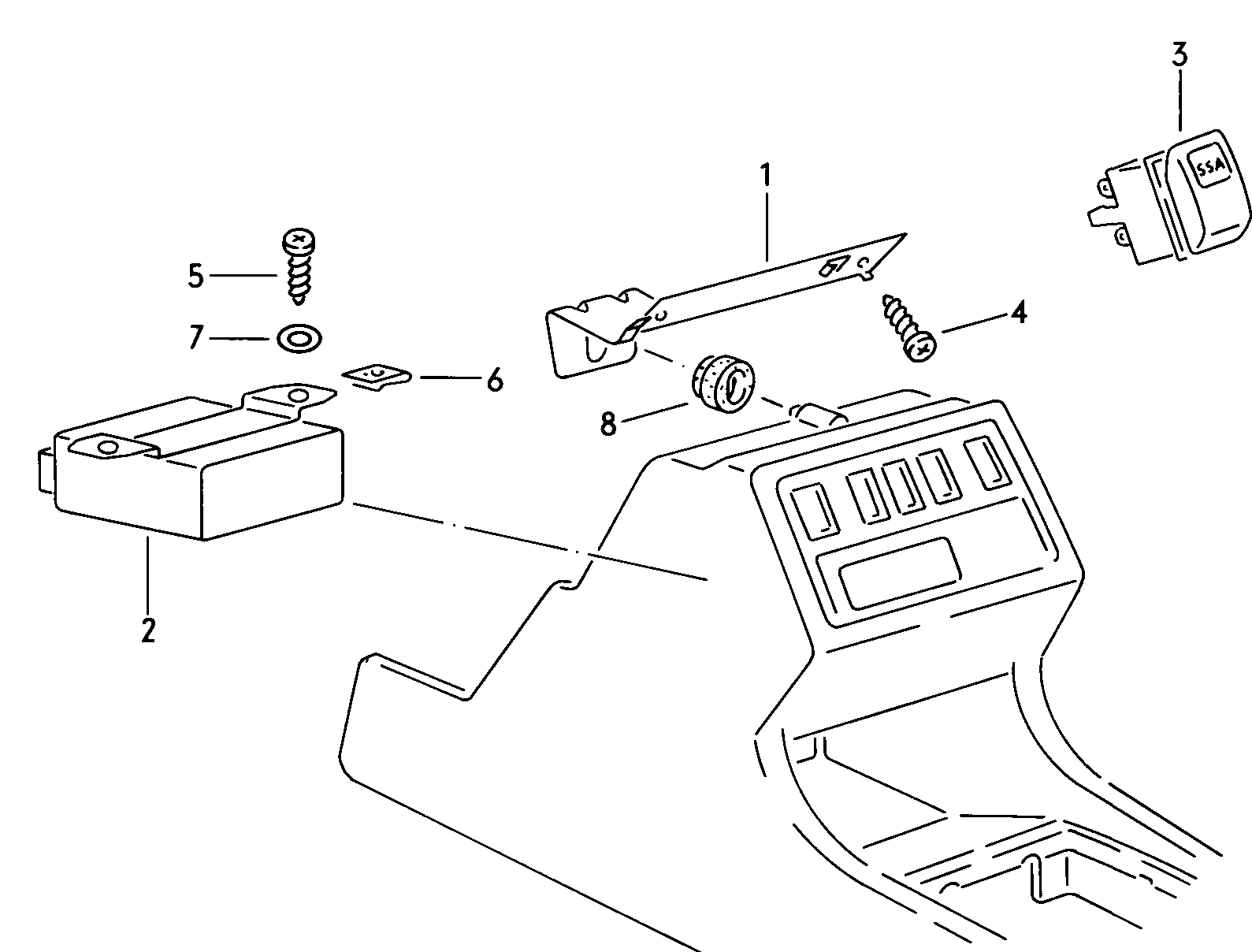

Stop-start system
