Air conditioner refrigerant circuit — Mk1 Golf Air Cond System Heating (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Air conditioner with refrigerant circuit

Generation: Mk1 1979 - 1980 (RDW) Group: Air cond. system / heating Parts: 96 Primary OEM: 811 820 854, 055 105 255 H, 055 260 911

Air conditioner refrigerant circuit for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 49000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 93 OEM part numbers across 96 catalogued positions including 811 820 854, 055 105 255 H and 055 260 911. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 93 OEM part numbers across 96 numbered positions.

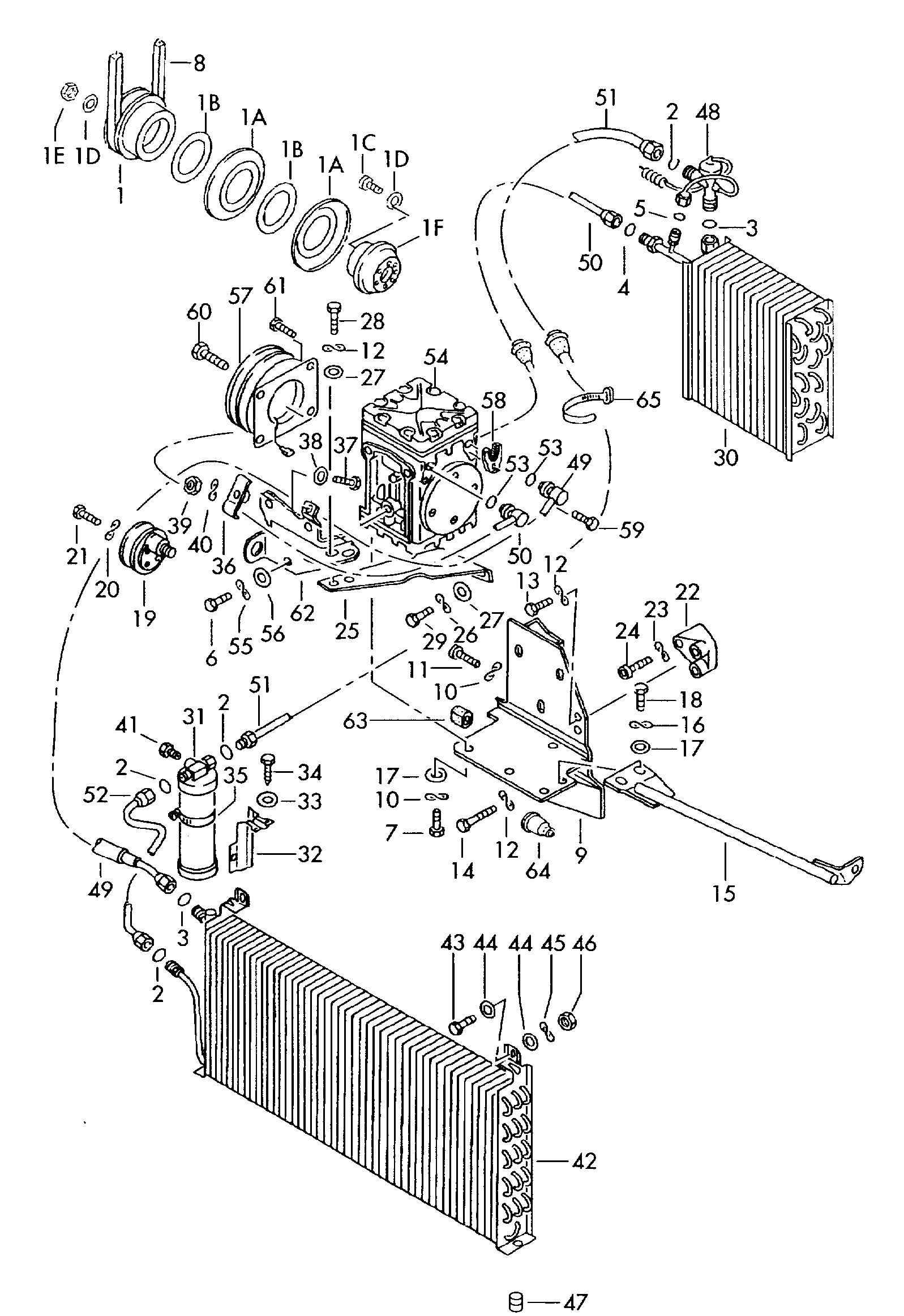

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
air conditioner withrefrigerant circuit EH,EJ,FR,FV,JB,GH
 —
-
felt ring
 811 820 854
(1)
v-belt pulley F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>>
 055 105 255 H
(15)
Brace automatic
 055 260 911
(29)
Hexagon bolt M 8 X 15
M 8 X 15
 N 010 238 20
(42)
A/C condenser SCIR.
 531 820 413 A
(57)
Electromagnetic coupling F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>>
 321 820 811 A
(8)
v-belt F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>> 12,5 X 1030 MM
12,5 X 1030 MM
 055 260 849 E
(9)
Bracket F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 421>>
 055 260 879 F
1
dual pulley F >> 179 3376 420 F >> 539 2043 812 130 X 9,5
130 X 9,5
 055 105 255
10
Spring washer 10
10
 N 012 230 7
11
Socket head bolt M 10 X 25
M 10 X 25
 N 014 721 4
11
Socket head bolt withhexagon socket head M 10 X 25
M 10 X 25
 N 014 721 2
12
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
12
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
13
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
14
Hexagon bolt M 8 X 55
M 8 X 55
 N 010 352 10
15
No longer available
 —
15
bearing piece manualgearbox
 055 260 911 A
16
Spring washer 10
10
 N 012 230 7
17
Washer 10
10
 N 011 527 11
18
Hexagon bolt M 10 X 25
M 10 X 25
 N 010 254 14
19
Tensioning roller F >> 179 3376 420 F >> 539 2043 812
 055 260 917 B
1A
v-belt pulley F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>>
 049 105 253
1B
Shim F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>> 78,1 X 100 X 0,5
78,1 X 100 X 0,5
 049 105 297
1C
Socket head bolt withhexagon socket head M 8 X 22
M 8 X 22
 N 014 709 1
1D
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
1D
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
1E
Hexagon nut M 8
M 8
 N 011 008 8
1F
hub F 159 2800 001>>F 16 A 0000 001>>F 179 3376 421>>F 539 2043 813>>
 055 105 203
2
O-ring
 803 260 749
20
Spring washer 10
10
 N 012 230 7
21
Hexagon bolt M 10 X 50
M 10 X 50
 N 010 450 3
21
Hexagon bolt M 10 X 50
M 10 X 50
 N 102 779 03
22
Intermediate flange
 055 260 921
22
Intermediate flange
 055 260 921
23
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
23
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
24
Socket head bolt withhexagon socket head M 8 X 60
M 8 X 60
 N 014 714 5
25
Support
 055 260 931
26
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
26
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
27
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
27
Washer A 8,4
A 8,4
 N 011 525 13
28
Hexagon bolt M 8 X 22
M 8 X 22
 N 010 241 18
28
Hexagon bolt M 8 X 22
M 8 X 22
 N 010 241 15
29
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
3
O-ring F 16 A 0000 001>>
 803 260 749 A
30
evaporator
 171 820 105
31
Drier
 171 820 191 B
31
Drier
 171 820 191 A
32
Bracket
 171 820 197 A
33
Washer 6,4 X 11 X 1,6
6,4 X 11 X 1,6
 N 011 557 2
34
hexagon head panel screw 6,3 X 13
6,3 X 13
 N 013 890 5
35
Clamp 70-90 X 9 X 0,5
70-90 X 9 X 0,5
 N 024 518 3
35
Hose clamp LA 70-90
LA 70-90
 N 024 518 1
36
dual clip
 321 820 251
37
Hexagon bolt M 6 X 32
M 6 X 32
 N 010 305 4
38
Washer 6,5
6,5
 N 011 547 6
39
Hexagon nut M 6
M 6
 N 011 006 24
39
Hexagon nut M 6
M 6
 N 011 006 8
4
O-ring
 803 260 749 B
40
Spring washer A 6
A 6
 N 012 227 3
40
Spring washer 6
6
 N 012 226 5
41
No longer available
 —
42
A/C condenser GOLF;JETTA
 171 820 413 A
43
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
44
Washer 6,4 X 18 X 1,6
6,4 X 18 X 1,6
 N 011 666 15
44
Washer B 6,1 X 18 X 2
B 6,1 X 18 X 2
 N 011 666 10
45
Spring washer 7
7
 N 012 234 5
46
Hexagon nut M 6
M 6
 N 011 006 24
47
dual button
 171 820 423
48
Expansion valve
 171 820 679
49
Hose
 171 820 721 D
5
seal ring
 803 260 749 D
50
Hose
 171 820 721 E
51
Pipe
 533 820 738
52
Pipe
 171 820 740
53
seal ring
 171 820 749
55
Spring washer 10
10
 N 012 230 7
55
Spring washer B 10 X 21 X 1
B 10 X 21 X 1
 N 012 230 6
56
Washer 10
10
 N 011 527 11
57
Electromagnetic coupling F >> 179 3376 420 F >> 539 2043 812
 171 820 811
58
Clamping plate
 171 820 829
59
Hexagon bolt
 171 820 830
6
Hexagon bolt 3/8"X 25,4 EH,EJ,JB,GH
3/8"X 25,4
 059 260 829
60
Hexagon bolt 5/16"X 24 X 34
5/16"X 24 X 34
 N 989 109 01
61
Hexagon bolt 1/4"-20
1/4"-20
 N 989 110 01
62
Bracket
 055 903 141
63
Rubber bush
 055 903 147
64
Damping sleeve
 056 903 147 A
65
Cable ties 3,6 X 246
3,6 X 246
 N 020 902 2
65
Cable ties 210
210
 N 020 902 1
7
Hexagon bolt 3/8"X 32 EH,EJ,JB,GH
3/8"X 32
 055 260 900
8
v-belt F >> 179 3376 420 F >> 539 2043 812 12 WX 135
12 WX 135
 055 260 849 B
9
Bracket F >> 179 3376 420 F >> 539 2043 812
 055 260 881 E
