Air conditioning lhd — Mk1 Golf Air Cond System Heating (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - Air conditioning

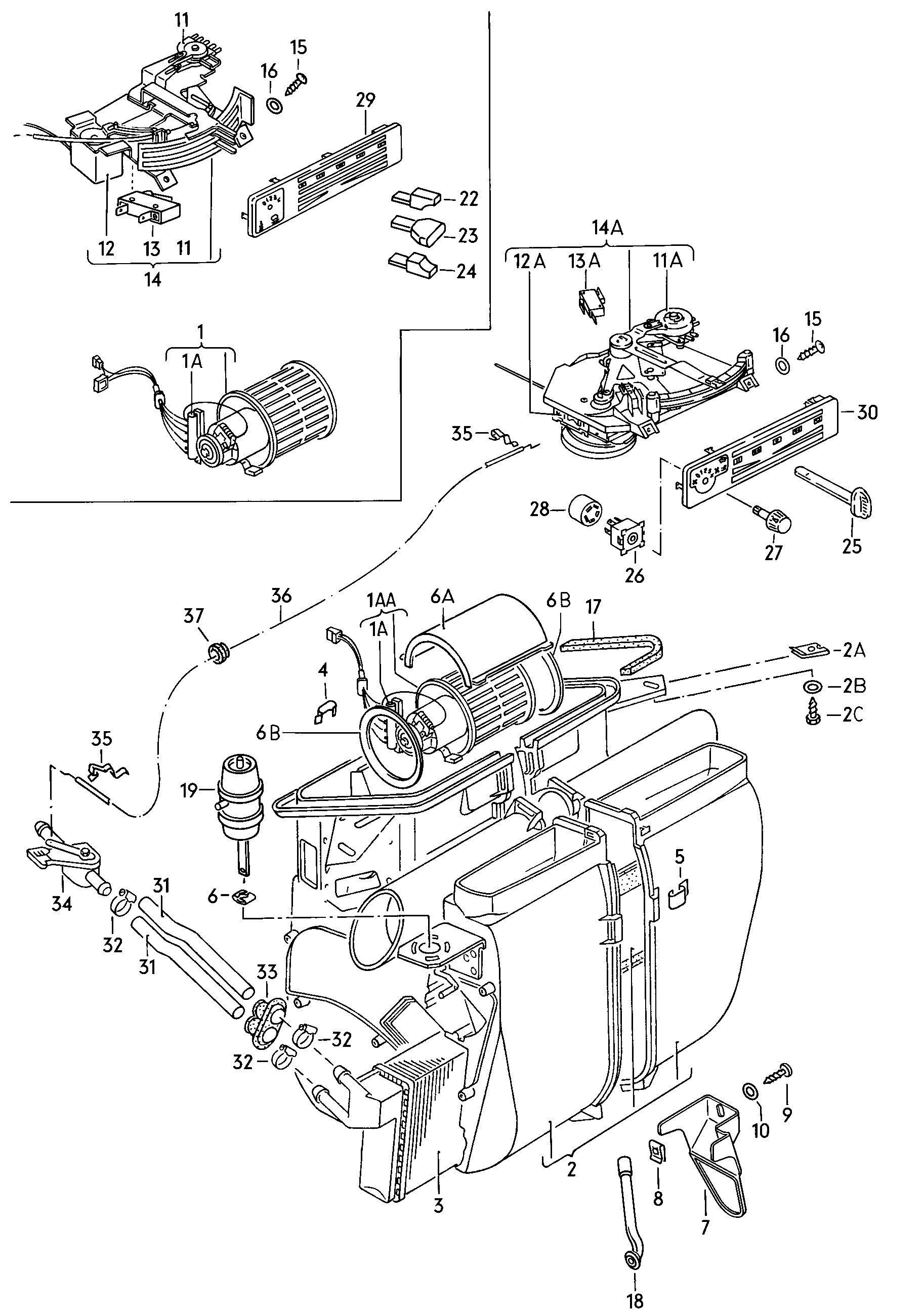

Air conditioning lhd for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 101000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 60 OEM part numbers across 69 catalogued positions including 171 820 229 0 1C, 171 820 023 A 0 1C and 161 919 383 C 9 5U. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 60 OEM part numbers across 69 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 171 820 229 0 1C | |
| Satin black | 171 820 023 A 0 1C | |
| Alu metallic | 161 919 383 C 9 5U | |
| F 17 A 0000 001>> GOLF | — | |
| F >> 179 3750 000 GOLF | — | |
| F 17 A 0000 001>> GOLF | — | |
| F >> 179 3750 000 GOLF | — | |
| (11A) | vacuum pipe junction SCIRROCO | 161 820 293 |
| (27) | knob for switch 18 MM JETTA 18 MM | 867 959 513 |
| (29) | Trim | 171 919 383 A |
| (30) | Trim JETTA | 161 919 383 C |
| (30) | Trim | 171 919 383 N |
| 1 | Fan | 171 820 021 |
| 1-1A | No longer available | — |
| 10 | Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6 | N 011 665 3 |
| 11 | vacuum pipe junction F >> 179 3750 000 | 171 820 293 |
| 11A | vacuum pipe junction SCIROCCO | 161 820 293 B |
| 11A | vacuum pipe junction F 17 A 0000 001>>F 16 A 0000 001>> | 161 820 293 B |
| 12 | temperature switch F >> 179 3750 000 | 171 959 281 |
| 12 | No longer available | — |
| 12A | temperature switch F 17 A 0000 001>>F 16 A 0000 001>> | 161 820 295 |
| 13 | Switch F >> 179 3750 000 | 411 927 211 |
| 13A | No longer available F 16 A 0000 001>>F 17 A 0000 001>> | — |
| 13A | Switch F 16 A 0000 001>>F 17 A 0000 001>> | 161 820 073 A |
| 14 | control mechanism F >> 179 3750 000 | 171 820 311 |
| 14A | control mechanism F 17 A 0000 001>>F 16 A 0000 001>> | 161 820 045 |
| 15 | oval head panel screw B 4,2 X 16 B 4,2 X 16 | N 013 964 4 |
| 15 | oval head panel screw 4,2 X 16 4,2 X 16 | N 013 964 9 |
| 16 | Washer B 4,3 X 12 X 1 B 4,3 X 12 X 1 | N 011 664 4 |
| 17 | Seal 578 X 15 X 15 578 X 15 X 15 | 861 819 065 |
| 17 | Seal 12 X 16 X 1250 12 X 16 X 1250 | 133 819 079 |
| 18 | Water drainage hose | 171 820 615 |
| 19 | dual vacuum unit | 171 820 677 |
| 1A | wiring harness withresistance for fan motor F >> 17 A 0240 000* air condit. | 171 971 567 |
| 1A | wiring harness withresistance for fan motor F 17 A 0240 001>>*F 16 A 0000 001>> air condit. | 171 971 567 B |
| 1A | Fan F 17 A 0240 001>>*F 16 A 0000 001>> | 171 820 021 A |
| 2 | Evaporator housing | 171 820 023 A |
| 22 | knob F >> 179 3750 000 | 171 819 129 C |
| 23 | knob F >> 179 3750 000 | 171 819 129 D |
| 24 | knob F >> 179 3750 000 | 171 819 129 E |
| 25 | knob | 171 819 129 C |
| 26 | switch for blower motor F 17 A 0000 001>>F 16 A 0000 001>> | 321 959 511 |
| 27 | knob for switch 21 MM GOLF 21 MM | 321 959 513 B |
| 28 | Flat contact housing 6,3 6,3 | 171 959 999 |
| 29 | Trim Alu metallic | 171 919 383 C |
| 29 | No longer available | — |
| 2A | Speed nut 5,5 X 26,6 X 20,4 5,5 X 26,6 X 20,4 | N 015 423 1 |
| 2B | Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6 | N 011 524 23 |
| 2B | Washer A 6,4 X 12,5 X 1,6 A 6,4 X 12,5 X 1,6 | N 011 524 7 |
| 2C | hexagon head panel screw 5,5 X 16 5,5 X 16 | N 013 887 3 |
| 3 | heat exchanger | 171 820 041 A |
| 30 | No longer available | — |
| 30 | Trim Alu metallic | 171 919 383 P |
| 31 | Coolant hose | 171 820 371 B |
| 32 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 32 | Clamp LC 16-27 LC 16-27 | N 900 719 01 |
| 33 | Double grommet | 861 819 699 A |
| 34 | Heater valve | 171 819 809 E |
| 35 | Clip | 823 819 679 |
| 36 | Heater valve cable | 161 819 837 |
| 37 | Grommet 12,5/2 12,5/2 | 311 971 913 |
| 4 | Clip | 171 820 047 |
| 5 | Clip | 321 819 059 |
| 6 | Clamping washer 5 5 | N 012 855 1 |
| 6A | Cover | 171 820 083 |
| 6B | ring | 171 820 085 |
| 7 | cap for water drain | 171 820 229 |
| 8 | Speed nut 4,8 X 19,5 X 16,5 4,8 X 19,5 X 16,5 | N 015 458 1 |
| 9 | oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0 | N 013 969 4 |
