Air hose air vent lhd air condit — Mk1 Golf Air Cond System Heating (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Air conditioning

Generation: Mk1 1979 - 1980 (RDW) Group: Air cond. system / heating Parts: 53 Primary OEM: 161 820 703 A F B5, 171 819 705 9 0V, 161 819 706 6 6W

Air hose air vent lhd air condit for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 102000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 51 OEM part numbers across 53 catalogued positions including 161 820 703 A F B5, 171 819 705 9 0V and 161 819 706 6 6W. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 51 OEM part numbers across 53 numbered positions.

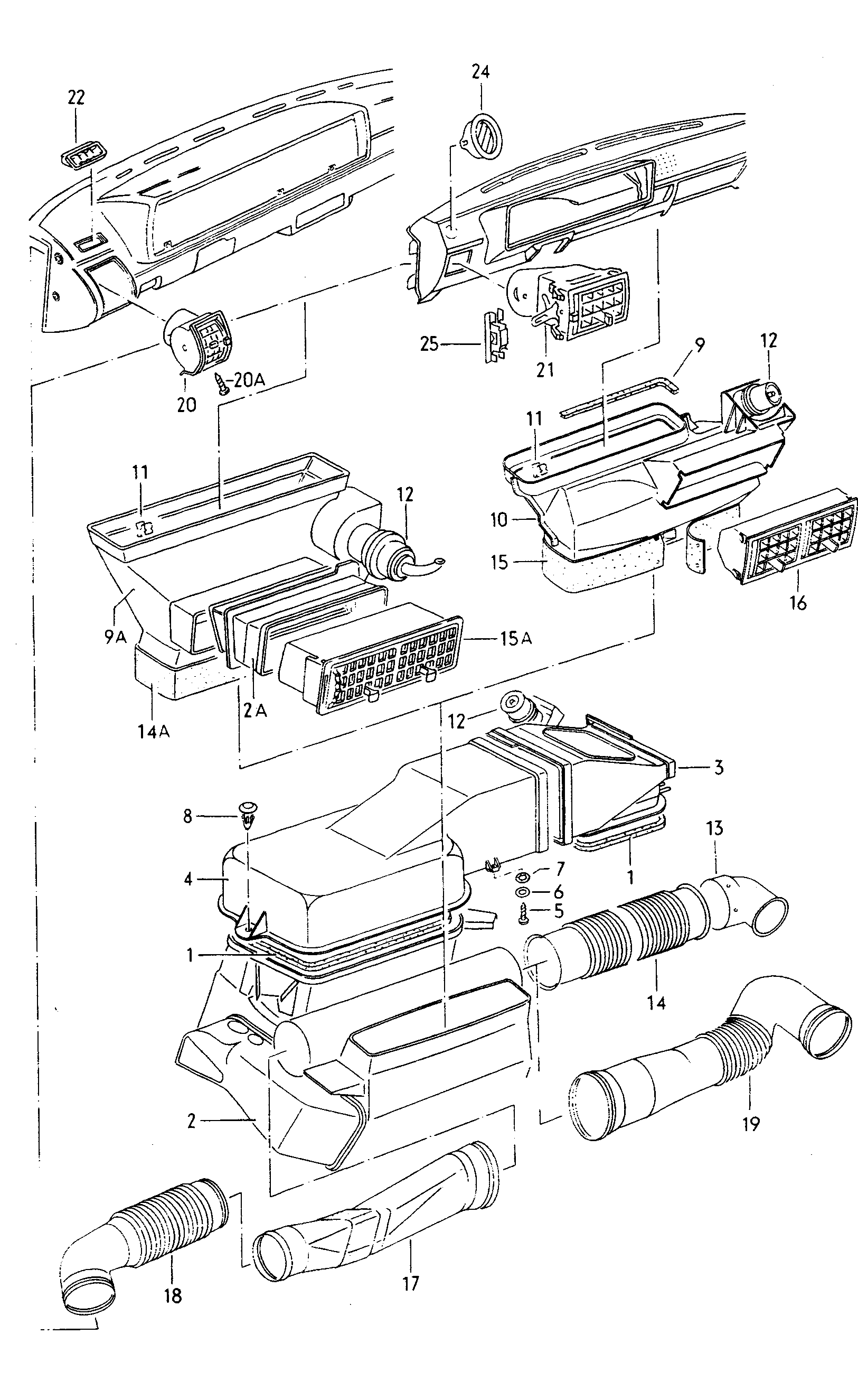

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	saddle brown/white	161 820 703 A F B5
	saddle brown	171 819 705 9 0V
	ivy (green)	161 819 706 6 6W
	air hose Air vent lhd air condit. lhd	—
	saddle brown	161 819 706 9 0V
	Satin black	161 819 706 0 1C
	Black	171 819 705 0 41
	ivy (green)	161 819 705 6 6W
	saddle brown	161 819 705 9 0V
	Satin black	161 819 705 0 1C
	ivy/white (green/white)	161 819 701 A F B6
	saddle brown/white	161 819 701 A F B5
	satin black/white GLS,GLI	161 819 701 A F B4
	Satin black LS,LI	161 819 701 0 1C
	Satin black	171 820 703 A 0 1C
	satin black/white	161 820 703 A F B4
	saddle brown	171 820 703 A 9 0V
(17)	air hose F >> 179 3750 000 GOLF	171 820 723
(18)	air hose F >> 179 3750 000 GOLF	171 820 689 A
(2)	Footwell vent	171 820 152
(20)	Air vent JETTA,S,L	161 819 701
(22)	Air vent JETTA	161 819 706
1	Seal 1220 X 12 X 10 1220 X 12 X 10	321 820 061 D
10	Air distribution housing also use: >>179 3750000171 820 691 A GOLF >>179 3750000171 820 691 A	171 820 621 B
11	Clip	171 819 086
12	Vacuum unit	323 820 627
13	reducing elbow GOLF	171 820 687 A
14	air hose GOLF	171 820 690
14A	sealing tape JETTA	161 820 691
15	sealing tape GOLF	171 820 691 A
15A	Air vent JETTA	161 820 703 A
16	Air vent GOLF	171 820 703 A
17	air hose F 17 A 0000 001>> GOLF	171 820 723 B
18	No longer available F 17 A 0000 001>> GOLF	—
18	air hose F 17 A 0000 001>> GOLF	171 820 725
19	air hose JETTA	161 820 724
2	Footwell vent	171 820 151
20	Air vent JETTA GL,	161 819 701 A
20A	countersunk panel screw 4,2 X 16 JETTA 4,2 X 16	N 013 998 1
22	Air vent JETTA	161 819 705
24	Trim for air outlet GOLF	171 819 705
25	Clip GOLF	171 819 747
2A	intermediate plate for airdistribution housing JETTA	161 820 327 A
3	flap box	171 820 551 A
4	Cover	171 820 565
5	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
5	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 12
6	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
7	Sealing plate	411 821 185
8	Clip	171 820 579
9	Seal 578 X 15 X 15 GOLF 578 X 15 X 15	861 819 065
9	Seal 12 X 16 X 1250 GOLF 12 X 16 X 1250	133 819 079
9A	Air distribution housing JETTA	161 820 621
