Air hose air ventnon return flap rhd golf jetta — Mk1 Golf Air Cond System Heating (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Fan motor. heat exchanger. fresh air and heater controls

Generation: Mk1 1979 - 1980 (RDW) Group: Air cond. system / heating Parts: 29 Primary OEM: 171 819 701 Q G F9, 171 819 705 0 41, 171 819 701 Q G G1

Air hose air ventnon return flap rhd golf jetta for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 100000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 21 OEM part numbers across 29 catalogued positions including 171 819 701 Q G F9, 171 819 705 0 41 and 171 819 701 Q G G1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 21 OEM part numbers across 29 numbered positions.

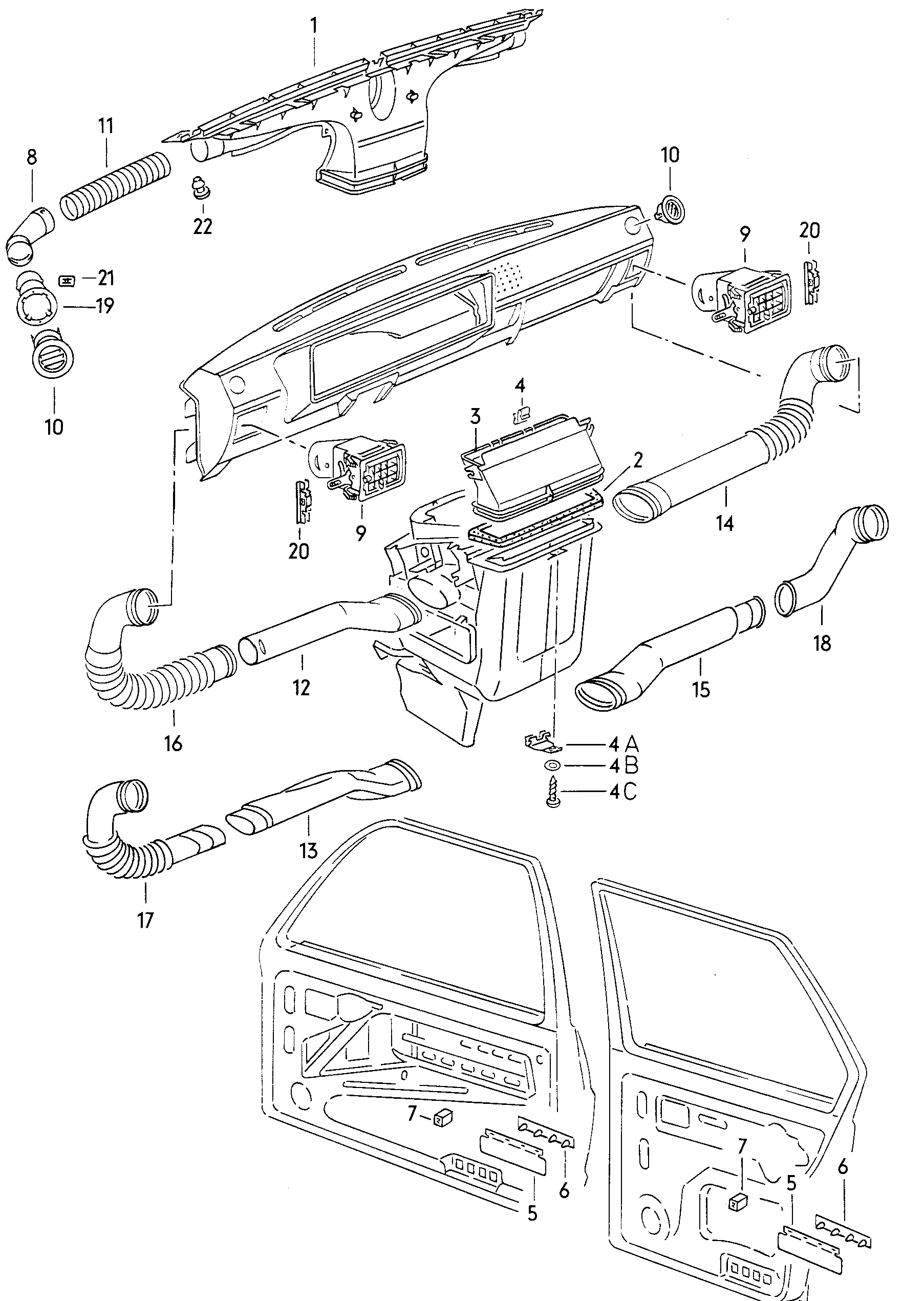

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	satin black/chrom	171 819 701 Q G F9
	air hose Air ventnon-return flap rhd GOLFJETTA rhd	—
	Black	171 819 705 0 41
	saddle brown/chrom	171 819 701 Q G G1
1	Air vent	171 819 071 A
10	Trim for air outlet	171 819 705
11	air hose	171 819 721 A
12	air hose	171 819 723
13	air hose	172 819 723
14	No longer available	—
15	air hose	172 819 724 A
16	No longer available	—
17	No longer available	—
18	No longer available	—
2	Seal 12 X 16 X 1250 12 X 16 X 1250	133 819 079
2	Seal 578 X 15 X 15 578 X 15 X 15	861 819 065
20	No longer availablefor padded dashboard	—
21	Clamping washer 4 4	N 012 068 1
22	No longer available	—
3	Intermediate piecefor padded dashboard	161 819 081
4	Clipfor padded dashboard	171 819 086
4A	Clip	171 857 086
4B	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
4C	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
5	non-return flap	171 819 469 A
6	clip strip	171 819 489
7	Clip	171 837 893
8	No longer available	—
9	Air vent	171 819 701 Q
