Which VW part numbers are on the fan motorheat exchangerfresh air heater controls diagram for the Mk1 Golf?

This diagram lists 76 OEM part numbers for the Mk1 Golf. The first three are 171 819 015 E 0 1C, 321 919 383 B G X5 and 161 919 383 0 1C.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Fan motorheat exchangerfresh air heater controls — Mk1 Golf Air Cond System Heating (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Fan motor. heat exchanger. fresh air and heater controls

Generation: Mk1 1979 - 1980 (RDW) Group: Air cond. system / heating Parts: 76 Primary OEM: 171 819 015 E 0 1C, 321 919 383 B G X5, 161 919 383 0 1C

Fan motorheat exchangerfresh air heater controls for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 99000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 76 OEM part numbers including 171 819 015 E 0 1C, 321 919 383 B G X5 and 161 919 383 0 1C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 76 OEM part numbers across 76 numbered positions.

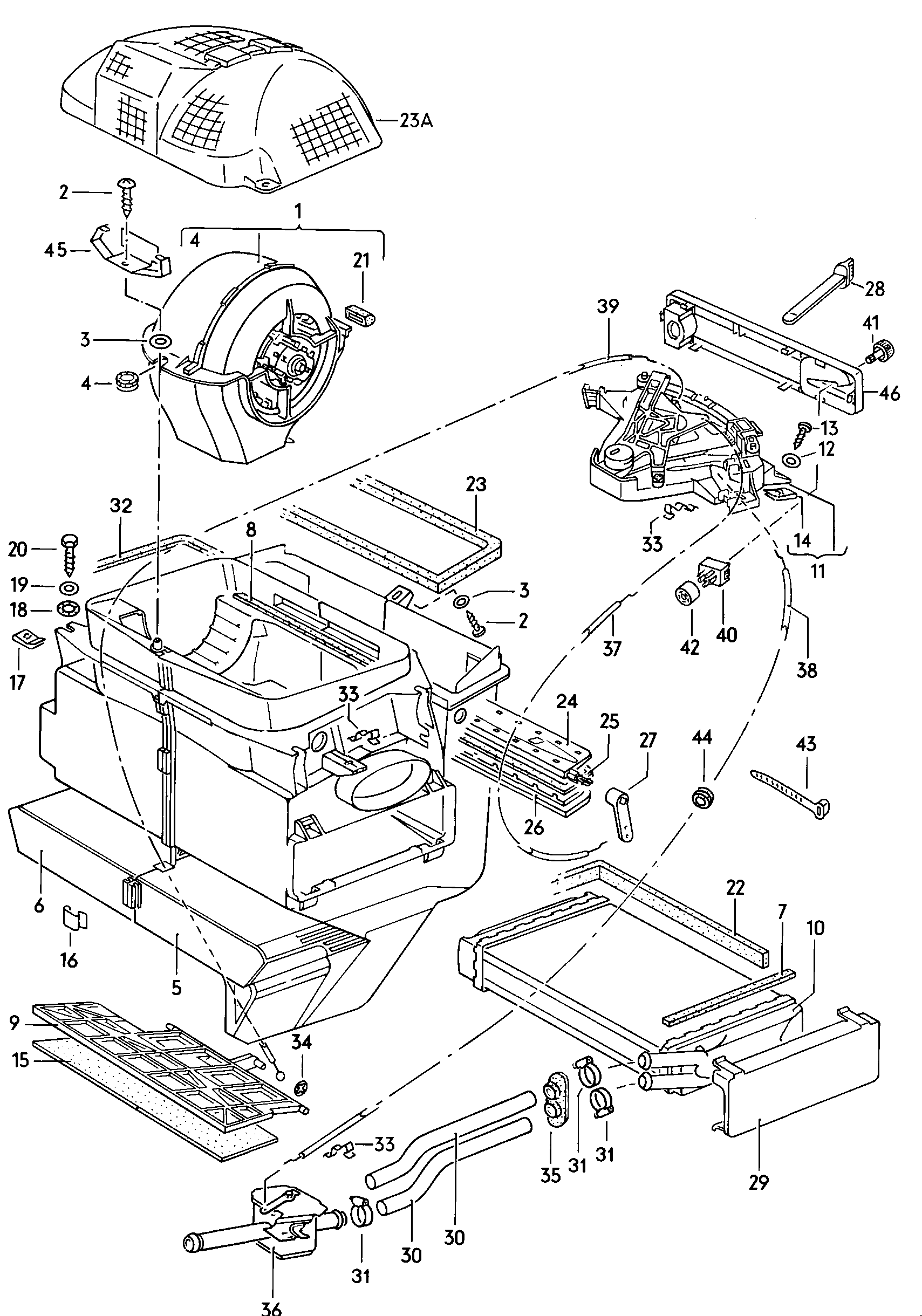

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	171 819 015 E 0 1C
	black/chrome	321 919 383 B G X5
	black/chrome	321 919 383 B G X5
	black/chrome	321 919 383 B G X5
	Satin black	161 919 383 0 1C
	Alu metallic GLI,GLE	161 919 383 9 5U
	Black	321 819 129 A 0 41
	Satin black	171 819 173 0 1C
	Satin black	171 819 016 D 0 1C
(28)	knob JETTA	171 819 129 C
(37)	Cablelocking flap	172 819 831 A
(38)	Heater valve cable	172 819 837 D
(39)	Control lid cable	172 819 839 D
(41)	knob for switch 18 MM JETTA 18 MM	867 959 513
(46)	trim for fresh air andheater controls	321 919 383 B
(46)	Trim JETTA GL,GLS	161 919 383
(46)	Trim Alu metallic JETTA	171 919 383 L
(46)	trim for fresh air andheater controls JETTA	321 919 383 B
(46)	Trim Alu metallic GOLF GL,GLS,GLD,GLE	171 919 383 L
(46)	trim for fresh air andheater controls GOLF GL,GLS,GLD,GLE	321 919 383 B
1	Fan motor	251 819 015
10	heat exchanger	171 819 031 E
11	fresh airand heater controls	811 819 045 A
11	fresh airand heater controls	321 819 045 B
12	Washer A 5,3 X 10 X 1 A 5,3 X 10 X 1	N 011 523 7
12	Washer 5 5	N 011 523 18
13	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 12
13	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
14	Speed nut 4,2 X 12,8 X 11,5 4,2 X 12,8 X 11,5	N 015 442 1
15	Seal	171 819 050 A
16	Clip	321 819 059
17	Speed nut 5,5 X 26,6 X 20,4 5,5 X 26,6 X 20,4	N 015 423 1
18	Sealing plate	803 955 637
19	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
19	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
2	oval head panel screw B 4,2 X 16 B 4,2 X 16	N 013 964 4
2	oval head panel screw 4,2 X 16 4,2 X 16	N 013 964 9
20	hexagon head panel screw 5,5 X 19 5,5 X 19	N 013 888 2
21	Mounting	321 819 064
22	Seal 814 X 15 X 6 814 X 15 X 6	701 819 069
22	Seal 810 X 25 X 6 810 X 25 X 6	7D0 819 069
23	Seal 578 X 15 X 15 578 X 15 X 15	861 819 065
23	Seal 12 X 16 X 1250 12 X 16 X 1250	133 819 079
23A	Foliage grille	171 819 099 A
24	locking flap-upper part	171 819 107
25	seal for flap	171 819 109 A
26	locking flap-lower part	171 819 111
27	lever	171 819 123
28	knob GOLF	321 819 129 A
29	cap for heat exchanger	171 819 173
3	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
30	Coolant hose	171 820 371 B
31	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
31	Clamp LC 16-27 LC 16-27	N 900 719 01
32	Seal	171 819 409 A
33	Clip	823 819 679
34	Clamping washer	311 259 197
35	Double grommet	861 819 699 A
36	Heater valve	171 819 809 E
37	Locking flap cable	171 819 831 F
38	Heater valve cable	161 819 837
39	Cable Control valve	171 819 839 C
4	Grommet 13/9 13/9	321 819 063
40	switch for blower motor	171 959 511
41	knob for switch 21 MM GOLF 21 MM	321 959 513 B
42	Flat contact housing 6,3 6,3	171 959 999
43	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
43	Cable ties 210 210	N 020 902 1
44	Grommet 12,5 12,5	171 971 913
45	bracket for resistance	321 971 280
46	Trim GOLF L,LS,LD,LE,GTI	171 919 383 J
5	Housing half	171 819 015 E
6	Housing half	171 819 016 D
7	Seal 680 X 8 X 10 680 X 8 X 10	321 819 017
8	Seal 8 X 6 X 68 8 X 6 X 68	321 819 018
9	Control valve	171 819 027 D

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 27 Air cond. system / heating
Factory subgroup: 99000
