Vacuum reservoirvacuum hoses lhd air condit — Mk1 Golf Air Cond System Heating (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Air conditioning

Generation: Mk1 1979 - 1980 (RDW) Group: Air cond. system / heating Parts: 16 Primary OEM: N 018 057 1, N 020 139 1, 191 820 601

Vacuum reservoirvacuum hoses lhd air condit for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 103000 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 8 OEM part numbers across 16 catalogued positions including N 018 057 1, N 020 139 1 and 191 820 601. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 8 OEM part numbers across 16 numbered positions.

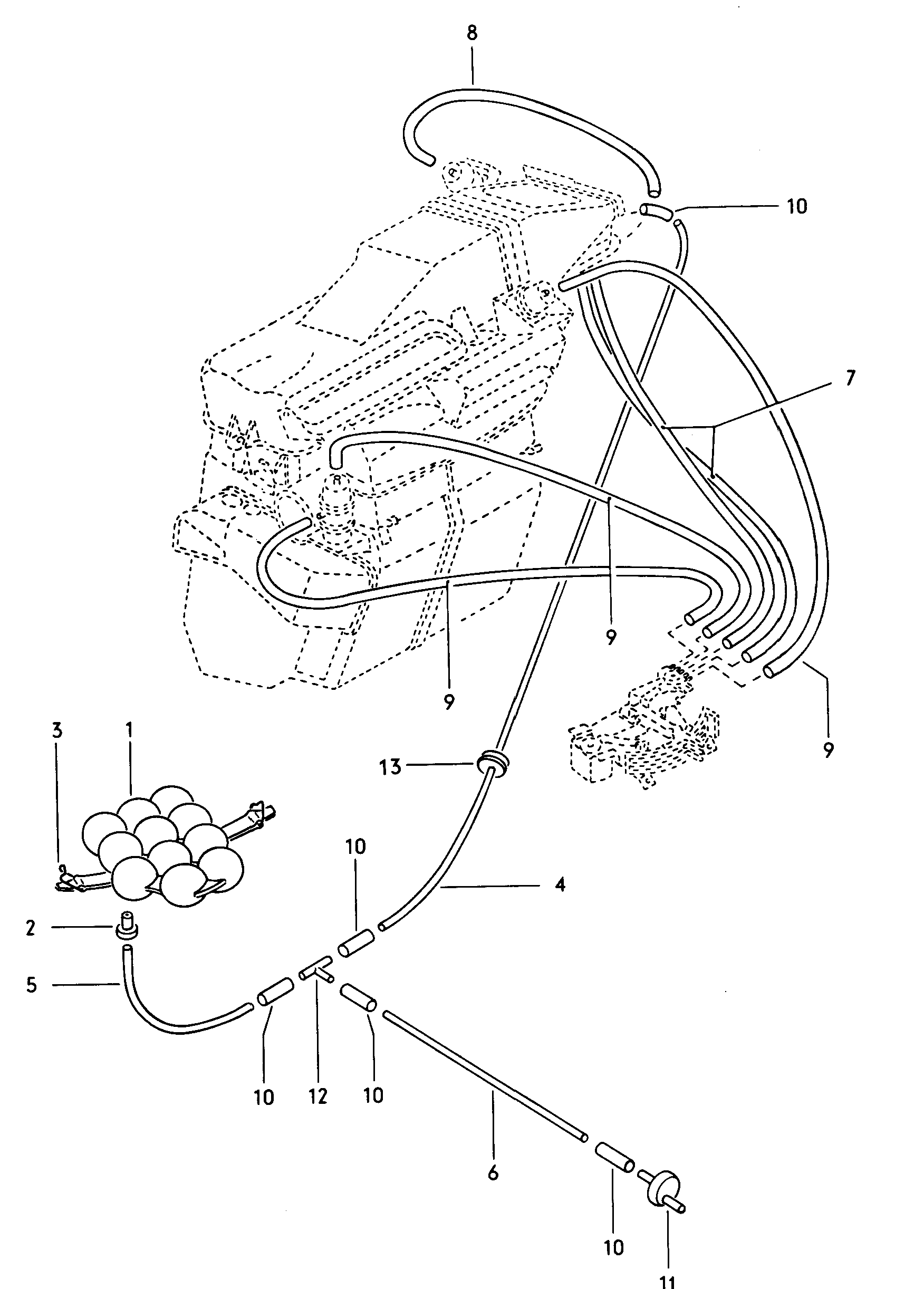

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	vacuum reservoirvacuum hoses lhd air condit. lhd	—
-	hose in coils of 5 m'order unit 5' 2,5 X 1,75 2,5 X 1,75	N 018 057 1
-	tube in coils of 5 m'order unit 5' 4 X 1 4 X 1	N 020 139 1
1	vacuum reservoir	191 820 601
10	shorten to: 30 MM 30 MM	—
11	Non-return valve	843 820 675
12	t-piece 4/4/4 4/4/4	113 201 943 B
13	Grommet 12,5 12,5	171 971 913
2	Grommet	171 820 609
3	Holding strap	171 011 247
4	shorten to: 900 MM 900 MM	—
5	shorten to: 560 MM 560 MM	—
6	shorten to: 520 MM 520 MM	—
7	shorten to: 600 MM 600 MM	—
8	shorten to: 310 MM 310 MM	—
9	shorten to: 250 MM 250 MM	—

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 27 Air cond. system / heating
Factory subgroup: 103000
