Back platebrake shoe lining rear — Mk1 Golf Brake (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Brake shoe with lining. back plate

Generation: Mk1 1982 - 1983 (RDW) Group: Brake Rebuild step 10 Parts: 33 Primary OEM: G 000 650, 867 698 520 X, 867 698 525 X

Back platebrake shoe lining rear for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 108000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 33 OEM part numbers including G 000 650, 867 698 520 X and 867 698 525 X. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 33 OEM part numbers across 33 numbered positions.

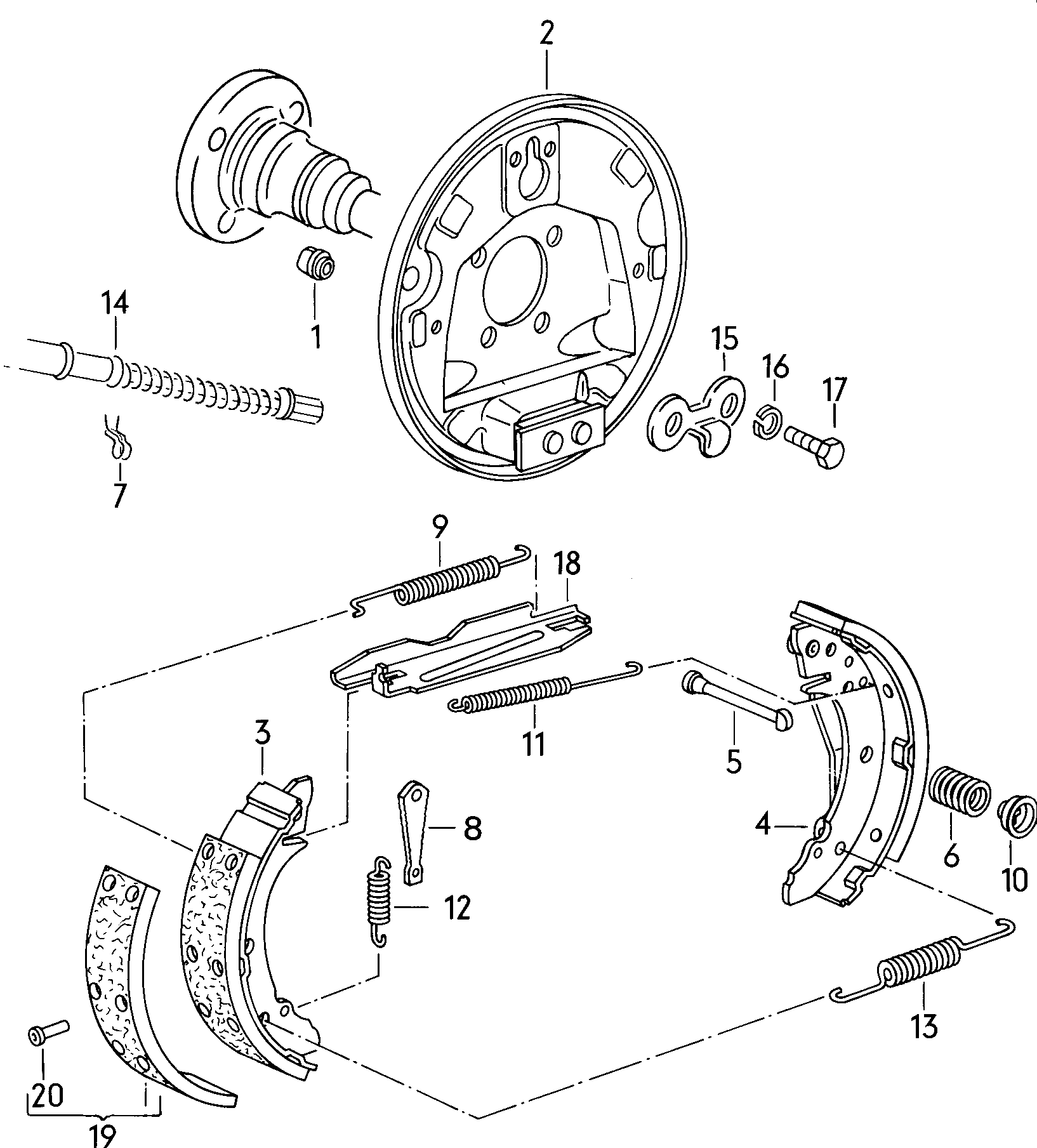

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Solid lubricant paste 100 G 100 G	G 000 650
-	1 set: brake shoes withlinings 180 X 30 180 X 30	867 698 520 X
-	1 set: brake shoes withlinings 180 X 30 180 X 30	867 698 525 X
(18)	push rod	171 609 820 B
(2)	back plate F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>>	6N0 609 426 A
(2)	back plate F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>>	171 609 426 B
(2)	back plate F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>>	6N0 609 425 A
(2)	back plate F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>>	171 609 425 B
(2)	back plate F >> 15-C-018 000F >> 16 C-694 101F >> 17 C-694 101F >> 53 C-050 000	171 609 426 A
(3)	brake shoe with lining 180 X 30 180 X 30	867 609 526
(4)	brake shoe with lining andbrake leverself-adjusting 180 X 30 180 X 30	867 609 528
(5)	spring pin F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>> 40 MM 40 MM	331 609 579
(5)	spring pin F 15-C-018 001>>F 16-C-694 102>>F 17-C-694 102>>F 53-C-050 001>> 40 MM 40 MM	6N0 609 579
1	Bungs	171 609 163
10	spring disc	171 609 709
11	tension spring	171 609 711
12	tension spring	171 609 715
13	tension spring	171 609 717
14	brake cable 1700 MM 1700 MM	171 609 721 C
15	guide for brake cable	321 609 763
16	spring ring 10 10	N 012 011 3
17	Hexagon bolt M 10 X 24,5 M 10 X 24,5	N 903 698 01
18	push rod	171 609 819 B
19	1 set: brake linings fordrum brakes 180 X 30 X 5 180 X 30 X 5	191 698 051
2	back plate F >> 15-C-018 000F >> 16-C-694 101F >> 17-C-694 101F >> 53-C-050 000	171 609 425 A
20	Rivet 4 X 8 4 X 8	N 013 633 1
3	brake shoe with lining 180 X 30 180 X 30	867 609 525
4	brake shoe with lining andbrake leverself-adjusting 180 X 30 180 X 30	867 609 527
5	spring pin F >> 15-C-018 000F >> 16-C-694 101F >> 17-C-694 101F >> 53-C-050 000 36 MM 36 MM	171 609 579 B
6	Pressure spring	171 609 583 A
7	bracket for brake cable	171 609 639 A
8	Wedge adjuster	171 609 705
9	tension spring	171 609 707
