Brake master cylinder — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 28 Primary OEM: 171 611 015 AF, 171 611 019 A, 171 611 019 D

Brake master cylinder for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 71000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 25 OEM part numbers across 28 catalogued positions including 171 611 015 AF, 171 611 019 A and 171 611 019 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 25 OEM part numbers across 28 numbered positions.

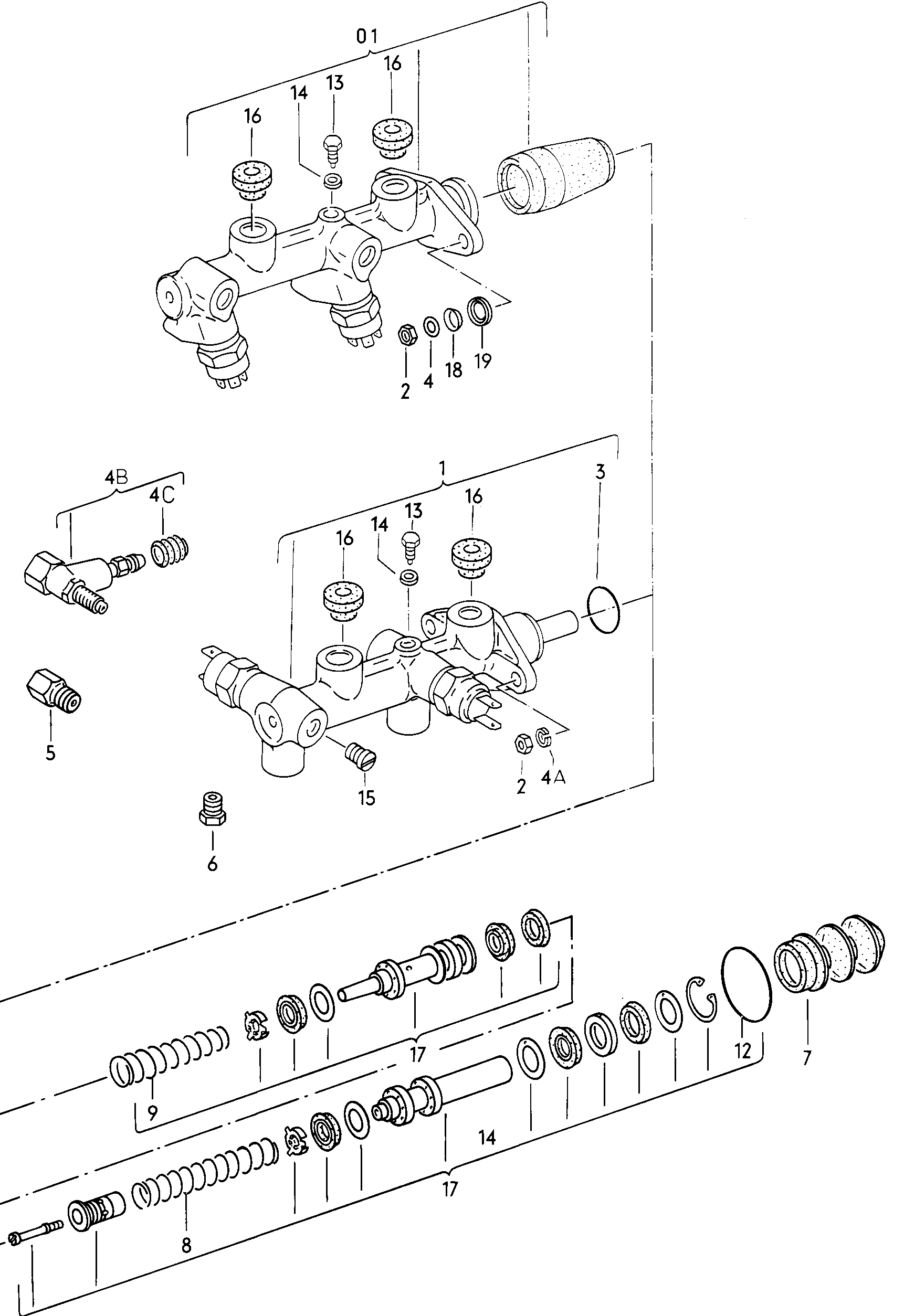

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(01)	Tandem brake master cylinder GOLF,L,GL,D,LD,GLD.	171 611 015 AF
(1)	Tandem brake master cylinderfor vehicles with brakeservo and brake controllamp F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 20,64 K-JETRONICK-JETRONICK-JETRONIC 20,64	171 611 019 A
(1)	Tandem brake master cylinderfor models with brakeservo 20,64 20,64	171 611 019 D
(1)	Tandem brake master cylinderfor vehicles with brakeservo and brake controllamp F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 20,64 carburetorengine DIESEL;carburetorenginecarburetorengine 20,64	171 611 019 E
(1)	Tandem brake master cylinderfor vehicles with brakeservo and brake controllamp F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 20,64 X 16/14 FAG K-JETRONICK-JETRONICK-JETRONIC 20,64 X 16/14 FAG	171 611 019 N
(17)	repair kit for tandem mastercylinder 17,46 FAG GOLF,L,GL,D,LD,GLD 17,46 FAG	171 698 181 E
(17)	repair kit for tandem mastercylinderfor models with brakeservo 20,64 FAG 20,64 FAG	171 698 181 G
1	Tandem brake master cylinderfor vehicles with brakeservo and brake controllamp F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> 20,64 20,64	171 611 019 N
12	gasket betweenbrake servo andbraketandem master cylinder 42 X 2,7 42 X 2,7	211 611 243
12	gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5	357 611 243
13	stop screw 20,64 20,64	803 611 245
14	seal ring 6 X 10 6 X 10	N 013 804 2
15	Bungs GOLF GTI;SCIR.GTI,GLI"J..":GOLF	172 611 430
16	Sealing plug 7/18 7/18	211 611 817 A
17	repair kit for tandem mastercylinderfor models with brakeservo F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 20,64 ATE K-JETRONICK-JETRONICK-JETRONIC 20,64 ATE	171 698 181 L
18	retaining washer 8,4 8,4	N 023 731 2
2	hexagon nut, self-locking M 8 M 8	N 022 146 4
3	seal ring	171 611 089 A
4	No longer available	—
4A	spring ring 8 GOLF CABRIO;JETTA;SCIR. 8	N 012 038 7
4A	spring ring 8 GOLF CABRIO;JETTA;SCIR. 8	N 012 038 8
4B	Intermediate piece GOLF GTI,GLI"J..":GOLF,JETTA LI,GLI	172 611 103
4C	dust cap	211 611 483
5	threaded unionfor models with brakeservo M 10 X 1,0 M 10 X 1,0	857 611 190
6	pressurising valvefor models withbrake pressure regulator M 12 X 1/0,4-1,2 M 12 X 1/0,4-1,2	113 611 191
7	Protective sleeve	171 611 195 A
8	No longer available	—
9	No longer available	—
