Brake master cylinder — Mk1 Golf Brake (1981)
Factory title: Volkswagen Golf (1981) - Brake master cylinder

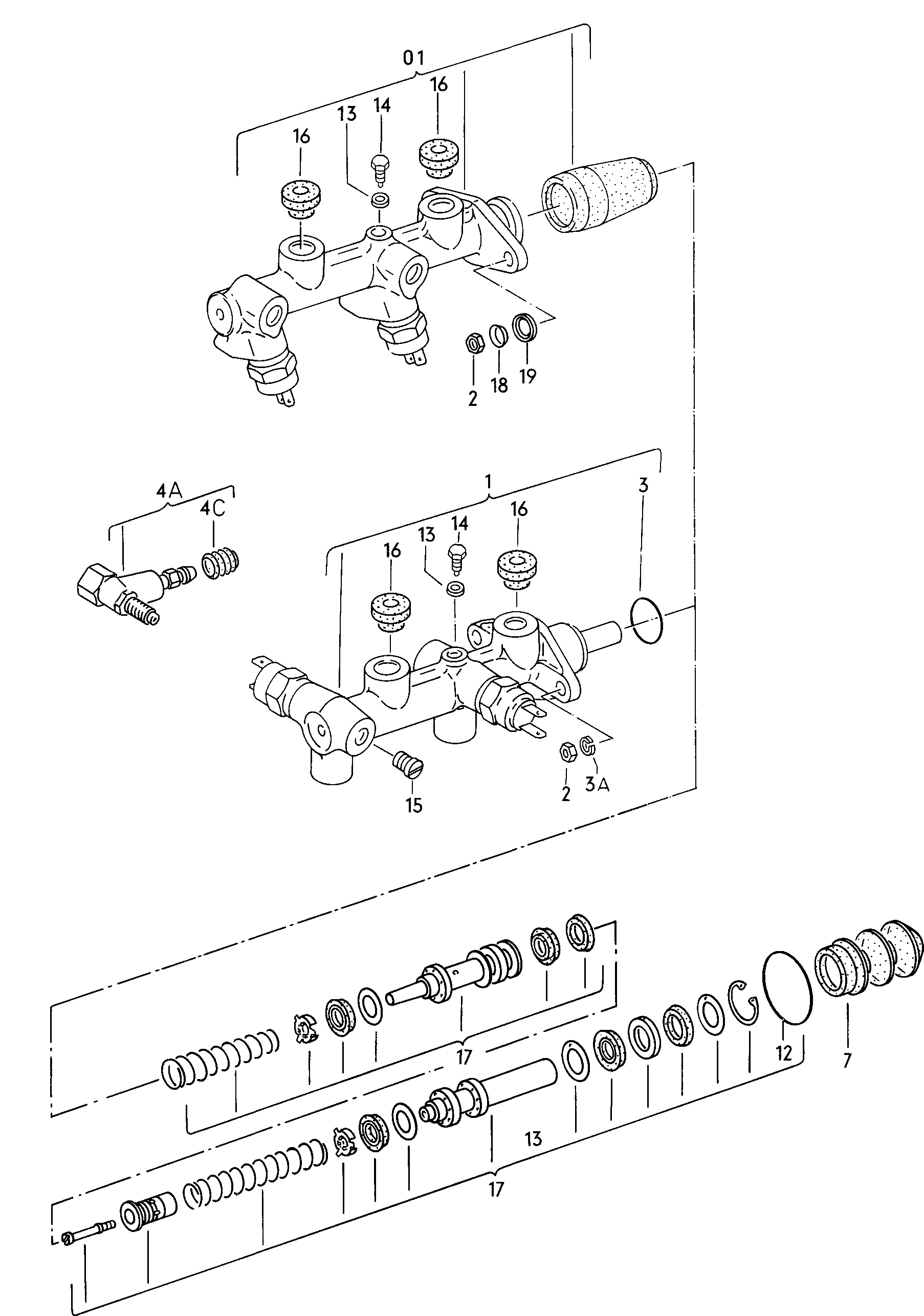

Brake master cylinder for the Volkswagen Golf Mk1 (1981): factory exploded diagram 109000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 21 OEM part numbers across 23 catalogued positions including 113 945 515 H, 113 945 515 G and 171 611 015 AD. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 21 OEM part numbers across 23 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | switch - brake light | 113 945 515 H |
| - | brake light switch withwarning contact | 113 945 515 G |
| (1) | Tandem brake master cylinderfor models with nobrake servo 17,46 X 17/15 FAG GOLF,L,GL,D,LD,GLD 17,46 X 17/15 FAG | 171 611 015 AD |
| (1) | Tandem brake master cylinderfor models with brakeservo 20,46 X 16/14 FAG 20,46 X 16/14 FAG | 171 611 019 D |
| (17) | repair kit for tandem mastercylinderfor models with nobrake servo 17,46 FAG GOLF,L,GL,D,LD,GLD 17,46 FAG | 171 698 181 E |
| (17) | repair kit for tandem mastercylinderfor models with brakeservo 20,64 FAG 20,64 FAG | 171 698 181 G |
| 01 | Tandem brake master cylinderfor models with nobrake servofor models withbrake warning light 17,46 X 17/15 FAG GOLF,L,GL,D,LD,GLD. 17,46 X 17/15 FAG | 171 611 015 AF |
| 1 | No longer availablefor models with nobrake servofor models withbrake warning light 17,46 X 17/15 FAG GOLF,L,GL,D,LD,GLD. 17,46 X 17/15 FAG | — |
| 1 | Tandem brake master cylinderfor models with brakeservofor models withbrake warning light 20,64 X 16/14 ATE 20,64 X 16/14 ATE | 171 611 019 N |
| 12 | seal ringfor models with nobrake servo | 171 611 089 A |
| 13 | seal ring 6 X 10 6 X 10 | N 013 804 2 |
| 14 | stop screw M 6 X 14/3,9 X 6 M 6 X 14/3,9 X 6 | 803 611 245 |
| 15 | Bungs M 10 X 1,0 GOLF-/JETTA-LI,GLI,GTI,"J..":GOLF. M 10 X 1,0 | 172 611 430 |
| 16 | Sealing plug 7/18 7/18 | 211 611 817 A |
| 17 | repair kit for tandem mastercylinderfor models with brakeservo 20,64 ATE 20,64 ATE | 171 698 181 L |
| 18 | retaining washerfor models with nobrake servo 8,4 8,4 | N 023 731 2 |
| 19 | No longer available | — |
| 2 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 3 | gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5 | 357 611 243 |
| 3 | gasket betweenbrake servo andbraketandem master cylinder | 211 611 243 |
| 4A | Intermediate piece GOLF-/JETTA-LI,GLI,GTI,"J..":GOLF. | 172 611 103 |
| 4C | dust cap GOLF-/JETTA-LI,GLI,GTI,"J..":GOLF. | 211 611 483 |
| 7 | Protective sleevefor models with nobrake servo | 171 611 195 A |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 20 Brake
- Factory subgroup
- 109000
