Brake master cylinder — Mk1 Golf Brake (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Brake master cylinder

Generation: Mk1 1982 - 1983 (RDW) Group: Brake Rebuild step 10 Parts: 16 Primary OEM: 171 611 019 D, 171 611 019 N, 357 611 243

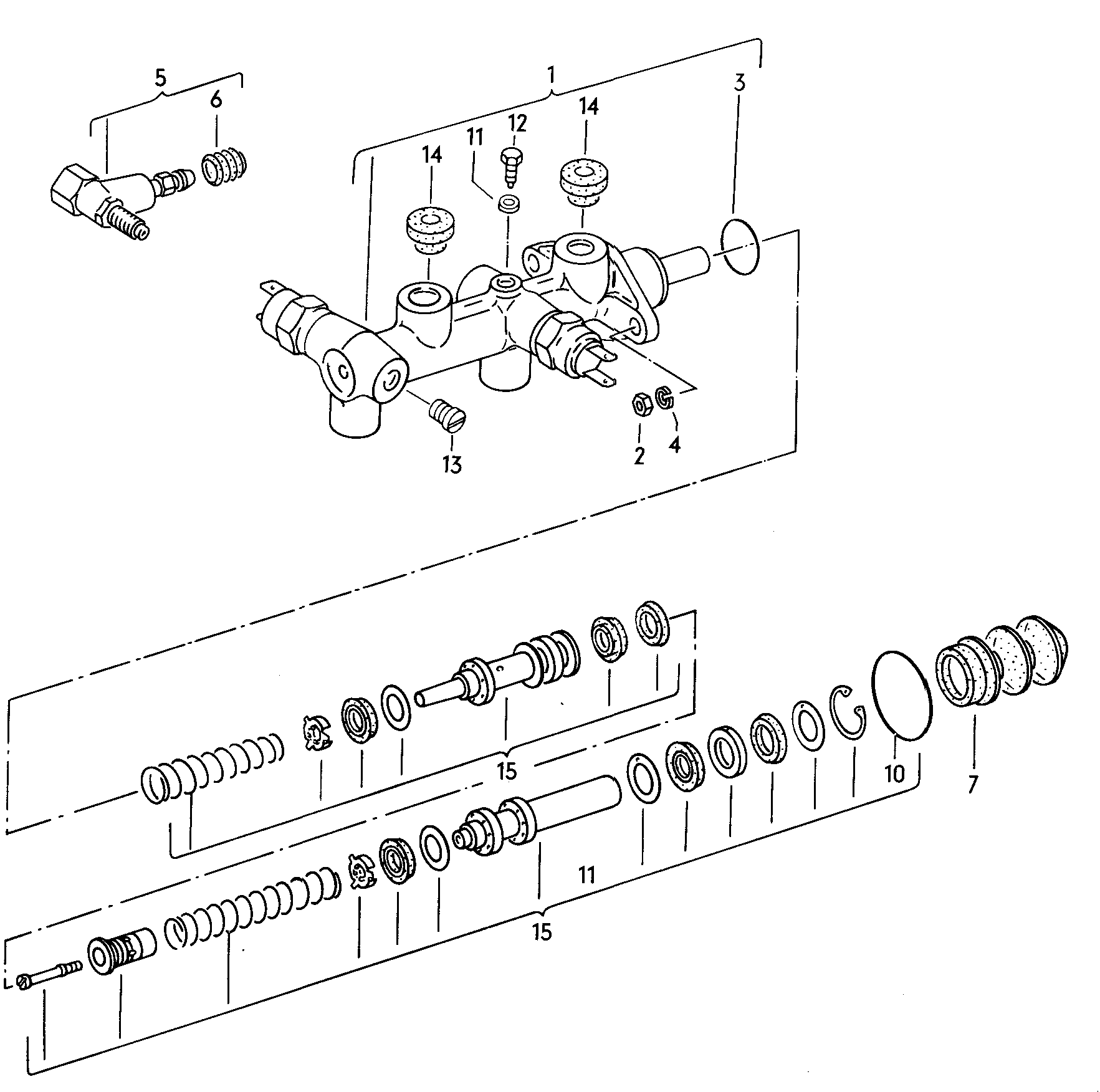

Brake master cylinder for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 109000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 16 OEM part numbers including 171 611 019 D, 171 611 019 N and 357 611 243. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 16 OEM part numbers across 16 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(1)
Tandem brake master cylinder 20,64 FAG
20,64 FAG
 171 611 019 D
1
Tandem brake master cylinderfor models withbrake warning light 20,64 ATE
20,64 ATE
 171 611 019 N
10
gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5
41,5 X 2,5
 357 611 243
10
gasket betweenbrake servo andbraketandem master cylinder
 211 611 243
11
seal ring 6 X 10
6 X 10
 N 013 804 2
12
stop screw
 803 611 245
13
Bungs K-JETRONIC
 172 611 430
14
Sealing plug 7/18
7/18
 211 611 817 A
15
repair kit for tandem mastercylinder 20,64 FAG
20,64 FAG
 171 698 181 G
2
hexagon nut, self-locking M 8
M 8
 N 022 146 4
3
seal ring
 171 611 089 A
4
spring ring 8
8
 N 012 038 8
4
spring ring 8
8
 N 012 038 7
5
Intermediate piece GOLF GTI,GLIRABBIT GTI,"J..":GOLF;JETTA CLI,GLI
 172 611 103
6
dust cap
 211 611 483
7
Protective sleeve
 171 611 195 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Factory group
20 Brake
Factory subgroup
109000

Related factory diagrams

Other published brake plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the brake master cylinder diagram for the Mk1 Golf?
This diagram lists 16 OEM part numbers for the Mk1 Golf. The first three are 171 611 019 D, 171 611 019 N and 357 611 243.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
