Brake pipe brake hose front — Mk1 Golf Brake (1982 - 1983)

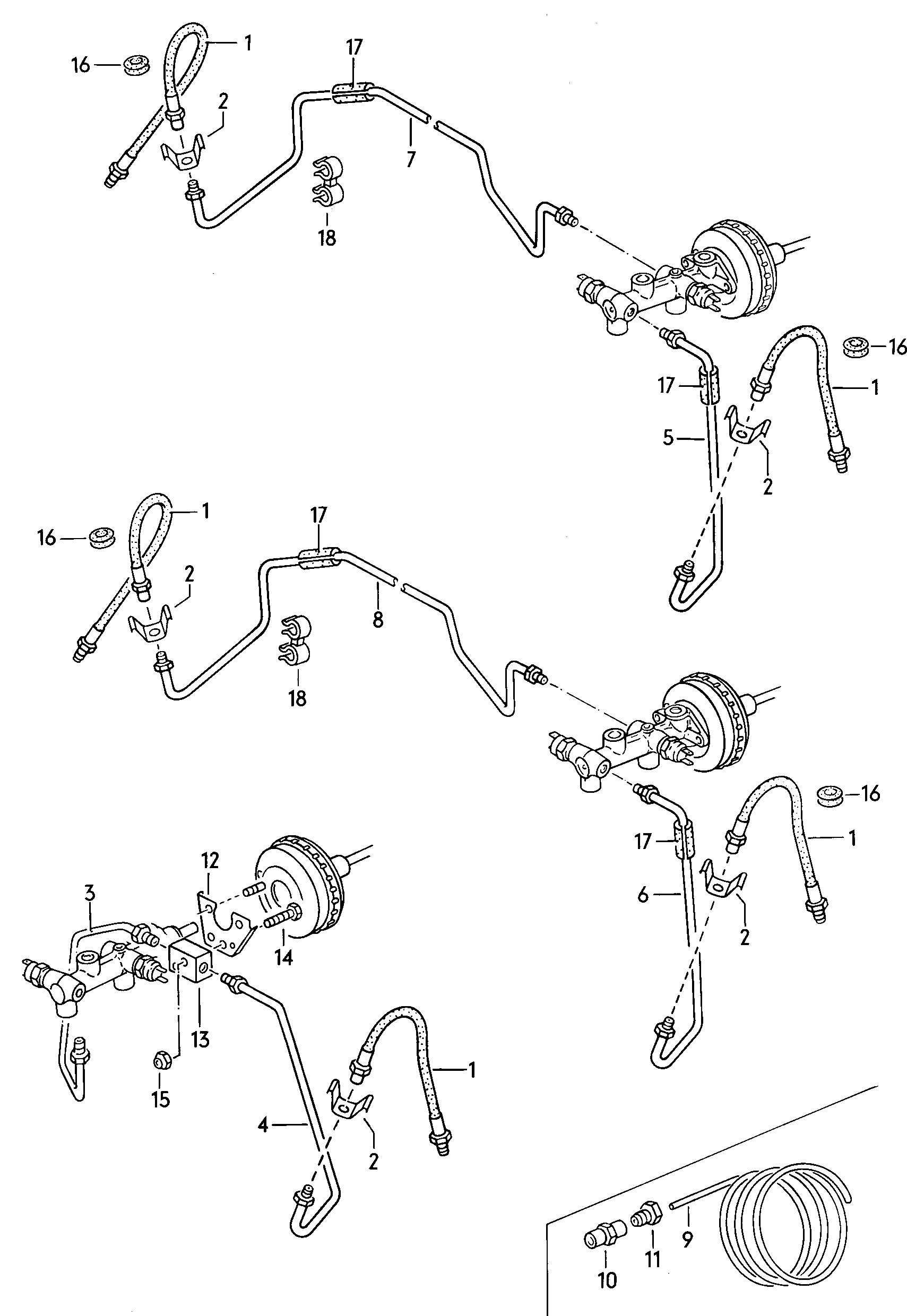

Factory title: Volkswagen Golf (1982 - 1984) - Brake master cylinder
Brake pipe brake hose front for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 114000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 18 OEM part numbers across 28 catalogued positions including 111 611 998, 171 611 701 K and 171 611 715. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 18 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| (1) | Brake hose with left-handthread F >> ..-D-450 000* M 10 X 1 X 290 GIRLING M 10 X 1 X 290 GIRLING | 171 611 701 K |
| (2) | retaining spring SCIR. | 171 611 715 |
| (2) | retaining spring SCIR. | 4D0 611 715 B |
| (5) | shorten to: 485 MM SCIR. 485 MM | — |
| (6) | shorten to: 618 MM SCIROCCO 618 MM | — |
| (6) | shorten to: 582 MM G 0 LF CABRIO.GLI 582 MM | — |
| (8) | shorten to: 1310 MM SCIROCCO 1310 MM | — |
| 1 | Brake hose M 10 X 1 X 335 ATE M 10 X 1 X 335 ATE | 171 611 701 L |
| 10 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 11 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 11 | pipe union nut M 10 X 1/5 SW 11 M 10 X 1/5 SW 11 | 113 611 731 |
| 12 | bracket brake press. regulator | 853 612 405 |
| 13 | distributor for brake line GOLF GTI,GLIRABBIT GTI,"J..":GOLFJETTA CLI,GLI | 172 611 756 |
| 14 | Hexagon bolt M 6 X 30 M 6 X 30 | N 010 346 7 |
| 15 | hexagon nut, self-locking M 6 M 6 | N 011 183 12 |
| 15 | hexagon nut, self-locking M 6 M 6 | N 011 183 11 |
| 16 | Grommet 17/11 17/11 | 171 611 819 |
| 17 | Protective hose 10 X 15 10 X 15 | 803 201 245 |
| 18 | Bracket | 321 611 853 |
| 2 | retaining spring GOLF,JETTA | 803 611 715 |
| 3 | shorten to: 250 MM GOLF GTI,GLIRABBIT GTI"J.."CLIJETTA CLI,GLI 250 MM | — |
| 4 | shorten to: 450 MM GOLF GTI,GLIRABBIT GTI"J.."GOLFJETTA CLI,GLI 450 MM | — |
| 5 | shorten to: 425 MM GOLF,JETTA 425 MM | — |
| 6 | shorten to: 560 MM GOLF,JETTA 560 MM | — |
| 7 | shorten to: 1435 MM 1435 MM | — |
| 8 | shorten to: 1265 MM GOLF,JETTA 1265 MM | — |
| 9 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 20 Brake
- Factory subgroup
- 114000
Related factory diagrams
Other published brake plates for the Mk1 Golf in this catalogue.
The complete Mk1 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the brake pipe brake hose front diagram for the Mk1 Golf?
- This diagram lists 18 OEM part numbers for the Mk1 Golf. The first three are 111 611 998, 171 611 701 K and 171 611 715.
- Which Mk1 Golf years and engines does this diagram cover?
- This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk1 Golf factory parts catalogue?
- The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
