Brake pipe brake hose front — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 26 Primary OEM: 411 611 789, 111 611 998, 171 611 701 D

Brake pipe brake hose front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 75000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 24 OEM part numbers across 26 catalogued positions including 411 611 789, 111 611 998 and 171 611 701 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 24 OEM part numbers across 26 numbered positions.

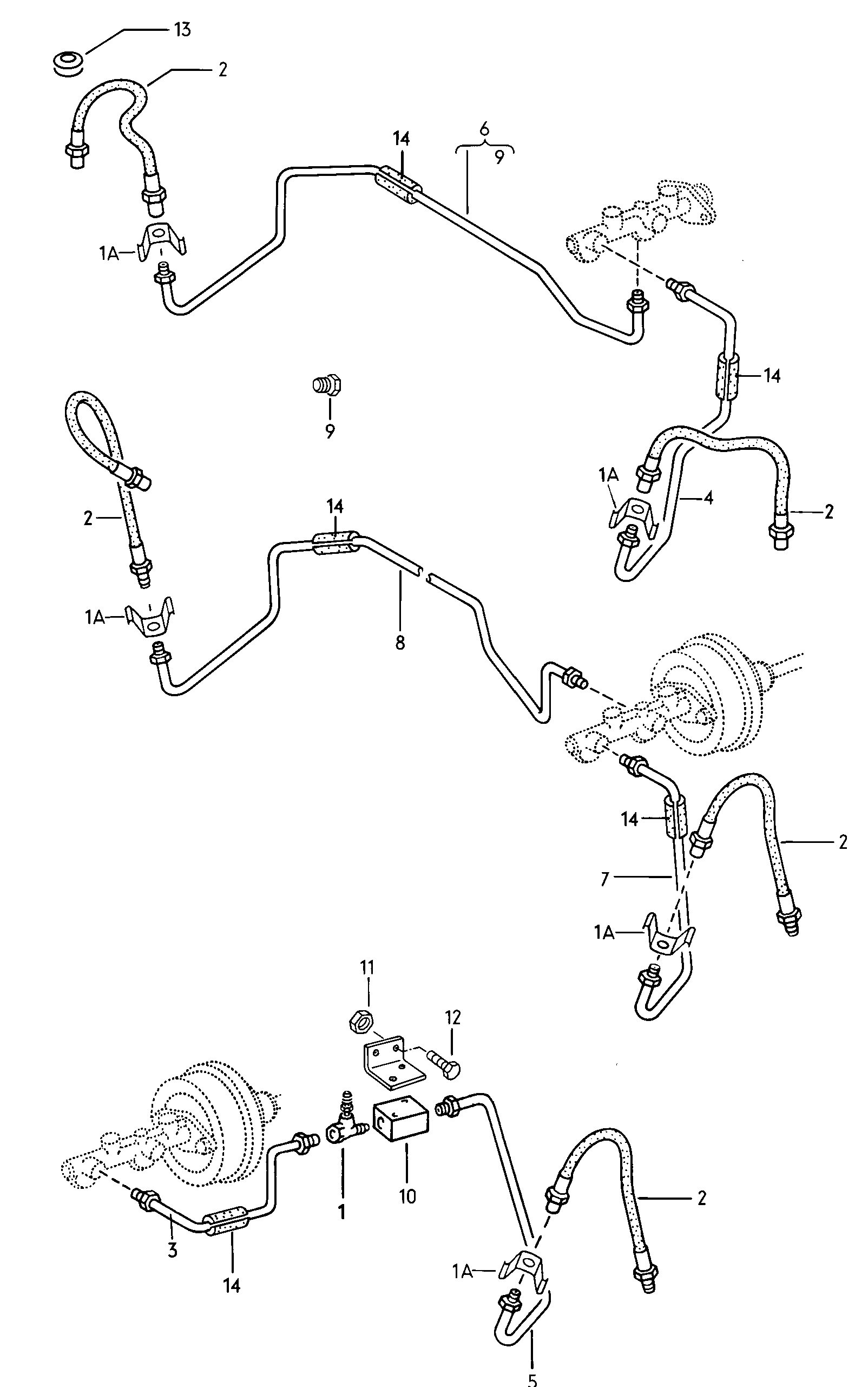

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Connecting piece M 10 X 1 M 10 X 1	411 611 789
-	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
(2)	Brake hose with left-handthread F >> 179 3157 221F >> 539 2018 914 M 10 X 1,0 X 330 GIRLING M 10 X 1,0 X 330 GIRLING	171 611 701 D
(2)	Brake hose with left-handthread F 159 2800 001>>F 179 3157 222>>F 539 2018 915>> M 10 X 1 X 290 GIRLING M 10 X 1 X 290 GIRLING	171 611 701 K
(3)	No longer available	—
(4)	Brake pipe already crimped, straight length:for models with nobrake servo 4,75 X 0,71400 MM GOLF,L,GLD,LD,GLD 4,75 X 0,71400 MM	191 611 996 C
(6)	Brake pipe already crimped, straight length: 4,75 X 0,7550 MM GOLF,L,GLD,LD,GLD 4,75 X 0,7550 MM	191 611 994 D
(7)	Brake pipe already crimped, straight length: 4,75 X 0,7 X 600 MM 4,75 X 0,7 X 600 MM	191 611 994 E
(8)	Brake pipe already crimped, straight length: 4,75 X 0,7 X 1300 MM 4,75 X 0,7 X 1300 MM	191 611 996 B
1	Intermediate piece GOLF GTI,GLI"J..":GOLFJETTA LI,GLI	172 611 103
10	distributor for brake line GOLF GTI,GLI"J.."GOLF;JETTA LI,GLI"J..":JETTA	172 611 756
11	hexagon nut, self-locking M 6 M 6	N 011 183 12
11	hexagon nut, self-locking M 6 M 6	N 011 183 11
12	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 13
12	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
13	Grommet 17/11 17/11	171 611 819
14	Protective hose	803 201 245
1A	retaining spring	803 611 715
2	Brake hose F >> 129 3157 221 F >> 539 2018 914 M 10 X 1,0 X 353 M 10 X 1,0 X 353	433 611 707
2	Brake hose F 159 2800 001>>F 16 A 0000 001>>F 179 3157 222>>F 539 2018 915>> M 10 X 1 X 335 ATE M 10 X 1 X 335 ATE	171 611 701 L
5	Brake pipe already crimped, straight length:F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>> 4,75 X 0,7 X 450 MM GOLF GLIJETTA LI,GLI"J.."GOLF GTI;"J.." 4,75 X 0,7 X 450 MM	191 611 994 B
6	No longer available	—
7	Brake pipe already crimped, straight length:for models with brakeservo 4,75 X 0,7 X 450 MM GOLF,JETTA 4,75 X 0,7 X 450 MM	191 611 994 B
8	Brake pipe already crimped, straight length: 4,75 X 0,7 X 1500 MM GOLF GTI,GLIJETTA I,GLI,SCIR. 4,75 X 0,7 X 1500 MM	191 611 996 D
9	pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11	1J0 611 731
9	pipe union nut M 10 X 1 M 10 X 1	113 611 731
