Brake pipe brake hose front lhd — Mk1 Golf Brake (1981)

Factory title: Volkswagen Golf (1981) - Brake master cylinder

Generation: Mk1 1981 (RDW) Group: Brake Rebuild step 10 Parts: 16 Primary OEM: 171 611 701 K, 4D0 611 715 B, 171 611 715

Brake pipe brake hose front lhd for the Volkswagen Golf Mk1 (1981): factory exploded diagram 114000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 16 OEM part numbers including 171 611 701 K, 4D0 611 715 B and 171 611 715. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 16 OEM part numbers across 16 numbered positions.

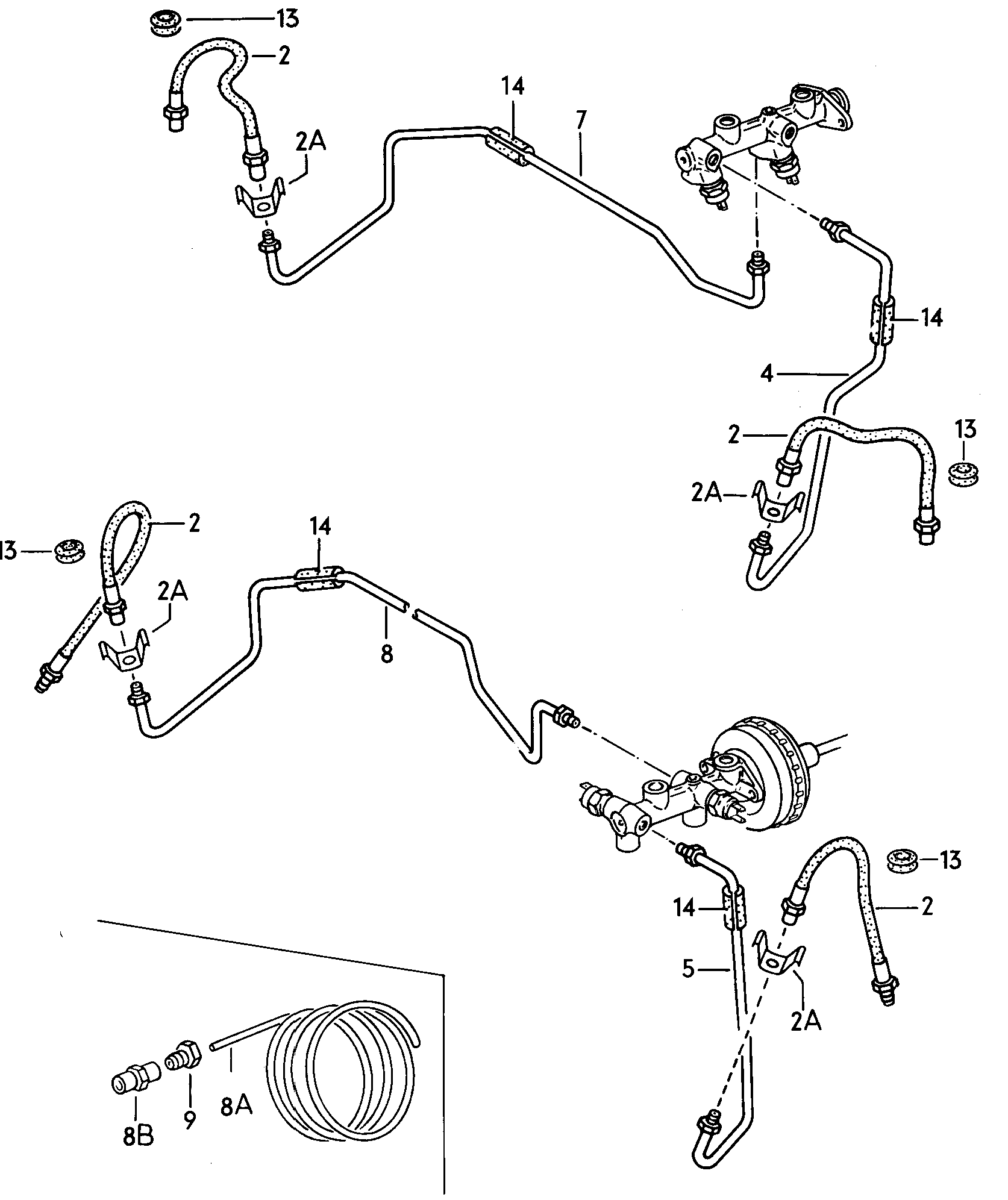

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(2)	Brake hose with left-handthread M 10 X 1 X 290 GIRLING M 10 X 1 X 290 GIRLING	171 611 701 K
(2A)	retaining spring F 53-B-200 001>> SCIROCCO	4D0 611 715 B
(2A)	retaining spring F 53-B-200 001>> SCIROCCO.	171 611 715
(5)	Brake pipe already crimped, straight length: 500 MM SCIROCCO 500 MM	191 611 994 C
13	Grommet 17/11 17/11	171 611 819
14	Protective hose 10 X 15 10 X 15	803 201 245
2	Brake hose M 10 X 1 X 335 ATE M 10 X 1 X 335 ATE	171 611 701 L
2A	retaining spring F ..-B-000 001>>F >> 53-B-050 000 GOLF,JETTA,GOLF-CABRIO,SCIROCCO	803 611 715
4	Brake pipe already crimped, straight length: 500 MM GOLF,L,GL,D,LD,GLD 500 MM	191 611 994 C
5	Brake pipe already crimped, straight length: 450 MM GOLF,JETTA,GOLF-CABRIO 450 MM	191 611 994 B
7	Brake pipe already crimped, straight length: 1200 MM GOLF,L,GL,D,LD,GLD 1200 MM	191 611 996 A
8	Brake pipe already crimped, straight length: 1500 MM 1500 MM	191 611 996 D
8A	Brake pipe(Bulk stock) 4,75 X 0,7 X 5000 4,75 X 0,7 X 5000	111 611 998
8B	Connecting piece M 10 X 1 M 10 X 1	411 611 789
9	pipe union nut M 10 X 1 M 10 X 1	113 611 731
9	pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11	1J0 611 731

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Factory group: 20 Brake
Factory subgroup: 114000
