Brake pipe brake hose front rhd — Mk1 Golf Brake (1981)

Factory title: Volkswagen Golf (1981) - Brake master cylinder

Generation: Mk1 1981 (RDW) Group: Brake Rebuild step 10 Parts: 22 Primary OEM: 111 611 998, 171 611 701 K, 171 611 701 L

Brake pipe brake hose front rhd for the Volkswagen Golf Mk1 (1981): factory exploded diagram 114010 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 21 OEM part numbers across 22 catalogued positions including 111 611 998, 171 611 701 K and 171 611 701 L. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 21 OEM part numbers across 22 numbered positions.

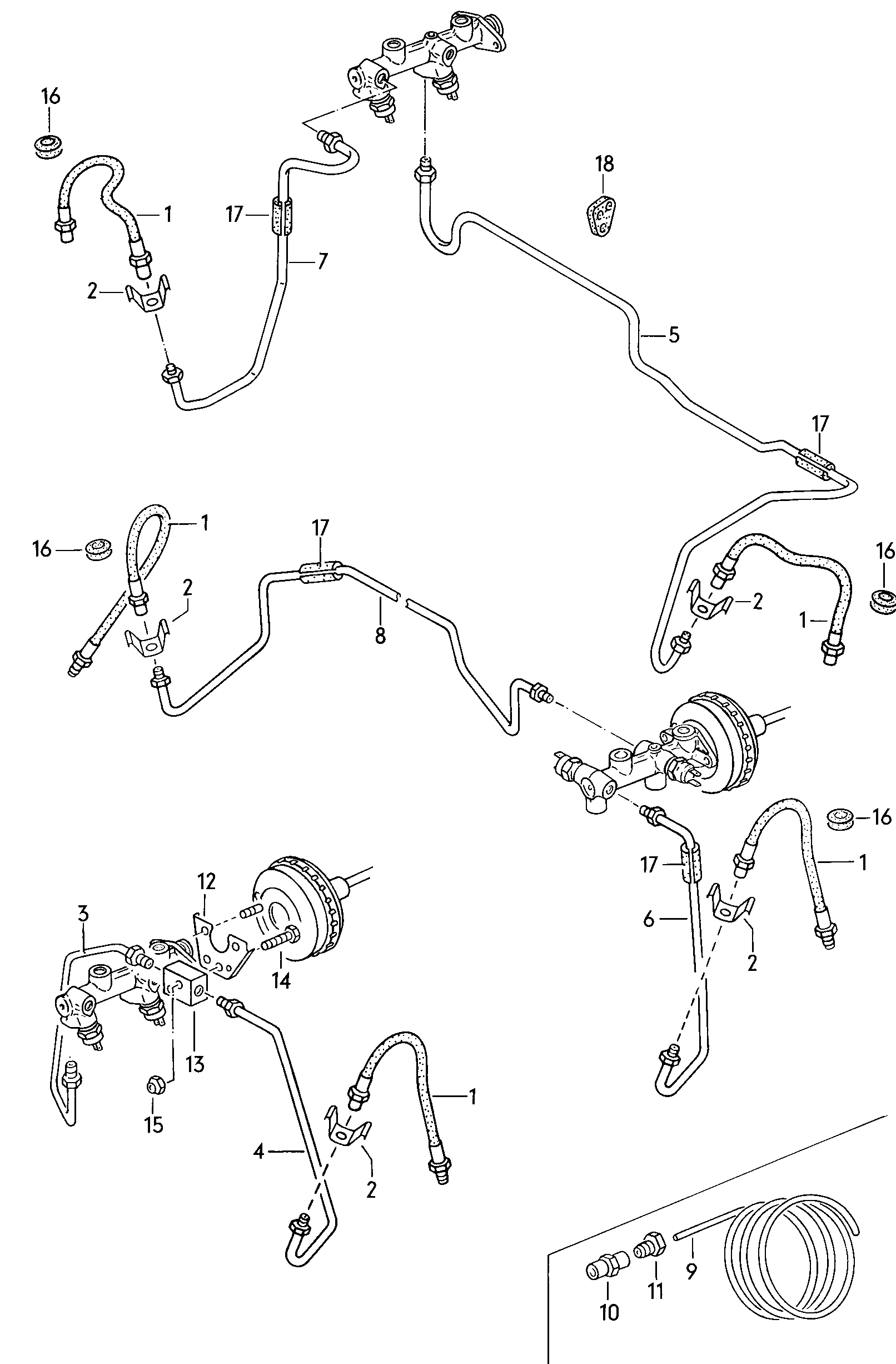

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
-
Brake pipe(Bulk stock) 4,75 X 0,7
4,75 X 0,7
 111 611 998
(1)
Brake hose with left-handthread M 10 X 1 X 290 GIRLING
M 10 X 1 X 290 GIRLING
 171 611 701 K
1
Brake hose M 10 X 1 X 335 ATE
M 10 X 1 X 335 ATE
 171 611 701 L
10
Connecting piece M 10 X 1
M 10 X 1
 411 611 789
11
pipe union nut M 10 X 1/5,3 SW 11
M 10 X 1/5,3 SW 11
 1J0 611 731
11
pipe union nut M 10 X 1
M 10 X 1
 113 611 731
12
bracket brake press. regulator
 853 612 405
13
distributor for brake line GOLF GTI,GLI"J..":GOLFJETTA LI,GLI
 172 611 756
14
Hexagon bolt M 6 X 30
M 6 X 30
 N 010 346 7
15
hexagon nut, self-locking M 6
M 6
 N 011 183 11
15
hexagon nut, self-locking M 6
M 6
 N 011 183 12
16
Grommet 17/11
17/11
 171 611 819
17
Protective hose 10 X 15
10 X 15
 803 201 245
18
Protective hose GOLF L,GL,D,LD,GLD
 803 201 245 D
2
retaining spring
 803 611 715
3
shorten to: 250 MM GOLF GTI,GLI"J..":GOLF;JETTA LI,GLI
250 MM
 —
4
Brake pipe already crimped, straight length: 450 MM GOLF GTI,"J..":GOLF;JETTA LI,GLI
450 MM
 191 611 994 B
5
Brake pipe already crimped, straight length: 4,75 X 0,71400 MM GOLF,L,GL,D,LD,GLD
4,75 X 0,71400 MM
 191 611 996 C
6
Brake pipe already crimped, straight length: 600 MM
600 MM
 191 611 994 E
7
Brake pipe already crimped, straight length: 4,75 X 0,7550 MM GOLF,L,GL,D,LD,GLD
4,75 X 0,7550 MM
 191 611 994 D
8
Brake pipe already crimped, straight length: 1300 MM
1300 MM
 191 611 996 B
9
Brake pipe(Bulk stock) 4,75 X 0,7 X 5000
4,75 X 0,7 X 5000
 111 611 998

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1981
Generation region
RDW
Generation code
026
Factory group
20 Brake
Factory subgroup
114010

Related factory diagrams

Other published brake plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the brake pipe brake hose front rhd diagram for the Mk1 Golf?
This diagram lists 21 OEM part numbers for the Mk1 Golf. The first three are 111 611 998, 171 611 701 K and 171 611 701 L.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
