Which VW part numbers are on the brake pipe brake hose rear diagram for the Mk1 Golf?

This diagram lists 31 OEM part numbers for the Mk1 Golf. The first three are 111 611 998, 171 201 449 A and 171 611 869.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Brake pipe brake hose rear — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 48 Primary OEM: 111 611 998, 171 201 449 A, 171 611 869

Brake pipe brake hose rear for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 76000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 31 OEM part numbers across 48 catalogued positions including 111 611 998, 171 201 449 A and 171 611 869. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 31 OEM part numbers across 48 numbered positions.

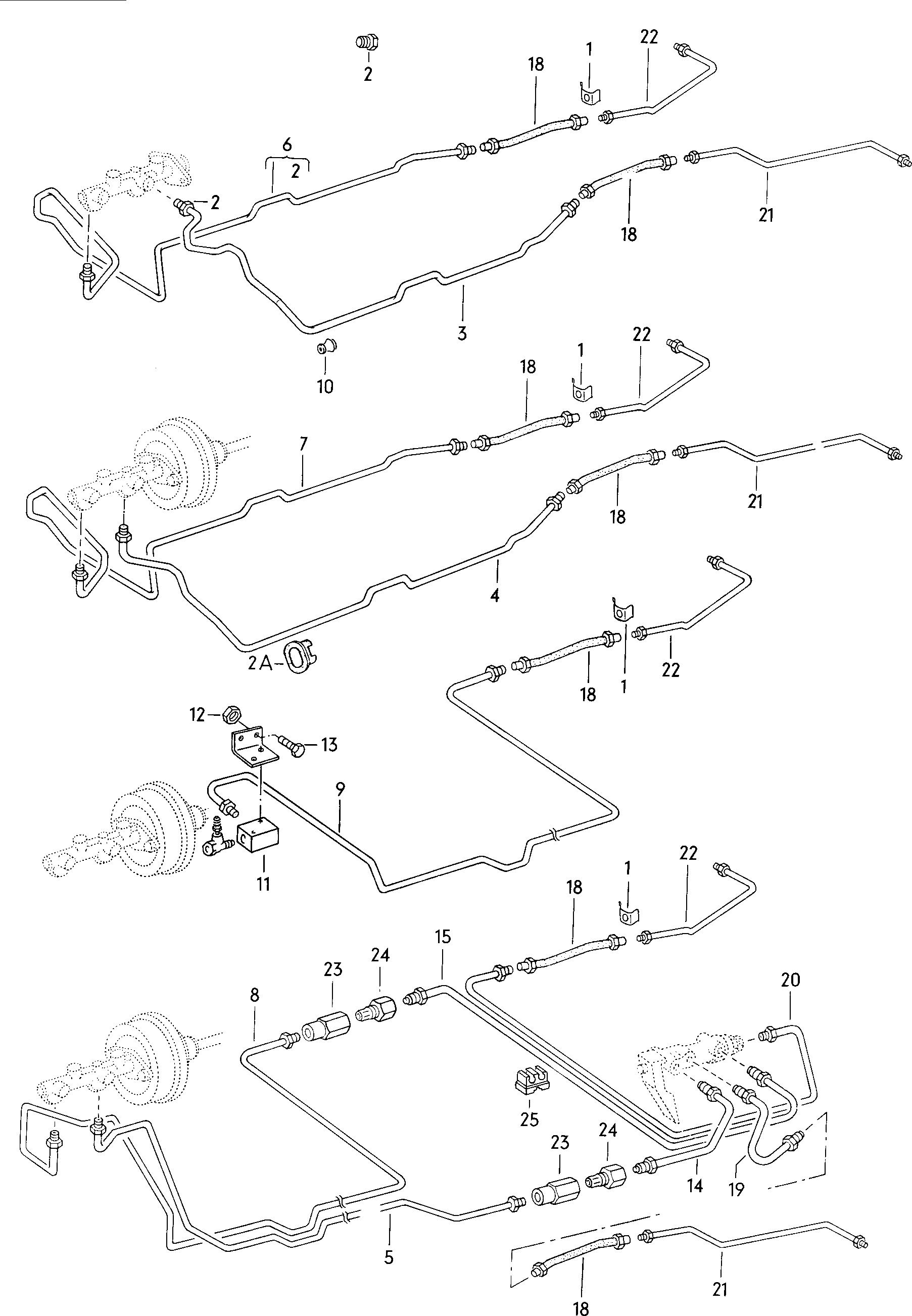

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
-	Clip	171 201 449 A
-	Protective hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>>F 53 A 0001 100>>	171 611 869
-	Protective hose	803 201 245
-	Connecting piece M 10 X 1 M 10 X 1	411 611 789
-	Connecting piece F 17 A 0011 706>> M 10 X 1 GOLF,L,GL,D,LD,GLD M 10 X 1	411 611 789
-	shorten to:brake line from distributorto connecting piece F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> 300 MM "J..":GOLF;GOLF GLI"J..":JETTA;JETTA LI,GLI"J..":GOLF;GOLF GTI 300 MM	—
-	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
-	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
-	brake line from mastercylinder to connecting piece F 17 A 0011 706>> GOLF,L,GL,D,LD,GLD	172 611 741 J
-	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
(4)	shorten to:Brake pipe from brake mastercylinder to brake hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>>F 53 A 0001 100>> XXXXX GOLF CABRIOJETTAGOLF S,LS,GLD,D,LD,GLD,E,LE,GLESCIR. XXXXX	—
(4)	shorten to:Brake pipe from brake mastercylinder to brake hosefor models with brakeservo XXXXXX XXXXXX	—
(4)	shorten to:Brake pipe from brake mastercylinder to brake hose F 53 A 0001 100>> XXXXX XXXXX	—
(4)	shorten to:brake line from brake pressureregulator to brake hose F 53 A 0001 100>> 2500 MM SCIR.GTE,GLE,GTI,GLI 2500 MM	—
(5)	Brake pipe already crimped, straight length:for models withbrake pressure regulator F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> 4,75 X 0,7 X 350 MM 4,75 X 0,7 X 350 MM	191 611 994
(6)	shorten to:Brake pipe from brake mastercylinder to brake hosefor models with nobrake servo F >> 17-A-001 705 XXXXX GOLF,L,GL,D,LD,GLD XXXXX	—
(7)	shorten to:brake line from brake pressureregulator to brake hose F 53 A 0001 100>> XXXXX SCIR.,GTE,GLE,GTI,GLI XXXXX	—
(7)	shorten to:Brake pipe from brake mastercylinder to brake hosefor models with brakeservo F >> 15 A 0800 572 F >> 17 A 0011 705 XXXXX GOLF CABRIOGOLF S,LS,GLS,D,LD,GLD XXXXX	—
(7)	Brake pipe from brake mastercylinder to brake hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>>F 53 A 0001 100>> GOLF CABRIOJETTAGOLF S,LS,GLS,D,LD,GLD,E,LE,GLESCIR.	172 611 742 S
(7)	shorten to:Brake pipe from brake mastercylinder to brake hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> 3600 MM GOLF CABRIOJETTAGOLF S,LS,GLS,D,LD,GLD 3600 MM	—
(8)	shorten to:brake line from mastercylinder to connecting piecefor models withbrake pressure regulator F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> XXXXX XXXXX	—
(8)	shorten to:brake line from mastercylinder to connecting piecefor models withbrake pressure regulator F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> XXXXX XXXXX	—
(8)	Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7	111 611 998
1	retaining spring	803 611 715
10	Grommet 15/4 15/4	171 611 751
11	distributor for brake line GOLF GTI,GLI"J..":GOLF;JETTA LI,GLI"J.."JETTA	172 611 756
12	hexagon nut, self-locking M 6 M 6	N 011 183 11
12	hexagon nut, self-locking M 6 M 6	N 011 183 12
13	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
13	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 13
14	shorten to:brake line from conn. pieceto brake pressure regulatorfor models withbrake pressure regulator F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> 2260 MM 2260 MM	—
15	shorten to:Instrument housing fortachographfor models withbrake pressure regulator F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> 2420 MM 2420 MM	—
18	Brake hose M 10 X 1 X 180 M 10 X 1 X 180	433 611 775 A
19	shorten to:brake line from brake pressureregulator to brake hose XXXXX brake press.regulator XXXXX	—
2	pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11	1J0 611 731
2	pipe union nut M 10 X 1 M 10 X 1	113 611 731
20	Brake pipe already crimped, straight length: 4,75 X 0,7 X 1700 MM brake press.regulator 4,75 X 0,7 X 1700 MM	191 611 996 F
21	Brake pipe already crimped, straight length:brake line from brake hoseto wheel cylinder 4,75 X 0,7550 MM 4,75 X 0,7550 MM	191 611 994 D
22	Brake pipe already crimped, straight length:brake line from brake hoseto wheel cylinder 4,75 X 0,7550 MM 4,75 X 0,7550 MM	191 611 994 D
23	Connecting piecefor models withbrake pressure regulator	171 611 789
24	pressurising valvefor models withbrake pressure regulator M 12 X 1/0,4-1,2 M 12 X 1/0,4-1,2	113 611 191
25	Clip	531 971 897
2A	Grommet F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>>F 53 A 0001 100>>	171 201 339
3	Brake pipe(Bulk stock)Brake pipe from brake mastercylinder to brake hose F >> 17 A 0011 705 4,75 X 0,7 GOLF,L,GL,D,LS,GLD 4,75 X 0,7	111 611 998
4	shorten to:Brake pipe from brake mastercylinder to brake hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>> XXXXXX GOLF CABRIOJETTAGOLF S,LS,GLS,D,LD,GLD XXXXXX	—
5	shorten to:brake line from mastercylinder to connecting piecefor models withbrake pressure regulator F >> 15 A 0800 572 F >> 17 A 0011 705 XXXXX XXXXX	—
9	shorten to:brake line from t-piece tobrake hose F 15 A 0800 573>>F 16 A 0000 001>>F 17 A 0011 706>>F 53 A 0001 100>> XXXXX "J..":GOLF"J::":JETTA"J..":GOLFSCIR.GTI,GLI XXXXX	—

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 20 Brake
Factory subgroup: 76000
