Brake pipe brake hose rear lhd scirocco — Mk1 Golf Brake (1981)
Factory title: Volkswagen Golf (1981) - Brake master cylinder

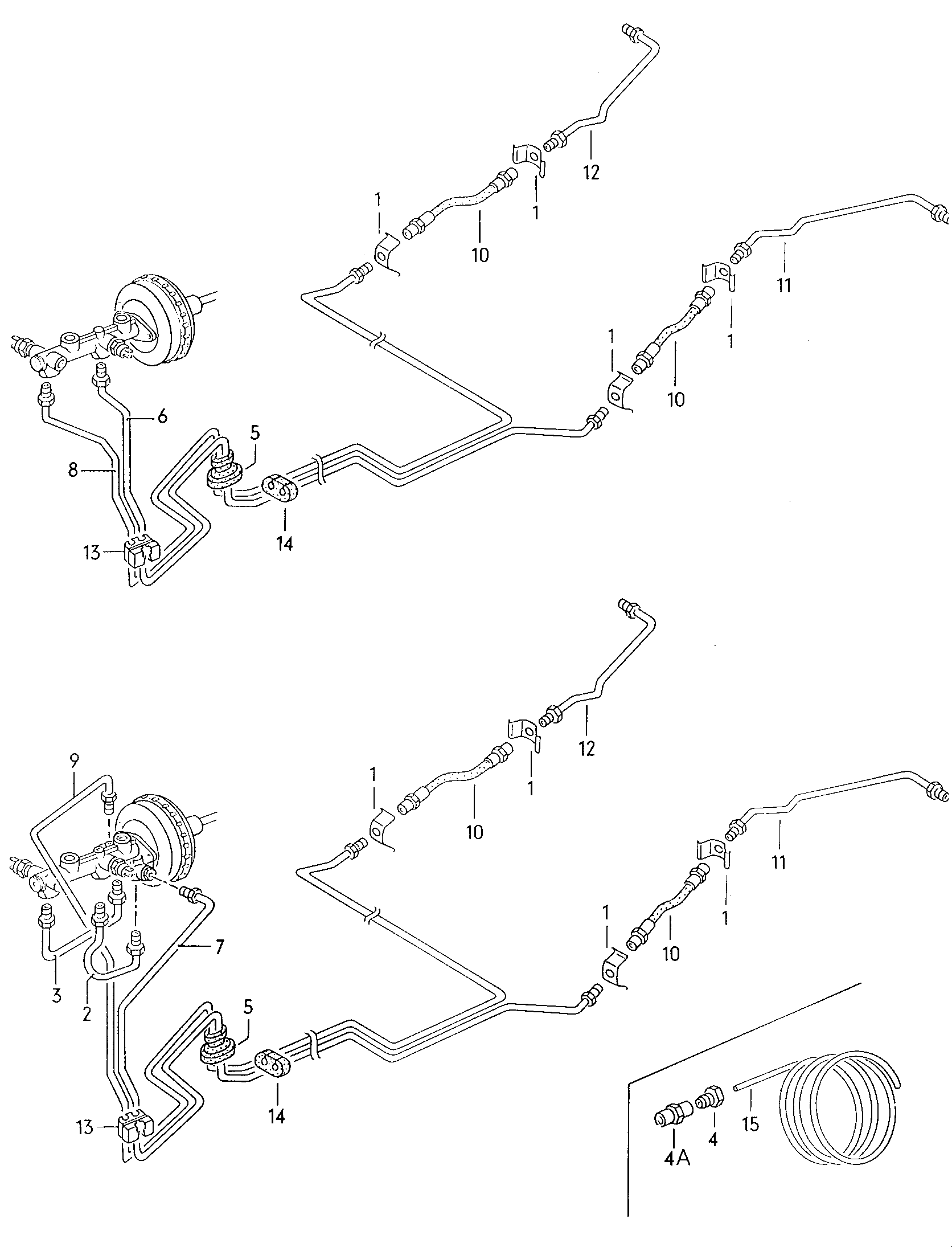

Brake pipe brake hose rear lhd scirocco for the Volkswagen Golf Mk1 (1981): factory exploded diagram 115010 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 14 OEM part numbers across 21 catalogued positions including 111 611 998, 4D0 611 715 B and 171 611 715. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 14 OEM part numbers across 21 numbered positions.
| № | Description | Part number |
|---|---|---|
| Brake pipe Brake hose rear LHD SCIROCCO rear LHD | — | |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 X 5000 4,75 X 0,7 X 5000 | 111 611 998 |
| (1) | retaining spring F 53-B-200 001>> | 4D0 611 715 B |
| (1) | retaining spring F 53-B-200 001>> | 171 611 715 |
| 1 | retaining spring F >> 53-B-050 000 | 803 611 715 |
| 10 | Brake hose M 10 X 1 X 180 M 10 X 1 X 180 | 433 611 775 A |
| 11 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 12 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 13 | Clip | 531 971 897 |
| 14 | Protective hose | 171 611 869 |
| 15 | Brake pipe(Bulk stock) 4,75 X 0,7 X 5000 4,75 X 0,7 X 5000 | 111 611 998 |
| 2 | shorten to: 160 MM 160 MM | — |
| 3 | shorten to: 230 MM 230 MM | — |
| 4 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 4 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 4A | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 5 | Grommet | 171 201 339 |
| 6 | shorten to: 2300 MM L,GL,S,LS,GLS,GL 2300 MM | — |
| 7 | shorten to: 2500 MM GLE,GTE,GLT,GLI,GTI 2500 MM | — |
| 8 | shorten to: 3554 MM -,L,GL,S,LS,GLS,GT. 3554 MM | — |
| 9 | shorten to: 3680 MM GLE,GTE,GLI,GLI,GTI 3680 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 20 Brake
- Factory subgroup
- 115010
