Brake pipe brake hose rear rhd — Mk1 Golf Brake (1981)
Factory title: Volkswagen Golf (1981) - Brake master cylinder

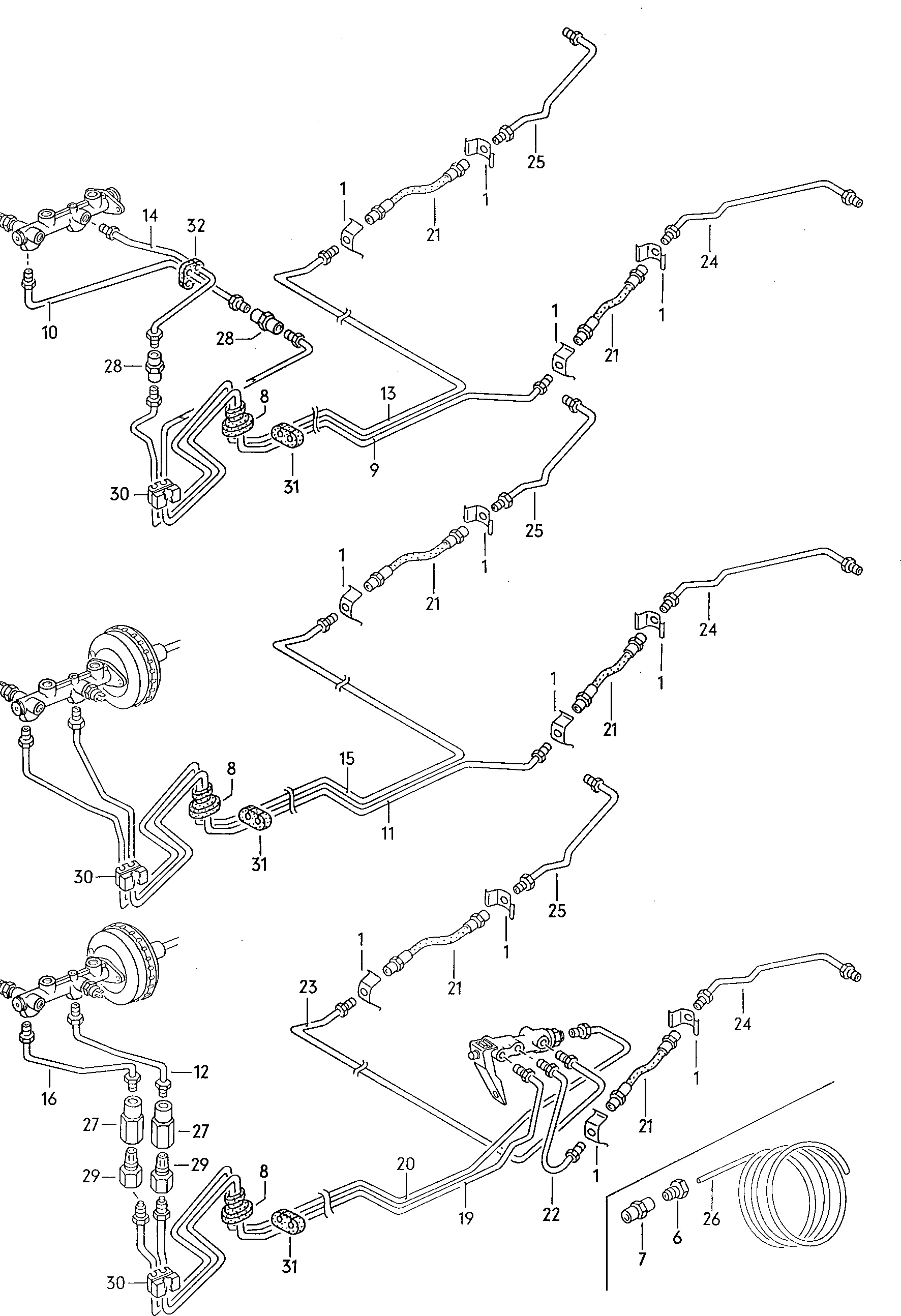

Brake pipe brake hose rear rhd for the Volkswagen Golf Mk1 (1981): factory exploded diagram 115020 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 18 OEM part numbers across 29 catalogued positions including 111 611 998, 803 611 715 and 191 611 994 H. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 18 OEM part numbers across 29 numbered positions.
| № | Description | Part number |
|---|---|---|
| Brake pipe Brake hose rear RHD diesel eng.,carburetorengine rear RHD | — | |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 1 | retaining spring | 803 611 715 |
| 10 | Brake pipe already crimped, straight length: 750 MM GOLF,L,GL,D,LD,GLD 750 MM | 191 611 994 H |
| 11 | shorten to: 2560 MM 2560 MM | — |
| 12 | shorten to: 230 MM 230 MM | — |
| 13 | shorten to: 3550 MM GOLF,L,GL,D,LD,GLD 3550 MM | — |
| 14 | shorten to: 736 MM GOLF,L,GL,D,LD,GLD 736 MM | — |
| 15 | shorten to: 3550 MM 3550 MM | — |
| 16 | shorten to: 320 MM 320 MM | — |
| 19 | shorten to: 2260 MM 2260 MM | — |
| 20 | shorten to: 2420 MM 2420 MM | — |
| 21 | Brake hose M 10 X 1 X 180 M 10 X 1 X 180 | 433 611 775 A |
| 22 | shorten to: 220 MM 220 MM | — |
| 23 | Brake pipe already crimped, straight length: 1700 MM 1700 MM | 191 611 996 F |
| 24 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 25 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 26 | Brake pipe(Bulk stock) 4,75 X 0,7 X 5000 4,75 X 0,7 X 5000 | 111 611 998 |
| 27 | Connecting piecefor models with brakeservo brake press.regulator | 171 611 789 |
| 28 | Connecting piecefor models with nobrake servo M 10 X 1 GOLF,L,GL,D,LD,GLD M 10 X 1 | 411 611 789 |
| 29 | pressurising valve M 12 X 1/0,4-1,2 M 12 X 1/0,4-1,2 | 113 611 191 |
| 30 | Clip | 531 971 897 |
| 31 | Protective hose | 171 611 869 |
| 32 | Protective hose | 803 201 245 D |
| 6 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 6 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 7 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 8 | Grommet | 171 201 339 |
| 9 | shorten to: 2500 MM GOLF,L,GL,D,LD,GLD 2500 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Variant tags
- diesel
- Factory group
- 20 Brake
- Factory subgroup
- 115020
Related factory diagrams
Other published brake plates for the Mk1 Golf in this catalogue.
The complete Mk1 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the brake pipe brake hose rear rhd diagram for the Mk1 Golf?
- This diagram lists 18 OEM part numbers for the Mk1 Golf. The first three are 111 611 998, 803 611 715 and 191 611 994 H.
- Which Mk1 Golf years and engines does this diagram cover?
- This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk1 Golf factory parts catalogue?
- The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
