Brake pipe brake hose rear rhd k jetronic — Mk1 Golf Brake (1981)
Factory title: Volkswagen Golf (1981) - Brake master cylinder

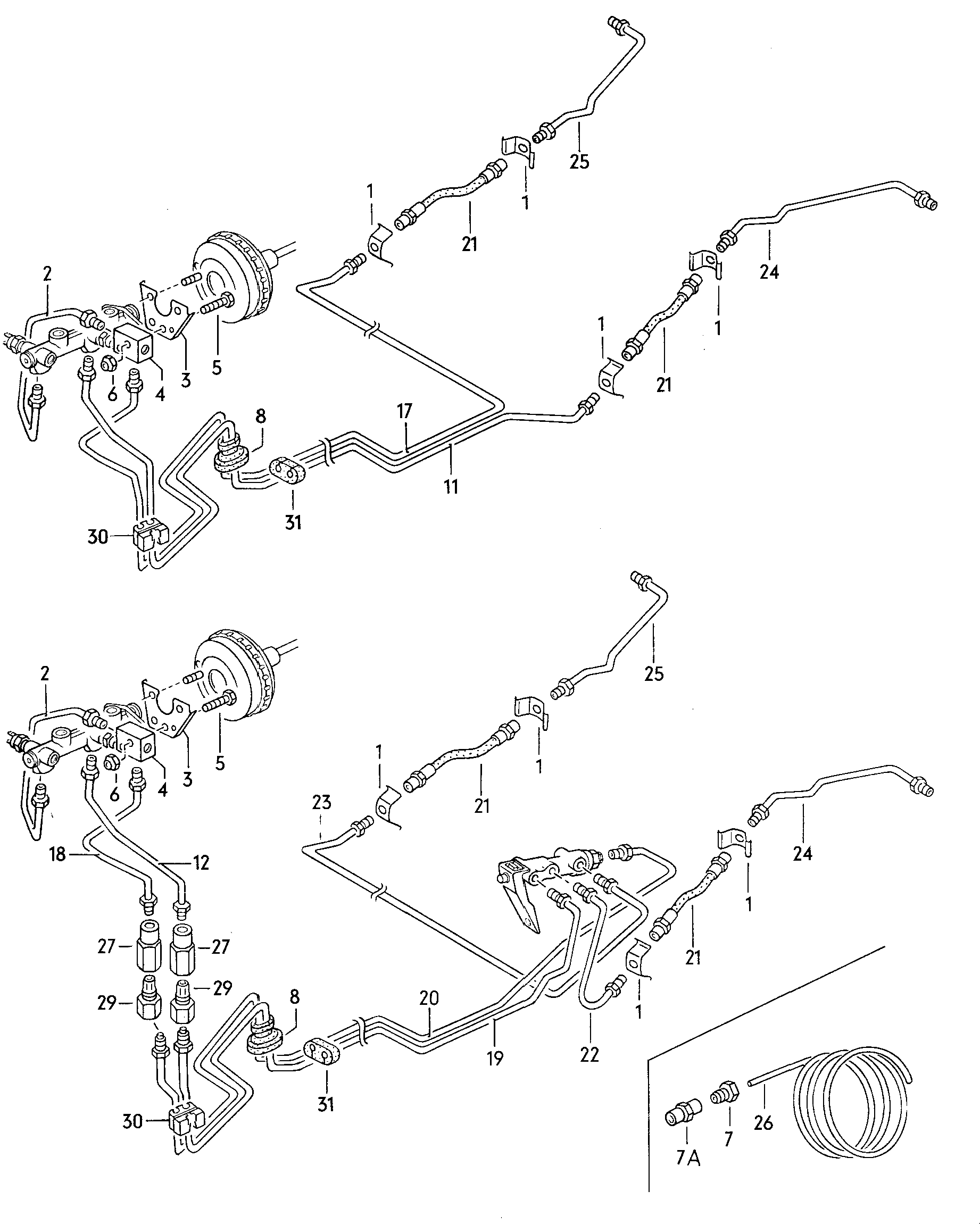

Brake pipe brake hose rear rhd k jetronic for the Volkswagen Golf Mk1 (1981): factory exploded diagram 115030 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 20 OEM part numbers across 29 catalogued positions including 111 611 998, 803 611 715 and 433 611 775 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 20 OEM part numbers across 29 numbered positions.
| № | Description | Part number |
|---|---|---|
| Brake pipe Brake hose rear RHD K-JETRONIC rear RHD | — | |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 1 | retaining spring | 803 611 715 |
| 11 | shorten to: 2560 MM 2560 MM | — |
| 12 | shorten to: 320 MM 320 MM | — |
| 17 | shorten to: 3620 MM 3620 MM | — |
| 18 | shorten to: 300 MM 300 MM | — |
| 19 | shorten to: 2260 MM 2260 MM | — |
| 2 | shorten to: 250 MM 250 MM | — |
| 20 | shorten to: 2420 MM 2420 MM | — |
| 21 | Brake hose M 10 X 1 X 180 M 10 X 1 X 180 | 433 611 775 A |
| 22 | shorten to: 220 MM 220 MM | — |
| 23 | Brake pipe already crimped, straight length: 1700 MM 1700 MM | 191 611 996 F |
| 24 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 25 | Brake pipe already crimped, straight length: 4,75 X 0,7550 MM 4,75 X 0,7550 MM | 191 611 994 D |
| 26 | Brake pipe(Bulk stock) 4,75 X 0,7 X 5000 4,75 X 0,7 X 5000 | 111 611 998 |
| 27 | Connecting piece brake press.regulator | 171 611 789 |
| 29 | pressurising valve M 12 X 1/0,4-1,2 brake press.regulator M 12 X 1/0,4-1,2 | 113 611 191 |
| 3 | bracket brake press. regulator | 853 612 405 |
| 30 | Clip | 531 971 897 |
| 31 | Protective hose | 171 611 869 |
| 4 | distributor for brake line | 172 611 756 |
| 5 | Hexagon bolt M 6 X 30 M 6 X 30 | N 010 346 7 |
| 6 | hexagon nut, self-locking M 6 M 6 | N 011 183 11 |
| 6 | hexagon nut, self-locking M 6 M 6 | N 011 183 12 |
| 6 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 6 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 7A | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 8 | Grommet | 171 201 339 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 20 Brake
- Factory subgroup
- 115030
