Brake pipe brake hose rear scir — Mk1 Golf Brake (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - Brake master cylinder

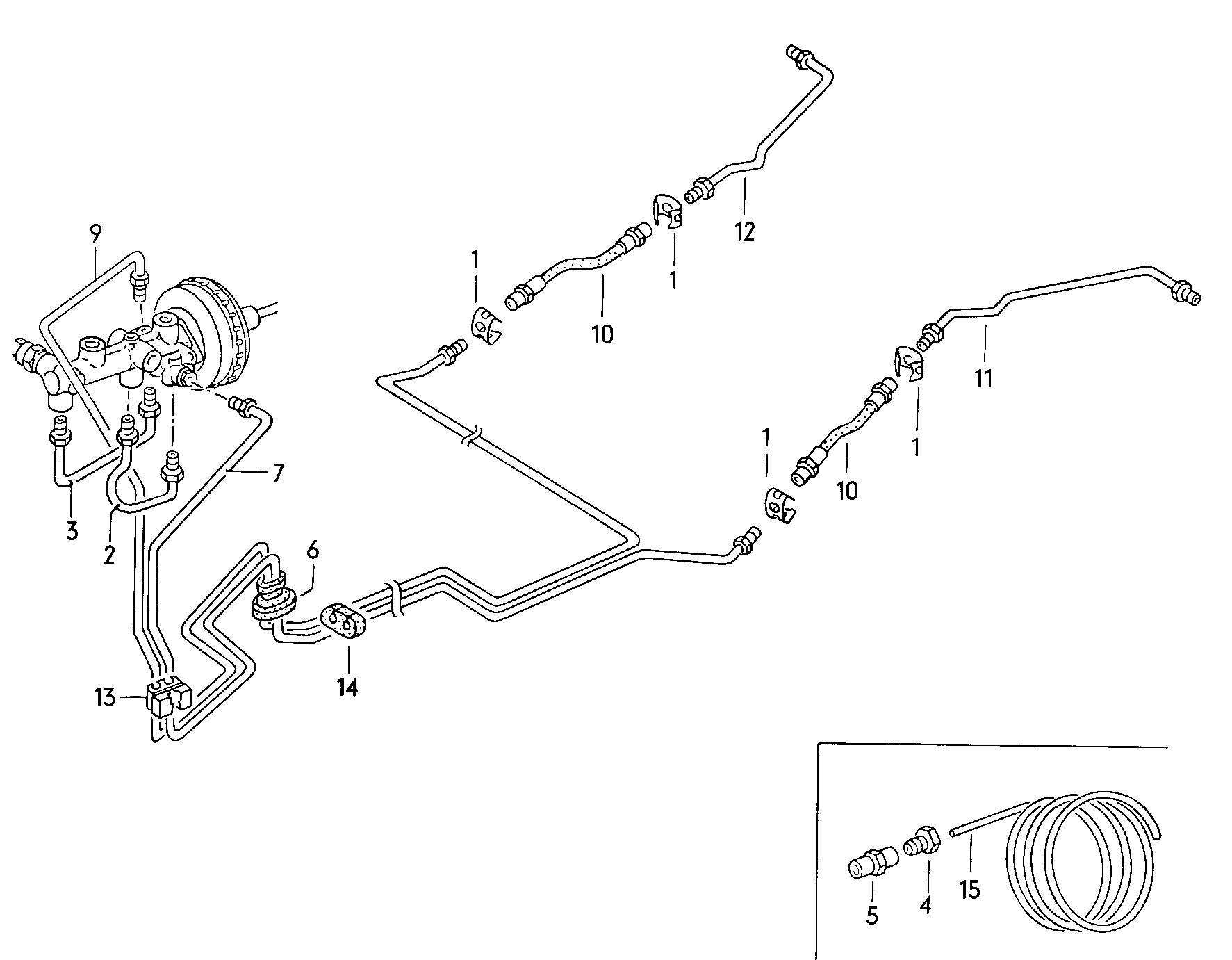

Brake pipe brake hose rear scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 115030 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 12 OEM part numbers across 21 catalogued positions including 111 611 998, 171 611 715 and 4D0 611 715 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 12 OEM part numbers across 21 numbered positions.
| № | Description | Part number |
|---|---|---|
| Brake pipe Brake hose rear SCIR. rear | — | |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| (7) | shorten to: 2510 MM 2510 MM | — |
| (9) | shorten to: 3800 MM 3800 MM | — |
| 1 | retaining spring | 171 611 715 |
| 1 | retaining spring | 4D0 611 715 B |
| 10 | Brake hose M 10 X 1 X 180 M 10 X 1 X 180 | 433 611 775 A |
| 11 | shorten to: 510 MM 510 MM | — |
| 12 | shorten to: 510 MM 510 MM | — |
| 13 | Clip | 531 971 897 |
| 14 | Protective hose | 171 611 869 |
| 15 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 2 | shorten to: 170 MM 170 MM | — |
| 3 | shorten to: 220 MM 220 MM | — |
| 4 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 4 | pipe union nut M 10 X 1/5 SW 11 M 10 X 1/5 SW 11 | 113 611 731 |
| 5 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 6 | Grommet | 171 201 339 |
| 7 | shorten to: 2475 MM 2475 MM | — |
| 9 | shorten to: 3680 MM 3680 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 20 Brake
- Factory subgroup
- 115030
