Brake servo reservoir — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 67 Primary OEM: 331 612 361, 321 612 367, 893 612 363

Brake servo reservoir for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 72000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 65 OEM part numbers across 67 catalogued positions including 331 612 361, 321 612 367 and 893 612 363. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 65 OEM part numbers across 67 numbered positions.

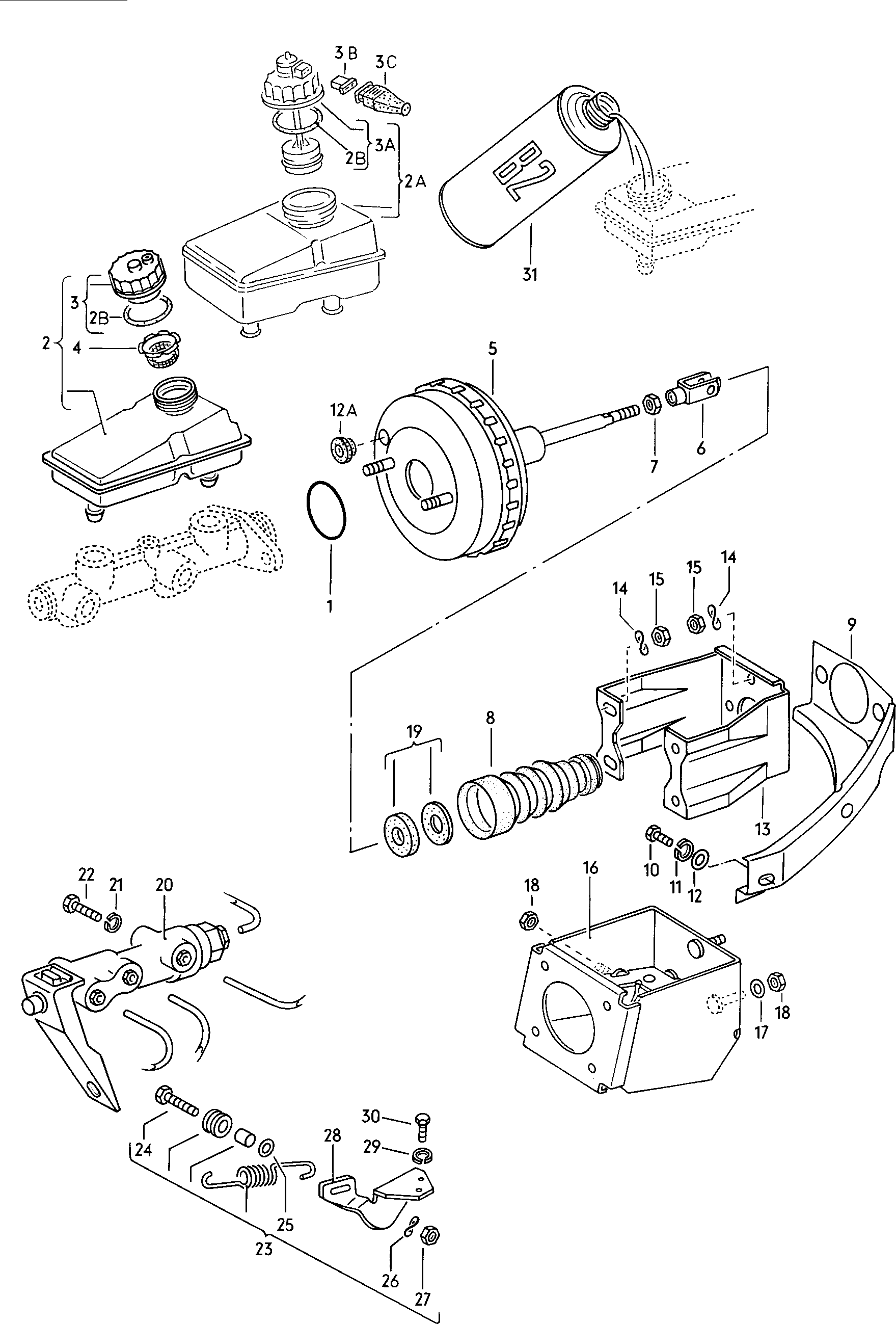

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Mounting	331 612 361
-	roller	321 612 367
-	spacer sleeve	893 612 363
-	spacer sleeve	443 612 363
-	tension spring	171 612 339
(16)	bracket forbrake servo SCIR.	532 721 731 A
(2A)	Reservoir forbrake fluid F 179 3000 001>>F 15 A 0800 001>>F 16 A 0000 001>>F 17-A-000 001>>F 53 A 0000 001>> "J.."	321 611 301 J
(2A)	Reservoir forbrake fluid F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000	867 611 301 B
(31)	brake fluid	B 000 700 A6
(31)	brake fluid	B 000 750 M1
(31)	brake fluid	B 000 700 A1
(31)	brake fluid	B 000 600 A1
(31)	brake fluid	B 000 600 20
(31)	brake fluid	B 000 750 M6
(31)	brake fluid	B 000 750 M7
(31)	brake fluid	B 000 750 M9
(3A)	cap forreservoir with fluidlevel senderfor models withbrake warning light F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> 43,5 MM 43,5 MM	443 611 349 A
(5)	Brake servo 9" ATE K-JETRONIC 9" ATE	171 612 107 G
(5)	Brake servo also use: 7" ATE 321 611 813 D carburetorengine 7" ATE 321 611 813 D	172 612 107 B
(5)	Brake servo also use: 8" ATE 321 611 813 D "J..":GOLF;GOLF D,LD,GLD,GTI,GLI;SCIR.GTI,GLIJETTA LI,GLI 8" ATE 321 611 813 D	172 612 107 C
(6)	clevis	172 721 295
1	gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5	357 611 243
1	gasket betweenbrake servo andbraketandem master cylinder 42 X 2,7 42 X 2,7	211 611 243
10	Hexagon bolt M 8 X 12 M 8 X 12	N 010 237 6
11	spring ring 8 8	N 012 038 8
11	spring ring 8 8	N 012 038 7
12	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
12A	Seal K-JETRONIC	861 612 175
13	bracket forbrake servo	171 612 205 B
14	Spring washer 17 X 8,4 X 2 17 X 8,4 X 2	171 612 217
15	Hexagon nut M 8 M 8	N 011 008 8
16	bracket forbrake servo GOLF,JETTA	172 721 731 A
17	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
18	hexagon nut, self-locking M 8 M 8	N 022 146 4
19	No longer available	—
2	Discont. / replace: 867 611 301 B 867 611 301 B	—
20	brake pressure regulator(load sensitive)	811 614 151
21	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
21	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
22	Hexagon bolt M 8 X 12 M 8 X 12	N 010 237 6
23	1 set fixing parts forbrake power regulator	171 698 501
24	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
25	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
25	Washer A 8,4 A 8,4	N 011 525 13
26	Spring washer 8 8	N 012 228 3
27	Hexagon nut M 8 M 8	N 011 118 16
27	Hexagon nut BM 8 BM 8	N 011 118 11
28	bracket brake press. regulator	171 612 407
29	spring ring 6 6	N 012 006 4
2A	Reservoir forbrake fluid F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>>F 17 A 0000 001>>for models with nobrake servo	867 611 301 B
2B	seal ring	893 611 347
3	cap forexpansion tankfor models with nobrake servo	191 611 349 A
30	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
30	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
31	brake fluid	B 000 750 M3
31	brake fluid	B 000 700 A3
31	brake fluid	B 000 600 A3
3A	End capfor models withbrake warning light F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> 54,5 MM 54,5 MM	171 611 349 A
3A	End capfor models withbrake warning light F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> 53,5 MM 53,5 MM	1H1 611 349
3B	Flat contact housing for contact:F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> N 017 483 5 N 017 483 5	443 906 231
3C	Protective cap F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>>	447 919 141
4	strainer F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000	211 611 381 B
5	Brake servo also use: 7"/178 MM 321 611 813 D DIESEL;carburetorengine 7"/178 MM 321 611 813 D	811 612 107 A
6	clevis 10 X 31 10 X 31	N 900 125 01
7	Hexagon nut M 10 M 10	N 011 134 5
8	Protective sleeve	171 612 161 A
9	Support GOLF,JETTA	171 803 109 A
