Disc brake floating caliper brake disc — Mk1 Golf Brake (1982 - 1983)

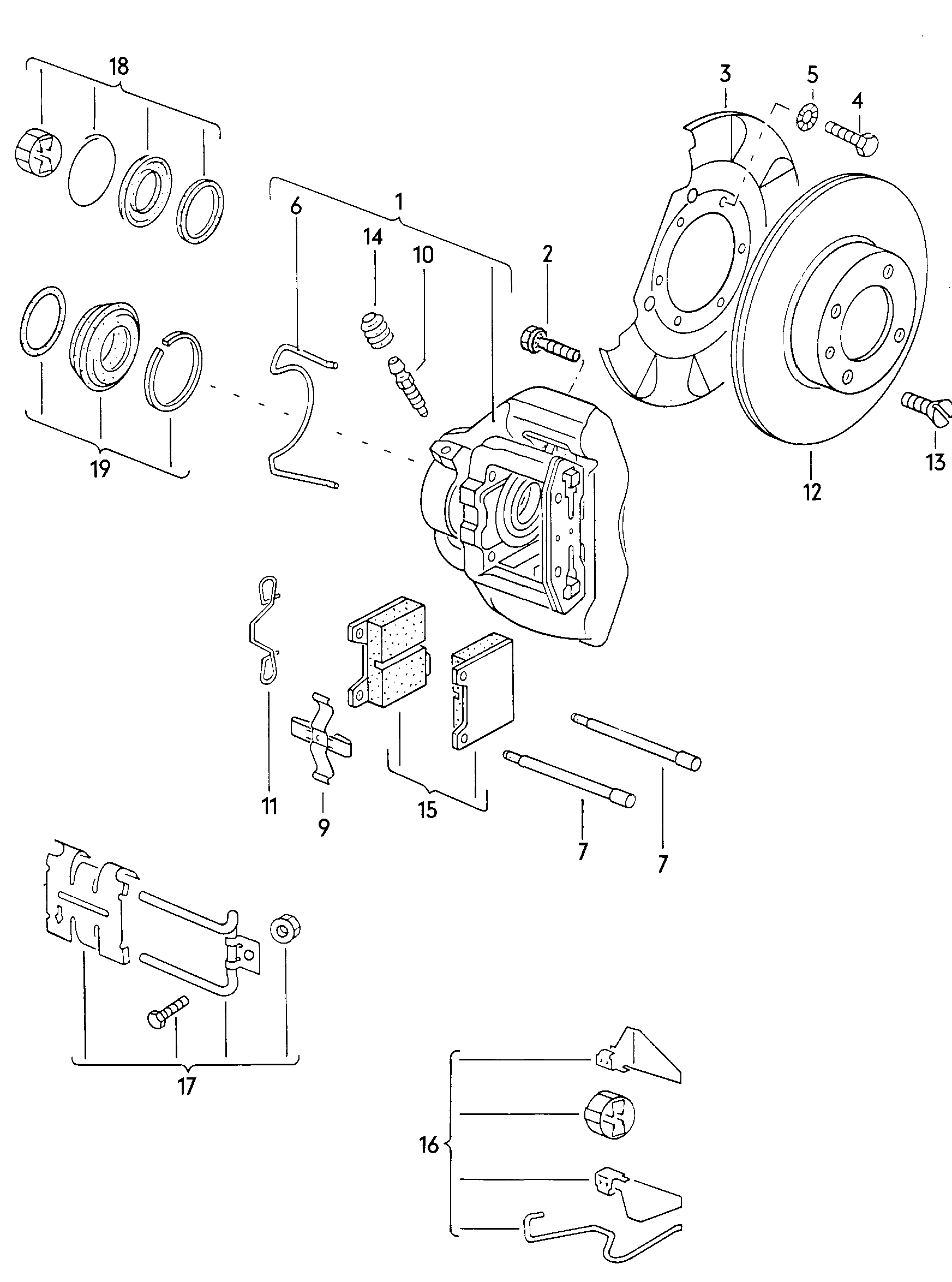

Factory title: Volkswagen Golf (1982 - 1984) - Disc brake with floating caliper. Brake disc
Disc brake floating caliper brake disc for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 116000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 28 OEM part numbers across 29 catalogued positions including 171 698 462 EX, 321 615 107 C and 171 615 108 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 28 OEM part numbers across 29 numbered positions.
| № | Description | Part number |
|---|---|---|
| disc brake with floatingcaliper Brake disc 1.1/1.3 ltr.1.6 ltr. carburetorenginediesel eng. 1.1/1.3 ltr.1.6 ltr. | — | |
| - | 1 set floating caliper withbrake pads andbrake hoses 239 X 10 239 X 10 | 171 698 462 EX |
| (1) | floating caliper ATE ATE | 321 615 107 C |
| (1) | floating caliper GIRLING GIRLING | 171 615 108 D |
| (1) | floating caliper GIRLING GIRLING | 171 615 107 D |
| (15) | 1 set of brake pads fordisk brake 239 X 10 MM 239 X 10 MM | 861 698 151 A |
| (17) | 1 set fixing parts fordisc brake pads | 321 698 445 |
| (17) | 1 set fixing parts fordisc brake pads ATE ATE | 823 698 445 |
| (6) | locating spring forfloating caliper ATE ATE | 431 615 169 |
| (9) | Cup expander spring GIRLING GIRLING | 321 615 269 |
| 1 | floating caliper ATE ATE | 321 615 108 C |
| 10 | Breather valve | 113 615 273 A |
| 11 | securing spring | 827 615 291 A |
| 12 | Brake disc 239 X 10 4/100 239 X 10 4/100 | 811 615 301 |
| 13 | countersunk bolt M 6 X 15 M 6 X 15 | N 014 226 5 |
| 13 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 02 |
| 13 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 14 | dust cap | 211 611 483 |
| 16 | 1 set retaining springsfor floating calliper GIRLING GIRLING | 171 698 441 |
| 18 | Gasket set for floatingcalliper GIRLING GIRLING | 171 698 471 |
| 19 | Gasket set for floatingcalliper ATE ATE | 827 698 471 |
| 2 | ribbed bolt M 10 X 30 M 10 X 30 | N 900 689 02 |
| 3 | cover plate | 171 615 311 |
| 4 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 4 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 5 | Toothed washer 6,4 6,4 | N 015 369 1 |
| 6 | locating spring forfloating caliper GIRLING GIRLING | 171 615 169 A |
| 7 | Locking pin ATE ATE | 861 615 261 |
| 9 | Cup expander spring ATE ATE | 823 615 269 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Variant tags
- petrol_8v_base
- Factory group
- 20 Brake
- Factory subgroup
- 116000
