Vacuum hoses brake servo — Mk1 Golf Brake (1982 - 1983)

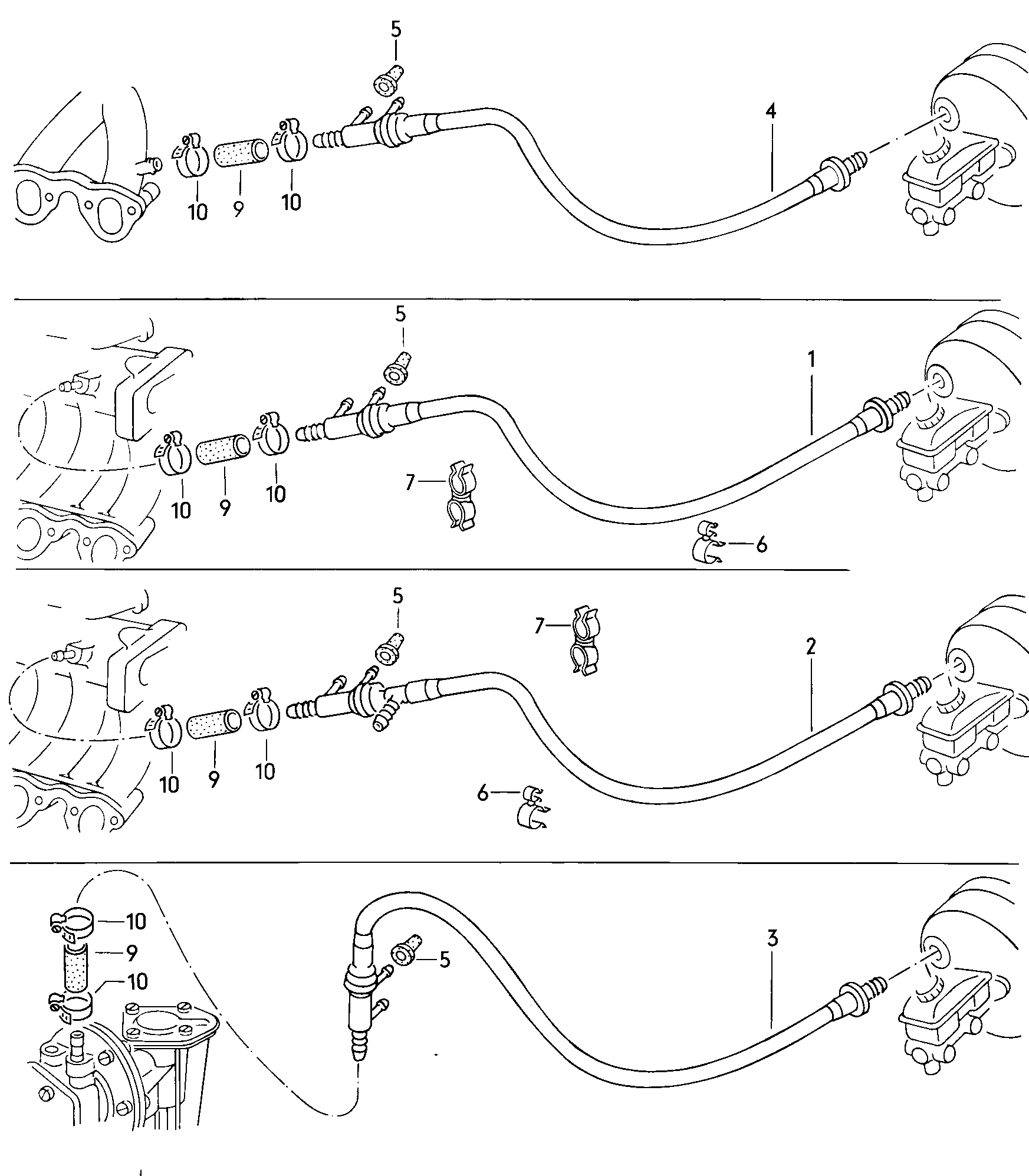

Factory title: Volkswagen Golf (1982 - 1984) - Brake master cylinder
Vacuum hoses brake servo for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 112000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 22 OEM part numbers across 23 catalogued positions including 321 611 813 D, N 020 290 1 and N 020 290 3. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 22 OEM part numbers across 23 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Connecting piece | 321 611 813 D |
| - | Hose(Bulk stock) 12 X 3,5 12 X 3,5 | N 020 290 1 |
| - | hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5 | N 020 290 3 |
| - | Non-return valve also use: 13/5/5-16056 129 777 GOLF GTI,GLIRABBIT GTI,JETTA CLI,GTI,"S.."SCIR. 13/5/5-16056 129 777 | 811 611 933 |
| - | Non-return valve also use: 13/5/5-16056 129 777 GOLF GTI,GLIRABBIT GTI,JETTA CLI,GTI,"S.."SCIR. 13/5/5-16056 129 777 | 191 611 933 E |
| (2) | Vacuum pipe withnon-return valve 81/82 KW GOLF,GTI,GLIRABBIT GTI,JETTA CLI,GLISCIR.GTI,GLI,GTS 81/82 KW | 172 611 931 C |
| (2) | Vacuum pipe withnon-return valve 81/82 KW SCIR.GTI,GLI,GTS 81/82 KW | 531 611 931 A |
| (3) | Vacuum pipe withnon-return valve air condit./DIESEL,T-DIESEL | 172 611 931 E |
| (3) | Vacuum pipe withnon-return valve DIESEL,T-DIESEL | 172 611 931 D |
| (4) | Vacuum pipe withnon-return valve | 531 611 931 D |
| (4) | Vacuum pipe withnon-return valve GOLF,JETTA | 532 611 931 |
| (4) | Vacuum pipe withnon-return valve 48/51/63 KW GOLF,JETTA 48/51/63 KW | 172 611 931 J |
| (4) | Vacuum pipe withnon-return valve SCIR. | 172 611 931 J |
| 1 | Vacuum pipe withnon-return valve "J..":GOLFJETTA | 172 611 931 L |
| 10 | Clamp LC 16-27 LC 16-27 | N 900 719 01 |
| 10 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 2 | Vacuum pipe withnon-return valve also use: 030 133 335 A GOLF GTI,GLIRABBIT GTI,JETTA CLI,GLI 030 133 335 A | 171 611 931 C |
| 3 | Vacuum pipe withnon-return valve diesel eng. | 191 611 931 L |
| 4 | Vacuum pipe withnon-return valve 48/51/55/63 KW 48/51/55/63 KW | 171 611 931 G |
| 5 | Cap closure 4 MM 4 MM | 056 129 777 |
| 6 | Hose bracket 20/11 SCIR.,K-JETRONIC 20/11 | 171 201 815 A |
| 7 | Hose bracket K-JETRONIC | 171 611 449 |
| 9 | shorten to: 50 MM 50 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 20 Brake
- Factory subgroup
- 112000
