Which VW part numbers are on the vacuum hoses brake servo diagram for the Mk1 Golf?

This diagram lists 26 OEM part numbers for the Mk1 Golf. The first three are 030 133 335 A, N 020 290 3 and 056 129 777 A.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Vacuum hoses brake servo — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 30 Primary OEM: 030 133 335 A, N 020 290 3, 056 129 777 A

Vacuum hoses brake servo for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 73000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 26 OEM part numbers across 30 catalogued positions including 030 133 335 A, N 020 290 3 and 056 129 777 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 26 OEM part numbers across 30 numbered positions.

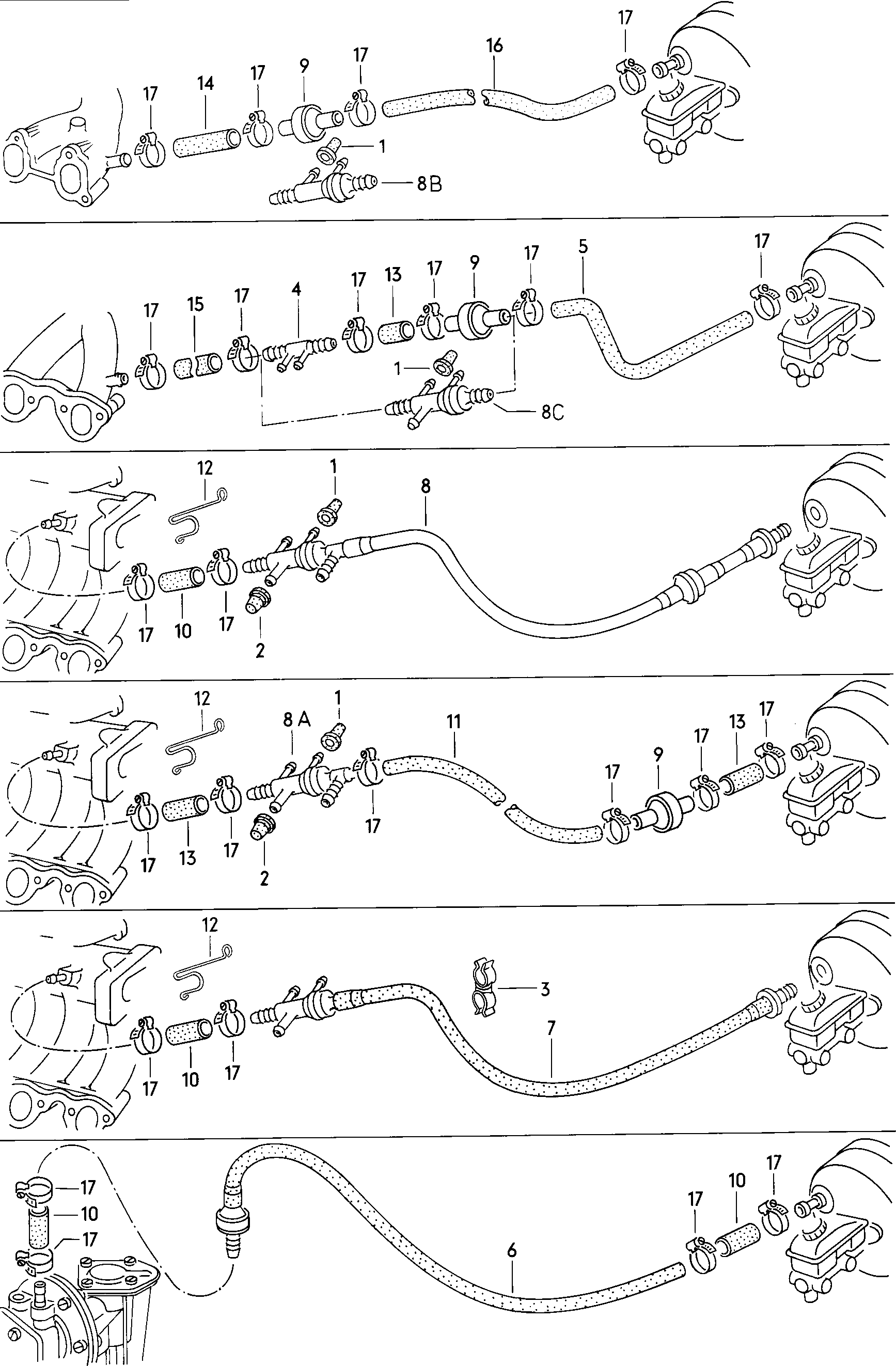

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Cap 12 MM 12 MM	030 133 335 A
-	hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5	N 020 290 3
-	Cap closure 7,5 X 13 7,5 X 13	056 129 777 A
-	Connecting piece	321 611 813 D
-	hose with spring in coils of 5 m 'order unit 5' 12 X 3,5 X 5000 12 X 3,5 X 5000	N 020 390 1
-	Cap 12 MM 12 MM	049 133 335 A
(15)	shorten to: 150 MM "S.." 150 MM	—
(4)	connection piece also use: 13/5/5/5/13056 129 777 13/5/5/5/13056 129 777	811 611 813
(6)	Vacuum pipe withnon-return valve DIESEL: air condit.	171 611 931 B
(6)	Vacuum pipe withnon-return valve DIESEL: air condit.	172 611 931 E
(7)	Vacuum pipe withnon-return valve also use: 056 129 777056 129 777 A "J..":SCIR.SCIR.GTI,GLI 056 129 777056 129 777 A	531 611 931 A
(7)	Vacuum pipe withnon-return valve F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 F 15 A 0000 001>>F 16 A 0000 001>>F 17 A 0000 001>> GOLF GLIGOLF GTISCIR.GTI,GLI"J..":GOLF"J..":JETTA"J..":GOLF	172 611 931 F
(7)	Vacuum pipe withnon-return valve F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> GOLF GLIJETTA LI,GLIGOLF GTISCIR.GTI,GLI	172 611 931 G
(8B)	Non-return valve F 53 A 000 001>> also use: 13/5/5/9-13/12056 129 777 A 030 133 335 A SCIR.,L,GT,GL 13/5/5/9-13/12056 129 777 A 030 133 335 A	171 611 933
1	Cap closure 4 MM 4 MM	056 129 777
12	holder forvacuum hose	171 612 149
13	shorten to: 50 MM 50 MM	—
14	shorten to: 65 MM 65 MM	—
16	shorten to: 390 MM 390 MM	—
17	Clamp LC 16-27 LC 16-27	N 900 719 01
17	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
2	Cap closure 7,5 X 13 7,5 X 13	056 129 777 A
3	Hose bracket F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> K-JETRONICK-JETRONICK-JETRONICK-JETRONIC	171 611 449
5	Vacuum hose carburetorengine	171 611 909
6	Vacuum pipe withnon-return valve DIESEL	171 611 931
7	Vacuum pipe withnon-return valve also use: 030 133 335 A -CABRIO GTI.GOLF GTI 030 133 335 A	171 611 931 C
8	Vacuum pipe withnon-return valve F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>> GOLF GLIJETTA LI,GLIGOLF GTI	171 611 931 C
8A	Non-return valve also use: 13/5/5/9-13/12030 133 335 A GOLF 13/5/5/9-13/12030 133 335 A	171 611 933
8C	Non-return valvefor models withkeihin carburetor also use: 13/5/5/9-13/12030 133 335 A "S.." 13/5/5/9-13/12030 133 335 A	171 611 933
9	Non-return valve 13-13 13-13	191 611 933

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 20 Brake
Factory subgroup: 73000
