Wheel brake cylinder rear — Mk1 Golf Brake (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Brake master cylinder

Generation: Mk1 1979 - 1980 (RDW) Group: Brake Rebuild step 10 Parts: 15 Primary OEM: B 000 100, N 012 006 4, 331 611 051 A

Wheel brake cylinder rear for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 74000 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 15 OEM part numbers including B 000 100, N 012 006 4 and 331 611 051 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 15 OEM part numbers across 15 numbered positions.

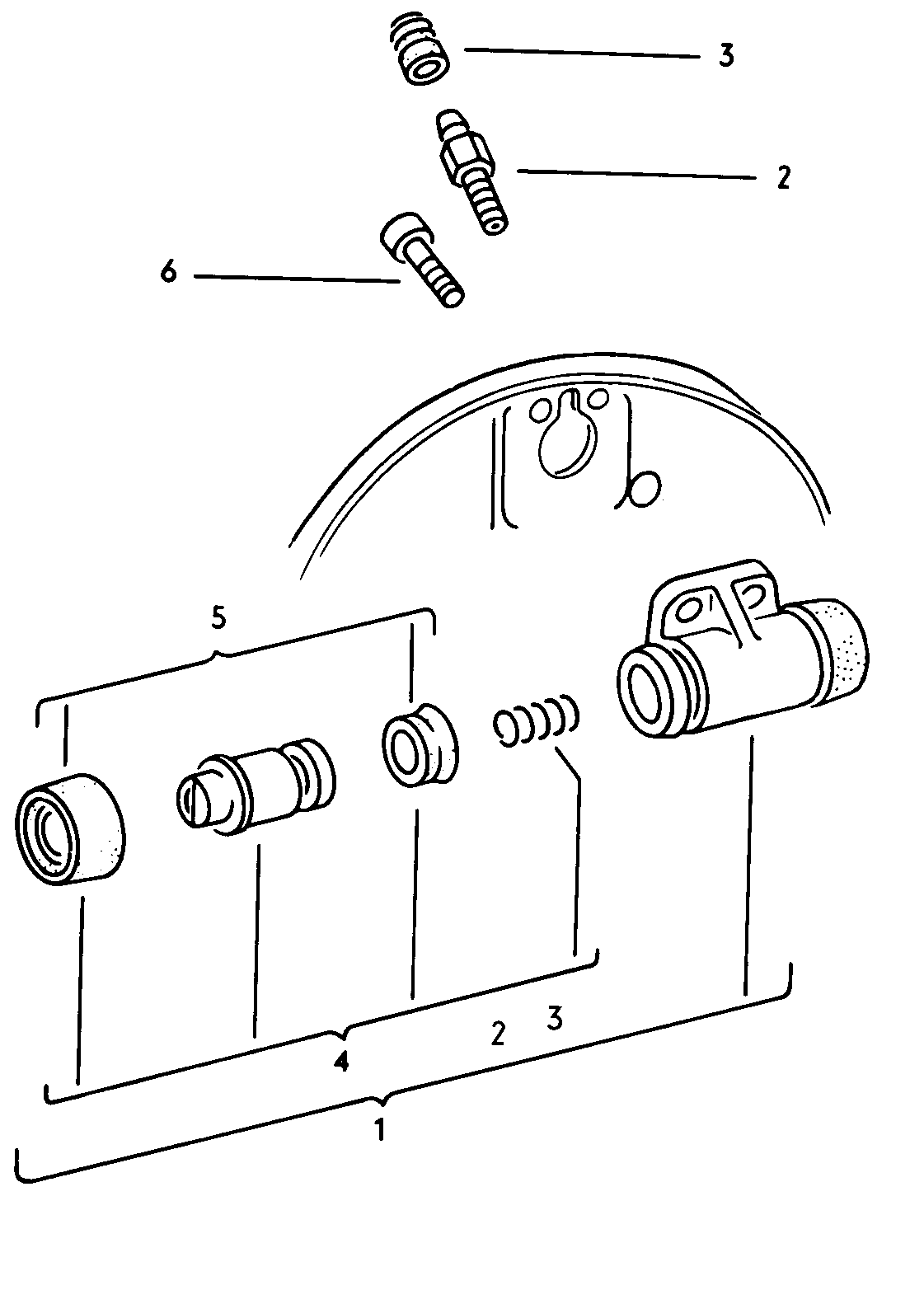

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	brake cylinder paste 180 G 180 G	B 000 100
-	spring ring 6 6	N 012 006 4
(1)	wheel brake cylinderfor models withbrake pressure regulator 17,46 ATE 17,46 ATE	331 611 051 A
(1)	wheel brake cylinderfor models withbrake pressure regulator 17,46 FAG 17,46 FAG	6N0 611 053
(1)	1 set brake shoes withpads andwheel brake cyl. 'ECO'Economy	JZW 698 511 B
(4)	repair kit for wheel brakecylinder 14,29 ATE 14,29 ATE	171 698 241 C
(4)	repair kit for wheel brakecylinderfor models withbrake pressure regulator 17,46 ATE 17,46 ATE	331 698 261 C
(4)	repair kit for wheel brakecylinderfor models withbrake pressure regulator 17,46 FAG 17,46 FAG	331 698 261 D
(4)	repair kit for wheel brakecylinder 14,29 FAG 14,29 FAG	171 698 241 D
1	wheel brake cylinder 14,29 ATE 14,29 ATE	171 611 051 B
1	wheel brake cylinder 14,29 FAG 14,29 FAG	1H0 611 053 B
2	Breather valve M 7 X 38 M 7 X 38	3A0 611 475
2	Breather valve M 6 X 38 M 6 X 38	113 611 475
3	dust cap	211 611 483
6	Socket head bolt withhexagon socket head use if required: M 6 X 10 N 012 006 4 M 6 X 10 N 012 006 4	N 014 750 6
