Coolant pump — Mk1 Golf Cooling (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Coolant pump

Generation: Mk1 1977 - 1978 (RDW) Group: Drive cooling Rebuild step 8 Parts: 40 Primary OEM: 052 121 004 X, 052 121 005 AX, 056 121 113 D

Coolant pump for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 8000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 39 OEM part numbers across 40 catalogued positions including 052 121 004 X, 052 121 005 AX and 056 121 113 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 39 OEM part numbers across 40 numbered positions.

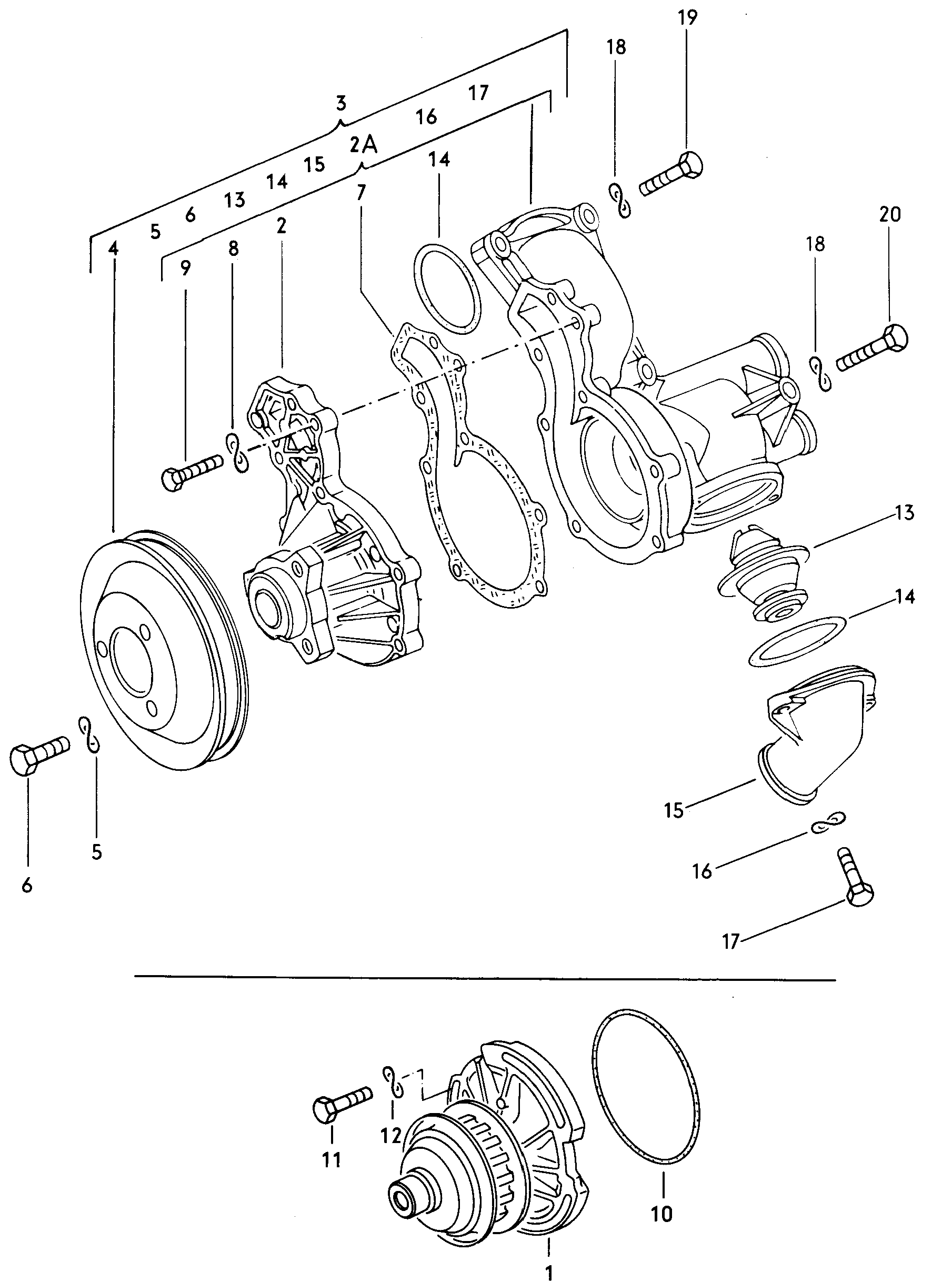

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Coolant pump with sealing ring FA,FJ	052 121 004 X
(1)	Coolant pump with sealing ring FA,FJ	052 121 005 AX
(13)	Coolant regulator 87 C-102 C EE,EF,EG,EH,FN,FP,FR,FT,FV,JB 87 C-102 C	056 121 113 D
(15)	Pipe union diesel-industrialengine	056 121 121 B
(20)	Hexagon bolt M 8 X 55 diesel-industrialengine M 8 X 55	N 010 352 10
(2A)	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck EE,EF,EG,EH,FN,FP,FR,FT,FV,JB,DIESEL:CK	055 121 010 X
(2A)	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck See parts bulletin: X-123/1984 EE,EF,EG,EH,FN,FP,FR,FT,FV,JB X-123/1984	026 121 010 DX
(4)	v-belt pulley M >> FN 155 317	055 121 031
(4)	v-belt pulley DIESEL:CK	068 121 031
(7)	Seal 1,5 MM EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK 1,5 MM	026 121 041 M
(7)	Seal 1,5 MM EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK 1,5 MM	026 121 041 P
1	Coolant pump with sealing ring FA,FJ	052 121 004
1	Coolant pump with sealing ring FA,FJ	052 121 005 A
10	seal ring 4 MM FA,FJ 4 MM	030 121 043
10	seal ring 4 FA,FJ 4	030 121 043 B
11	Hexagon bolt M 6 X 25 FA,FJ M 6 X 25	N 010 218 6
12	Spring washer 6 FA,FJ 6	N 012 226 5
12	Spring washer A 6 FA,FJ A 6	N 012 227 3
13	Coolant regulator 80-91 EE,EF,EG,FN,FP,FR,FT,FV,DIESEL:CK 80-91	056 121 113 A
14	seal ring 50 X 4 EE,EF,EG,EH,FN,FP,FR,FT,FV,JB,DIESEL:CK 50 X 4	038 121 119 B
14	O-ring EE,EF,EG,EH,FN,FP,FR,FT,FV,JB,DIESEL:CK	059 121 119
15	Pipe union EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK	055 121 121 F
16	Spring washer 6 6	N 012 226 5
17	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
18	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
18	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
19	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 21
19	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 16
2	Bearing housing w/ pump wheel also use: 026 121 041 M EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK 026 121 041 M	068 121 005 C
20	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
2A	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK	026 121 010 D
3	Discont. / replace:	—
4	v-belt pulley M FN 155318>> EE,EF,EG,EH,FP,FT,FV,JB M FN 155318>>	056 121 031
4	v-belt pulley M FN 155 318>> M FN 155318>> M FN 155318>>	056 121 031
5	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
5	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
6	Hexagon bolt M 8 X 12 M 8 X 12	N 010 237 6
7	Seal 0,75 MM EE,EF,EG,EH,FN,FP,FR,FT,FV,JB,DIESEL:CK 0,75 MM	056 121 041
8	Spring washer 6 6	N 012 226 5
9	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
