Illumination fresh air controlswarning lights cigarette — Mk1 Golf Dash Panel Centre Console (1981)

Factory title: Volkswagen Golf (1981) - Instrument housing, fuel, temperature, gearshift and consumption gauges, printed circuit foil, clock, revolution counter

Generation: Mk1 1981 (RDW) Group: Dash panel / centre console Parts: 27 Primary OEM: N 017 751 2, 161 919 239, 171 919 232 F

Illumination fresh air controlswarning lights cigarette for the Volkswagen Golf Mk1 (1981): factory exploded diagram 212000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 25 OEM part numbers across 27 catalogued positions including N 017 751 2, 161 919 239 and 171 919 232 F. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 25 OEM part numbers across 27 numbered positions.

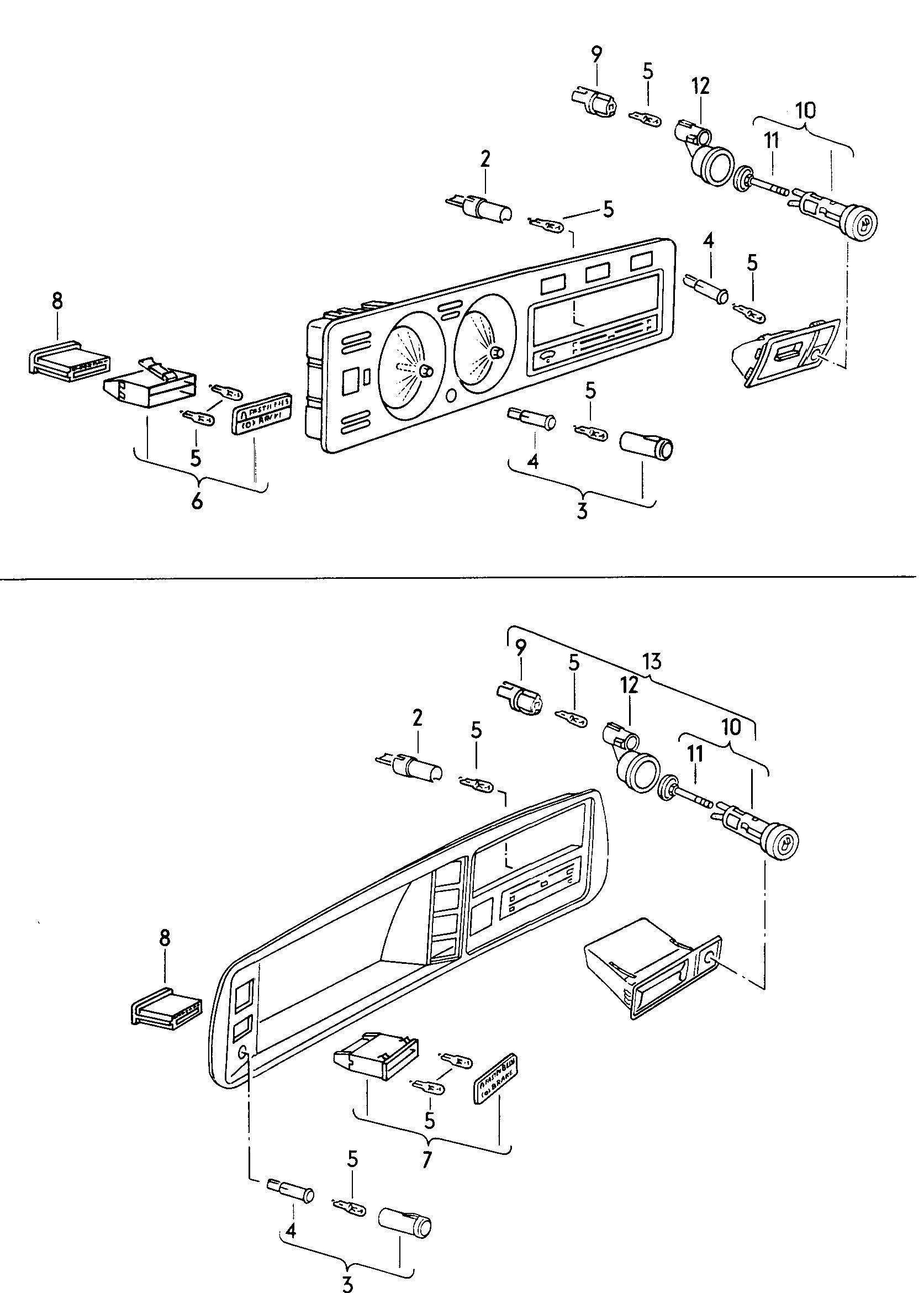

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
(3)	Control lamp blue formain beam control "I..":GOLF,JETTA	161 919 239
(6)	warning lamp for choke, dualcircuit brake and hand brake F >> 53-B-050 000 SCIR.	171 919 232 F
(6)	warning lamp for choke F >> 53-B-050 000 SCIR.	162 919 232
(6)	warning lamp for choke, dualcircuit brake and hand brake F >> 53-B-050 000 SCIR.	171 919 232 F
(7)	warning lamp for choke F 15-B-000 001>>F ..-B-000 001>>F 53-B-000 001>> GOLF CABRIO.GOLF,JETTASCIR.	171 919 235 L
(7)	warning lamp for choke, dualcircuit brake and hand brake F 15-B-000 001>>F ..-B-000 001>>F 53-B-200 001>> GOLF CABRIO.GOLF,JETTASCIR.	171 919 235 B
(7)	warning lamp for choke, dualcircuit brake and hand brake F 15-B-000 001>>F ..-B-000 001>>F 53-B-000 001>> GOLF CABRIO.GOLF,JETTASCIR.	171 919 235 B
(7)	warning lamp for seat belt,choke, dual circuit brake andhand brake GOLF,JETTA	171 919 235 G
(7)	warning lamp for seat beltand choke GOLF,JETTA	171 919 235 T
(7)	warning lamp for seatbelt GOLF,JETTA	171 919 235 S
(7)	warning lamp for seat belt,dual circuit brake and handbrake GOLF,JETTA	171 919 235 C
(8)	Spring contact housing	861 971 998 A
10	Cigarette lighter	171 919 305 C
11	No longer available	—
11	glow element forcigarette lighter	803 919 317
12	retaining sleeve forcigarette lighter	171 919 343 A
13	Installation kit forcigarette lighter	171 998 250
13	Discont. / replace: 171 919 244 A 171 919 305 C 171 919 343 AN 017 751 2 171 919 244 A 171 919 305 C 171 919 343 AN 017 751 2	—
2	Bulb holder	321 919 039
3	warning lampfor turn signal	111 919 209 A
4	Bulb holder	111 919 243
5	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
6	warning lamp for dual circuitbrakes and handbrake F >> 53-B-050 000 SCIR.	171 919 232 J
7	warning lamp for dual circuitbrakes and handbrake F 15-B-000 001>>F ..-B-000 001>>F 53-B-200 001>> GOLF CABRIO.GOLF,JETTASCIR.	171 919 235
8	Spring contact housing	113 971 998 B
9	Bulb holder	171 919 244 A
