Instrument housing fuel temperature gearshift consumption — Mk1 Golf Dash Panel Centre Console (1981)

Factory title: Volkswagen Golf (1981) - Instrument housing, fuel, temperature, gearshift and consumption gauges, printed circuit foil, clock, revolution counter

Generation: Mk1 1981 (RDW) Group: Dash panel / centre console Parts: 60 Primary OEM: 161 919 951, 861 998 089, 321 919 059 Q

Instrument housing fuel temperature gearshift consumption for the Volkswagen Golf Mk1 (1981): factory exploded diagram 210010 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 54 OEM part numbers across 60 catalogued positions including 161 919 951, 861 998 089 and 321 919 059 Q. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 54 OEM part numbers across 60 numbered positions.

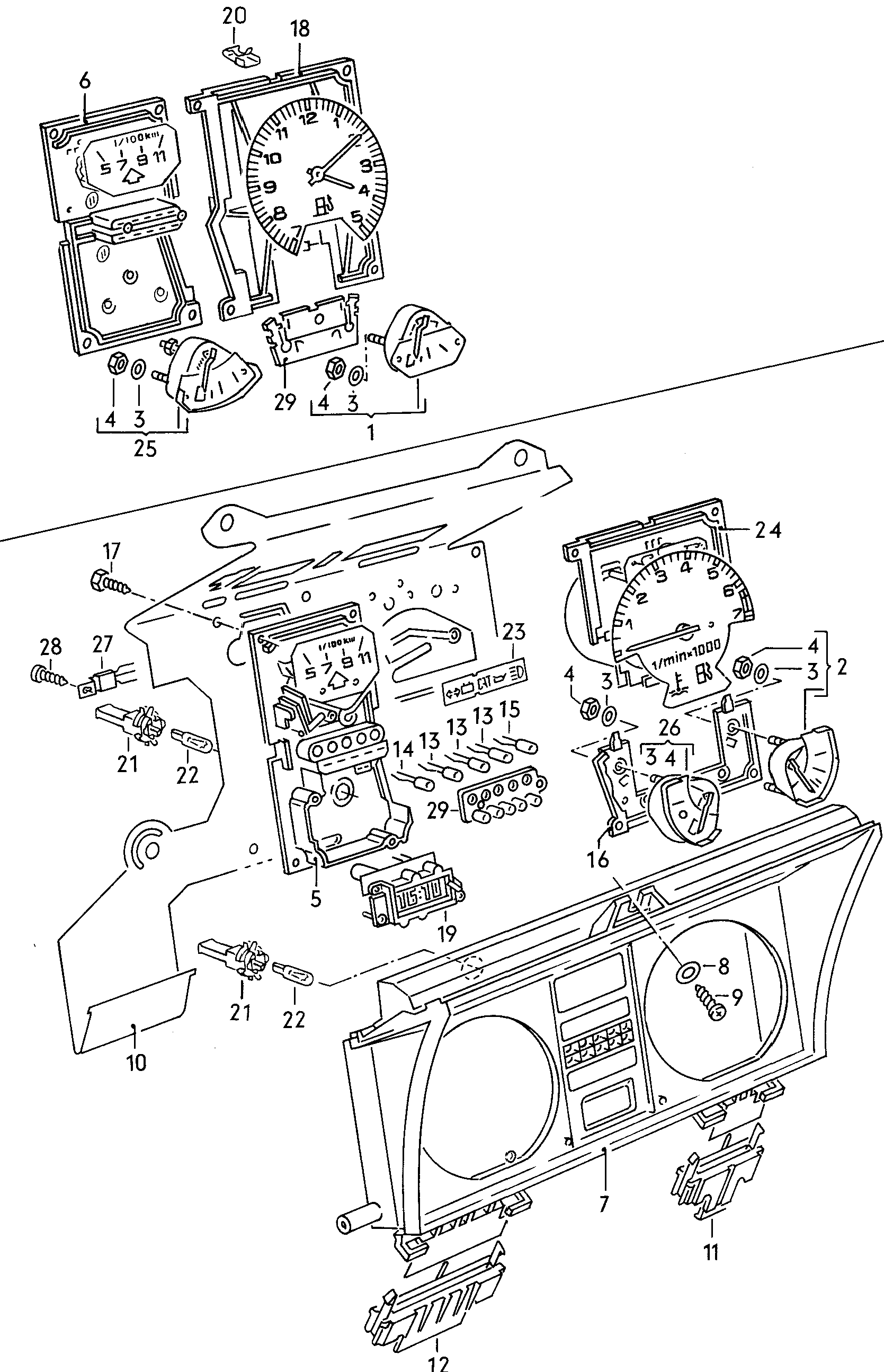

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	instrument housing, fuel,temperature, gearshift andconsumption gauges, printedcircuit foil, clock,revolution counter F 53-B-200 001>> SCIROCCO	—
-	adjusting knob-upper part	161 919 951
-	1 set fixing parts fortemperature and fuelgauge	861 998 089
(10)	No longer available "I.."	—
(10)	Conductor foil "I.."	321 919 059 Q
(15)	bulb "I.."	251 919 062
(21)	bulb with blackbase 12 V 1,2 W 12 V 1,2 W	431 919 040
(23)	Symbol indicator for controllamps	861 919 249 F
(23)	Symbol indicator for controllamps	861 919 249 C
(5)	gearshift and consumpt. indic.for models with revolutioncounter SCIR.LS,GL,GT	533 919 046 P
(5)	gearshift and consumpt. indic.for models with revolutioncounter SCIR.LS,GL,GT	533 919 046 C
(5)	gearshift and consumpt. indic.for models with revolutioncounter SCIR.LS,GL,GT	533 919 046 Q
(5)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 D
(5)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 R
(5)	gearshift and consumpt. indic. SCIR.GTI,GLI	533 919 046 F
(5)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 E
(5)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 S
(5)	gearshift and consumpt. indic. SCIR.GTI,GLI	533 919 046 G
(5)	gearshift and consumpt. indic.for models with revolutioncounter SCIR.L,GL,GT	533 919 046 A
(5)	gearshift and consumpt. indic.for models with revolutioncounter SCIR.LS,GL,GT	533 919 046 B
(6)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 K
(6)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 M
(6)	gearshift and consumpt. indic. SCIR.L,GL,GT	533 919 046 J
(6)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 L
(6)	gearshift and consumpt. indic. SCIR.LS,GL,GT	533 919 046 N
(7)	Instrument housingfor clock	321 919 053 P
(7)	Instrument housing forrev counter anddaily distance recorder Alu metallic	533 919 053
1	Fuel gauge	533 919 045
10	No longer available	—
10	Conductor foil	321 919 059 P
11	Binder	161 919 060
12	Binder	321 919 060
13	Light-emitting diode	171 919 061 B
14	Light-emitting diode	357 919 061 A
14	Light-emitting diode	171 919 061 C
15	Light-emitting diode	171 919 061 D
16	base plate forfuel gauge andtemperature gaugein rev. counter	321 919 075 C
16	No longer available	—
17	hexagon head panel screw B 3,5 X 16 B 3,5 X 16	321 919 117
18	Analogue clock	321 919 201 B
19	digital clockfor models with revolutioncounter	161 919 203
2	No longer availablefor models with revolutioncounter	—
2	Fuel gaugefor models with revolutioncounter	533 919 045 A
20	Clamp spring	443 919 205 A
22	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
23	Symbol indicator for controllamps "J.."	321 919 249 B
24	revolution counter	321 919 253 D
25	temperature gauge	321 919 511 K
26	temperature gaugefor models with revolutioncounter	321 919 511 J
27	Voltage regulator	171 919 803
28	oval head panel screw 2,9 X 13 2,9 X 13	N 013 954 1
29	Retaining plates for LEDsand fuel gauge	191 998 081
3	Washer 4,3 X 8 X 0,5 4,3 X 8 X 0,5	N 011 555 5
4	Hexagon nut M 4 M 4	N 011 004 2
5	gearshift and consumpt. indic.for models with revolutioncounter SCIR.L,GL,GT	533 919 046
6	gearshift and consumpt. indic. SCIR.L,GL,GT	533 919 046 H
6	No longer available SCIR.L,GL,GT	—
7	Instrument housing forrev counter and switchand consumption display	321 919 053 Q
8	Washer B 4,3 X 12 X 1 B 4,3 X 12 X 1	N 011 664 4
9	oval head panel screw 3,9 X 13 3,9 X 13	N 013 961 2
