Instrument housing fuel temperature gearshift consumption — Mk1 Golf Dash Panel Centre Console (1981)
Factory title: Volkswagen Golf (1981) - Instrument housing, fuel, temperature, gearshift and consumption gauges, printed circuit foil, clock, revolution counter

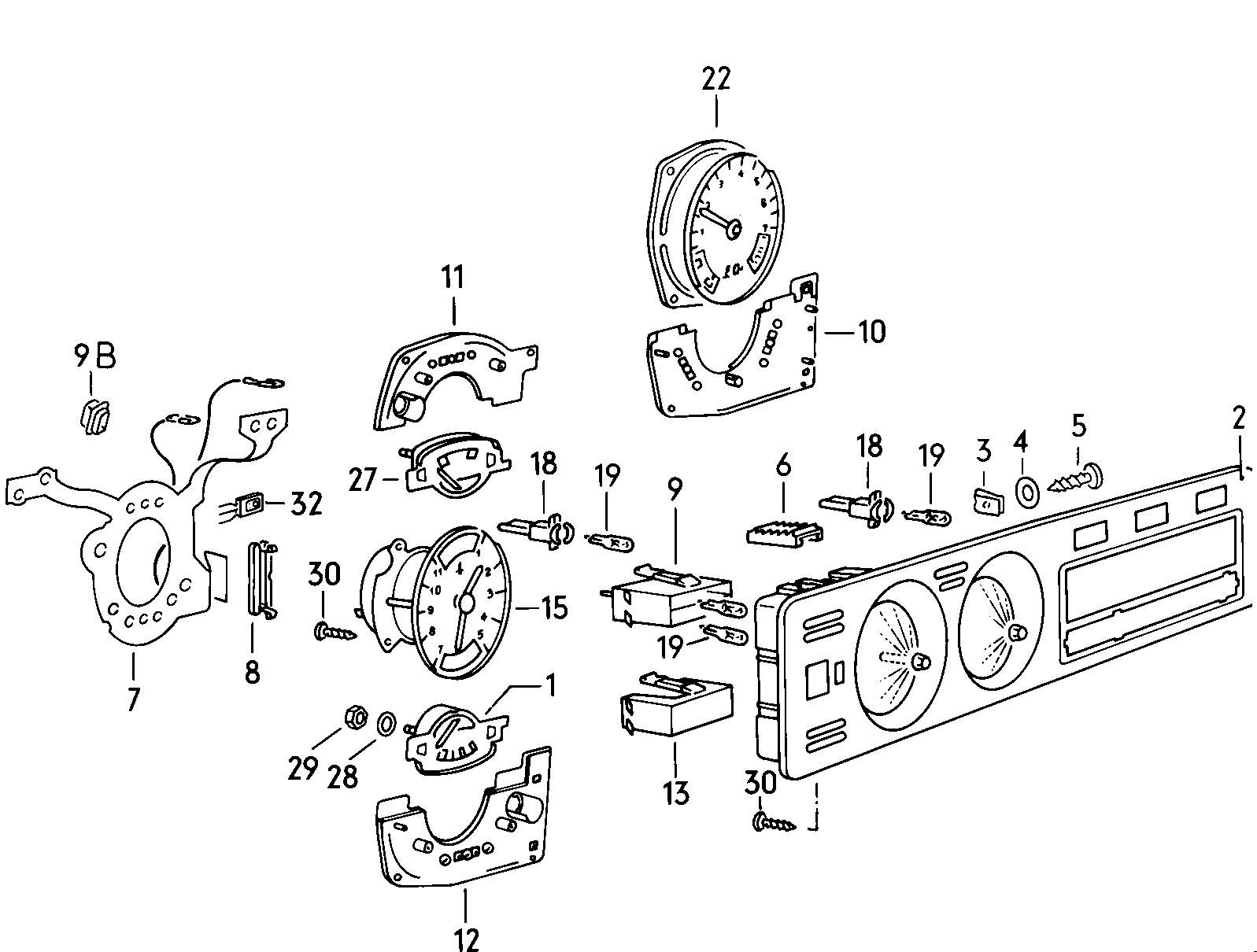

Instrument housing fuel temperature gearshift consumption for the Volkswagen Golf Mk1 (1981): factory exploded diagram 210000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 35 OEM part numbers across 43 catalogued positions including 171 919 045 F, 171 919 077 N and 171 919 077 P. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 35 OEM part numbers across 43 numbered positions.
| № | Description | Part number |
|---|---|---|
| instrument housing, fuel,temperature, gearshift andconsumption gauges, printedcircuit foil, clock,revolution counter F >> 53-B-050 000 SCIR. | — | |
| (1) | Fuel gauge MOTOMETER MOTOMETER | 171 919 045 F |
| (12) | bracket forfuel gauge MOTOMETER MOTOMETER | 171 919 077 N |
| (12) | bracket for fuel gauge andtemperature gauge MOTOMETER MOTOMETER | 171 919 077 P |
| (18) | bulb with blackbase 12 V 1,2 W 12 V 1,2 W | 431 919 040 |
| (2) | Instrument housing forclock withoutdaily distance recorder Alu metallic SCIR.L | 171 919 053 M |
| (2) | Instrument housing forrev counter anddaily distance recorder Alu metallic "J.." | 531 919 053 C |
| (2) | Instrument housing forrev counter anddaily distance recorder Alu metallic | 171 919 053 AJ |
| (2) | Instrument housing forrev counter anddaily distance recorder F 53-B-007 069>> SCIR.SL,CL | 171 919 053 AM |
| (2) | Instrument housing forrev counter anddaily distance recorder Alu metallic SCIR.GT | 172 919 053 N |
| (2) | Instrument housing forclock or rev counter withoutdaily distance recorder | 171 919 053 AG |
| (22) | revolution counter VDO VDO | 171 919 253 D |
| (7) | Conductor foilfor models with revolutioncounter VDO-88 481 192 VDO-88 481 192 | 172 919 059 P |
| (7) | Conductor foilfor models with analogue clock VDO-88 481 193 VDO-88 481 193 | 172 919 059 N |
| (7) | No longer availablefor models with analogue clock VDO-88 481 193 VDO-88 481 193 | — |
| (7) | No longer availablefor models with revolutioncounter VDO-88 481 192 VDO-88 481 192 | — |
| (7) | Conductor foilfor models with analogue clock VDO-88 481 195 MOTOMETER-544 010 920 VDO-88 481 195 MOTOMETER-544 010 920 | 171 919 059 AF |
| (7) | No longer availablefor models with analogue clock VDO-88 481 195 MOTOMETER-544 010 920 VDO-88 481 195 MOTOMETER-544 010 920 | — |
| (7) | No longer availablefor models with revolutioncounter VDO-88 481 194 MOTOMETER-544 0109 300 VDO-88 481 194 MOTOMETER-544 0109 300 | — |
| (7) | Conductor foilfor models with revolutioncounter VDO-88 481 194 MOTOMETER-544 0109 300 VDO-88 481 194 MOTOMETER-544 0109 300 | 171 919 059 AG |
| 1 | Fuel gaugefor rev counter or time clock VDO VDO | 171 919 045 E |
| 10 | Carrier F 53-B-000 001>>F 53-B-004 069>> VDO SCIR.GT,GTI,GLISCIR.SL,CL VDO | 171 919 077 F |
| 11 | bracket for temperaturegauge | 171 919 077 H |
| 12 | bracket forfuel gauge VDO VDO | 171 919 077 G |
| 13 | Trim | 171 919 079 |
| 15 | clock for instrumenthousing | 171 919 201 A |
| 19 | bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W | N 017 751 2 |
| 22 | revolution counter MOTOMETER MOTOMETER | 171 919 253 B |
| 27 | No longer available | — |
| 27 | temperature gauge | 171 919 511 G |
| 28 | Washer A 4,3 X 9 X 0,8 A 4,3 X 9 X 0,8 | N 011 522 7 |
| 29 | Hexagon nut M 4 M 4 | N 011 004 2 |
| 3 | Speed nut 4,8 X 16,5 X 13 4,8 X 16,5 X 13 | N 015 439 1 |
| 30 | fillister hd. bolt M 3 X 12 M 3 X 12 | N 014 111 2 |
| 32 | Voltage regulator | 171 919 803 |
| 4 | Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6 | N 011 665 3 |
| 5 | oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0 | N 013 969 4 |
| 6 | No longer available | — |
| 6 | Cap | 171 919 057 |
| 8 | Binder | 321 919 060 |
| 9 | No longer available | — |
| 9 | Light channel | 171 919 067 A |
| 9B | Clamp spring | 443 919 205 A |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 210000
