Instrument housing mounting parts scir — Mk1 Golf Dash Panel Centre Console (1982 - 1983)

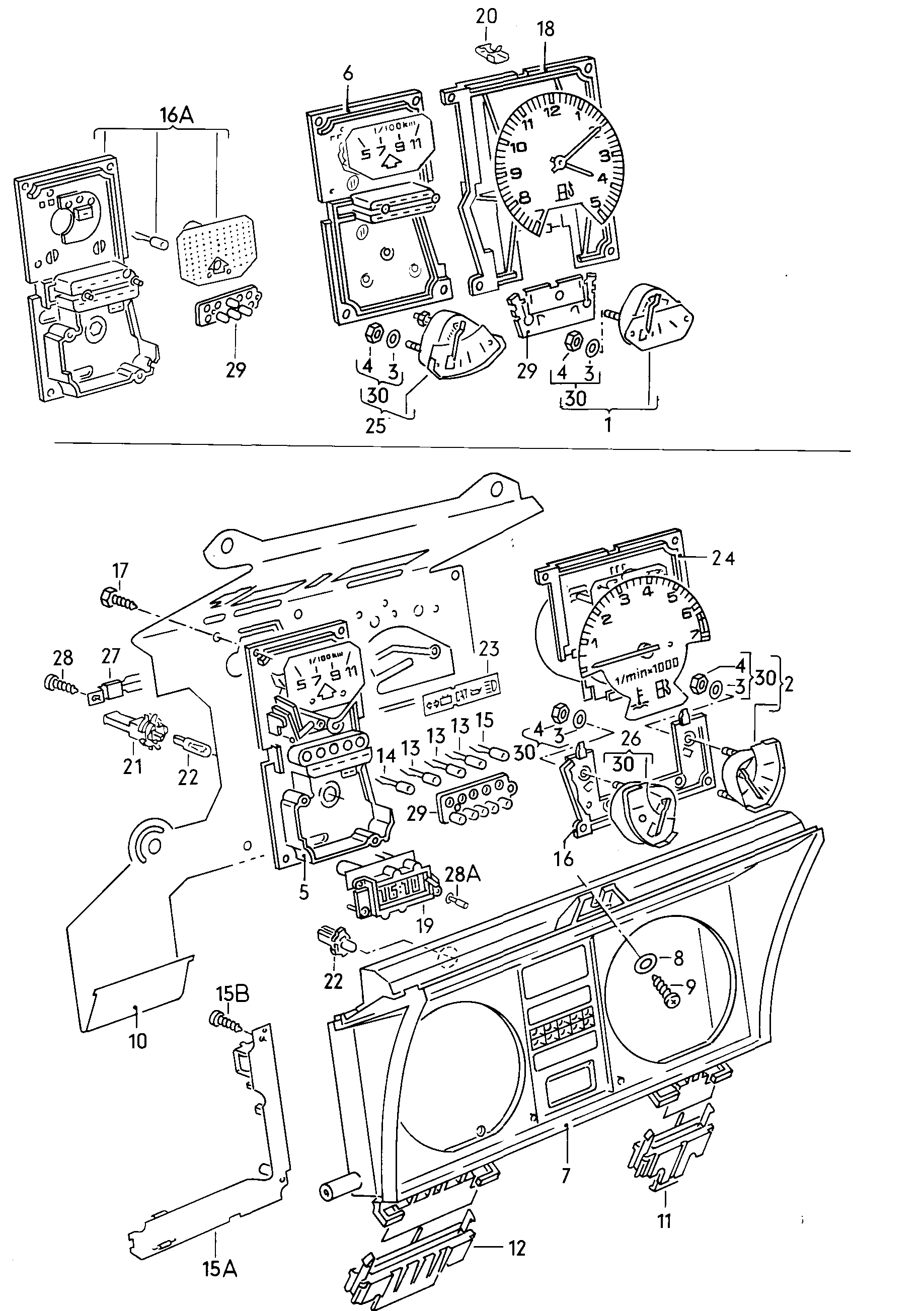

Factory title: Volkswagen Golf (1982 - 1984) - Instrument housing and mounting parts
Instrument housing mounting parts scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 210000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 73 OEM part numbers across 110 catalogued positions including 321 919 059 AC, 533 919 059 and 321 919 059 AD. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 73 OEM part numbers across 110 numbered positions.
| № | Description | Part number |
|---|---|---|
| gearshift and consumpt. indic.------------------------------ MPH 51 KW MPH | — | |
| gearshift and consumpt. indic.------------------------------ KMH 51/55 KW KMH | — | |
| gearshift and consumpt. indic.------------------------------ MPH 63/81 KW MPH | — | |
| gearshift and consumpt. indic.------------------------------ MPH 51/55 KW MPH | — | |
| gearshift and consumpt. indic.------------------------------ KMH 63/81 KW KMH | — | |
| Instrument housing andmounting parts SCIR. | — | |
| gearshift and consumpt. indic.------------------------------ KMH/MPH 82 KW KMH/MPH | — | |
| gearshift and consumpt. indic.------------------------------ KMH 51 KW KMH | — | |
| (10) | Conductor foil F 53-D-000 001>> | 321 919 059 AC |
| (10) | No longer available F >> 53-C-100 000 "I.." | — |
| (10) | Conductor foil F >> 53-C-100 000 "I.." | 533 919 059 |
| (10) | No longer available F 53-D-000 001>> "I.." | — |
| (10) | Conductor foil F 53-D-000 001>> "I.." | 321 919 059 AD |
| (13) | LED, flashingfor dynamic oil pressurewarning device | 321 919 061 D |
| (15) | bulb | 251 919 062 |
| (15A) | Control unitfor oil pressure control F >> 53-C-100 000 | 321 919 064 |
| (15A) | No longer available F >> 53-C-100 000 | — |
| (15A) | Control unitfor oil pressure control F 53-D-000 001>> | 321 919 064 K |
| (22) | bulb with blackbase 12 V 1,2 W 12 V 1,2 W | 431 919 040 |
| (23) | Symbol indicator for controllamps | 861 919 249 F |
| (23) | Symbol indicator for controllamps | 861 919 249 C |
| (5) | gearshift and consumpt. indic.for models with revolutioncounter CL,GL,GT:4+E | 533 919 046 P |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT | — |
| (5) | gearshift and consumpt. indic.for models with revolutioncounter CL,GL,GT | 533 919 046 C |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT:4+E | — |
| (5) | gearshift and consumpt. indic.for models with revolutioncounter CL,GL,GT:4+E | 533 919 046 Q |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT,GTS | — |
| (5) | gearshift and consumptionindicator with base platefor models with revolutioncounter CL,GL,GT,GTS | 533 919 046 AD |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT,GTS:4+E | — |
| (5) | gearshift and consumptionindicator with base platefor models with revolutioncounter CL,GL,GT,GTS:4+E | 533 919 046 AF |
| (5) | gearshift and consumptionindicator with base plate MPH GTI,GLI,GTSGTX MPH | 533 919 046 AC |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT,GTS | — |
| (5) | gearshift and consumptionindicator with base platefor models with revolutioncounter CL,GL,GT,GTS | 533 919 046 AE |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT,GTS:4+E | — |
| (5) | No longer available MPH GTI,GLI,GTSGTX MPH | — |
| (5) | gearshift and consumptionindicator with base platefor models with revolutioncounter CL,GL,GT,GTS:4+E | 533 919 046 AG |
| (5) | gearshift and consumptionindicator with base plate KMH GTI,GLI,GTS,GTX KMH | 533 919 046 AB |
| (5) | No longer available CL,GL,GT,GTS | — |
| (5) | gearshift and consumpt. indic. CL,GL,GT,GTS | 533 919 046 D |
| (5) | gearshift and consumpt. indic. CL,GL,GT,GTSGTX:4+E | 533 919 046 R |
| (5) | gearshift and consumpt. indic. GTI,GLI | 533 919 046 F |
| (5) | No longer available GTI,GLI:4+E | — |
| (5) | gearshift and consumpt. indic. GTI,GLI:4+E | 533 919 046 T |
| (5) | No longer available CL,GL,GT,GTS | — |
| (5) | gearshift and consumpt. indic. CL,GL,GT,GTS | 533 919 046 E |
| (5) | No longer available CL,GL,GT,GTSGTX:4+E | — |
| (5) | No longer available KMH GTI,GLI,GTS,GTX KMH | — |
| (5) | gearshift and consumpt. indic. GTI,GLI:4+E | 533 919 046 AA |
| (5) | No longer available GTI,GLI:4+E | — |
| (5) | gearshift and consumpt. indic. GTI,GLI | 533 919 046 G |
| (5) | No longer available GTI,GLI | — |
| (5) | gearshift and consumpt. indic. CL,GL,GT,GTSGTX:4+E | 533 919 046 S |
| (5) | gearshift and consumpt. indic.for models with revolutioncounter CL,GL, | 533 919 046 A |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT | — |
| (5) | gearshift and consumpt. indic.for models with revolutioncounter CL,GL,GT | 533 919 046 B |
| (5) | No longer availablefor models with revolutioncounter CL,GL,GT:4+E | — |
| (6) | gearshift and consumpt. indic. CL,GL,GTS | 533 919 046 J |
| (6) | No longer available CL,GL,GT | — |
| (6) | No longer available CL,GL,GT | — |
| (6) | gearshift and consumpt. indic. CL,GL,GT | 533 919 046 K |
| (6) | No longer available CL,GL,GT:4+E | — |
| (6) | gearshift and consumpt. indic. CL,GL,GT:4+E | 533 919 046 M |
| (6) | gearshift and consumpt. indic. CL,GL,GT | 533 919 046 L |
| (6) | No longer available CL,GL,GT | — |
| (6) | gearshift and consumpt. indic. CL,GL,GT | 533 919 046 N |
| (6) | gearshift and consumptionindicator with base plate CL,GL,GT,GTS | 533 919 046 AH |
| (6) | gearshift and consumptionindicator with base plate CL,GL,GT,GTS:4+E | 533 919 046 AK |
| (6) | gearshift and consumptionindicator with base plate CL,GL,GT,GTS | 533 919 046 AJ |
| (6) | No longer available CL,GL,GT,GTS:4+E | — |
| (6) | gearshift and consumptionindicator with base plate CL,GL,GT,GTS:4+E | 533 919 046 AL |
| (7) | Instrument housing forrev counter anddaily distance recorder Alu metallic F >> 53-C-100 000 "J.." | 533 919 053 |
| (7) | No longer available | — |
| (7) | Instrument housingfor clock | 321 919 053 P |
| 1 | Fuel gauge | 533 919 045 |
| 10 | Conductor foil F >> 53-C-100 000 | 321 919 059 S |
| 11 | Binder | 161 919 060 |
| 12 | Binder | 321 919 060 |
| 13 | Light-emitting diode | 171 919 061 B |
| 14 | Light-emitting diode | 171 919 061 C |
| 14 | Light-emitting diode | 357 919 061 A |
| 15 | Light-emitting diode | 171 919 061 D |
| 15B | oval head panel screw 2,2 X 9,5 2,2 X 9,5 | N 013 951 2 |
| 16 | No longer available | — |
| 16 | base plate forfuel gauge andtemperature gaugein rev. counter | 321 919 075 C |
| 16A | base plate withlight-emitting diode and trim F 53-D-000 001>> "J.." | 533 919 075 |
| 16A | No longer available F 53-D-000 001>> "J.." | — |
| 17 | hexagon head panel screw B 3,5 X 16 B 3,5 X 16 | 321 919 117 |
| 18 | Analogue clock | 321 919 201 B |
| 19 | digital clock | 161 919 203 |
| 2 | No longer availablefor models with revolutioncounter | — |
| 2 | Fuel gaugefor models with revolutioncounter | 533 919 045 A |
| 20 | Clamp spring | 443 919 205 A |
| 22 | bulb with white base 12 V 2 W 12 V 2 W | 431 919 040 A |
| 23 | Symbol indicator for controllamps "J.." | 321 919 249 B |
| 24 | revolution counter | 321 919 253 D |
| 25 | temperature gauge | 321 919 511 K |
| 26 | temperature gaugefor models with revolutioncounter | 321 919 511 J |
| 27 | Voltage regulator | 171 919 803 |
| 28 | oval head panel screw 2,9 X 13 2,9 X 13 | N 013 954 1 |
| 28A | adjusting knob-upper part | 533 919 951 |
| 29 | Retaining plates for LEDsand fuel gauge | 191 998 081 |
| 3 | Washer 4,3 X 8 X 0,5 4,3 X 8 X 0,5 | N 011 555 5 |
| 30 | 1 set fixing parts fortemperature and fuelgauge | 861 998 089 |
| 4 | Hexagon nut M 4 M 4 | N 011 004 2 |
| 5 | gearshift and consumpt. indic.for models with revolutioncounter CL,GL, | 533 919 046 |
| 6 | gearshift and consumpt. indic. CL,GL,GTS | 533 919 046 H |
| 7 | No longer available F 53-C-000 001>>F 53-D-000 001>> "J.." | — |
| 7 | Instrument housing forrev counter and switchand consumption display F 53-C-000 001>>F 53-D-000 001>> "J.." | 321 919 053 Q |
| 8 | Washer B 4,3 X 12 X 1 B 4,3 X 12 X 1 | N 011 664 4 |
| 9 | oval head panel screw 3,9 X 13 3,9 X 13 | N 013 961 2 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 210000
