Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Instrument housing mounting partsfor vehicles multi — Mk1 Golf Dash Panel Centre Console (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Instrument housing and mounting parts

Generation: Mk1 1982 - 1983 (RDW) Group: Dash panel / centre console Parts: 46 Primary OEM: 191 998 081, 861 998 089, 171 919 061 B

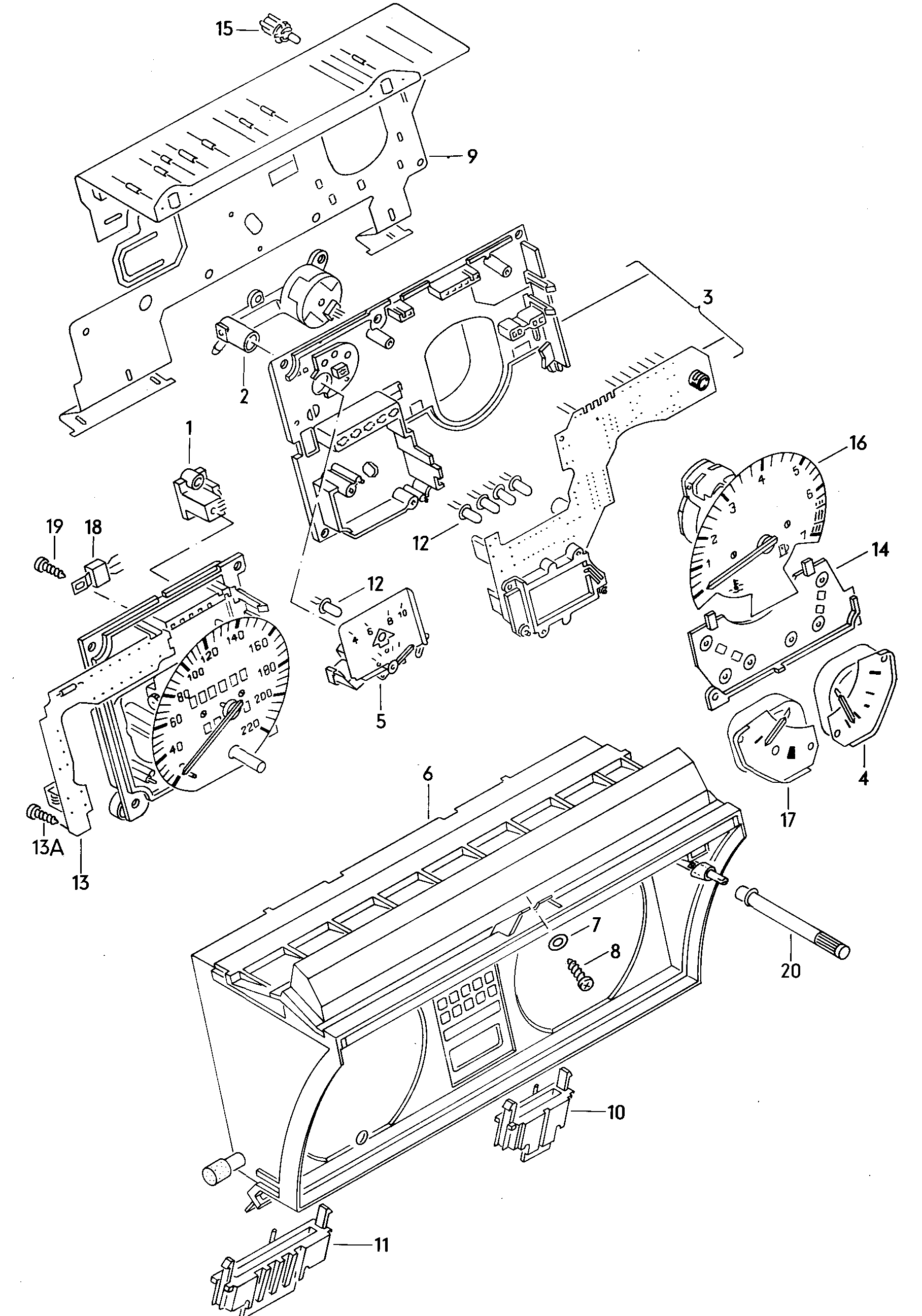

Instrument housing mounting partsfor vehicles multi for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 210010 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 33 OEM part numbers across 46 catalogued positions including 191 998 081, 861 998 089 and 171 919 061 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 33 OEM part numbers across 46 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Instrument housing andmounting partsfor vehicles with multifunction indicator F 53-D-000 001>> SCIR.	—
-	Retaining plates for LEDsand fuel gauge	191 998 081
-	1 set fixing parts fortemperature and fuelgauge	861 998 089
(12)	Light-emitting diode	171 919 061 B
(12)	Light-emitting diode	171 919 061 C
(12)	Light-emitting diode	357 919 061 A
(12)	bulb	251 919 062
(12)	LED, flashingfor dynamic oil pressurewarning device	321 919 061 D
(13)	Control unitfor oil pressure control	321 919 064 K
(15)	bulb with blackbase 12 V 1,2 W 12 V 1,2 W	431 919 040
(17)	temperature gauge	533 919 511 A
(3)	No longer available MPH MPH	—
(3)	multi-function indicator MPH MPH	533 919 044 C
(5)	gearshift and consumpt. indic. MPH MPH	533 919 050 A
(5)	No longer available MPH MPH	—
(6)	Instrument housing MPH MPH	533 919 053 B
(6)	No longer available MPH MPH	—
(9)	Conductor foil "I.."	533 919 059 D
(9)	Conductor foil	533 919 059 C
(9)	No longer available "I.."	—
(9)	No longer available	—
1	Hall sensor	321 907 345 B
10	Binder	161 919 060
11	Binder	321 919 060
12	Light-emitting diode	171 919 061 D
13A	oval head panel screw 2,2 X 9,5 2,2 X 9,5	N 013 951 2
14	basic plate	533 919 077
14	No longer available	—
15	bulb with white base 12 V 2 W 12 V 2 W	431 919 040 A
16	revolution counter	533 919 253
18	Voltage regulator	171 919 803
19	oval head panel screw 2,9 X 13 2,9 X 13	N 013 954 1
2	No longer available	—
2	sender - vacuum	171 907 346
20	No longer available	—
20	adjusting knob-upper part	533 919 901
3	multi-function indicator KMH KMH	533 919 044 B
3	No longer available KMH KMH	—
4	No longer available	—
4	Fuel gauge	533 919 045 B
5	gearshift and consumpt. indic. KMH KMH	533 919 050 B
5	No longer available KMH KMH	—
6	No longer available KMH KMH	—
6	Instrument housing KMH KMH	533 919 053 A
7	Washer B 4,3 X 12 X 1 B 4,3 X 12 X 1	N 011 664 4
8	oval head panel screw 3,9 X 13 3,9 X 13	N 013 961 2

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 32 Dash panel / centre console
Factory subgroup: 210010
