Which VW part numbers are on the sender fuel gauge temperature sensor oil pressure diagram for the Mk1 Golf?

This diagram lists 37 OEM part numbers for the Mk1 Golf. The first three are 171 919 523 A, 171 919 051 L and 321 919 541 A.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Sender fuel gauge temperature sensor oil pressure — Mk1 Golf Dash Panel Centre Console (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Instrument housing and mounting parts

Generation: Mk1 1979 - 1980 (RDW) Group: Dash panel / centre console Parts: 37 Primary OEM: 171 919 523 A, 171 919 051 L, 321 919 541 A

Sender fuel gauge temperature sensor oil pressure for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 135000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 37 OEM part numbers including 171 919 523 A, 171 919 051 L and 321 919 541 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 37 OEM part numbers across 37 numbered positions.

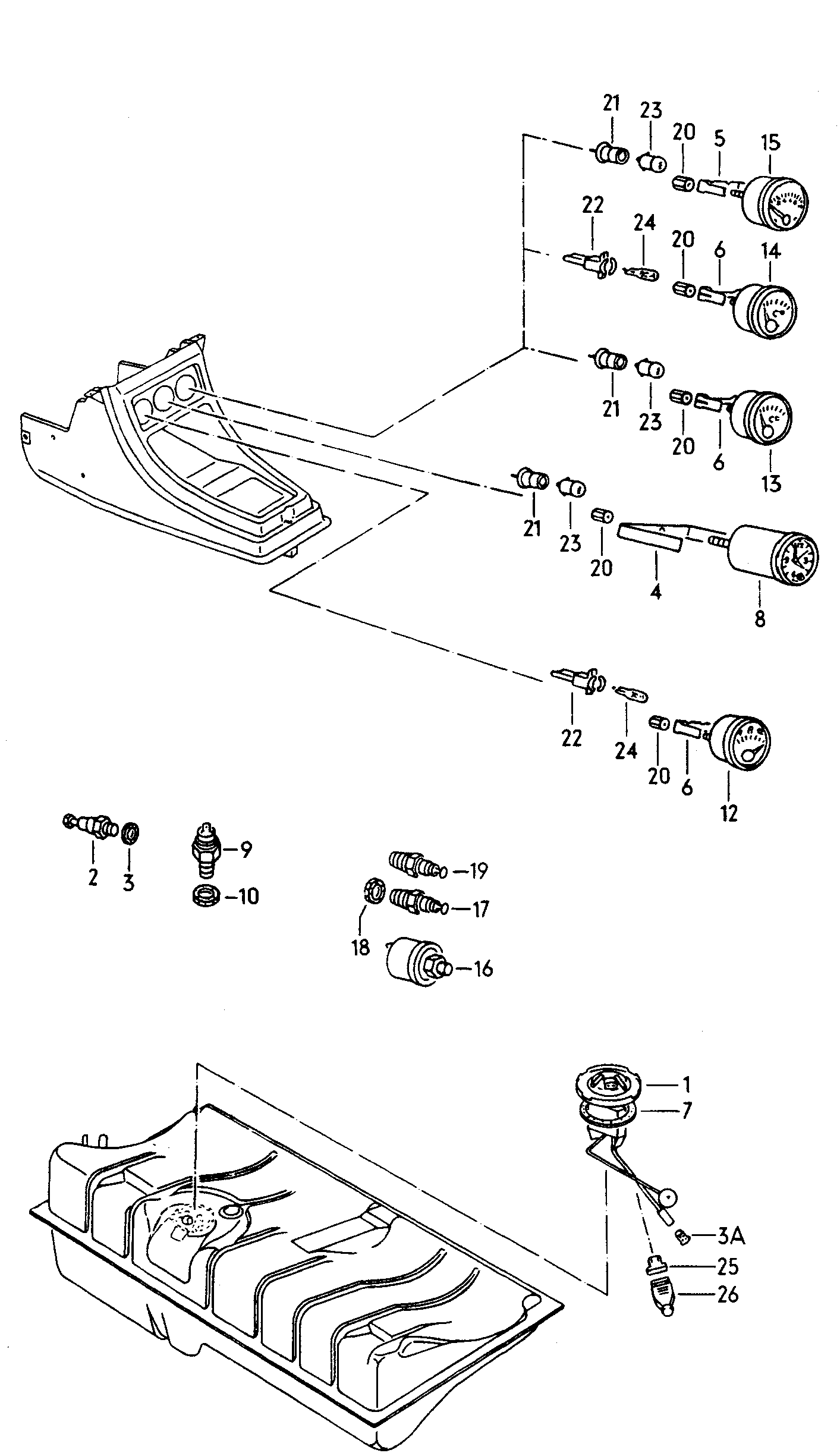

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Temperature sensorwarning lamp F >> 179 3273 427 110 C GOLF GLD 110 C	171 919 523 A
(1)	Sender forfuel gauge K-JETRONIC,diesel eng.	171 919 051 L
(14)	oil temperature gauge use if required: 437 919 039 N 017 751 2 437 919 039 N 017 751 2	321 919 541 A
(15)	oil pressure gauge	321 919 551 A
(17)	Temperature sensorfor coolant, oil temperatureindicator and glow plugrelay F 179 3000 001>> 179 3750 000 F 179 3273 428>> 179 3750 000 F 179 3273 428>> 179 3740 000 F 539 2000 001>>F 159 2800 001>> 159 2810 000 0-120 C M 10 X 1 GOLF S,LS,GL,GLSGOLF D,LDGOLF GLDSCIR.GOLF CABRIO. 0-120 C M 10 X 1	028 919 501 A
(22)	Bulb holder	437 919 039
(25)	Flat contact housing	443 906 231
(9)	temperature switchwarning lamp F >> 179 3750 000 F 16 A 0000 001>> 62/120 CM 10 X 1 GOLF GTI 62/120 CM 10 X 1	171 919 521 G
(9)	temperature switchwarning lamp F >> 179 3750 000 F 16 A 0000 001>> 62/120 CM 10 X 1 GOLF GTI 62/120 CM 10 X 1	171 919 521 G
(9)	temperature switchwarning lamp F 17 A 0000 001>> 40/120 CM 10 X 1 GOLF D,LD,GTI 40/120 CM 10 X 1	171 919 521 J
(9)	temperature switchwarning lamp F 17 A 0000 001>> 85/120 CM 10 X 1 GOLF,L 85/120 CM 10 X 1	171 919 521 H
(9)	Temperature sensortemperature switchwarning lamp F >> 179 3273 427 120 C M 14 X 1,5 GOLF D,LD 120 C M 14 X 1,5	171 919 521 E
(9)	temperature switchwarning lamp F >> 179 3750 000 F 179 3273 428>> 179 3750 000 120 C M 10 X 1 GOLF,LGOLF D,LD 120 C M 10 X 1	171 919 521 F
(9)	temperature switchwarning lamp F >> 179 3750 000 F 179 3273 428>> 179 3750 000 120 C M 10 X 1 GOLF,LGOLF D,LD 120 C M 10 X 1	171 919 521 F
1	Sender forfuel gauge	171 919 051 N
10	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
10	seal ring A 10 X 14 A 10 X 14	N 013 806 4
12	voltmeter	321 919 531 A
16	Oil pressure sender 0-10 BAR M 10 X 1 M 10 X 1 0-10 BAR M 10 X 1 M 10 X 1	321 919 561 B
17	Temperature sensorfor coolant, oil temperatureindicator and glow plugrelay F 15 A 0800 001>>F 17 A 0000 001>>F 53 A 0000 001>>F 16 A 0000 001>> 0-125 C M 10 X 1 GOLF CABRIO.GOLF S,LS,GL,GLS,GLD,E,LE,GLESCIR.GTI,GLIJETTA 0-125 C M 10 X 1	049 919 501
18	seal ring A 10 X 14 A 10 X 14	N 013 806 4
18	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
19	Oil temperature sender 0-180 C M 10 X 1 0-180 C M 10 X 1	049 919 563 A
2	Oil pressure switch 0,3 BAR M 10 X 1 0,3 BAR M 10 X 1	056 919 081 C
2	Oil pressure switch 0,25 BAR M 10 X 1 0,25 BAR M 10 X 1	028 919 081 D
20	knurled nut M 4 M 4	411 957 117
21	Bulb holder	111 957 397
23	bulb J-12 V 2 W J-12 V 2 W	N 017 722 2
24	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
26	Protective cap Flat contact housing	447 919 141
3	seal ring A 10 X 14 A 10 X 14	N 013 806 4
3	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
4	Retaining bar 54 MM 54 MM	321 919 115
5	Retaining bar 42 MM 42 MM	321 919 115 C
6	Retaining bar 49 MM 49 MM	321 919 115 D
7	O-ring 58 X 4 58 X 4	113 919 131 A
8	clock for console VDO VDO	321 919 202

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 32 Dash panel / centre console
Factory subgroup: 135000
