Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Sender fuel gauge temperature sensor temperature sensor oil — Mk1 Golf Dash Panel Centre Console (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Instrument housing and mounting parts

Generation: Mk1 1982 - 1983 (RDW) Group: Dash panel / centre console Parts: 31 Primary OEM: 171 919 051 L, 171 919 051 N, 035 103 715

Sender fuel gauge temperature sensor temperature sensor oil for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 211010 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 31 OEM part numbers including 171 919 051 L, 171 919 051 N and 035 103 715. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 31 OEM part numbers across 31 numbered positions.

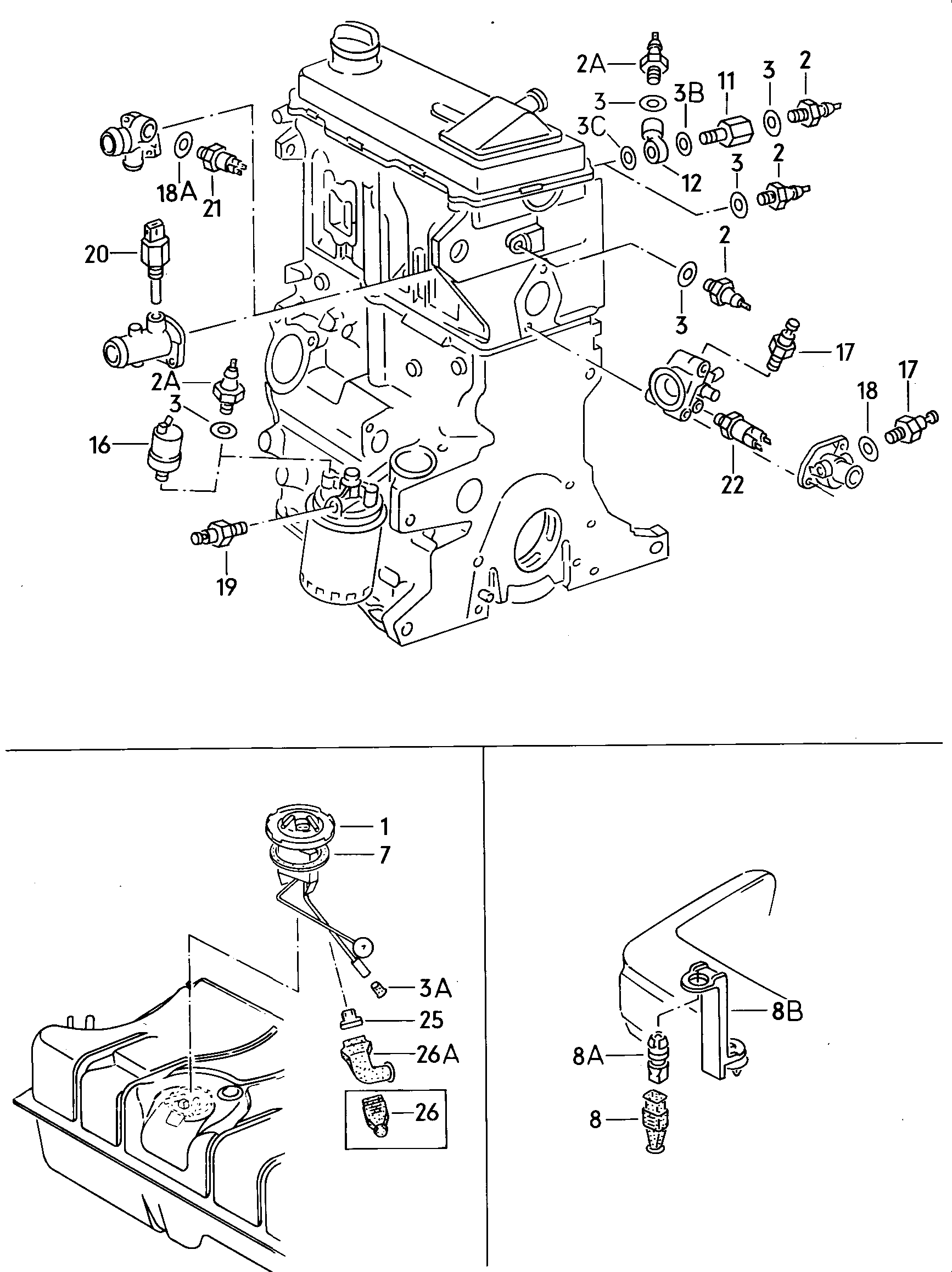

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Sender forfuel gauge K-JETRONIC,DIESEL,T-DIESEL	171 919 051 L
1	Sender forfuel gauge carburetorengine	171 919 051 N
11	Banjo bolt 1.1/1.3 ltr.	035 103 715
12	Banjo fitting 1.1/1.3 ltr.	030 103 717
16	Oil pressure sender 0-10 BAR M 10 X 1 M 10 X 1 0-10 BAR M 10 X 1 M 10 X 1	321 919 561 B
17	Temperature sensorfor coolant, oil temperatureindicator and glow plugrelay 0-125 C M 10 X 1 0-125 C M 10 X 1	049 919 501
18	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
18	seal ring A 10 X 14 A 10 X 14	N 013 806 4
18A	seal ring 22 X 29 22 X 29	N 043 808 3
19	Oil temperature sender 0-180 C M 10 X 1 0-180 C M 10 X 1	049 919 563 A
2	Oil pressure switch 0,3 BAR M 10 X 1 0,3 BAR M 10 X 1	056 919 081 C
2	Oil pressure switch 0,25 BAR M 10 X 1 0,25 BAR M 10 X 1	028 919 081 D
20	Thermal timing switch 35 C M 14 X 1,5 EG,EN,DX,JJ 35 C M 14 X 1,5	043 906 163 A
21	thermal switch air condit./DIESEL,T-DIESEL	171 959 481 A
22	thermal switch GS	055 919 369 A
25	Flat contact housing	443 906 231
26	Protective cap F >> ..-C-999 999	447 919 141
26A	Protective cap F ..-D-000 001>>	867 972 525 A
26A	Protective cap F ..-D-000 001>>	171 959 463
2A	Oil pressure switch F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> 1,8 BAR M 10 X 1 carburetorengine K-JETRONICcarburetorengine K-JETRONIC 1,8 BAR M 10 X 1	056 919 081 E
2A	Oil pressure switch 1,8 BAR M 10 X 1 "J.." 1,8 BAR M 10 X 1	056 919 081 E
3	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
3	seal ring A 10 X 14 A 10 X 14	N 013 806 4
3A	strainer	321 919 095
3B	seal ring 12 X 16 12 X 16	N 013 818 2
3C	seal ring A 10 X 16 A 10 X 16	N 013 808 3
3C	seal ring 10 X 16 10 X 16	N 013 808 5
7	O-ring 58 X 4 58 X 4	113 919 131 A
8	Protective capfor vehicles with multifunction indicator CLI,GLI,GTI,GTX	447 919 141
8A	Temperature sensorfor vehicles with multifunction indicator -25/+40 C CLI,GLI,GTI,GTX -25/+40 C	171 919 379 A
8B	Bracketfor vehicles with multifunction indicator CLI,GLI,GTI,GTX	171 919 399 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 32 Dash panel / centre console
Factory subgroup: 211010
