Speedometerspeedometer drive cablecatalyst speed — Mk1 Golf Dash Panel Centre Console (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Speedometer drive cable. speedometer. trip recorder. catalyst and speed control

Generation: Mk1 1979 - 1980 (RDW) Group: Dash panel / centre console Parts: 81 Primary OEM: 431 971 848 C, 531 957 815, N 011 530 1

Speedometerspeedometer drive cablecatalyst speed for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 157000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 75 OEM part numbers across 81 catalogued positions including 431 971 848 C, 531 957 815 and N 011 530 1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 75 OEM part numbers across 81 numbered positions.

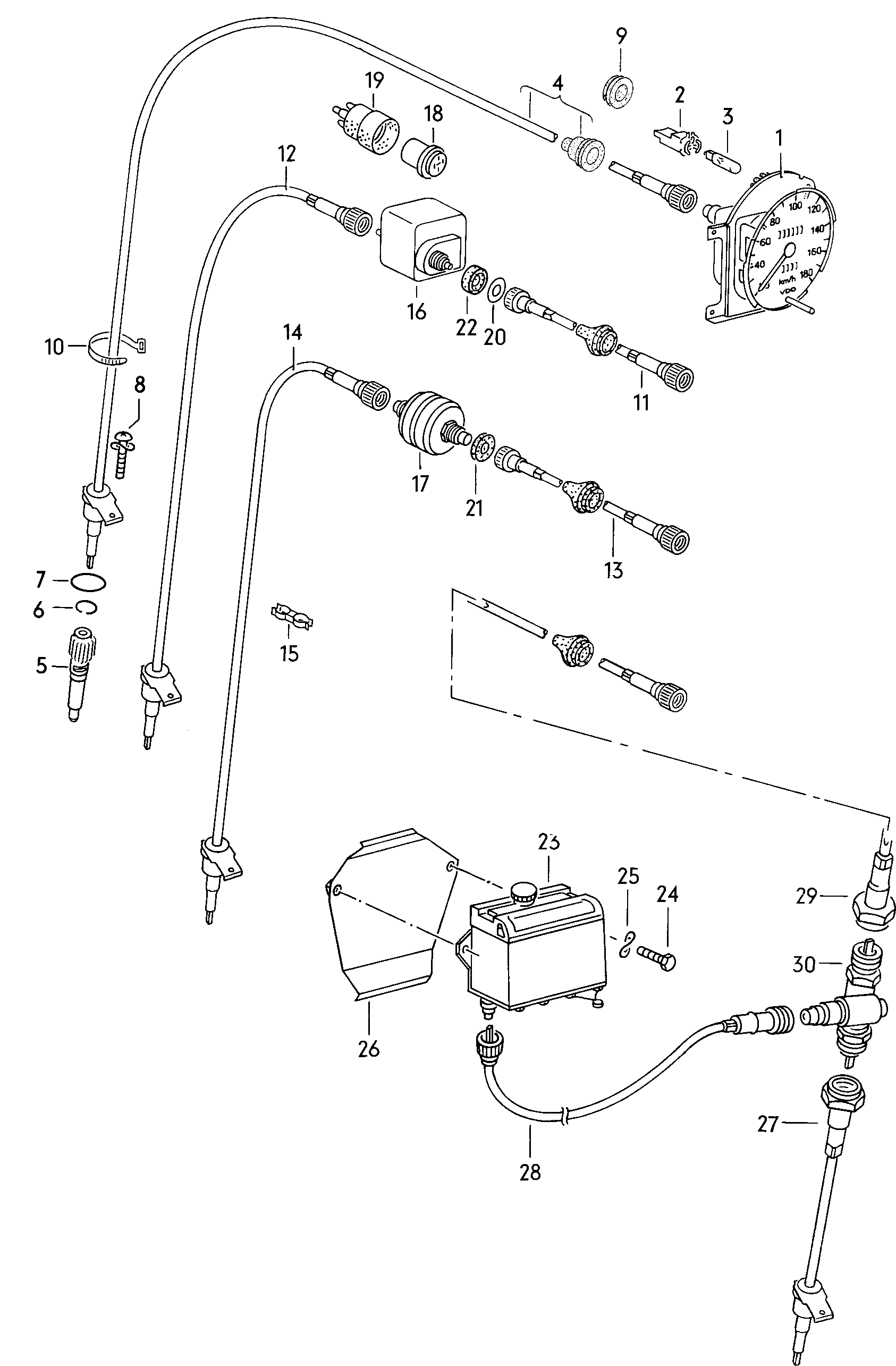

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	trip recorderspeedometer drive cable "S..":GOLF	—
	catalyst andspeed control "J.."	—
-	Clip SCIR.	431 971 848 C
-	Clip SCIR.	531 957 815
-	Washer 19 X 34 X 3 GOLF 19 X 34 X 3	N 011 530 1
(1)	speedometer without kilometretrip recorder 180-KMH-W 935 VDO JETTA 180-KMH-W 935 VDO	171 957 031 G
(1)	speedometer without kilometretrip recorder 180 KMH-W 935 VDO SCIR. 180 KMH-W 935 VDO	171 957 031 G
(1)	speedometer with kilometretrip recorder 200 KMH-W 935 MOTOMETER,VDO JETTA 200 KMH-W 935 MOTOMETER,VDO	161 957 031 B
(1)	speedometer withaperture forfuel gauge 180 KMH-W 950 VDO GOLF 180 KMH-W 950 VDO	171 957 031 K
(1)	speedometer withaperture forfuel gauge 180 KMH-W 950 VDO GOLF 180 KMH-W 950 VDO	173 957 031 C
(1)	speedometer withaperture forfuel gauge 180 KMH-W 950 MOTOMETER GOLF 180 KMH-W 950 MOTOMETER	173 957 031 E
(1)	speedometer without kilometretrip recorder 180 KMH-W 950 MOTOMETER,VDO GOLF,SCIR. 180 KMH-W 950 MOTOMETER,VDO	171 957 031 P
(1)	speedometer without kilometretrip recorder 200 KMH-W 950 MOTOMETER,VDO JETTA 200 KMH-W 950 MOTOMETER,VDO	161 957 031 A
(1)	speedometer with mile triprecorder 120 MPH/190 KMH-W 1540 VDO GOLF,SCIR.,JETTA 120 MPH/190 KMH-W 1540 VDO	172 957 033 A
(1)	speedometer with kilometretrip recorder 220 KMH-W 950 MOTOMETER,VDO GOLF,SCIR. 220 KMH-W 950 MOTOMETER,VDO	531 957 031 A
(1)	speedometer with kilometretrip recorder 180 KMH-W 950 VDO "J..":GOLF,JETTA 180 KMH-W 950 VDO	172 957 031 A
(1)	speedometer withaperture forfuel gauge 100 MPH/160 KMH-W 1540 VDO GOLF-DIESEL 100 MPH/160 KMH-W 1540 VDO	171 957 033 T
(1)	speedometer withaperture forfuel gauge 120 MPH/190 KMH-W 1540 VDO GOLF 120 MPH/190 KMH-W 1540 VDO	172 957 033 C
(1)	speedometer withaperture forfuel gauge 100 MPH/160 KMH-W 1540 MOTOMETER GOLF 100 MPH/160 KMH-W 1540 MOTOMETER	173 957 033
(1)	speedometer with kilometretrip recorder 180 KMH-W 950 VDO GOLF-DIESEL 180 KMH-W 950 VDO	173 957 031 F
(1)	speedometer with kilometretrip recorder 220 KMH-W 950 MOTOMETER,VDO JETTA 220 KMH-W 950 MOTOMETER,VDO	161 957 031 C
(1)	speedometer with kilometretrip recorder 220 KMH-W 950 MOTOMETER,VDO JETTA 220 KMH-W 950 MOTOMETER,VDO	531 957 031 A
(1)	No longer available 100 MPH/160 KMH-W 1540 VDO GOLF-DIESEL 100 MPH/160 KMH-W 1540 VDO	—
(1)	speedometer without mile triprecorder 100 MPH/160 KMH-W 1540 MOTOMETER,VDO GOLF,SCIR. 100 MPH/160 KMH-W 1540 MOTOMETER,VDO	171 957 033 Q
(1)	speedometer without mile triprecorder 120 MPH/190 KMH-W 1540 VDO GOLF,JETTA 120 MPH/190 KMH-W 1540 VDO	172 957 033 B
(1)	speedometer with mile triprecorder 100 MPH/160 KMH-W 1540 MOTOMETER,VDO GOLF,SCIR. 100 MPH/160 KMH-W 1540 MOTOMETER,VDO	171 957 033 N
(1)	speedometer without kilometretrip recorder 180 KMH-W 950 MOTOMETER,VDO JETTA 180 KMH-W 950 MOTOMETER,VDO	171 957 031 P
(1)	speedometer with mile triprecorder 120 MPH/190 KMH-W 1540 VDO JETTA 120 MPH/190 KMH-W 1540 VDO	161 957 033 B
(1)	speedometer withaperture forfuel gauge 180 KMH-W 935 MOTOMETER GOLF 180 KMH-W 935 MOTOMETER	173 957 031 D
(1)	speedometer withaperture forfuel gauge 180 KMH-W 935 VDO GOLF 180 KMH-W 935 VDO	173 957 031 A
(1)	speedometer without kilometretrip recorder 200 KMH-W 935 MOTOMETER,VDO JETTA 200 KMH-W 935 MOTOMETER,VDO	161 957 031
(13)	speedometer drive cable(speedometer > warning switch) 500 MM SCIR. 500 MM	531 957 809
(14)	speedometer drive cable(manual gearbox > warning switch) 1100 MM GOLF 1100 MM	172 957 809 H
(14)	speedometer drive cable(manual gearbox > warning switch) 570 MM SCIR. 570 MM	531 957 809 D
(14)	speedometer drive cable(Automatic gearbox > warning switch) 800 MM AUTOMATIC 800 MM	531 957 809 G
(15)	Retainer, swivel 7/7 MM GOLF GTI,GLI 7/7 MM	531 957 787
(2)	bulb with blackbase 12 V 1,2 W 12 V 1,2 W	431 919 040
(28)	speedometer drive cable(Right-angle gear drive > odometer) 250 MM 250 MM	172 957 805
(29)	speedometer drive cable(angled drive > speedometer) 1320 MM 1320 MM	172 957 805 A
(4)	speedometer drive cable(manual transmission > speedometer) 1550 MM GOLF,JETTA 1550 MM	172 957 803 H
(4)	speedometer drive cable(manual transmission > speedometer) 1490 MM SCIR. 1490 MM	532 957 803 D
(4)	speedometer drive cable(manual transmission > speedometer) 1820 MM SCIR.GTI,GLI 1820 MM	532 957 803 C
(4)	speedometer drive cable(Automatic transmission > speedometer) 970 MM AUTOMATIC:GOLF,JETTA 970 MM	171 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer) 1200 MM AUTOMATIC:GOLF,JETTA 1200 MM	172 957 803 F
(4)	speedometer drive cable(Automatic transmission > speedometer) 1185 MM AUTOMATIC:SCIR. 1185 MM	531 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer) 1255 MM AUTOMATIC:SCIR. 1255 MM	532 957 803 A
(4)	speedometer drive cable(manual transmission > speedometer) 1255 MM SCIR. 1255 MM	532 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer) 975 MM GOLF,JETTA 975 MM	171 957 803 D
(4)	speedometer drive cable(manual transmission > speedometer) 1035 MM SCIR. 1035 MM	531 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer) 1050 MM GOLF,JETTA 1050 MM	172 957 803 C
(4)	speedometer drive cable(manual transmission > speedometer) 970 MM GOLF,JETTA 970 MM	171 957 803 B
(5)	Drive wheel fordrive shaft speedometer Z=15 Z=15	171 957 821 B
(8)	Hexagon bolt M 7 X 1,25 X 13 M 7 X 1,25 X 13	N 900 092 01
1	speedometer with kilometretrip recorder 180 KMH-W 935 MOTOMETER,VDO JETTA 180 KMH-W 935 MOTOMETER,VDO	171 957 031 M
1	speedometer with kilometretrip recorder 180 KMH-W 935 MOTOMETER,VDO GOLF,SCIR. 180 KMH-W 935 MOTOMETER,VDO	171 957 031 M
10	Cable ties 210 210	N 020 902 1
10	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
13	speedometer drive cable(speedometer > warning switch) 400 MM GOLF,JETTA 400 MM	172 957 809
14	No longer available(manual gearbox > warning switch) 770 MM GOLF,JETTA 770 MM	—
14	speedometer drive cable(manual gearbox > warning switch) 770 MM GOLF,JETTA 770 MM	172 957 809 A
15	Retainer, swivel automatic	171 957 787
17	switch for speed warningindicator	172 957 901
2	Bulb holder W 5/1,2 W 5/1,2	141 957 397 A
21	Rubber grommet 29,5/6 GOLF 29,5/6	021 119 569
23	trip recorder	171 957 101 A
24	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
25	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
26	bracket for odometer	171 957 103
26/27	No longer available	—
27	speedometer drive cable(manual gearbox > right-angle gear drive) 220 MM 220 MM	171 957 805 D
28	speedometer drive cable(Right-angle gear drive > odometer) 210 MM 210 MM	171 957 805 E
29	No longer available(angled drive > speedometer)	—
29	speedometer drive cable(angled drive > speedometer) 660 MM 660 MM	171 957 805 F
3	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
30	dual angled drive 1:8 1:8	171 957 901 D
4	speedometer drive cable(manual transmission > speedometer) 1035 MM SCIR. 1035 MM	531 957 803 D
5	Drive wheel fordrive shaft speedometer Z=16 Z=16	171 957 821 A
6	Securing ring 8 8	N 900 154 01
7	seal ring 21 21	171 957 825
8	fillister head bolt (combi.) M 7 X 1,25 X 13 Z 3 M 7 X 1,25 X 13 Z 3	N 090 173 3
9	Bungs 28 28	171 957 857
