Speedometerspeedometer drive cablecatalyst speed — Mk1 Golf Dash Panel Centre Console (1981)

Factory title: Volkswagen Golf (1981) - Speedometer drive cable. speedometer. trip recorder. catalyst and speed control

Generation: Mk1 1981 (RDW) Group: Dash panel / centre console Parts: 85 Primary OEM: N 011 530 1, 533 957 809 A, 531 957 809 D

Speedometerspeedometer drive cablecatalyst speed for the Volkswagen Golf Mk1 (1981): factory exploded diagram 236000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 75 OEM part numbers across 85 catalogued positions including N 011 530 1, 533 957 809 A and 531 957 809 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 75 OEM part numbers across 85 numbered positions.

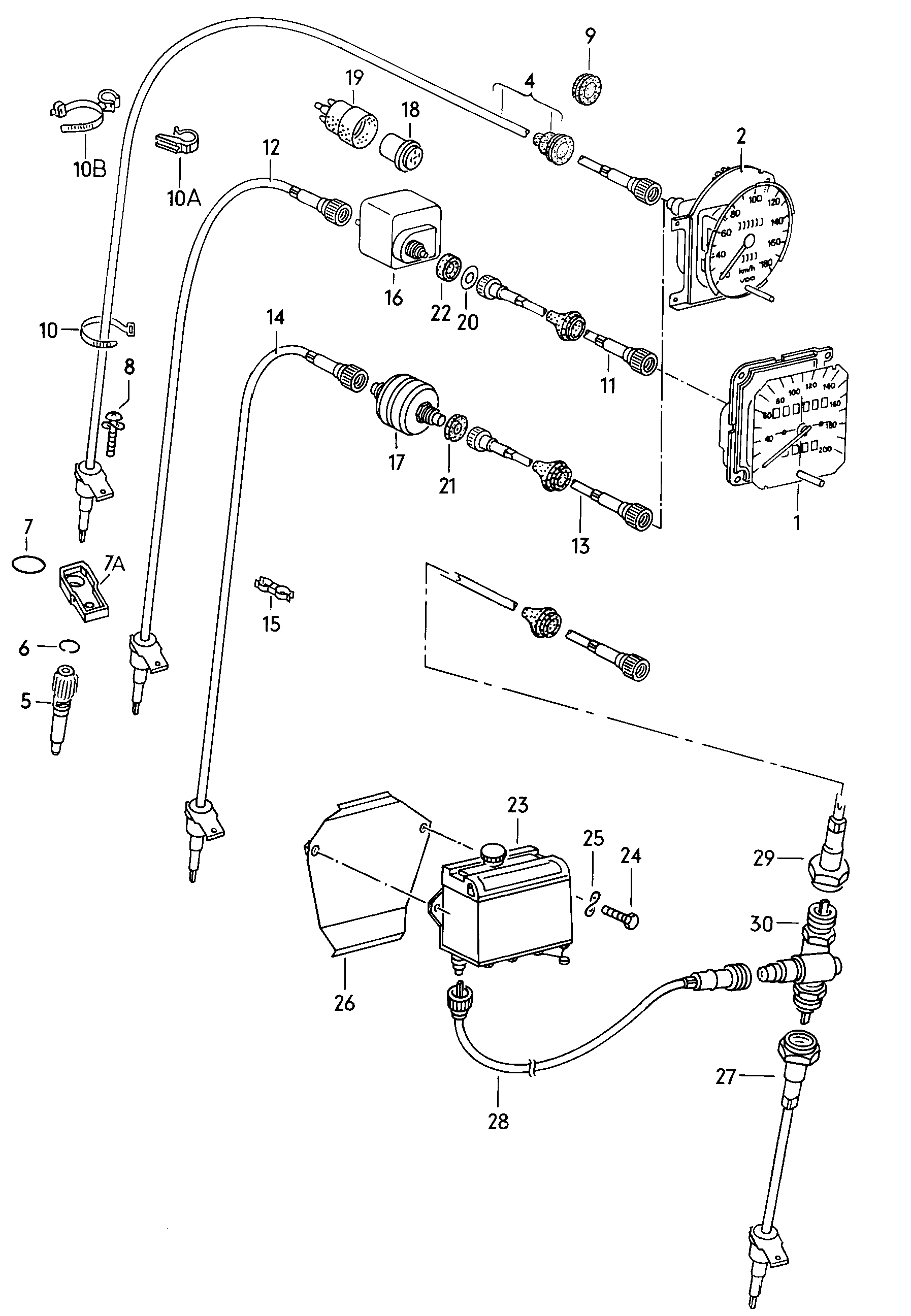

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	catalyst andspeed control "J.."	—
	trip recorderspeedometer drive cable "S..":GOLF,JETTA	—
-	Washer 19 X 34 X 3 GOLF 19 X 34 X 3	N 011 530 1
-	speedometer drive cable(Automatic gearbox > compensating gear)F 53-B-200 001>> SCIR.	533 957 809 A
-	speedometer drive cable(Compensating gear > manual gearbox)F 53-B-200 001>> SCIR.	531 957 809 D
-	Compensating gearbox	171 957 501
-	speedometer drive cable(Compensating gear > speedometer)F 53-B-200 001>> SCIR.	533 957 809
-	Clip SCIR.	531 957 815
(1)	speedometer with mile triprecorder F 53-B-200 001>> 120 MPH/190 KM/H W-1540 MOTOMETER,VDO SCIR. 120 MPH/190 KM/H W-1540 MOTOMETER,VDO	533 957 033 M
(1)	speedometer without kilometretrip recorder 200 KMH-W 950 MOTOMETERVDO GOLF,JETTA 200 KMH-W 950 MOTOMETERVDO	161 957 031 F
(1)	speedometer with kilometretrip recorder F 53-B-200 001>> 200 KMH-W 935 MOTOMETER,VDO SCIR. 200 KMH-W 935 MOTOMETER,VDO	533 957 031 J
(1)	speedometer with kilometretrip recorder 220 KMH-W 950 MOTOMETER VDO GOLF GTI,GLIJETTA LI,GLI 220 KMH-W 950 MOTOMETER VDO	161 957 031 K
(1)	speedometer with kilometretrip recorder F 53-B-200 001>> 220 KMH-W 950 MOTOMETER,VDO SCIR. 220 KMH-W 950 MOTOMETER,VDO	533 957 031 N
(1)	No longer availablespeedometer with mile triprecorder 120 MPH/190 KMH-W 1505 GOLF,JETTA 120 MPH/190 KMH-W 1505	—
(1)	speedometer without kilometretrip recorder 200 KMH-W 935 MOTOMETER,VDO GOLF,JETTA 200 KMH-W 935 MOTOMETER,VDO	161 957 031 E
(1)	speedometer without mile triprecorder 120 MPH/190 KMH-W 1540 MOTOMETER,VDO GOLF,JETTA 120 MPH/190 KMH-W 1540 MOTOMETER,VDO	161 957 033 F
(1)	speedometer with mile triprecorderto use for: 120 MPH/190 KMH-W 1540 MOTOMETER,VDO 85 MPH/140 KMH/W 1540 MOTOMETER,VDO GOLF,JETTA 120 MPH/190 KMH-W 1540 MOTOMETER,VDO 85 MPH/140 KMH/W 1540 MOTOMETER,VDO	161 957 033 G
(10B)	Cable tie with hose retainer 7 X 273-8 GOLF,JETTA 7 X 273-8	443 957 818 C
(12)	speedometer drive cable(Automatic gearbox > counter)(Automatic gearbox > warning switch) 560 MM AUTOMATIC:JETTA,GOLF CABRIO 560 MM	171 957 805 B
(13)	speedometer drive cable(speedometer > warning switch) 375 MM JETTA,GOLF CABRIO. 375 MM	171 957 809 C
(13)	speedometer drive cable(speedometer > warning switch) 500 MM SCIR. 500 MM	531 957 809
(14)	speedometer drive cable(Automatic gearbox > warning switch) 800 MM AUTOMATIC:SCIR. 800 MM	531 957 809 G
(14)	speedometer drive cable(Automatic gearbox > warning switch) 800 MM AUTUMATIC:GOLF 800 MM	172 957 809 M
(14)	No longer available(Automatic gearbox > warning switch) 800 MM AUTOMATIC:SCIR. 800 MM	—
(14)	speedometer drive cable(Manual gearbox > counter) 545 MM GOLF CABRIO. 545 MM	171 957 809 B
(14)	speedometer drive cable(manual gearbox > warning switch) 530 MM JETTA 530 MM	161 957 809
(14)	speedometer drive cable(manual gearbox > warning switch) 570 MM SCIR. 570 MM	531 957 809 D
(14)	No longer available(Automatic gearbox > warning switch) 800 MM AUTUMATIC:GOLF 800 MM	—
(15)	Retainer, swivel 7/7 MM GOLF,SCIR 7/7 MM	531 957 787
(2)	speedometer without kilometretrip recorder F >> 53-B-050 000 180 KMH-W 935 VDO SCIR. 180 KMH-W 935 VDO	171 957 031 G
(2)	speedometer without kilometretrip recorder F >> 53-B-050 000 180 KMH-W 950 MOTOMETER,VDO SCIR. 180 KMH-W 950 MOTOMETER,VDO	171 957 031 P
(2)	speedometer without mile triprecorder F >> 53-B-050 000 85 MPH/140 KMH-W 1540 MOTOMETER,VDO SCIR. 85 MPH/140 KMH-W 1540 MOTOMETER,VDO	171 957 033 Q
(2)	speedometer with kilometretrip recorder F >> 53-B-050 000 220 KMH-W 950 MOTOMETER,VDO SCIR. 220 KMH-W 950 MOTOMETER,VDO	531 957 031 A
(2)	speedometer with mile triprecorder F >> 53-B-050 000 120 MPH/190 KMH-W 1540 MOTOMETER,VDO SCIR. 120 MPH/190 KMH-W 1540 MOTOMETER,VDO	172 957 033 A
(29)	No longer available(angled drive > speedometer) 1445 MM 1445 MM	—
(29)	speedometer drive cable(angled drive > speedometer) 1445 MM 1445 MM	172 957 805 A
(4)	speedometer drive cable(manual transmission > speedometer)F 53-B-200 001>> SCIR.	534 957 803
(4)	speedometer drive cable(manual transmission > speedometer) 970 MM GOLF,JETTA 970 MM	171 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer) 1565 MM GOLF,JETTA 1565 MM	172 957 803 R
(4)	speedometer drive cable(manual transmission > speedometer)F >> 53-B-050 000 1035 MM SCIR. 1035 MM	531 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer)F >> 53-B-050 000 1255 MM SCIR. 1255 MM	532 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer)F 53-B-200 001>> 1150 MM SCIR. 1150 MM	533 957 803 B
(4)	speedometer drive cable(manual transmission > speedometer) 975 MM GOLF,JETTA 975 MM	171 957 803 D
(4)	speedometer drive cable(manual transmission > speedometer) 1760 MM GOLF,JETTA 1760 MM	172 957 803 S
(4)	speedometer drive cable(Automatic transmission > speedometer) 970 MM AUTOMATIC:GOLF,JETTA 970 MM	171 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer) 1200 MM AUTOMATIC:GOLF,JETTA 1200 MM	172 957 803 F
(4)	speedometer drive cable(manual transmission > speedometer)F 53-B-200 001>> 965 MM SCIR. 965 MM	533 957 803
(4)	speedometer drive cable(manual transmission > speedometer)F >> 53-B-050 000 1490 MM SCIR. 1490 MM	532 957 803 D
(4)	speedometer drive cable(manual transmission > speedometer)F >> 53-B-050 000 1820 MM SCIR.GTI,GLI 1820 MM	532 957 803 C
(4)	speedometer drive cable(Automatic transmission > speedometer)F >> 53-B-050 000 1185 MM AUTOMATIC:SCIR. 1185 MM	531 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer)F 53-B-200 001>> 1165 MM AUTOMATIC:SCIR. 1165 MM	533 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer)F >> 53-B-050 000 1255 MM AUTOMATICSCIR. 1255 MM	532 957 803 A
(4)	speedometer drive cable(Automatic transmission > speedometer)F 53-B-200 001>> 1280 MM AUTOMATIC:SCIR. 1280 MM	534 957 803 A
(8)	Hexagon boltwith hole for sealing wire M 7 X 1,25 X 13 M 7 X 1,25 X 13	N 900 092 01
1	speedometer with mile triprecorder F 53-B-200 001>> 120 MPH/190 KMH-W 1505 MOTOMETER,VDO SCIR. 120 MPH/190 KMH-W 1505 MOTOMETER,VDO	533 957 033 J
1	speedometer with kilometretrip recorder 200 KMH- W 935 MOTOMETER,VDO GOLF,JETTA 200 KMH- W 935 MOTOMETER,VDO	161 957 031 G
1	speedometer with kilometretrip recorder 200 KMH-W 950 MOTOMETER,VDO GOLF,JETTA 200 KMH-W 950 MOTOMETER,VDO	161 957 031 H
10	Cable ties 210 210	N 020 902 1
10	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
10A	Clip SCIR.	431 971 848 C
13	speedometer drive cable(speedometer > warning switch) 415 MM GOLF 415 MM	172 957 809 F
14	speedometer drive cable(manual gearbox > warning switch) 1280 MM GOLF 1280 MM	172 957 809 H
14	No longer available(manual gearbox > warning switch) 1280 MM GOLF 1280 MM	—
15	Retainer, swivel AUTOMATIC:SCIR.	171 957 787
17	switch for speed warningindicator	172 957 901
2	speedometer with kilometretrip recorder F >> 53-B-050 000 180 KMH-W 935 MOTOMETER,VDO SCIR. 180 KMH-W 935 MOTOMETER,VDO	171 957 031 M
21	Rubber grommet 29,5/6 GOLF 29,5/6	021 119 569
23	trip recorder	171 957 101 A
24	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
25	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
26	bracket for odometer	171 957 103
26	No longer available	—
27	No longer available(manual gearbox > right-angle gear drive) 220 MM 220 MM	—
27	speedometer drive cable(manual gearbox > right-angle gear drive) 220 MM 220 MM	171 957 805 D
28	speedometer drive cable(Right-angle gear drive > odometer) 210 MM 210 MM	171 957 805 E
29	No longer available(angled drive > speedometer) 700 MM 700 MM	—
29	speedometer drive cable(angled drive > speedometer) 700 MM 700 MM	171 957 805 F
30	dual angled drive 1:8 1:8	171 957 901 D
4	speedometer drive cable(manual transmission > speedometer)F >> 53-B-050 000 1035 MM SCIR. 1035 MM	531 957 803 D
5	Drive wheel fordrive shaft speedometer Z=16 Z=16	171 957 821 A
6	Securing ring 8 8	N 900 154 01
7	seal ring F >> 15-B-015 591 F >> 16-B-340 738F >> 17-B-340 738F >> 53-B-020 001* 21 21	171 957 825
7A	Seal F 15-B-015 592>>F 16-B-340 739>>F 17-B-340 739>>F 53-B-020 002>>*	171 957 861 B
8	fillister head bolt (combi.) M 7 X 1,25 X 13 Z 3 M 7 X 1,25 X 13 Z 3	N 090 173 3
9	Bungs 27 27	191 971 928
