Camshaft valves — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Toothed belt. Toothed belt guard

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 51 Primary OEM: 056 103 652, 056 103 651, 049 109 641 A

Camshaft valves for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 6030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 50 OEM part numbers across 51 catalogued positions including 056 103 652, 056 103 651 and 049 109 641 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 50 OEM part numbers across 51 numbered positions.

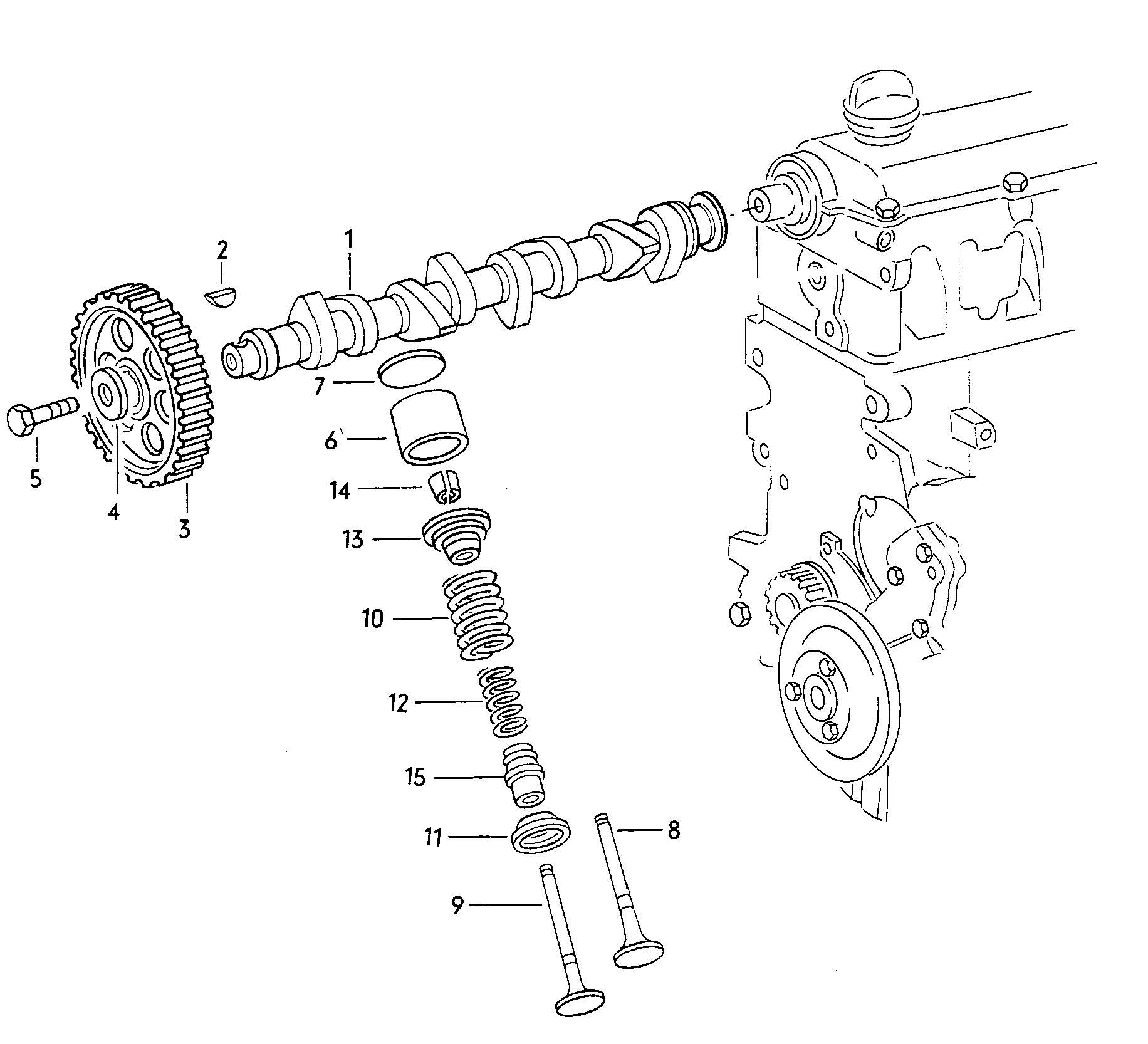

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 1.5/1.6 ltr. EG,EH,EJ,EM,FN,FV,FR,JB,GH 1.5/1.6 ltr.	—
-	camshaft bearing shellfor reconditioned cylinderhead only 26 26	056 103 652
-	camshaft bearing shell(undersize)for reconditioned cylinderhead only 25,75 25,75	056 103 651
(13)	spring disc	049 109 641 A
(14)	cotter, split	113 109 651 A
(7)	adjusting washer 4,15 4,15	056 109 578
(7)	adjusting washer 4,25 4,25	056 109 580
(7)	adjusting washer 3,15 3,15	056 109 558
(7)	adjusting washer 3,2 3,2	056 109 559
(7)	adjusting washer 3,25 3,25	056 109 560
(7)	adjusting washer 3,3 3,3	056 109 561
(7)	adjusting washer 3,35 3,35	056 109 562
(7)	adjusting washer 3,4 3,4	056 109 563
(7)	adjusting washer 3,45 3,45	056 109 564
(7)	adjusting washer 3,5 3,5	056 109 565
(7)	adjusting washer 3,55 3,55	056 109 566
(7)	adjusting washer 3,6 3,6	056 109 567
(7)	adjusting washer 3,65 3,65	056 109 568
(7)	adjusting washer 3,7 3,7	056 109 569
(7)	adjusting washer 3,75 3,75	056 109 570
(7)	adjusting washer 3,8 3,8	056 109 571
(7)	adjusting washer 3,85 3,85	056 109 572
(7)	adjusting washer 3,9 3,9	056 109 573
(7)	adjusting washer 3,95 3,95	056 109 574
(7)	adjusting washer 4 4	056 109 575
(7)	adjusting washer 4,05 4,05	056 109 576
(7)	adjusting washer 4,1 4,1	056 109 577
(7)	adjusting washer 4,2 4,2	056 109 579
(7)	adjusting washer 3,05 3,05	056 109 556
(7)	adjusting washer 3,1 3,1	056 109 557
(8)	Inlet valve 105,7 EG 105,7	049 109 601 A
(8)	Inlet valve(Exchange part) also use: 98,2049 109 641 A 113 109 651 A EH,EJ,EM,FN,FR,FV,JB,GH 98,2049 109 641 A 113 109 651 A	049 109 603
(9)	exhaust valve 105,5 EG 105,5	049 109 611 A
(9)	exhaust valve(Exchange part) also use: 98049 109 641 A 113 109 651 A EH,EJ,EM,FN,FR,FV,JB,GH 98049 109 641 A 113 109 651 A	049 109 613
1	Camshaft	049 109 101 N
10	Valve spring	056 109 623 B
10	Valve spring	078 109 623 A
11	spring disc	056 109 629 A
12	Valve spring	056 109 633 B
12	Valve spring	078 109 633 A
13	spring disc	056 109 641 A
14	cotter, split	056 109 651
15	Valve stem seal 8 MM 8 MM	026 109 675
2	woodruff key 4 X 5 4 X 5	N 012 708 2
3	toothed belt pulley	049 109 111 C
4	Washer 12,5 X 28 X 6 12,5 X 28 X 6	056 109 143
5	Hexagon bolt M 12 X 1,50 X 35 M 12 X 1,50 X 35	N 010 137 1
6	Tappets	056 109 311 A
7	adjusting washer 3 3	056 109 555
8	Inlet valve also use: 98,7049 109 641 A 113 109 651 A EH,EJ,EM,FN,FR,FV,JB,GH 98,7049 109 641 A 113 109 651 A	049 109 601 K
9	exhaust valve also use: 98,5049 109 641 A 113 109 651 A EH,EJ,EM,FN,FR,FV,JB,GH 98,5049 109 641 A 113 109 651 A	049 109 611 F
