Camshaft valves toothed belt guard — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Toothed belt. Toothed belt guard

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 72 Primary OEM: N 900 803 01, 056 109 562, 056 109 580

Camshaft valves toothed belt guard for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 7000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 68 OEM part numbers across 72 catalogued positions including N 900 803 01, 056 109 562 and 056 109 580. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 68 OEM part numbers across 72 numbered positions.

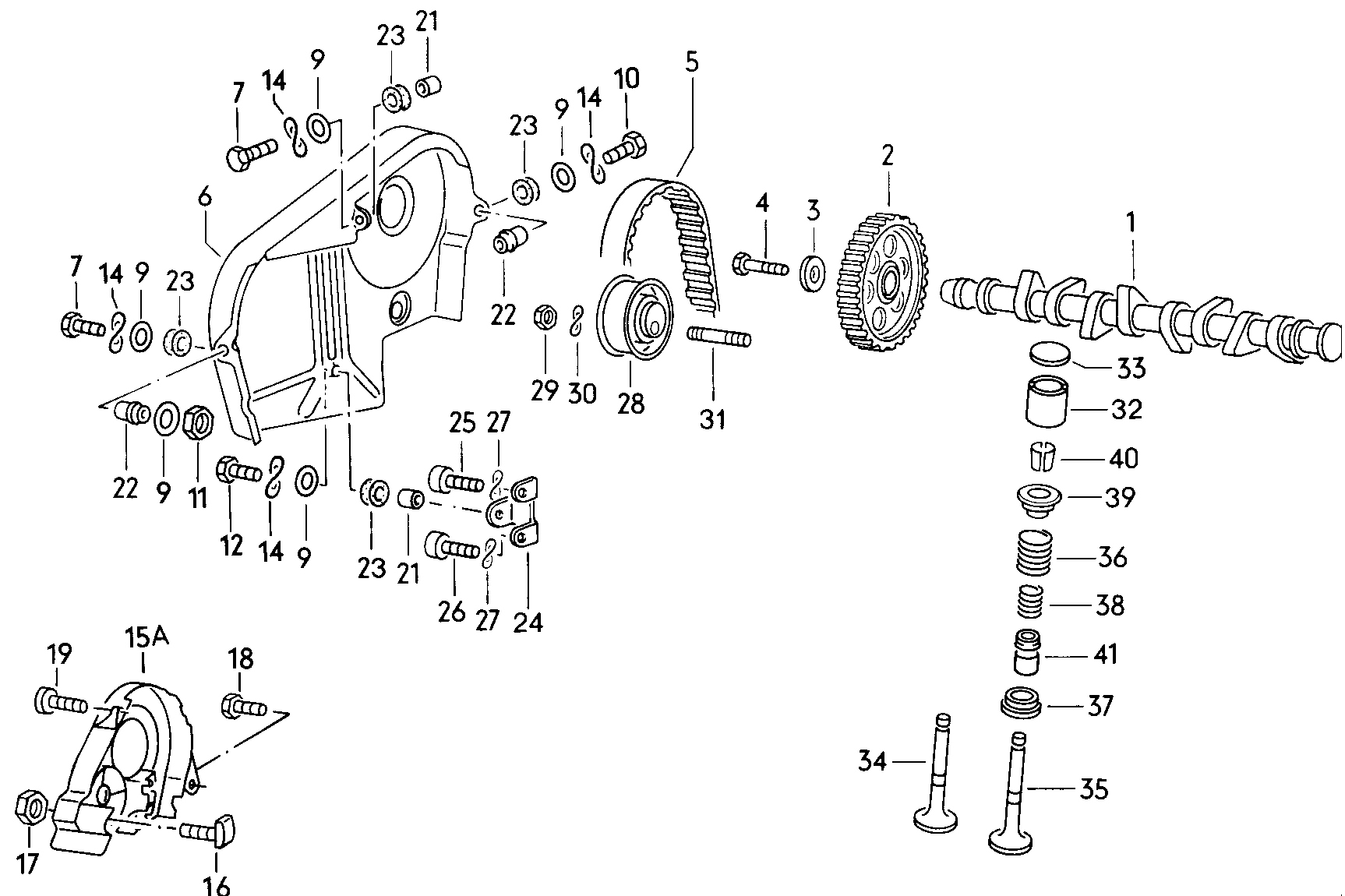

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
camshaft, valves Toothed belt guard DIESEL
 —
camshaft, valves Toothed belt guard DIESEL:CK
 —
(31)
Threaded pin M 10 X 45
M 10 X 45
 N 900 803 01
(33)
adjusting washer 3,35
3,35
 056 109 562
(33)
adjusting washer 4,25
4,25
 056 109 580
(33)
adjusting washer 4,2
4,2
 056 109 579
(33)
adjusting washer 4,15
4,15
 056 109 578
(33)
adjusting washer 4,1
4,1
 056 109 577
(33)
adjusting washer 4,05
4,05
 056 109 576
(33)
adjusting washer 4
4
 056 109 575
(33)
adjusting washer 3,95
3,95
 056 109 574
(33)
adjusting washer 3,9
3,9
 056 109 573
(33)
adjusting washer 3,85
3,85
 056 109 572
(33)
adjusting washer 3,8
3,8
 056 109 571
(33)
adjusting washer 3,75
3,75
 056 109 570
(33)
adjusting washer 3,7
3,7
 056 109 569
(33)
adjusting washer 3,65
3,65
 056 109 568
(33)
adjusting washer 3,6
3,6
 056 109 567
(33)
adjusting washer 3,55
3,55
 056 109 566
(33)
adjusting washer 3,5
3,5
 056 109 565
(33)
adjusting washer 3,45
3,45
 056 109 564
(33)
adjusting washer 3,4
3,4
 056 109 563
(39)
spring disc
 049 109 641 A
(40)
cotter, split
 113 109 651 A
(6)
Toothed belt guard air condit.
 068 109 121 A
1
Camshaft
 068 109 101 B
10
Hexagon bolt M 6 X 22
M 6 X 22
 N 010 222 8
11
Hexagon nut M 6
M 6
 N 011 006 8
11
Hexagon nut M 6
M 6
 N 011 006 24
12
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
12
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 13
14
Spring washer 6
6
 N 012 226 5
15A
Toothed belt guard
 068 109 127 A
16
t-head screw M 6 X 35
M 6 X 35
 N 900 534 01
17
Hexagon nut M 6
M 6
 N 011 006 24
18
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
19
Socket head bolt with hexagonsocket head (combination) M 8 X 25
M 8 X 25
 N 090 315 1
2
toothed belt pulley
 069 109 111
21
spacer bush M >> CK 397 115 M CK 397 116>> A 7 X 14 X 8,2
A 7 X 14 X 8,2
 052 109 135
22
Bearing bush
 056 109 135
23
Grommet
 056 129 669 B
24
bracket for toothed belt cover
 068 109 179
25
Socket head bolt withhexagon socket head M 8 X 22
M 8 X 22
 N 014 709 1
26
Socket head bolt withhexagon socket head M 8 X 18
M 8 X 18
 N 014 712 3
27
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
27
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
28
Tensioning roller also use: N 900 803 01
N 900 803 01
 068 109 243 F
29
Hexagon nut M 10
M 10
 N 011 133 1
3
Washer
 181 405 423
30
Spring washer 10
10
 N 012 231 4
31
Threaded pin M 10 X 55
M 10 X 55
 N 900 127 01
31
No longer available M 10 X 55
M 10 X 55
 —
32
Tappets
 056 109 311 A
33
adjusting washer 3,3
3,3
 056 109 561
34
Inlet valve also use: 104,8049 109 641 A 113 109 651 A
104,8049 109 641 A 113 109 651 A
 068 109 601 C
35
exhaust valve also use: 104,6049 109 641 A 113 109 651 A
104,6049 109 641 A 113 109 651 A
 068 109 611 D
36
Valve spring
 078 109 623 A
36
Valve spring
 056 109 623 B
37
spring disc
 056 109 629 A
38
Valve spring
 078 109 633 A
38
Valve spring
 056 109 633 B
39
spring disc
 056 109 641 A
4
Hexagon bolt M 12 X 1,50 X 35
M 12 X 1,50 X 35
 N 010 137 1
40
cotter, split
 056 109 651
41
Valve stem seal 8 MM
8 MM
 026 109 675
5
toothed belt Z=135
Z=135
 068 109 119 E
6
No longer available
 —
6
Toothed belt guard
 068 109 121
7
Hexagon bolt M 6 X 30
M 6 X 30
 N 010 220 12
7
Hexagon bolt M 6 X 30
M 6 X 30
 N 010 220 3
9
Washer R 7 X 22 X 2
R 7 X 22 X 2
 N 011 612 3
9
Washer 7,4 X 22 X 2
7,4 X 22 X 2
 N 011 667 2

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
7000

Related factory diagrams

Other published engine plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the camshaft valves toothed belt guard diagram for the Mk1 Golf?
This diagram lists 68 OEM part numbers for the Mk1 Golf. The first three are N 900 803 01, 056 109 562 and 056 109 580.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
