Crankshaft — Mk1 Golf Engine (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Crankshaft

Generation: Mk1 1982 - 1983 (RDW) Group: Engine Rebuild step 1 Parts: 151 Primary OEM: 034 105 701 0 07, 034 105 719 0 07, 034 105 713 0 07

Crankshaft for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 6000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 149 OEM part numbers across 151 catalogued positions including 034 105 701 0 07, 034 105 719 0 07 and 034 105 713 0 07. Parts on this plate carry the engine code JK. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 149 OEM part numbers across 151 numbered positions.

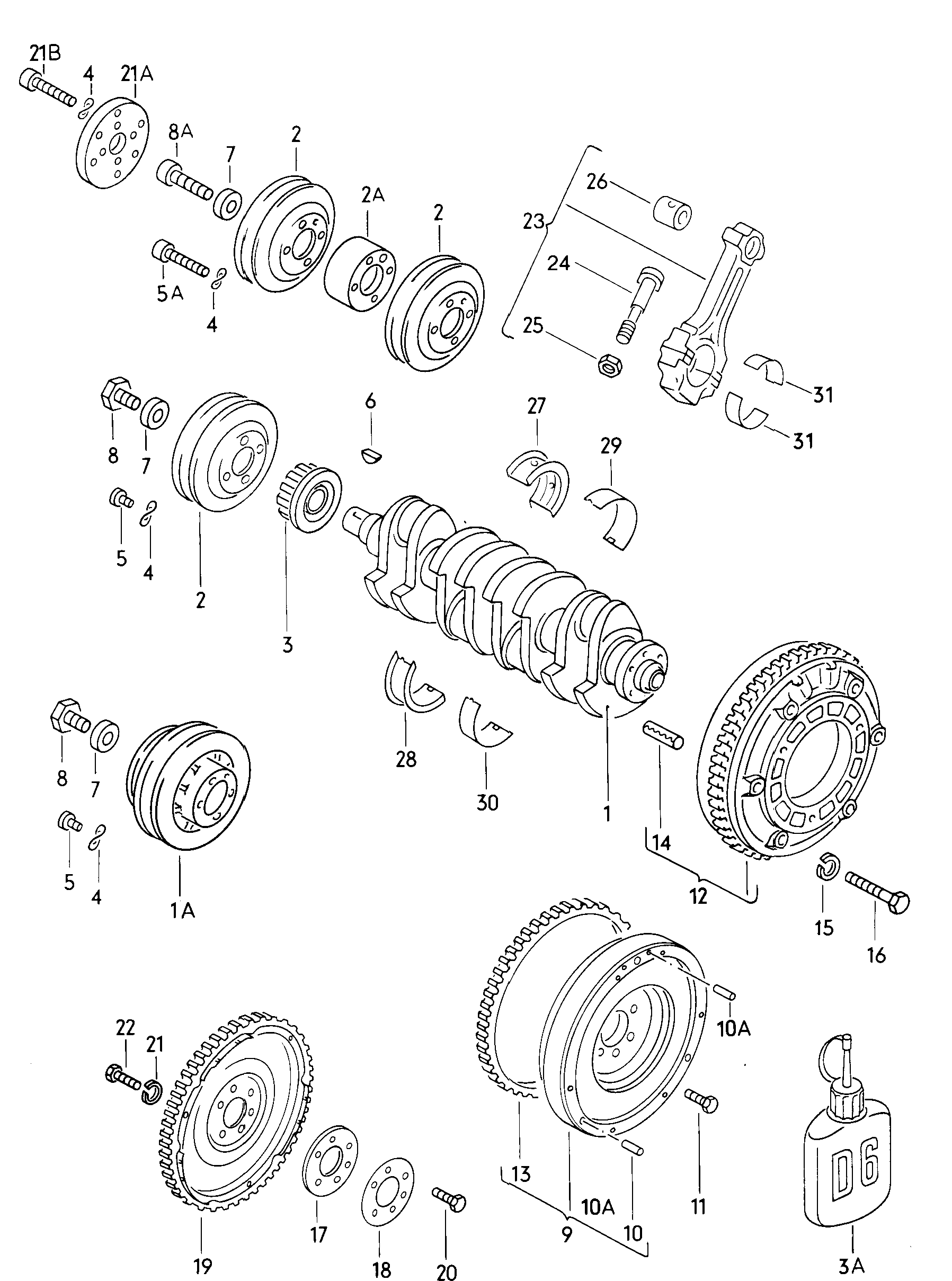

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	yellow	034 105 701 0 07
	yellow	034 105 719 0 07
	yellow	034 105 713 0 07
	yellow	030 105 719 G 0 07
	yellow	030 105 701 G 0 07
	flywheel 210 MM AAZ 210 MM	027 105 271 RX
	yellow	034 105 707 0 07
	yellow	030 105 713 G 0 07
	yellow	030 105 707 G 0 07
-	toothed belt pulley GG,GS,GF	030 105 263
-	1 set: conrod bearing shells EG,EM,EN,FR,GH,JB	056 198 501
-	Spring washer 8 X 15 X 0,5 EW 8 X 15 X 0,5	N 012 229 3
-	Hexagon bolt M 14 X 1,5 X 47 GG,GS,GF M 14 X 1,5 X 47	N 902 928 02
-	oil pump GG,GS,GF	052 115 105 B
-	bush GG,GS,GF	052 105 313
(1)	Crankshaft JB,GH	049 105 021 S
(1)	Crankshaft EW,HN	026 105 101 K
(1)	Crankshaft also use: 052 105 313030 105 263052 115 105 BN 902 928 02 GG,GS,GF 052 105 313030 105 263052 115 105 BN 902 928 02	036 105 021 C
(1)	Crankshaft also use: >>15-C-050000 >>16-C-999999 >>17-C-999999 >>53-C-100000049 105 263 C 068 105 193 AN 040 106 4 EN >>15-C-050000 >>16-C-999999 >>17-C-999999 >>53-C-100000049 105 263 C 068 105 193 AN 040 106 4	049 105 021 AA
(1)	Crankshaft also use: DIESEL:CR 028 105 263068 105 193 AN 902 079 01 DIESEL:CR,JKT-DIESEL:CY DIESEL:CR 028 105 263068 105 193 AN 902 079 01	068 105 021 D
(1)	Crankshaft also use: 028 105 263 E 068 105 193 AN 902 079 01 DIESEL:CR,JKT-DIESEL:CYDIESEL:CR 028 105 263 E 068 105 193 AN 902 079 01	068 105 101 M
(12)	flywheel 210 MM M 480:EM,DIESEL:JK,T-DIESEL:CY 210 MM JK	027 105 271 X
(12)	flywheel 200 MM EM,FR,GH,JBEN,EG,EW,HNDIESEL:CR,JKT-DIESEL:CY 200 MM	067 105 271 HX
(12)	flywheel 210 MM DX,JJ 210 MM	027 105 271 RX
(12)	flywheel 210 MM DX,JJ 210 MM	027 105 271 R
(12)	flywheel 210 MM DX,JJ 210 MM	027 105 271 X
(12)	flywheel 210 MM M 480:EM,DIESEL:JK,T-DIESEL:CY 210 MM JK	027 105 271
(12)	flywheel 210 MM M 480:EM,DIESEL:JK,T-DIESEL:CY 210 MM JK	027 105 271 RX
(12)	flywheel 210 MM M 480:EM,DIESEL:JK,T-DIESEL:CY 210 MM JK	027 105 271 R
(16)	12-point head boltfor flywheel M 7 X 40 X 20210 MM DIESEL:JK,T-DIESEL:CY;EM,DX,JJ M 7 X 40 X 20210 MM JK	N 100 134 01
(1A)	V-belt pulley withvibration damper DX,JJ	026 105 243 B
(2)	v-belt pulley Power steering EW,HN,FR,JB,EM	055 105 255 J
(2)	v-belt pulley EW,HN	026 105 255
(2)	v-belt pulley F 16-C-630 001>>F 17-C-630 001>> DIESEL:CR,JK JK	068 105 255 H
(23)	1 set: connecting rods EG,EM,EN,FR,GH,JB	056 198 401
(23)	1 set: connecting rods DIESEL:CR,JKT-DIESEL:CY	068 198 401 D
(23)	1 set: connecting rods DX,JJ,EW,HN	026 198 401 A
(23)	1 set: connecting rods DX,JJ,EW,HN	026 198 401
(24)	Big end bolt, press-fitted(rotation-angle controlled)for: 068 198 401 D DIESEL:CR,JKT-DIESEL:CY 068 198 401 D	037 105 425
(24)	connecting rod bolt,pressed in M 9 X 1 EG,EM,EN,HN,FR,GH,JB,EW,DIESEL:CR,JKT-DIESEL:CY M 9 X 1	056 105 425 C
(24)	Big end bolt, press-fitted(rotation-angle controlled) also use: 048 105 427 DX,JJ,HN 048 105 427	048 105 425
(24)	bolt - connecting rod M 9,5 X 1 EG,EM,EN,FR,GH,JB M 9,5 X 1	056 105 425 B
(25)	Hexagon nut M 9 X 1 EG,EM,EN,FR,GH,JB,DIESEL:CR,JKT-DIESEL:CY M 9 X 1	056 105 427
(25)	Hexagon nut also use: 048 105 425 DX,JJ,HN 048 105 425	048 105 427
(26)	bush - connecting rod DIESEL:CR,JKT-DIESEL:CY	069 105 431 A
(26)	bush - connecting rod EG,EM,EN,FR,GH,JB	056 105 431
(26)	bush - connecting rod DX,JJ,EW,HN	026 105 431
(26)	Hexagon collar nutfor: M 9 X 1068 198 401 D DIESEL:CR,JKT-DIESEL:CY M 9 X 1068 198 401 D	068 105 427
(27)	1 set: crankshaft bearings EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY	056 198 491
(27)	1 set: crankshaft bearings EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY	056 198 493 A
(27)	crankshaft bearing shell GF,GG,GS	056 105 507 B
(27)	crankshaft bearing shell GF,GG,GS	056 105 513 B
(27)	1 set: crankshaft bearings EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY	056 198 495
(27)	1 set: crankshaft bearings EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY	056 198 497
(27)	crankshaft bearing shell GF,GG,GS	056 105 519 B
(29)	crankshaft bearing shell GF,GG,GS	056 105 573 B
(29)	1 set: crankshaft bearings also use: 056 105 579 B EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 056 105 579 B	068 198 497
(29)	crankshaft bearing shell GF,GG,GS	056 105 579 B
(29)	crankshaft bearing shell GF,GG,GS	056 105 567 B
(29)	1 set: crankshaft bearings also use: 056 105 573 B EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 056 105 573 B	068 198 495
(29)	1 set: crankshaft bearings also use: 056 105 567 B EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 056 105 567 B	068 198 493
(29)	1 set: crankshaft bearings also use: 056 105 561 B EG,DX,JJ,EM,EN,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 056 105 561 B	068 198 491
(3)	toothed belt pulley DIESEL:JK,T-DIESEL:CY JK	028 105 263 E
(3)	toothed belt pulley DIESEL:JK,T-DIESEL:CY JK	028 105 263
(3)	toothed belt pulley F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 EG,EM,EN,JB,GHEG,EM,EN,FR,JB,GHEG,EM,EN,JB,GHEG,EM,EN,FR,JB,GH	049 105 263 B
(3)	toothed belt pulley F ..-D-000 001>> DX,JJ,EM,EN,JB,FR,EW	049 105 263 C
(3)	toothed belt pulley DIESEL:CR	068 105 263 B
(31)	connecting rod bearing shell EG,EM,EN,FR,GH,JB	056 105 719
(31)	connecting rod bearing shell DIESEL:CR,JKT-DIESEL:CY	033 105 719
(31)	connecting rod bearing shell GF,GG,GS	030 105 719 G
(31)	connecting rod bearing shell GF,GG,GS	030 105 707 G
(31)	connecting rod bearing shell EG,EM,EN,FR,GH,JB	056 105 701
(31)	connecting rod bearing shell DIESEL:CR,JKT-DIESEL:CY	033 105 701
(31)	connecting rod bearing shell GF,GG,GS	030 105 701 G
(31)	connecting rod bearing shell EG,EM,EN,FR,GH,JB	056 105 707
(31)	connecting rod bearing shell GF,GG,GS	030 105 713 G
(31)	connecting rod bearing shell DIESEL:CR,JKT-DIESEL:CY	033 105 713
(31)	connecting rod bearing shell DX,JJ,EW,HN	034 105 713
(31)	connecting rod bearing shell EG,EM,EN,FR,GH,JB	056 105 713
(31)	connecting rod bearing shell DX,JJ,EW,HN	034 105 719
(31)	connecting rod bearing shell DIESEL:CR,JKT-DIESEL:CY	033 105 707
(31)	connecting rod bearing shell GF,GG,GS	052 105 719
(31)	connecting rod bearing shell DX,JJ,EW,HN	034 105 707
(5)	Socket head bolt withhexagon socket head also use: M 8 X 12 N 012 229 3 EW M 8 X 12 N 012 229 3	N 014 706 2
(5)	Socket head bolt withhexagon socket head also use: M 8 X 12 N 012 229 3 EW M 8 X 12 N 012 229 3	N 014 706 7
(5)	Socket head bolt withhexagon socket head M 8 X 38 DX,JJ M 8 X 38	N 100 227 01
(5)	Socket head bolt with hexagonsocket head (combination) AM 8 X 47-S 4-S T-DIESEL:CY AM 8 X 47-S 4-S	N 902 127 01
(7)	Washer 12,5 X 28 X 6 GG,GF,GS 12,5 X 28 X 6	056 109 143
(7)	Washer DIESEL:CR	068 105 299
(7)	Washer DIESEL:JK,T-DIESEL:CY JK	068 105 193 A
(7)	Washer F ..-D-000 001>> DX,EM,EN,EW,FR,HN,JB,JJ	068 105 193 A
(8)	Hexagon bolt M 12 X 1,5 X 35 GG,GF,GS,EG M 12 X 1,5 X 35	N 010 137 1
(8)	Hexagon bolt M 12 X 45 DIESEL:CR M 12 X 45	N 901 120 01
(8)	12-point head bolt F ..-E-010 001>> M 14 X 1,5 X 33 EN,HN,JB,FR M 14 X 1,5 X 33	N 903 208 02
(8)	Hexagon bolt F 15-D-000 001>> 15-D-050 000 F 16-D-000 001>> 16-E-010 000 F 17-D-000 001>> 17-E-010 000 F 53-D-000 001>> 53-D-100 000 M 14 X 1,5 X 40 EN,JB,GH,EM,FR M 14 X 1,5 X 40	N 040 106 4
(8)	12-point head bolt F ..-E-010 001>> M 14 X 1,5 X 33 EN,HN,JB,FR M 14 X 1,5 X 33	026 105 229
(8)	Hexagon bolt F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 M 12 X 1,5 X 35 EN,JB,GH,EM,FR M 12 X 1,5 X 35	N 010 137 1
(8)	Hexagon bolt M 14 X 1,5 X 40 DX,JJ,EW M 14 X 1,5 X 40	N 040 106 4
(8)	12-point head boltfor: M 14 X 1,5 X 47068 105 101 M DIESEL:CR,JKT-DIESEL:CY M 14 X 1,5 X 47068 105 101 M	N 905 771 01
(9)	flywheel GF,GG,GS	052 105 269 X
1	Crankshaft also use: >>15-C-050000 >>16-C-999999 >>17-C-999999 >>53-C-100000049 105 263 C 068 105 193 AN 040 106 4 EG,EM,FR >>15-C-050000 >>16-C-999999 >>17-C-999999 >>53-C-100000049 105 263 C 068 105 193 AN 040 106 4	068 105 021 G
1	Crankshaft DX,JJ	026 105 101 E
10	Cylinder pin 6 X 16 GF,GG,GS 6 X 16	N 013 210 2
10	Cylinder pin 6 M 6 X 16 GF,GG,GS 6 M 6 X 16	N 013 210 1
10A	Cylinder pin 8 X 25,5 GF,GG,GS 8 X 25,5	N 043 205 1
11	Hexagon bolt M 10 X 1 X 19,5 GF,GG,GS M 10 X 1 X 19,5	N 902 061 03
12	flywheel 200 MM EM,FR,GH,JB,EN,EG,EW,HN,DIESEL:CR,JKT-DIESEL:CY 200 MM	067 105 271 F
12	flywheel 200 MM EM,FR,GH,JB,EN,EG,EW,HN,DIESEL:CR,JKT-DIESEL:CY 200 MM	067 105 271 H
13	starter ring GF,GG,GS	052 105 275
14	spring pin 6,2 X 22 EG,EM,EN,DX,JJ,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 6,2 X 22	055 105 277
15	spring ring 7 7	N 042 001 1
16	Hexagon bolt M 7 X 40 M 7 X 40	N 010 406 3
17	Washer automatic	056 105 301 A
18	compensation washer 1,2 MM automatic 1,2 MM	056 105 303
19	Clutch plate also use: 087 323 699053 105 301 A 056 105 303 automatic 087 323 699053 105 301 A 056 105 303	053 105 323 E
1A	V-belt pulley withvibration damper T-DIESEL:CY	068 105 243 A
2	v-belt pulley carburetorindustrialengine	056 105 255
2	v-belt pulley GG,GF,GS,EG,FR,EN,JB,GH,EM	056 105 255
2	v-belt pulley F >> 16-C-630 000F >> 17-C-630 000 DIESEL:CR	056 105 255
20	Hexagon bolt M 10 X 1 X 19,5 automatic M 10 X 1 X 19,5	N 902 061 03
21	spring ring 8 automatic 8	N 012 038 8
21	spring ring 8 automatic 8	N 012 038 7
21A	flange for additional powertake-off industrialengine	036 105 379
21B	Socket head bolt withhexagon socket head M 8 X 45 M 8 X 45	N 014 715 4
21B	Socket head bolt withhexagon socket head M 8 X 45 M 8 X 45	N 014 715 2
22	Hexagon bolt M 8 X 14,5 automatic M 8 X 14,5	089 323 699
23	1 set: connecting rods GF,GG,GS	030 198 401 A
23	1 set: connecting rods GF,GG,GS	052 198 401 B
24	bolt - connecting rod GF,GG,GS	052 105 425 A
25	Hexagon nut GF,GG,GS	052 105 427
26	bush - connecting rod GF,GG,GS	052 105 431
27	crankshaft bearing shell GF,GG,GS	056 105 501 B
28	Discont. / replace: 056 198 491056 198 493 A 056 198 495056 198 497 056 198 491056 198 493 A 056 198 495056 198 497	—
29	crankshaft bearing shell GF,GG,GS	056 105 561 B
2A	Shim industrialengine	036 105 259
3	toothed belt pulley GG,GF,GS	049 105 263 B
30	Discont. / replace: 068 198 491068 198 493068 198 495068 198 497 068 198 491068 198 493068 198 495068 198 497	—
31	connecting rod bearing shell DX,JJ,EW,HN	034 105 701
3A	Locking fluid	D 000 600 A2
3A	Locking fluid 10 ML 10 ML	D 000 600
4	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
4	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
5	Socket head bolt withhexagon socket head M 8 X 12 M 8 X 12	N 014 706 7
5	Socket head bolt withhexagon socket head M 8 X 12 M 8 X 12	N 014 706 2
5A	Socket head bolt withhexagon socket head M 8 X 40 industrialengine M 8 X 40	N 014 717 2
6	woodruff key 4 X 5 4 X 5	N 012 708 2
7	Washer F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 12,5 X 28 X 6 EG,EM,EN,GH,JB 12,5 X 28 X 6	056 109 143
8	Hexagon bolt M 14 X 1,5 X 55 DIESEL:JKT-DIESEL:CY M 14 X 1,5 X 55	N 902 079 01
8A	Socket head bolt withhexagon socket head M 12 X 1,50 X 35 industrialengine M 12 X 1,50 X 35	N 044 737 2
8A	Hexagon bolt M 12 X 1,5 X 35 industrialengine M 12 X 1,5 X 35	N 044 737 1
9	flywheel GF,GG,GS	052 105 269
