Cylinder block pistonsoil sumpengine gearbox assy skid plate — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Cylinder block with pistons. oil sump

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 88 Primary OEM: N 905 927 03, 068 103 645 M, 068 103 645 G

Cylinder block pistonsoil sumpengine gearbox assy skid plate for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 2010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 84 OEM part numbers across 88 catalogued positions including N 905 927 03, 068 103 645 M and 068 103 645 G. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 84 OEM part numbers across 88 numbered positions.

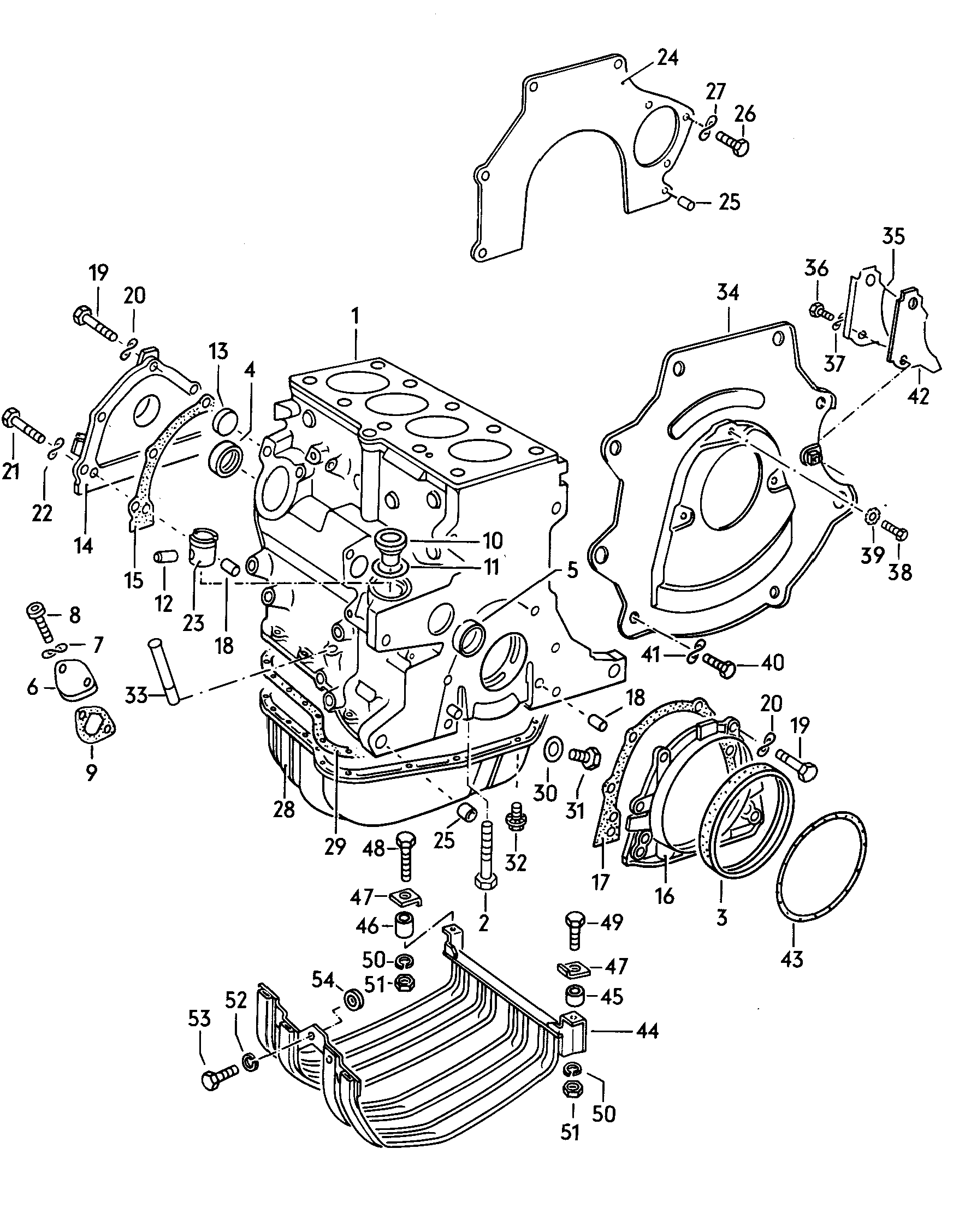

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder block with pistonsoil sump 1.5/1.6 ltr. EG,EH,EJ,EM,FN,FV,FR,JB,GH,DIESEL:CK 1.5/1.6 ltr.	—
-	bolt, hex. hd. with shoulder,self-locking M 6 X 16 M 6 X 16	N 905 927 03
-	cover plate	068 103 645 M
-	cover plate	068 103 645 G
-	Cover plate	068 103 648 D
-	Guide M CK 800 000>> DIESEL:CK	036 115 636
-	Hexagon bolt M CK 800 000>> M 6 X 12 DIESEL:CK M 6 X 12	N 010 212 14
-	Hexagon bolt M CK 800 000>> M 6 X 12 DIESEL:CK M 6 X 12	N 010 212 26
-	Washer M CK 800 000>> 8,1 X 11,7 DIESEL:CK 8,1 X 11,7	076 115 643
-	O-ring M CK 800 000>> 7,3 X 2,4 DIESEL:CK 7,3 X 2,4	N 900 322 03
-	Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22	N 902 716 02
-	Seal	044 103 609 D
(1)	cylinder block with pistons EH,JB	049 103 101 E
(1)	cylinder block with pistons M >> CK 799 999 DIESEL:CK	068 103 101
(1)	cylinder block with pistons EG	049 103 101 B
(1)	cylinder block with pistons FV	049 103 101 C
(14)	Sealing flange DIESEL:CK	068 103 153
(14)	Sealing flange M >> EG 106 000M >> EH 204 000M >> EJ 010 000M >> FN 167 000M >> FR 039 000M >> FV 032 500M >> JB 179 000*	055 103 153 A
(33)	tube for oil dipstick M CK 800 000>> also use: N 900 322 03076 115 643 N 010 212 26036 115 636 DIESEL:CK N 900 322 03076 115 643 N 010 212 26036 115 636	068 115 629
(6)	End cap DIESEL:CK	068 103 111
1	cylinder block with pistons FN,FR,EJ,EM	049 103 101 H
1	No longer available	—
10	End cap DIESEL:CK	068 103 113 B
11	seal ring DIESEL:CK	056 905 261
12	Bungs 6,4 MM EG,EH,EM,EJ,FN,FR,FV,JB,GH 6,4 MM	056 103 117
13	End cap 14 14	N 011 907 4
13	End cap A 14 A 14	N 011 907 7
14	Sealing flange M EG 106 001>>M EH 204 001>>M EJ 030 001>>M EM 000 001>>M FN 167 001>>M FR 039 001>>M JB 179 001>>	051 103 152
15	Seal	026 103 161 B
15	Seal	026 103 161 A
16	Sealing flange	068 103 171 F
16	Sealing flange	055 103 173 B
17	Seal	026 103 181 B
17	Seal	030 103 181
18	Cylinder pin 8 X 14 8 X 14	N 043 207 2
19	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
2	Hexagon bolt M 10 X 65 M 10 X 65	N 010 465 5
2	Hexagon bolt M 10 X 65 M 10 X 65	N 102 638 01
20	Spring washer 6 6	N 012 226 5
21	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
22	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
22	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
23	bush	056 103 541
24	Spacer plate AUTOMATIC	055 103 551
25	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
26	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
27	Spring washer 7 7	N 012 234 5
28	Engine oil sump	055 103 601
29	Seal	028 103 609 A
29	Discont. / replace: 044 103 609 DN 905 927 03 N 902 716 02 044 103 609 DN 905 927 03 N 902 716 02	—
3	Discont. / replace: 068 103 171 F 068 103 171 F	—
30	seal ring 14 X 20 14 X 20	N 013 849 2
31	oil drain plug M 14 X 1,5 X 16 M 14 X 1,5 X 16	N 902 889 01
32	Hex collared bolt M 6 X 14 M 6 X 14	N 900 084 01
33	tube for oil dipstick EG,EH,EJ,EM,FN,FV,FR,JB,GH	049 103 635
33	tube for oil dipstick M >> CK 799 999 DIESEL:CK	049 103 635
34	Cover plate also use: 068 103 648 D 068 103 645 G 068 103 648 D 068 103 645 G	068 103 621 B
34	Cover plate also use: 068 103 648 D 068 103 645 M 068 103 648 D 068 103 645 M	068 103 621 E
35	cover plate	055 103 648 E
36	Hexagon bolt M 6 X 8 M 6 X 8	N 010 208 5
37	Spring washer 6 6	N 012 226 5
38	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
38	Hexagon bolt M 6 X 10 M 6 X 10	N 010 210 7
39	Toothed washer 6,4 6,4	N 015 369 1
4	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
4	Shaft oil seal	068 103 085 A
40	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
41	Spring washer 7 7	N 012 234 5
42	Seal	055 103 649 A
43	Seal	055 103 650 A
44	engine/gearbox assy skid platefor models with powersteering also use: 191 018 951191 018 952 191 018 951191 018 952	357 018 905 A
44	engine/gearbox assy skid platefor models with powersteering also use: 191 018 951191 018 952 191 018 951191 018 952	357 018 905
45	spacer sleeve 16 16	171 018 907
46	spacer sleeve 16 16	171 018 907
47	Retaining plate B 22 X 7 X 18 B 22 X 7 X 18	171 018 909
48	Hexagon bolt M 8 X 32 M 8 X 32	N 010 332 4
49	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
5	End cap 36,6 36,6	059 103 113
50	spring ring 8 8	N 012 038 7
50	spring ring 8 8	N 012 038 8
51	Hexagon nut M 8 M 8	N 011 008 8
52	spring ring 10 10	N 012 011 3
53	Hexagon bolt M 10 X 22 M 10 X 22	N 010 253 7
54	Washer 10 10	N 011 527 11
6	End cap DIESEL:CK	063 103 113
7	Spring washer 6 6	N 012 226 5
8	Socket head bolt withhexagon socket head M 8 X 18 M 8 X 18	N 014 712 3
9	Seal DIESEL:CK	028 127 311 A
