Cylinder blockoil sump — Mk1 Golf Engine (1981)

Factory title: Volkswagen Golf (1981) - Cylinder block. oil sump

Generation: Mk1 1981 (RDW) Group: Engine Rebuild step 1 Parts: 46 Primary OEM: N 900 322 03, 036 115 636, 076 115 643

Cylinder blockoil sump for the Volkswagen Golf Mk1 (1981): factory exploded diagram 2000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 44 OEM part numbers across 46 catalogued positions including N 900 322 03, 036 115 636 and 076 115 643. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 44 OEM part numbers across 46 numbered positions.

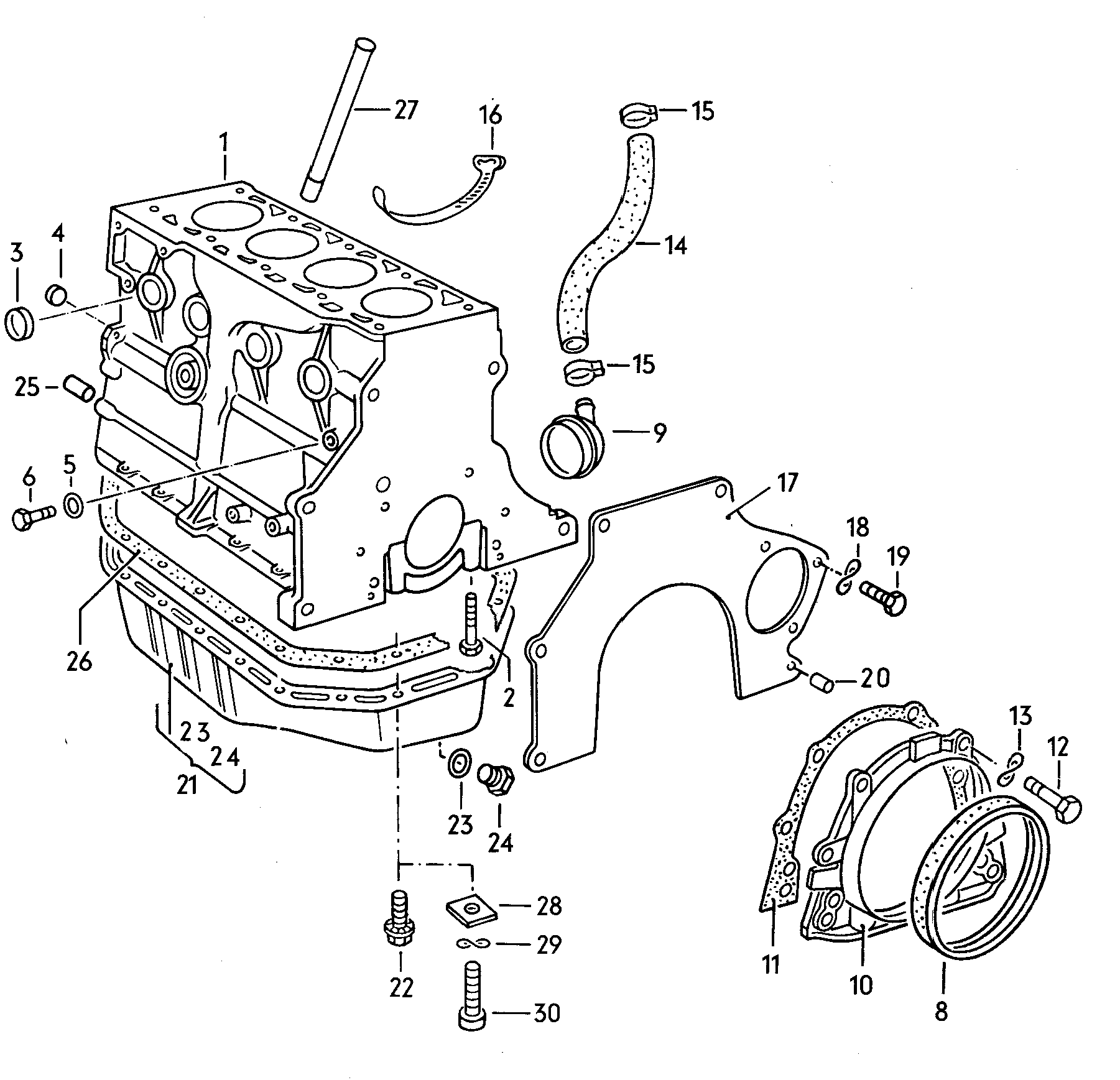

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder blockoil sump 1.1/1.3 ltr. GF,GG 1.1/1.3 ltr.	—
-	O-ring 7,3 X 2,4 7,3 X 2,4	N 900 322 03
-	Guide	036 115 636
-	Washer 8,1 X 11,7 8,1 X 11,7	076 115 643
-	tube for oil dipstick	036 115 629
-	Oil dipstick	036 115 611 B
(1)	cylinder block with pistons also use: 036 115 629036 115 611 B 036 115 636076 115 643 N 900 322 03 GF 036 115 629036 115 611 B 036 115 636076 115 643 N 900 322 03	052 103 101 K
1	cylinder block with pistons also use: 036 115 629036 115 611 B 036 115 636076 115 643 N 900 322 03 GGGF 036 115 629036 115 611 B 036 115 636076 115 643 N 900 322 03	052 103 101 M
10	Sealing flange	068 103 171 F
10	Sealing flange	051 103 172 A
11	Seal	026 103 181 B
11	Seal	030 103 181
12	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
13	Spring washer A 6 A 6	N 012 227 3
13	Spring washer 6 6	N 012 226 5
14	air hose	052 103 493 J
15	Clamp 26,3 26,3	058 131 193 A
16	Cable ties 210 210	N 020 902 1
16	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
17	Spacer plate	052 103 551 A
18	Spring washer 7 7	N 012 234 5
19	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
2	Hexagon bolt M 10 X 65 M 10 X 65	N 102 638 01
2	Hexagon bolt M 10 X 65 M 10 X 65	N 010 465 5
20	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
21	Engine oil sump	030 103 601 A
21	Engine oil sump also use: 032 103 609 B 032 103 609 B	030 103 601 E
22	Hex collared bolt M 6 X 14 M 6 X 14	N 900 084 01
23	seal ring 14 X 20 14 X 20	N 013 849 2
24	oil drain plug M 14 X 1,5 X 16 M 14 X 1,5 X 16	N 902 889 01
25	Cylinder pin 8 X 14 8 X 14	N 043 207 2
26	Seal	030 103 609 A
26	Seal	032 103 609 B
27	tube for oil dipstick	052 103 635
28	Underlay	056 103 615
29	Spring washer 6 6	N 012 226 5
3	End cap 36,6 36,6	059 103 113
30	Socket head bolt withhexagon socket head M 6 X 18 M 6 X 18	N 014 703 5
4	End cap 14 14	N 011 907 4
4	End cap A 14 A 14	N 011 907 7
5	seal ring A 10 X 14 A 10 X 14	N 013 806 4
5	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
6	sealing plug M 10 X 1 M 10 X 1	N 029 702 2
8	Discont. / replace: 068 103 171 F 068 103 171 F	—
8	Sealing flange	068 103 171 G
9	breather assy.	036 103 129
