Cylinder blockoil sumpengine gearbox assy skid plate — Mk1 Golf Engine (1981)

Factory title: Volkswagen Golf (1981) - Cylinder block. oil sump

Generation: Mk1 1981 (RDW) Group: Engine Rebuild step 1 Parts: 103 Primary OEM: 068 103 351 G, 068 103 384 A, 068 103 383 FL

Cylinder blockoil sumpengine gearbox assy skid plate for the Volkswagen Golf Mk1 (1981): factory exploded diagram 3000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 99 OEM part numbers across 103 catalogued positions including 068 103 351 G, 068 103 384 A and 068 103 383 FL. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 99 OEM part numbers across 103 numbered positions.

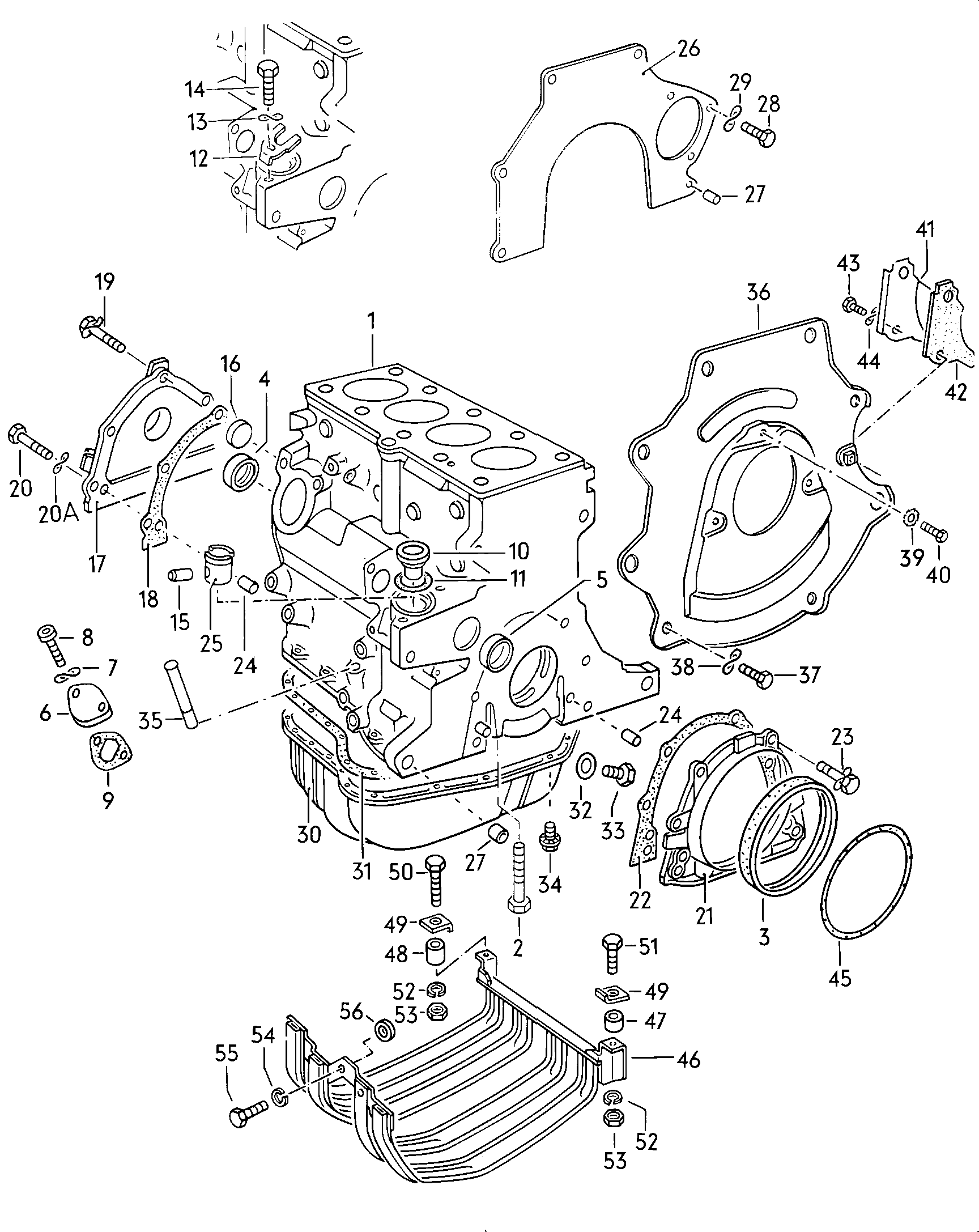

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
cylinder blockoil sumpengine/gearbox assy skid plate EG,EM,EN,FR,GH,JB;DIESEL:CR
 —
cylinder blockoil sump 1.5-1.7 ltr. EG,EM,EN,FR,GH,JB;DIESEL:CR
1.5-1.7 ltr.
 —
engine/gearbox assy skid plate JB,GH
 —
-
Cylinder head
 068 103 351 G
-
Socket head bolt M 12 X 115
M 12 X 115
 068 103 384 A
-
Cylinder head gasket 1,4 MM
1,4 MM
 068 103 383 FL
-
Cylinder head gasket 1,53 MM
1,53 MM
 068 103 383 FM
-
Cylinder head gasket 1,61 MM
1,61 MM
 068 103 383 FN
-
Spring washer 6
6
 N 012 226 5
-
Clamping ring
 191 018 952
-
Spring pin
 191 018 951
-
cover plate
 068 103 645 M
-
Cover plate
 068 103 648 K
-
Socket head bolt with hexagonsocket head (combination) M 6 X 22
M 6 X 22
 N 902 716 02
-
Washer 8,1 X 11,7
8,1 X 11,7
 076 115 643
-
Oil dipstick DIESEL:CR
 068 115 611 P
-
tube for oil dipstick
 068 115 629 A
-
Guide
 036 115 636
-
Seal EN
 051 103 609 E
-
cover plate
 068 103 645 G
-
Cover plate
 068 103 648 D
-
bolt, hex. hd. with shoulder,self-locking M 6 X 16
M 6 X 16
 N 905 927 03
-
O-ring 7,3 X 2,4
7,3 X 2,4
 N 900 322 03
(1)
cylinder block with pistons also use: also use: 068 115 629 A 036 115 636 N 900 322 03076 115 643068 115 611 P >>M CR 176338068 103 351 G 068 103 384 A 068 103 383 FL 068 103 383 FM 068 103 383 FN DIESEL:CR
068 115 629 A 036 115 636 N 900 322 03076 115 643068 115 611 P >>M CR 176338068 103 351 G 068 103 384 A 068 103 383 FL 068 103 383 FM 068 103 383 FN
 068 103 101 E
(1)
cylinder block with pistons EG
 049 103 101 B
(1)
cylinder block with pistons JB
 049 103 101 E
(1)
cylinder block with pistons EN
 049 103 101 N
(17)
Sealing flange DIESEL:CR
 068 103 153
(40)
bolt, hex. hd. with shoulder,self-locking M 6 X 10 DIESEL:CR
M 6 X 10
 N 014 340 1
(6)
End capfor models with brakeservo DIESEL:CR
 068 103 111
1
cylinder block with pistons FR,EM
 049 103 101 H
10
End cap DIESEL:CR
 068 103 113 B
11
seal ring DIESEL:CR
 056 905 261
12
Bracket DIESEL:CR
 028 905 256
12
Bracket DIESEL:CR
 035 905 251 B
13
Spring washer B 8 X 15 DIESEL:CR
B 8 X 15
 N 012 241 10
13
Spring washer B 8 X 15 X 0,8 DIESEL:CR
B 8 X 15 X 0,8
 N 012 241 11
14
Hexagon bolt M 8 X 25 DIESEL:CR
M 8 X 25
 N 010 242 22
15
Bungs 6,4 MM
6,4 MM
 056 103 117
16
End cap 14
14
 N 011 907 4
16
End cap A 14
A 14
 N 011 907 7
17
Sealing flange EG,EM,EN,FR,GH,JB
 051 103 152
18
Seal
 026 103 161 A
18
Seal
 026 103 161 B
19
Hexagon bolt also use: M 6 X 18 N 012 226 5
M 6 X 18 N 012 226 5
 N 010 216 12
2
Hexagon bolt M 10 X 65
M 10 X 65
 N 010 465 5
2
Hexagon bolt M 10 X 65
M 10 X 65
 N 102 638 01
20
Hexagon bolt M 8 X 20
M 8 X 20
 N 010 240 16
20A
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
20A
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
21
Sealing flange
 051 103 172 A
21
Sealing flange
 068 103 171 F
22
Seal
 030 103 181
22
Seal
 026 103 181 B
24
Cylinder pin 8 X 14
8 X 14
 N 043 207 2
25
bush
 056 103 541
26
Spacer plate automatic
 055 103 551
27
dowel sleeve 16 X 12,8
16 X 12,8
 014 301 153
28
bolt, hexagon headself-locking M 7 X 12
M 7 X 12
 N 010 227 6
29
Spring washer 7
7
 N 012 234 5
3
Sealing flange
 068 103 171 G
3
Discont. / replace: 068 103 171 F
068 103 171 F
 —
30
Engine oil sump EN
 049 103 601
30
Engine oil sump EG,EM,FR,GH,JB,DIESEL:CR
 055 103 601
30
Engine oil sump also use: 051 103 609 E EN
051 103 609 E
 051 103 601
31
Seal also use: N 905 927 03 N 902 716 02
N 905 927 03 N 902 716 02
 044 103 609 D
31
Seal
 028 103 609 A
32
seal ring 14 X 20
14 X 20
 N 013 849 2
33
oil drain plug M 14 X 1,5 X 16
M 14 X 1,5 X 16
 N 902 889 01
34
Hex collared bolt M 6 X 14
M 6 X 14
 N 900 084 01
35
tube for oil dipstick
 049 103 635
36
Cover plate also use: 068 103 648 D 068 103 645 G
068 103 648 D 068 103 645 G
 068 103 621 B
36
Cover plate also use: 068 103 648 K 068 103 645 M
068 103 648 K 068 103 645 M
 068 103 621 E
37
bolt, hexagon headself-locking M 7 X 12
M 7 X 12
 N 010 227 6
38
Spring washer 7
7
 N 012 234 5
39
Toothed washer 6,4 EG,EM,EN,FR,GH,JB
6,4
 N 015 369 1
4
Shaft oil seal 47 X 10
47 X 10
 068 103 085 E
4
Shaft oil seal 47 X 10
47 X 10
 068 103 085 A
40
Hexagon bolt M 6 X 10 EG,EM,EN,FR,GH,JB
M 6 X 10
 N 010 210 7
40
Hexagon bolt M 6 X 10 EG,EM,EN,FR,GH,JB
M 6 X 10
 N 905 293 01
41
cover plate
 055 103 648 E
42
Seal
 055 103 649 A
43
Hexagon bolt M 6 X 8
M 6 X 8
 N 010 208 5
44
Spring washer 6
6
 N 012 226 5
45
Seal
 055 103 650 A
46
engine/gearbox assy skid plate also use: 191 018 951191 018 952
191 018 951191 018 952
 357 018 905 A
47
spacer sleeve 16 MM
16 MM
 171 018 907
48
spacer sleeve 16 MM
16 MM
 171 018 907
49
Retaining plate B 22 X 7 X 18
B 22 X 7 X 18
 171 018 909
5
End cap 36,6
36,6
 059 103 113
50
Hexagon bolt M 8 X 32
M 8 X 32
 N 010 332 4
51
Hexagon bolt M 8 X 25
M 8 X 25
 N 010 242 22
52
spring ring 8
8
 N 012 038 8
52
spring ring 8
8
 N 012 038 7
53
Hexagon nut M 8
M 8
 N 011 008 8
54
spring ring 10
10
 N 012 011 3
55
Hexagon bolt M 10 X 22
M 10 X 22
 N 010 253 7
56
Washer 10
10
 N 011 527 11
6
End cap DIESEL:CR
 063 103 113
7
Spring washer B 8 X 15 X 0,8 DIESEL:CR
B 8 X 15 X 0,8
 N 012 241 11
7
Spring washer B 8 X 15 DIESEL:CR
B 8 X 15
 N 012 241 10
8
Socket head bolt withhexagon socket head M 8 X 18 DIESEL:CR
M 8 X 18
 N 014 712 3
9
Seal DIESEL:CR
 028 127 311 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1981
Generation region
RDW
Generation code
026
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
3000

Related factory diagrams

Other published engine plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the cylinder blockoil sumpengine gearbox assy skid plate diagram for the Mk1 Golf?
This diagram lists 99 OEM part numbers for the Mk1 Golf. The first three are 068 103 351 G, 068 103 384 A and 068 103 383 FL.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
